Toyota HILUX Air Cleaner — Figure 1703

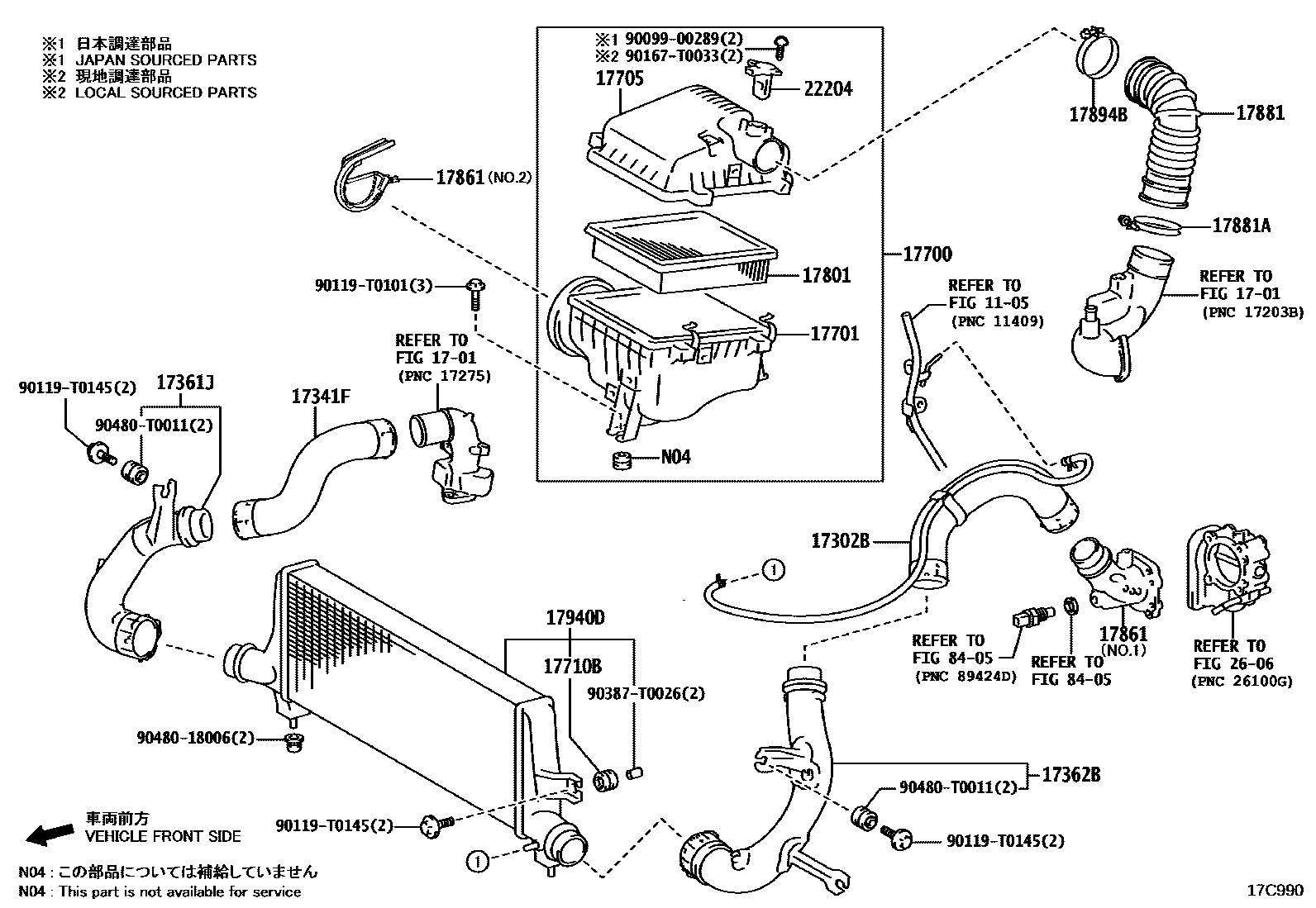

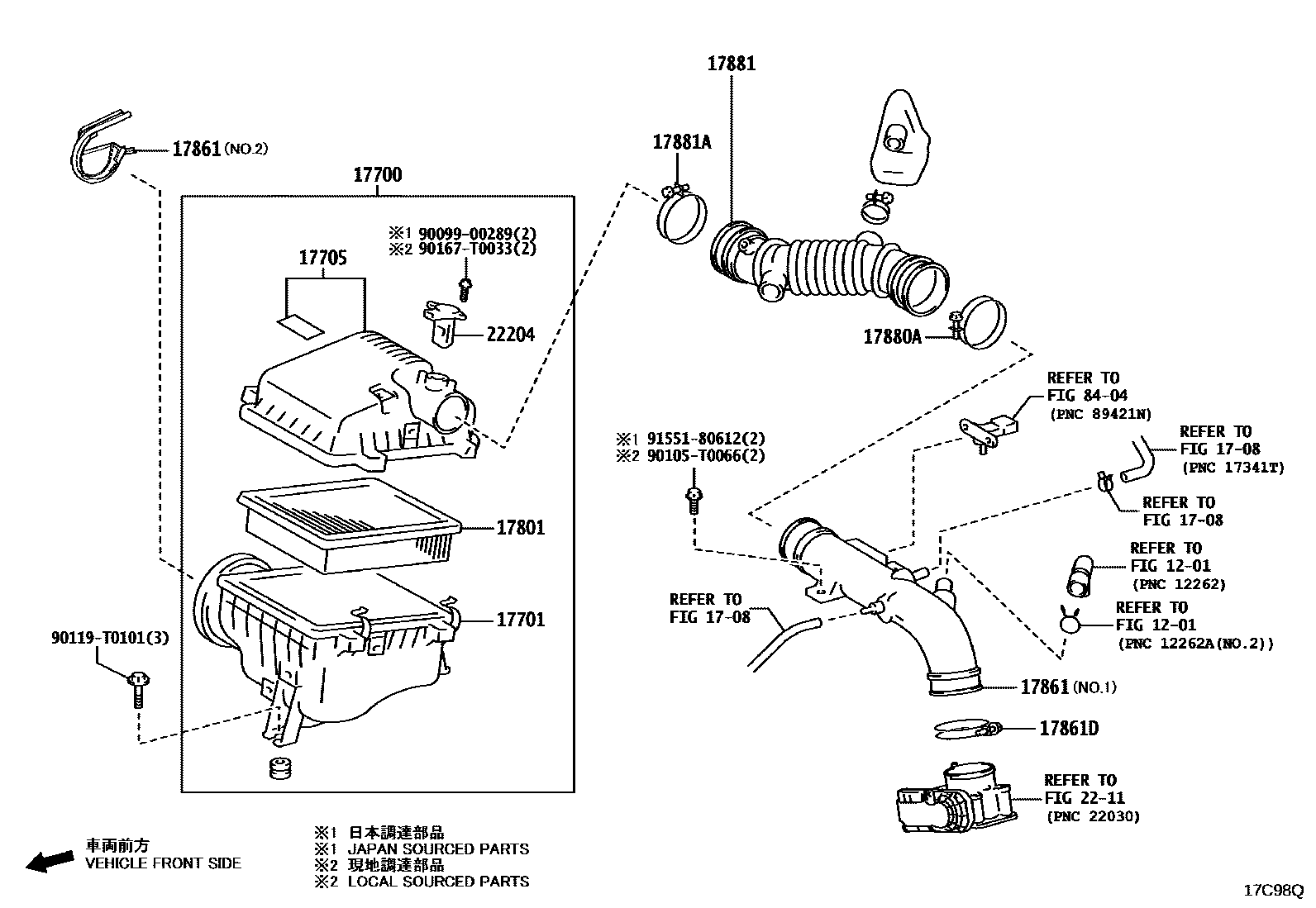

Toyota HILUX EPC diagram 1703, Air Cleaner, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302B | Air hose sub-assembly | 17302-0E022 |
| 17341F | Air hose No. 1 | 17341-0E022 · 17341-0E040 |
| 17361J | Air tube No. 1 | 17361-0E020 |
| 17362B | No. 2 air pipe | 17362-0E020 |
| 17700 | air filter assembly | 17700-0C210 · 17700-0E010 · 17700-0E011 |
| 17701 | Air filter housing sub-assembly | 17701-0C200 · 17701-0E010 · 17701-0E011 |
| 17705 | Air filter cover sub-assembly | 17705-0C160 · 17705-0E010 |
| 17710B | gasket | 90480-T0011 |
| 17801 | Air filter element sub-assembly | 17801-0E010 · 17801-0L040 |
| 17861 | Intake connecting pipe | 17861-08020 · 17861-0C080 · 17861-0C120 · 17861-0C140 · 17861-0C150 · 17861-0E010 |
| 17861D | Clamp (for air intake connecting pipe) | 90460-T0005 · 90460-T0010 · 96111-10750 · 96111-10800 |
| 17880A | hose clamp | 90460-T0005 |
| 17881 | No. 1 air cleaner hose | 17881-0C130 · 17881-0E021 · 17881-0E060 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 · 90460-T0020 |
| 17894B | Hose clamp (for intake resonator No. 2) | 90460-T0020 |
| 17940D | Intercooler assembly | 17940-0E050 |
| 22204 | Intake air flow meter assembly | 22204-75040 |
