Toyota HILUX Manifold — Figure 1701

Toyota HILUX EPC diagram 1701, Manifold, with 7 images and 37 PNC and OE references.

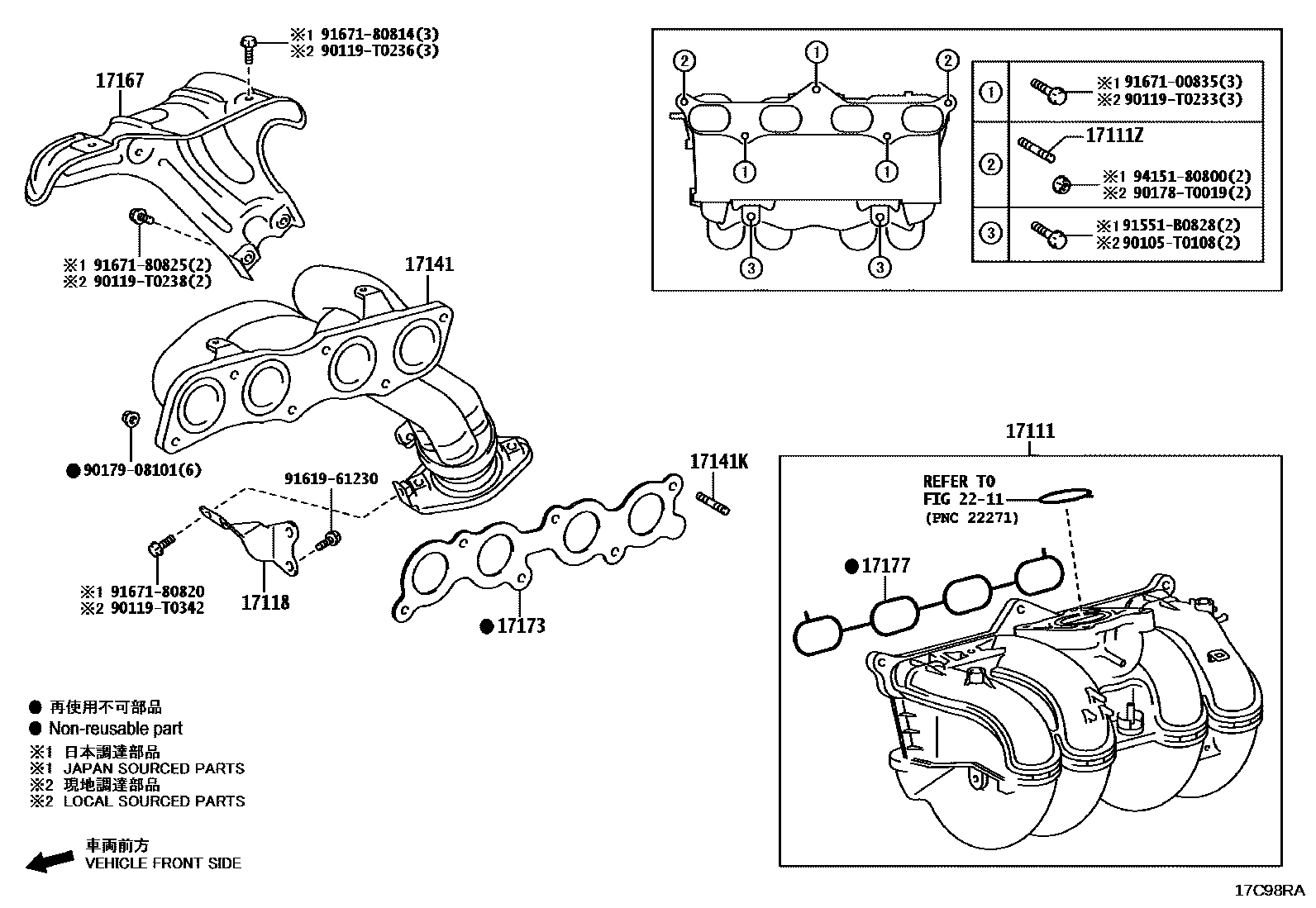

Toyota HILUX Manifold EPC diagram — 17C98RA — Manifold — 17C98RA (202312 – 999999)

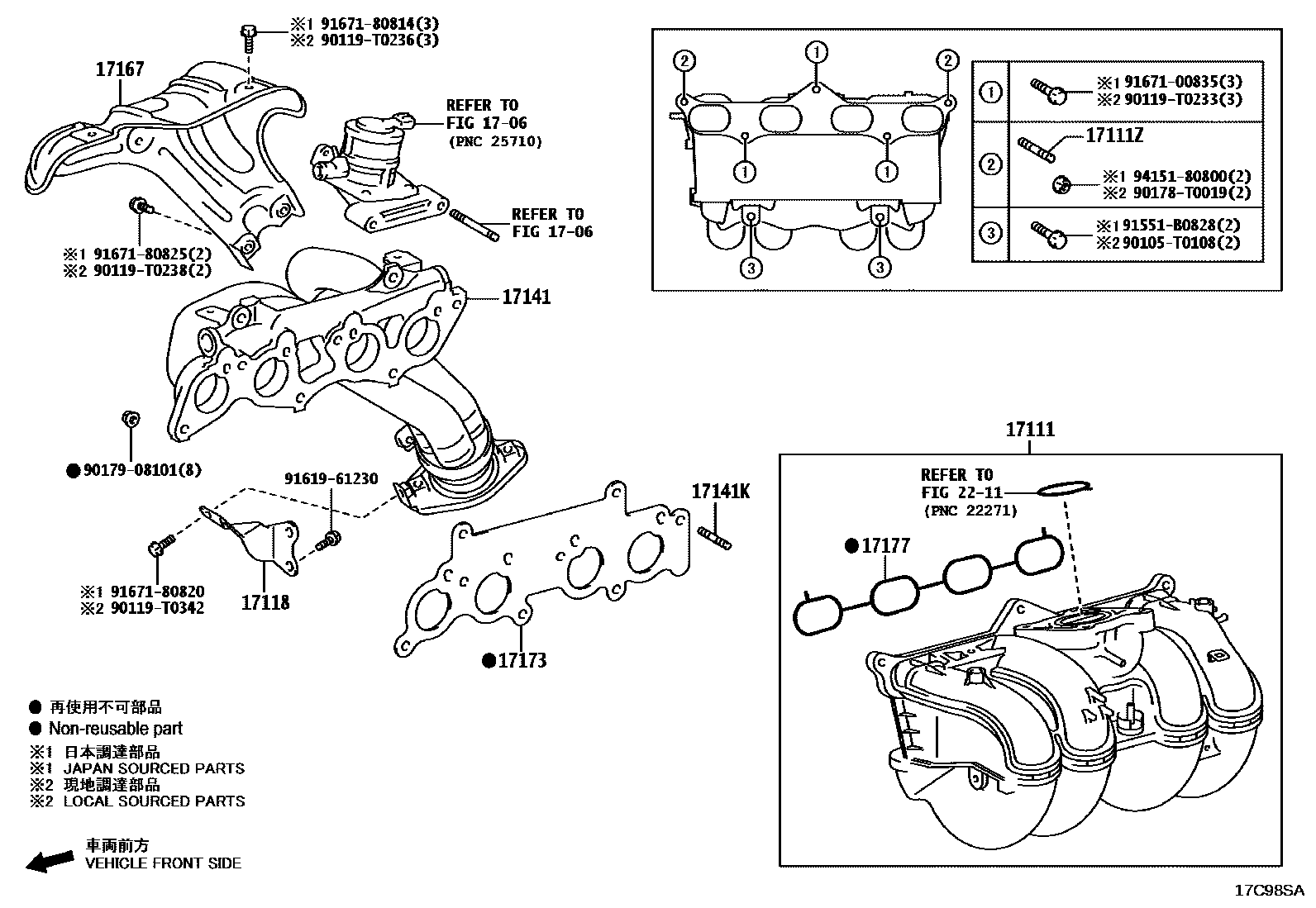

Toyota HILUX Manifold EPC diagram — 17C98SA — Manifold — 17C98SA (202312 – 999999)

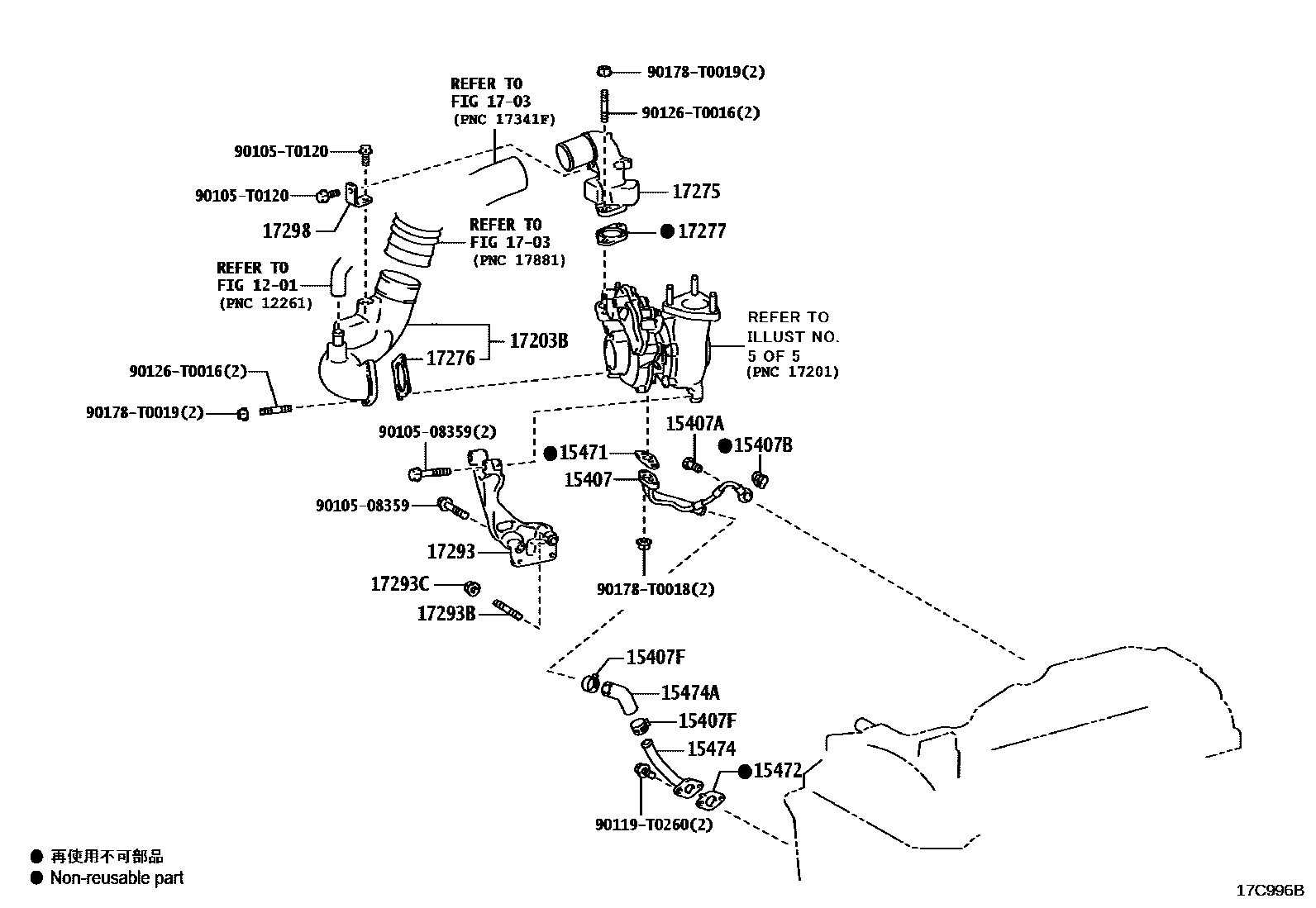

Toyota HILUX Manifold EPC diagram — 17C996B — Manifold — 17C996B (202312 – 999999)

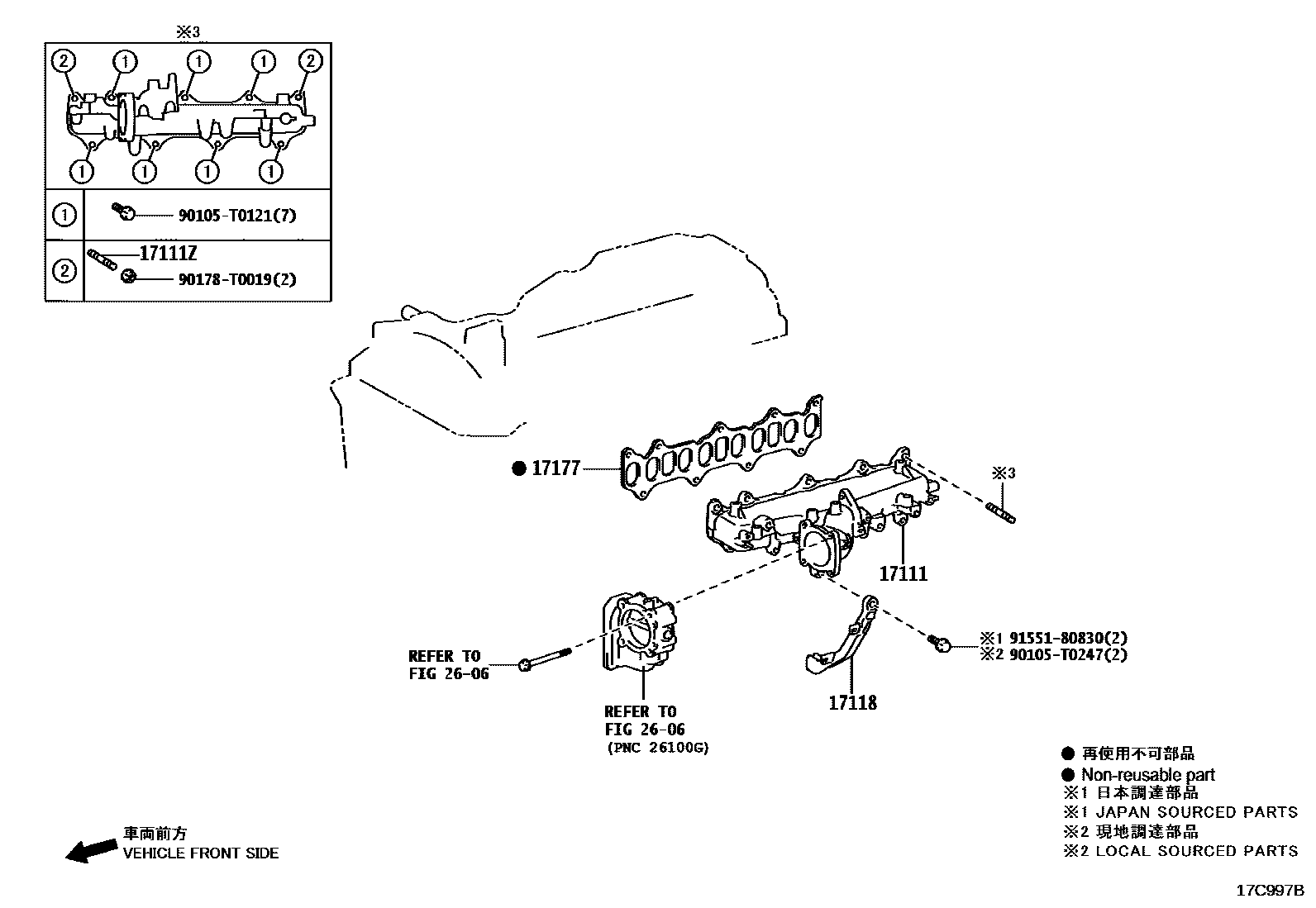

Toyota HILUX Manifold EPC diagram — 17C997B — Manifold — 17C997B (202312 – 999999)

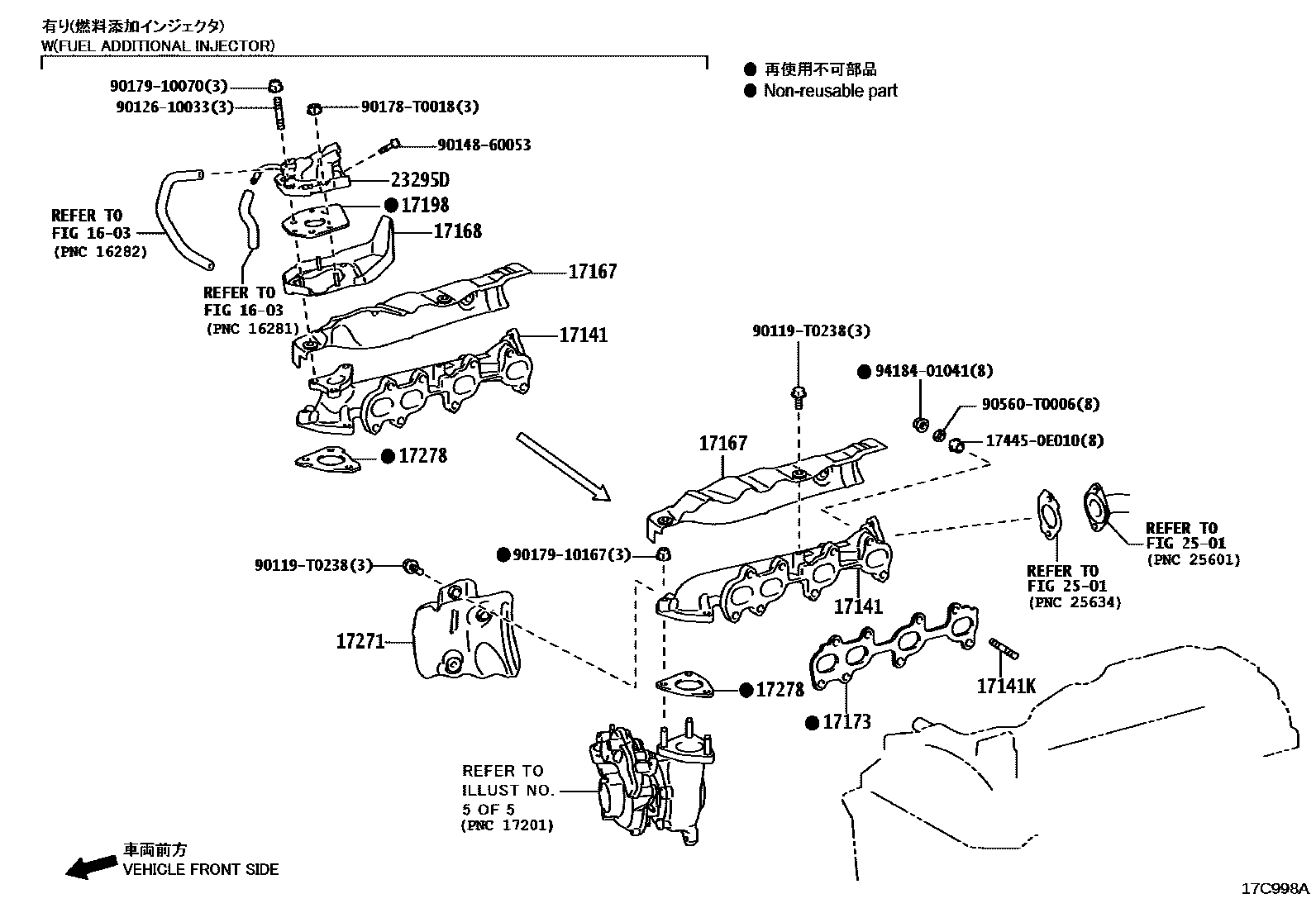

Toyota HILUX Manifold EPC diagram — 17C998A — Manifold — 17C998A (202312 – 999999)

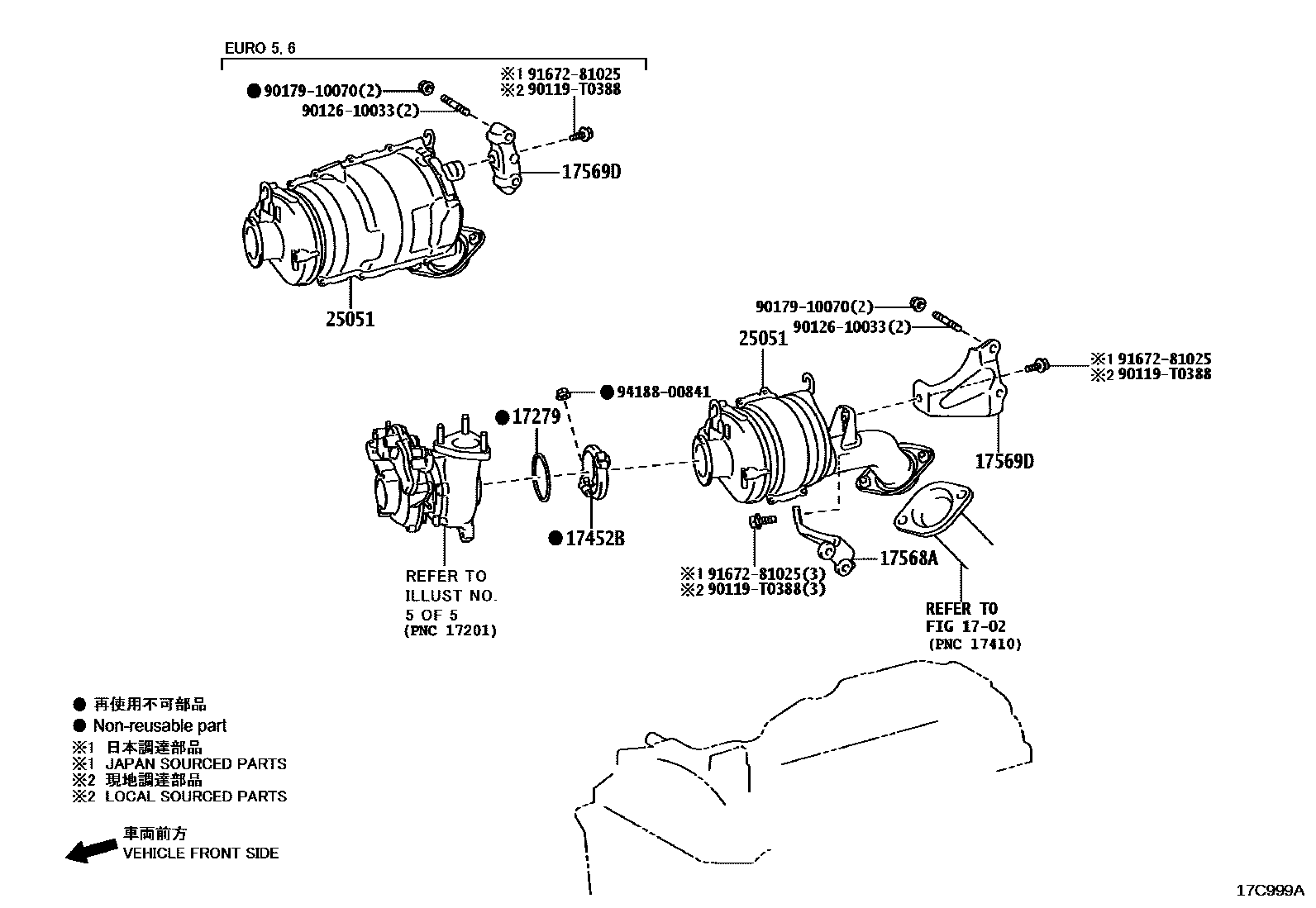

Toyota HILUX Manifold EPC diagram — 17C999A — Manifold — 17C999A (202312 – 999999)

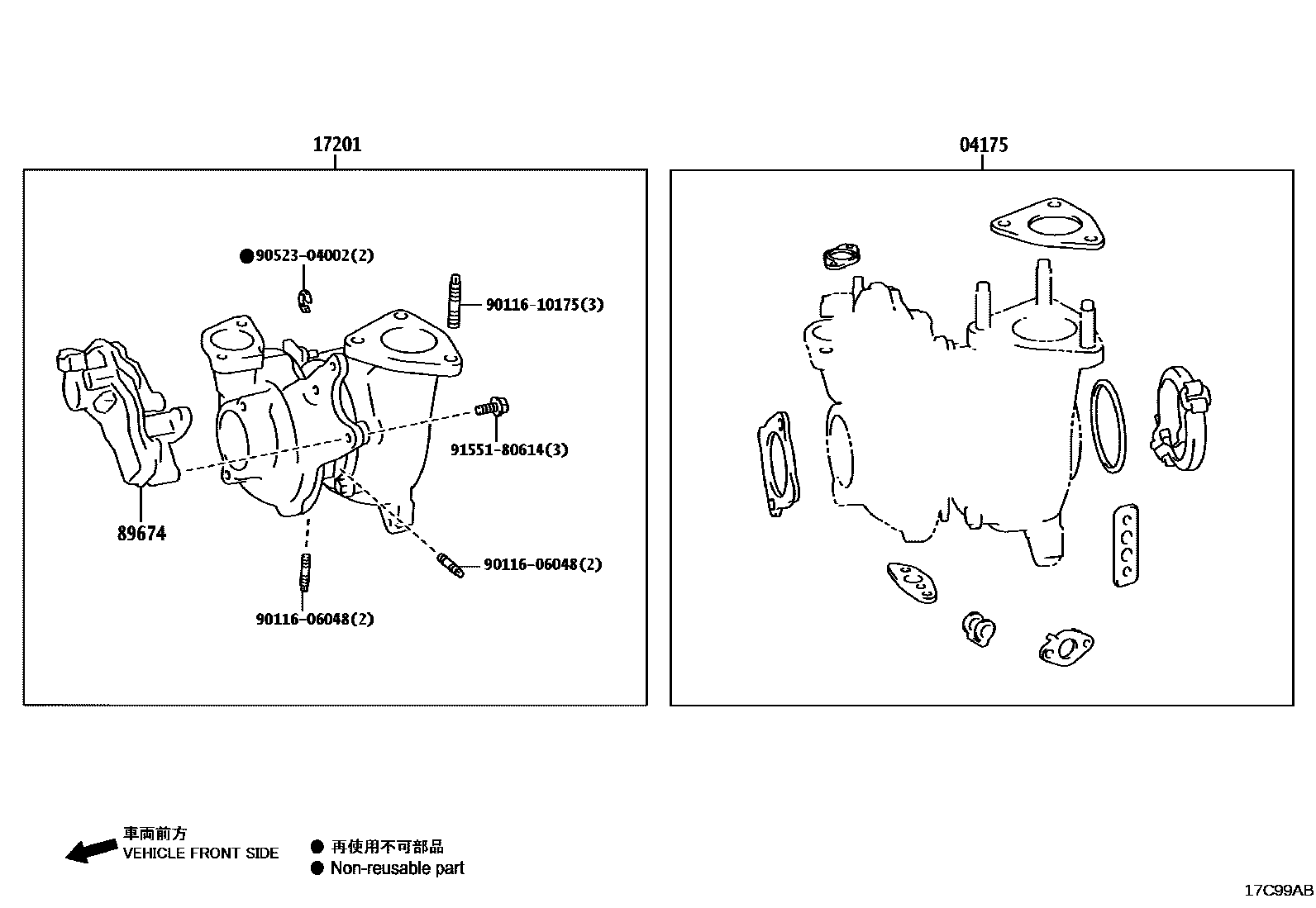

Toyota HILUX Manifold EPC diagram — 17C99AB — Manifold — 17C99AB (202312 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04175	Turbocharger gasket assembly	04175-0E040 · 04175-0E060
15407	Turbine oil inlet pipe sub-assembly	15407-0E020
15407A	Connector bolt (for turbine oil inlet pipe)	90401-T0004
15407B	Gasket (for turbine oil inlet pipe)	90430-T0006
15407F	Oil hose clamp or clamp	96137-42501
15471	Turbine oil inlet pipe gasket	15471-0E010
15472	No. 1 turbine oil outlet pipe gasket	15472-0E010
15474	Turbine oil outlet pipe	15474-0E010
15474A	Turbine oil outlet hose	15491-0E010
17111	Intake Manifold	17101-0E011 · 17101-11391 · 17120-0C012 · 17120-0C050
17111Z	Stud bolts (for intake manifold to cylinder head)	90116-T0011 · 90126-08026 · 90126-T0003 · 92122-80822
17118	Manifold stays	17118-0E010 · 17118-75060 · 17118-75080
17141	exhaust manifold	17141-0C090 · 17141-0C100 · 17141-0C120 · 17141-0C130 · 17141-0C150 · 17141-0E010 · 17141-0E020
17141K	Stud bolts (for exhaust manifold to cylinder head)	90126-08052 · 90126-10034 · 90126-T0016
17167	Exhaust manifold No. 1 heat shield	17167-0C030 · 17167-0C040 · 17167-0E010 · 17167-0E020
17168	Exhaust manifold No.2 insulation pad	17168-0E010
17173	Gasket (exhaust manifold to cylinder head)	17173-08010 · 17173-0C010 · 17173-0C020 · 17173-75030 · 17173-75040
17177	No. 1 gasket (intake manifold to cylinder head)	17177-0C010 · 17177-0E010
17198	No. 2 exhaust manifold gasket	17198-0E010
17201	Turbocharger sub-assembly	17201-11110
17203B	Compressor oil inlet elbow sub-assembly	17203-0E030
17271	No. 1 turbine vibration isolation pad	17271-0E010
17275	Compressor oil outlet elbow	17275-0E040
17276	Compressor oil inlet gasket	17276-0E010
17277	Compressor oil outlet gasket	17277-0E010
17278	Gasket (turbo to exhaust manifold)	17278-08010 · 17278-0E011 · 17278-0L010
17279	Turbine outlet elbow gasket	17279-11020
17293	Turbocharger stay	17293-0E040
17293B	Bolt (for turbocharger stay)	92122-80855
17293C	Nut (for turbocharger stay)	90178-T0019 · 94151-80800
17298	Compressor elbow brace	17298-0E010
17452B	Exhaust pipe clamp	17452-0E010
17568A	Exhaust pipe bracket stay	17568-0E010
17569D	No. 2 exhaust pipe bracket stay	17569-0E010 · 17569-0E020
23295D	No. 1 injector fixing piece	23295-0E030 · 23295-11040
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-0E090 · 25051-0E210
89674	Turbocharger variable nozzle motor	89674-71021
