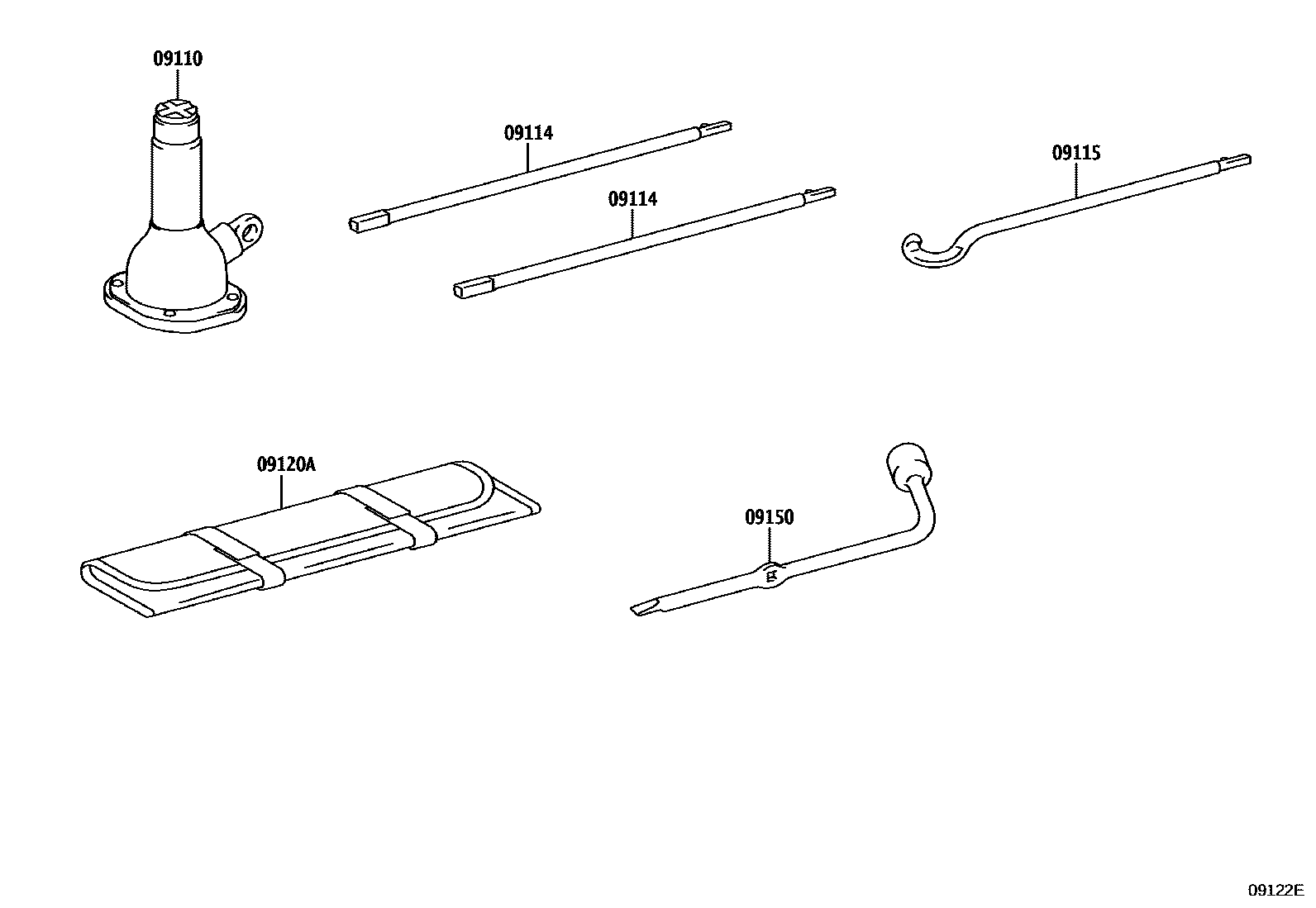

Toyota HILUX Standard Tools — Figure 0901
Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0K151 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-0K150 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-0K170 |
| 09120A | Tool Box | 09120-0K240 |
| 09150 | Wheel Nut Wrench Case | 09150-0K010 |
