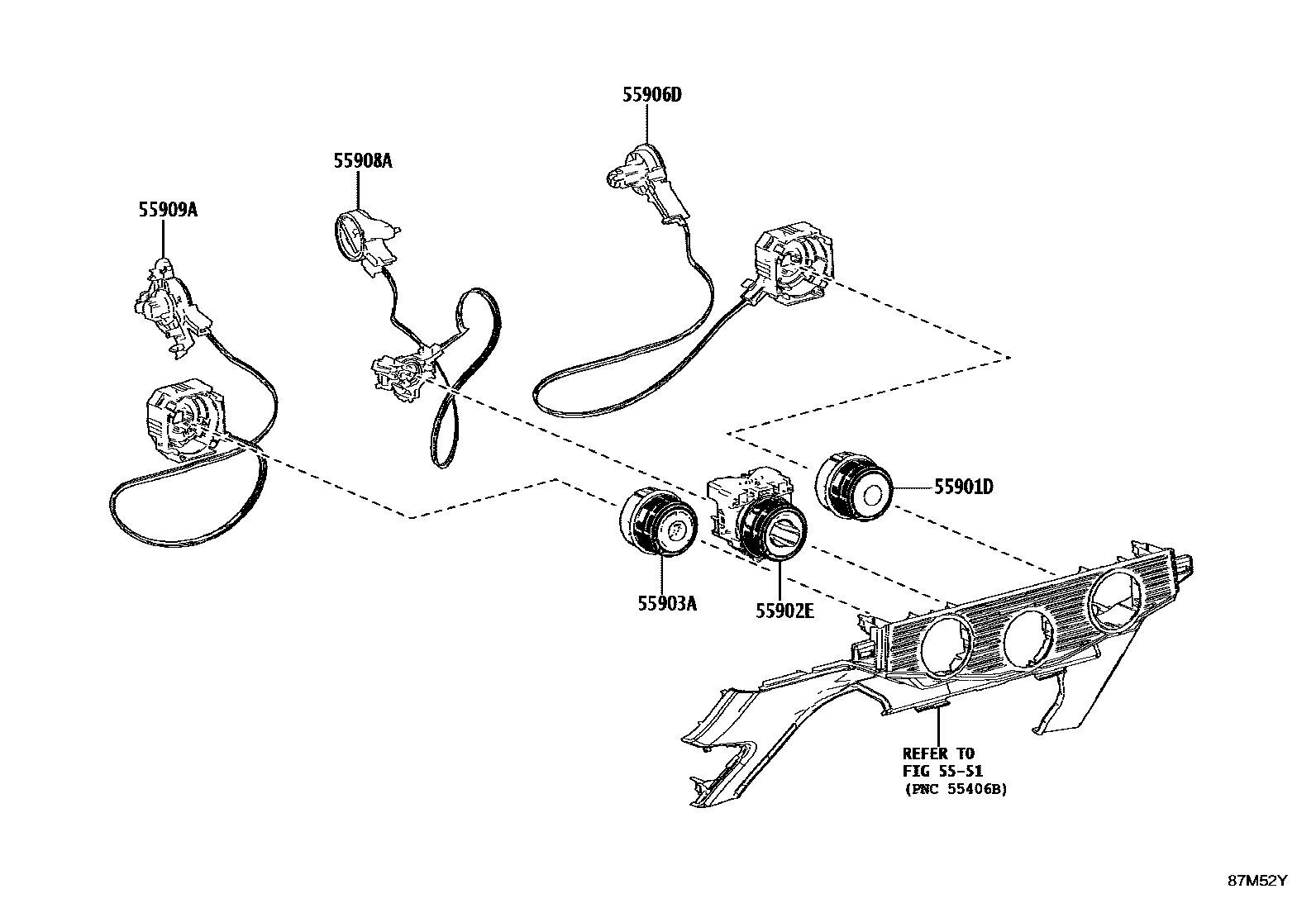

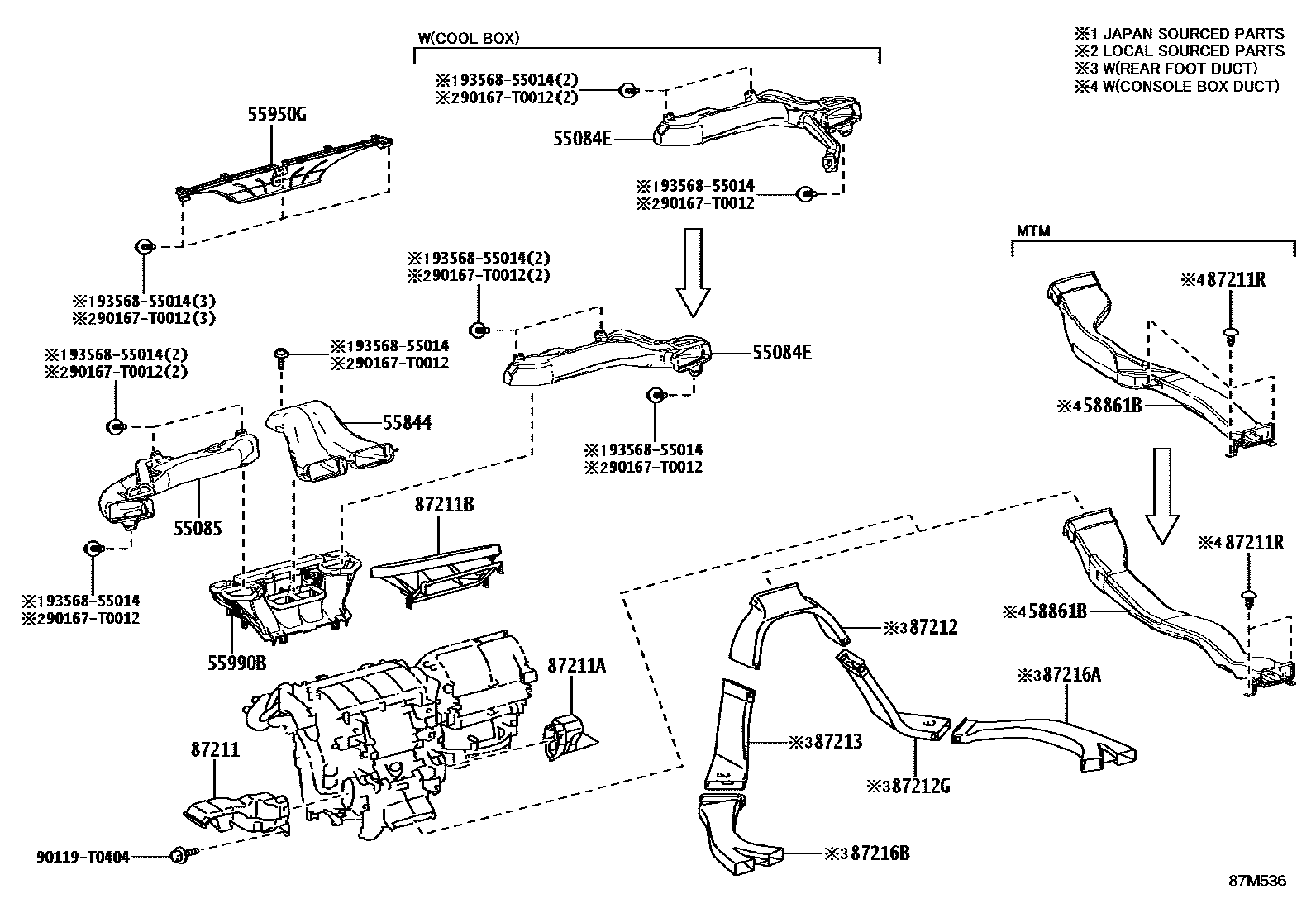

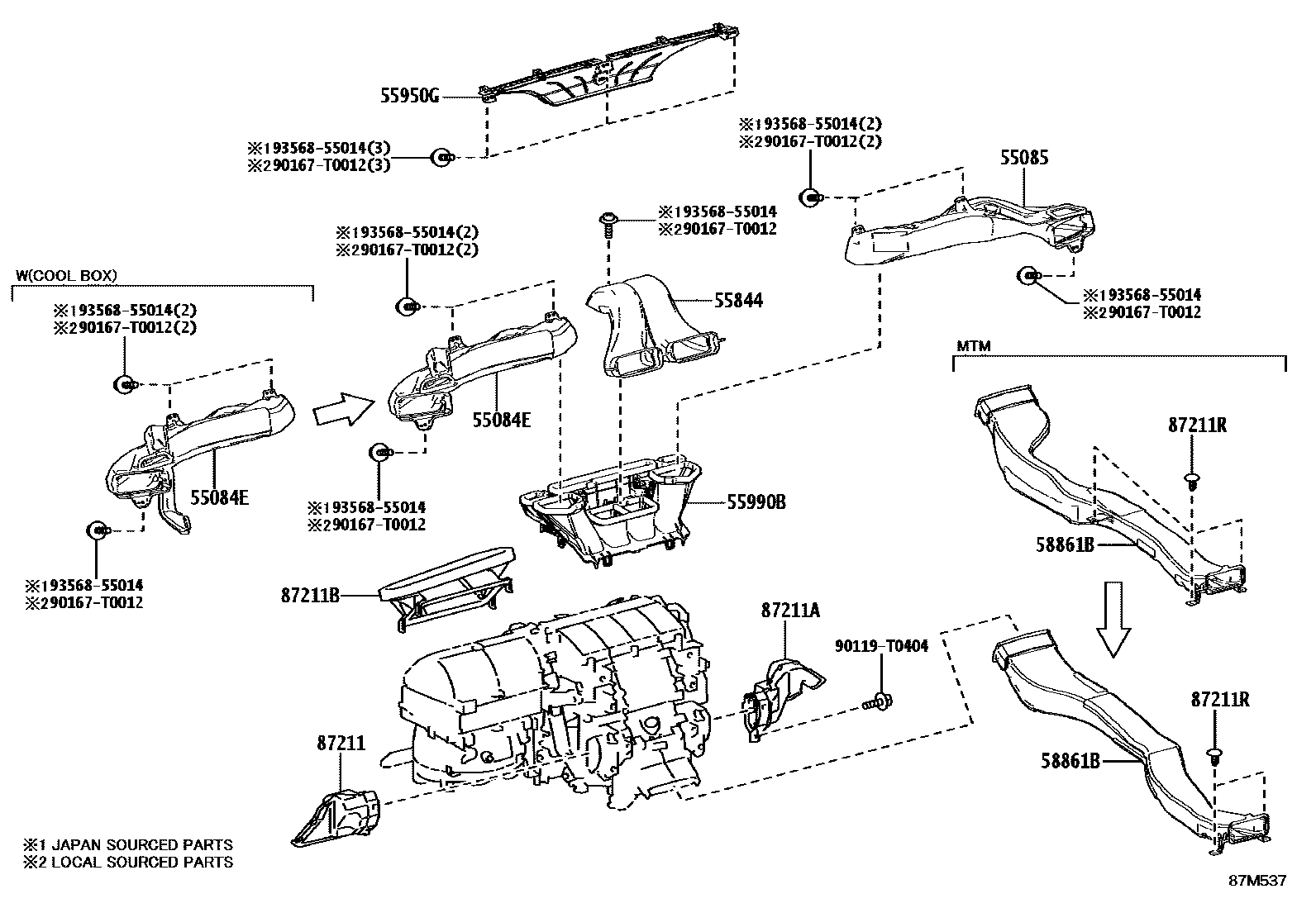

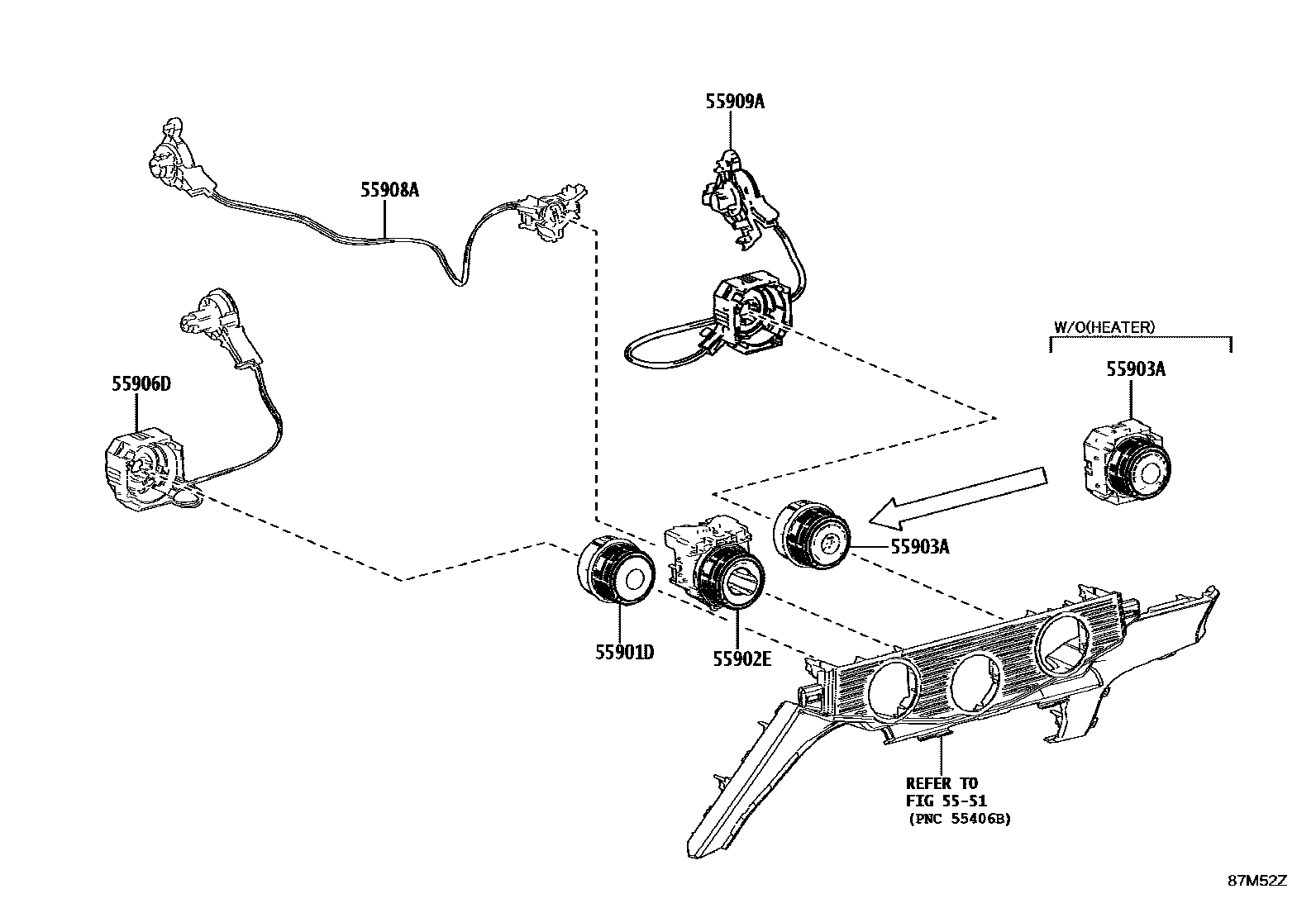

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55085-KK160 · 55085-KK170 · 55085-KK180 · 55085-KK190 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-KK080 · 55084-KK100 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-KK100 · 55844-KK110 |

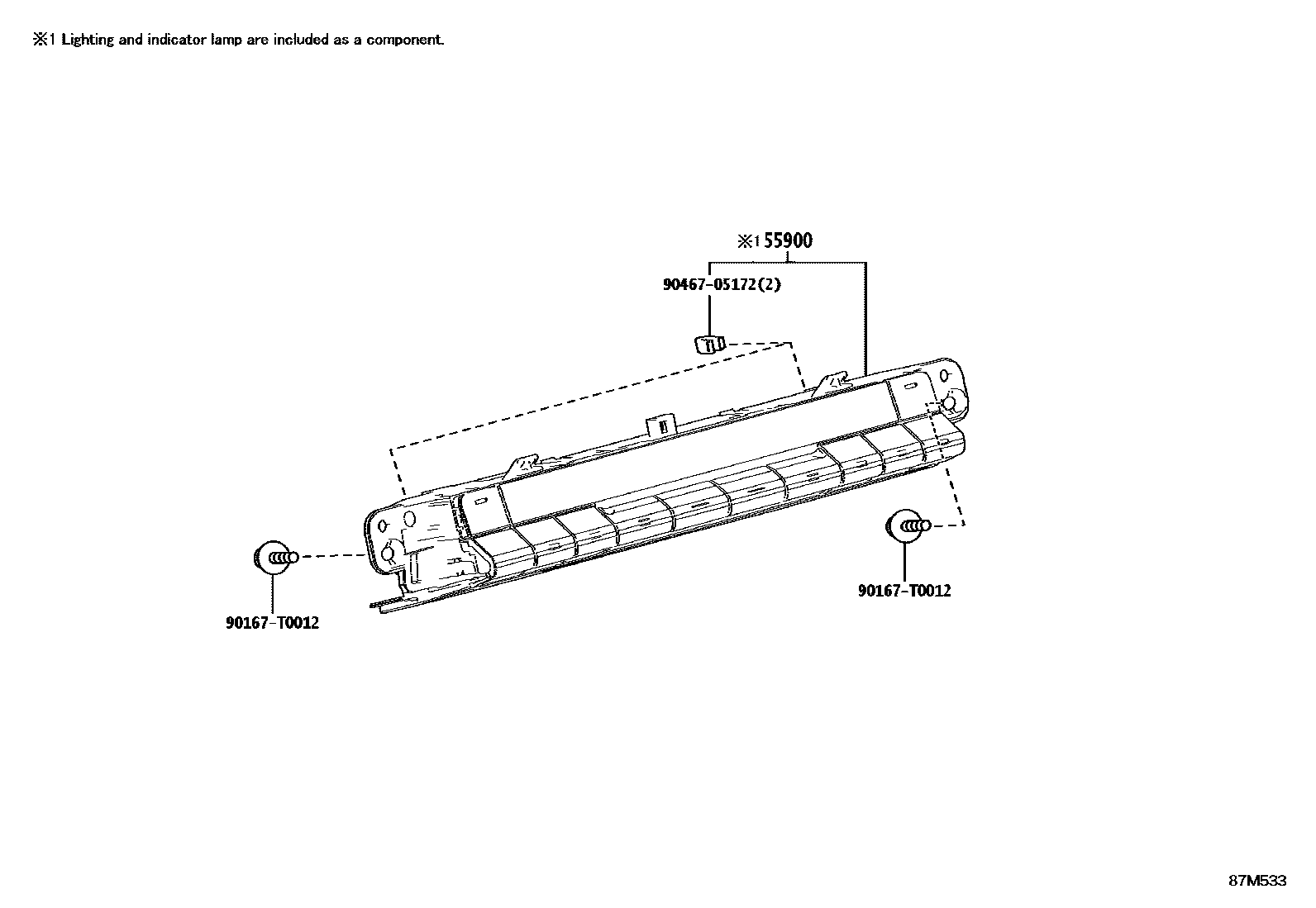

| 55900 | Air conditioning control assembly | 55900-0KP80 · 55900-0KP90 · 55900-0KR60 · 55900-0KS20 · 55900-0KS30 |
| 55901D | No. 1 heater control sub-assembly | 55901-0K040 · 55901-VT010 |
| 55902E | No. 2 heater control sub-assembly | 55902-VT010 |
| 55903A | No. 3 heater control sub-assembly | 55903-VT010 · 55903-VT020 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K070 · 55906-0K080 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0K090 · 55908-0K120 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K070 · 55909-0K080 |
| 55950G | Defroster nozzle assembly | 55950-KK030 |
| 55990B | Lower defroster nozzle assembly | 55990-KK040 |
| 58861B | Air duct No. 1 for armrest box | 58861-KK050 · 58861-KK060 · 58861-KK070 · 58861-KK080 |
| 87211 | No. 1 air duct | 87211-0K760 · 87211-0K820 |
| 87211A | Duct No. 2 | 87211-0K780 · 87211-0K800 |
| 87211B | No. 3 air duct | 87211-0K750 · 87211-0K790 · 87211-0KA80 |
| 87212 | No. 1 rear air duct | 87214-KK010 |
| 87212G | No. 3 rear air duct | 87212-KK010 |
| 87213 | No. 2 rear air duct | 87213-KK010 |
| 87216A | No. 5 rear air duct | 87215-KK010 |
| 87216B | No. 4 rear air duct | 87216-KK010 |
| 88505 | Air conditioning duct sub-assembly | 88505-0K710 · 88505-0K720 · 88505-0K760 · 88505-0K770 |

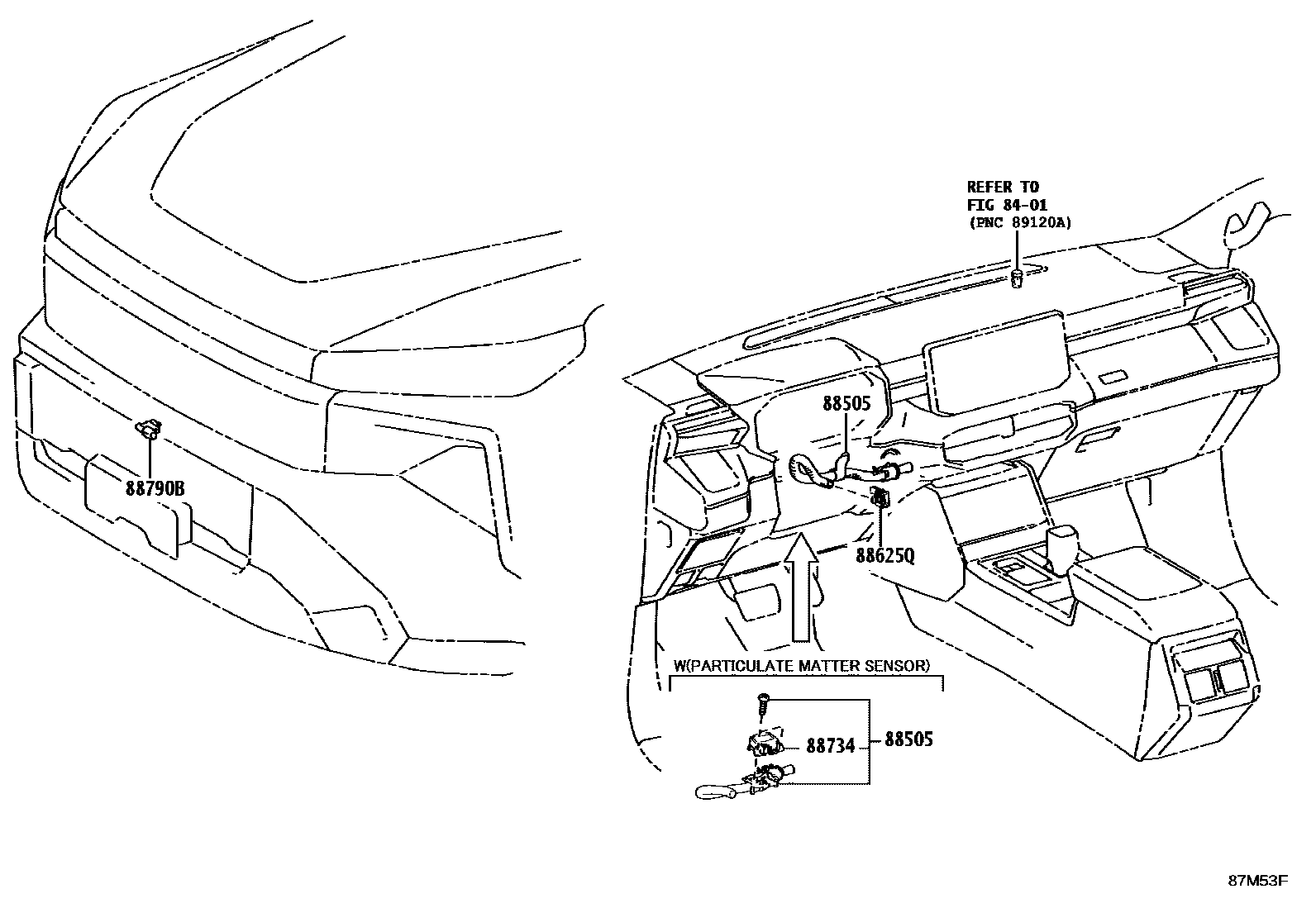

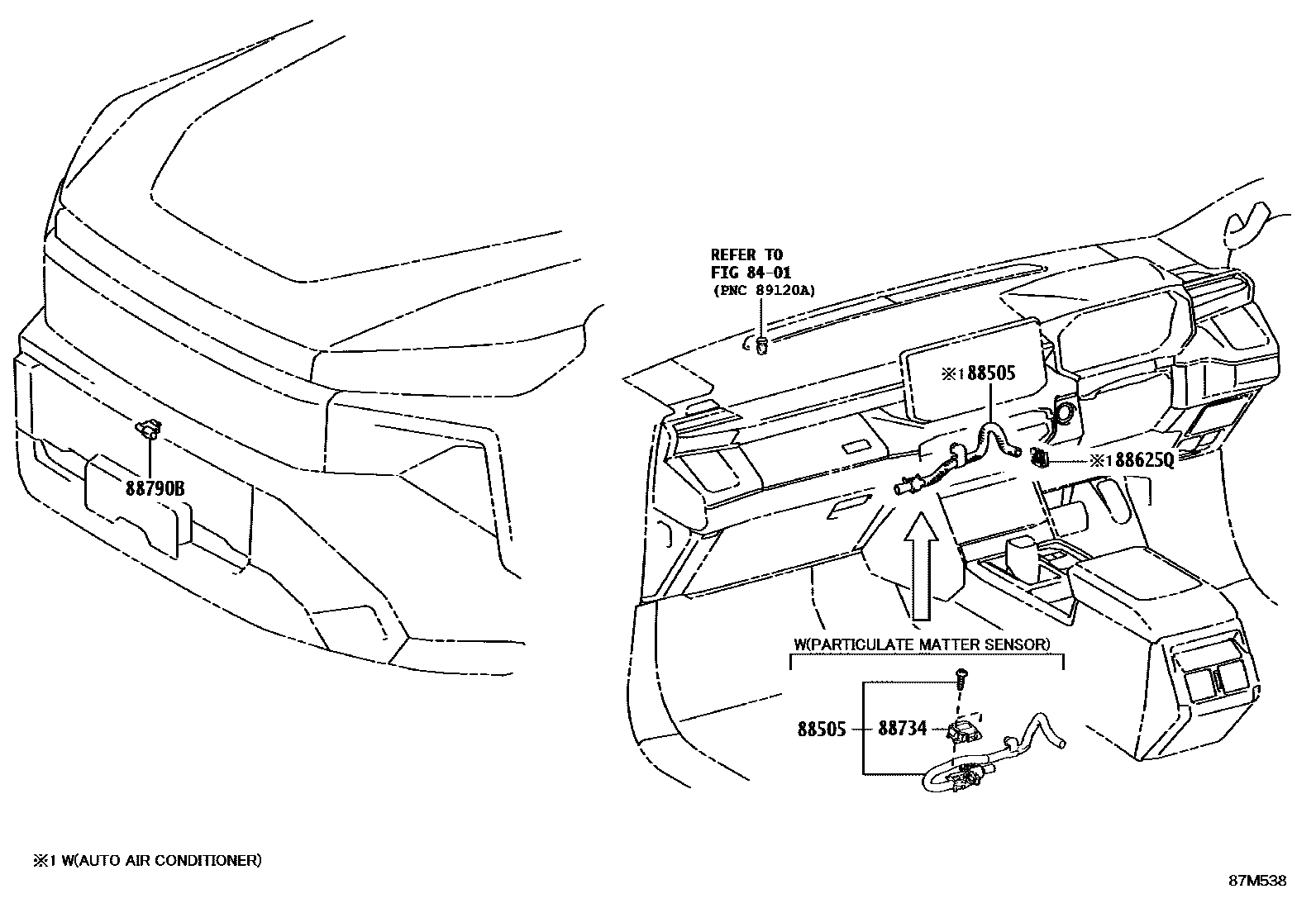

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-0K020 · 88625-47021 |
| 88734 | Air conditioning PM sensor | 88734-06010 · 88734-0R010 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
