Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

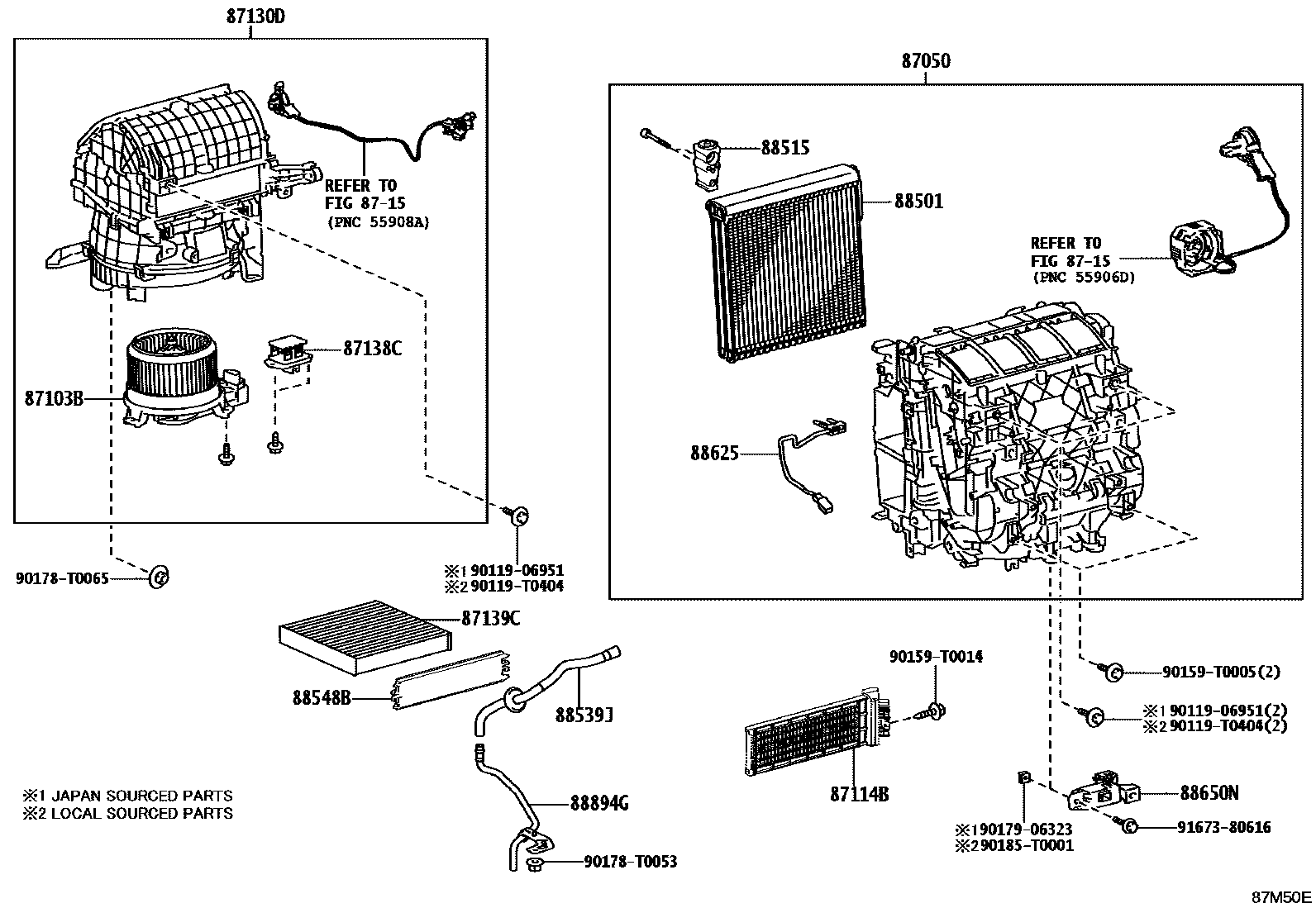

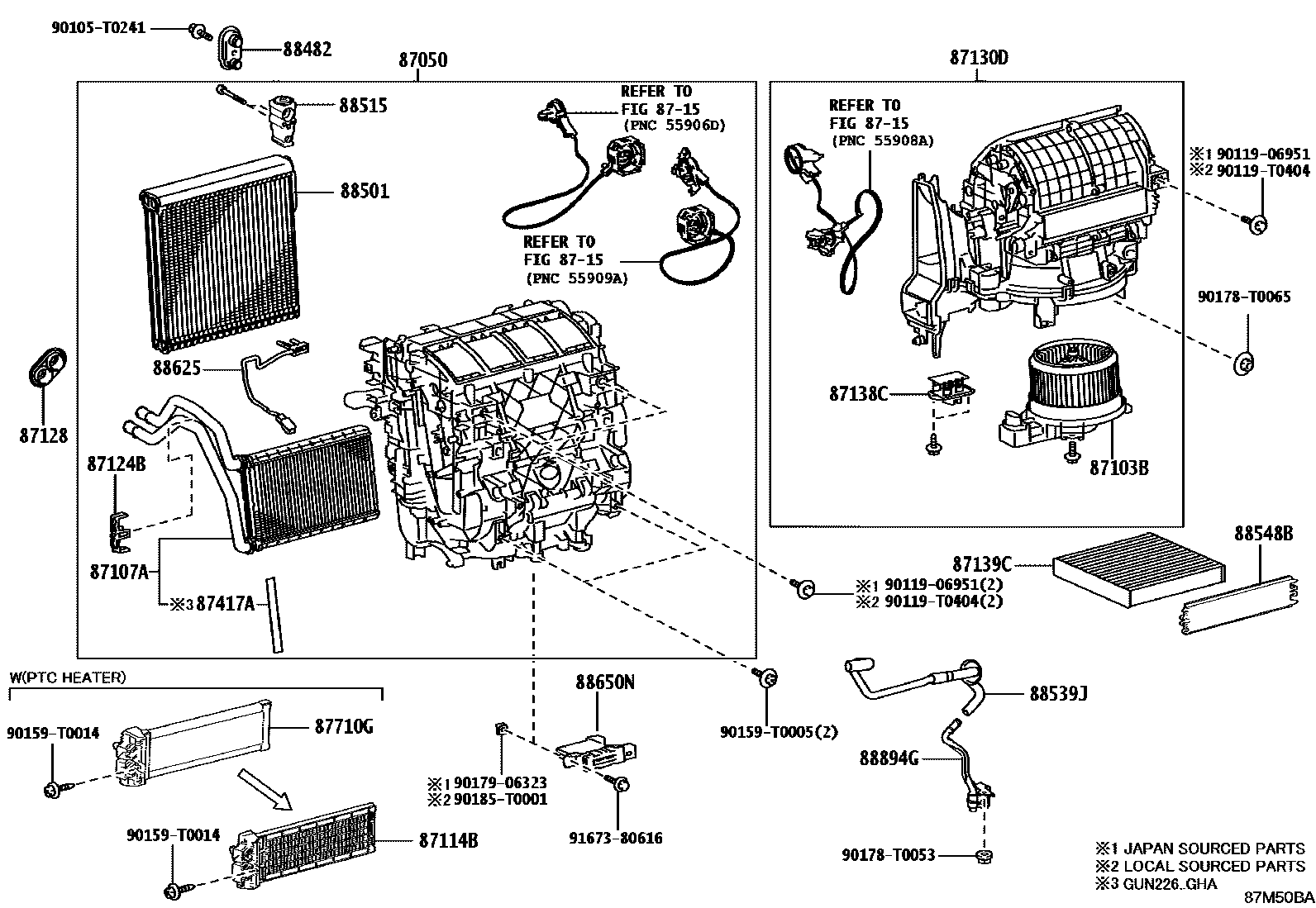

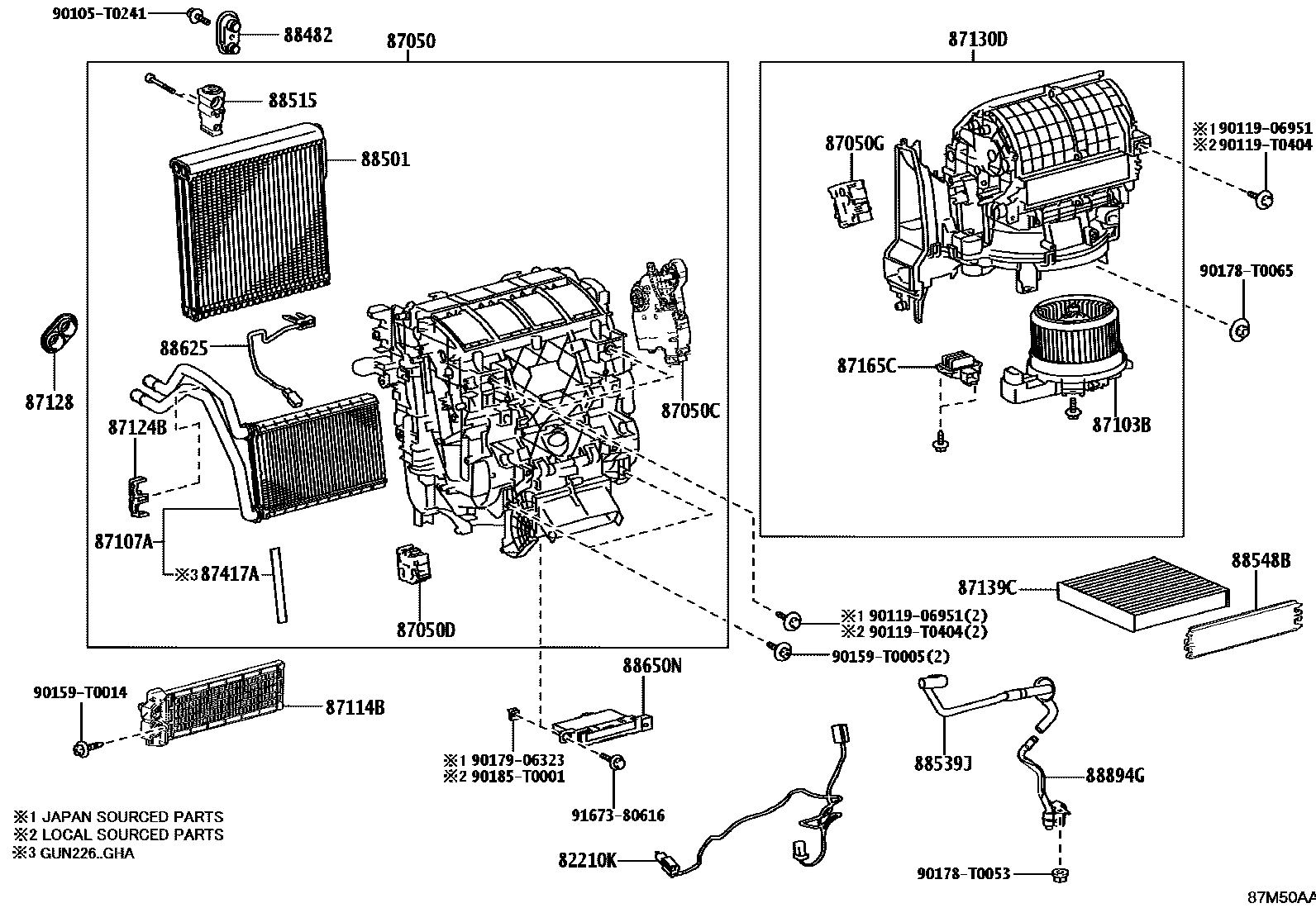

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0K040 · 82212-0K060 · 82212-0K070 |
| 87050 | Air conditioning radiator assembly | 87050-0KY00 · 87050-0KY20 · 87050-0KY30 · 87050-0KY40 · 87050-0KY60 · 87050-0KY90 · 87050-0KZ00 · 87050-0KZ10 · 87050-0KZ40 · 87050-0KZ50 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-F4060 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0K231 |
| 87050G | No. 5 air conditioner radiator damper servo mechanism sub-assembly | 87106-0K241 · 87106-0K251 |
| 87103B | Blower motor sub-assembly with fan | 87103-0A060 · 87103-0K321 · 87103-0K381 · 87103-0K391 |
| 87107A | Heater radiator device sub-assembly | 87107-0K090 · 87107-0K110 |
| 87114B | heater cover | 87114-0K040 |
| 87124B | heater clip | 87124-06140 |
| 87128 | heater seal | 87128-0K180 |
| 87130D | Blower assembly | 87130-0K610 · 87130-0K670 · 87130-0KA70 · 87130-0KA80 · 87130-0KA90 · 87130-0KB00 |
| 87138C | Blower resistor | 87138-0K350 · 87138-0K360 |
| 87139C | air purification filter | 87139-06130 · 87139-0K070 · 87139-58010 |
| 87165C | Blower motor control device | 87165-0K120 |
| 87710G | Rapid heater assembly | 87710-0K100 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K590 · 88501-0K600 · 88501-0K690 |
| 88515 | Cooler expansion valve | 88515-0K700 · 88515-0K720 |
| 88539J | Cooler drain hose | 88539-0K550 · 88539-0K590 |
| 88548B | air filter housing | 88899-06330 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K010 |
| 88650N | Air conditioning amplifier assembly | 88650-0KA30 · 88650-0KB20 · 88650-0KB40 · 88650-0KB50 · 88650-0KB60 |
| 88894G | Drain hose connector | 88894-0K020 · 88894-0K260 |
