Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 13 PNC and OE references.

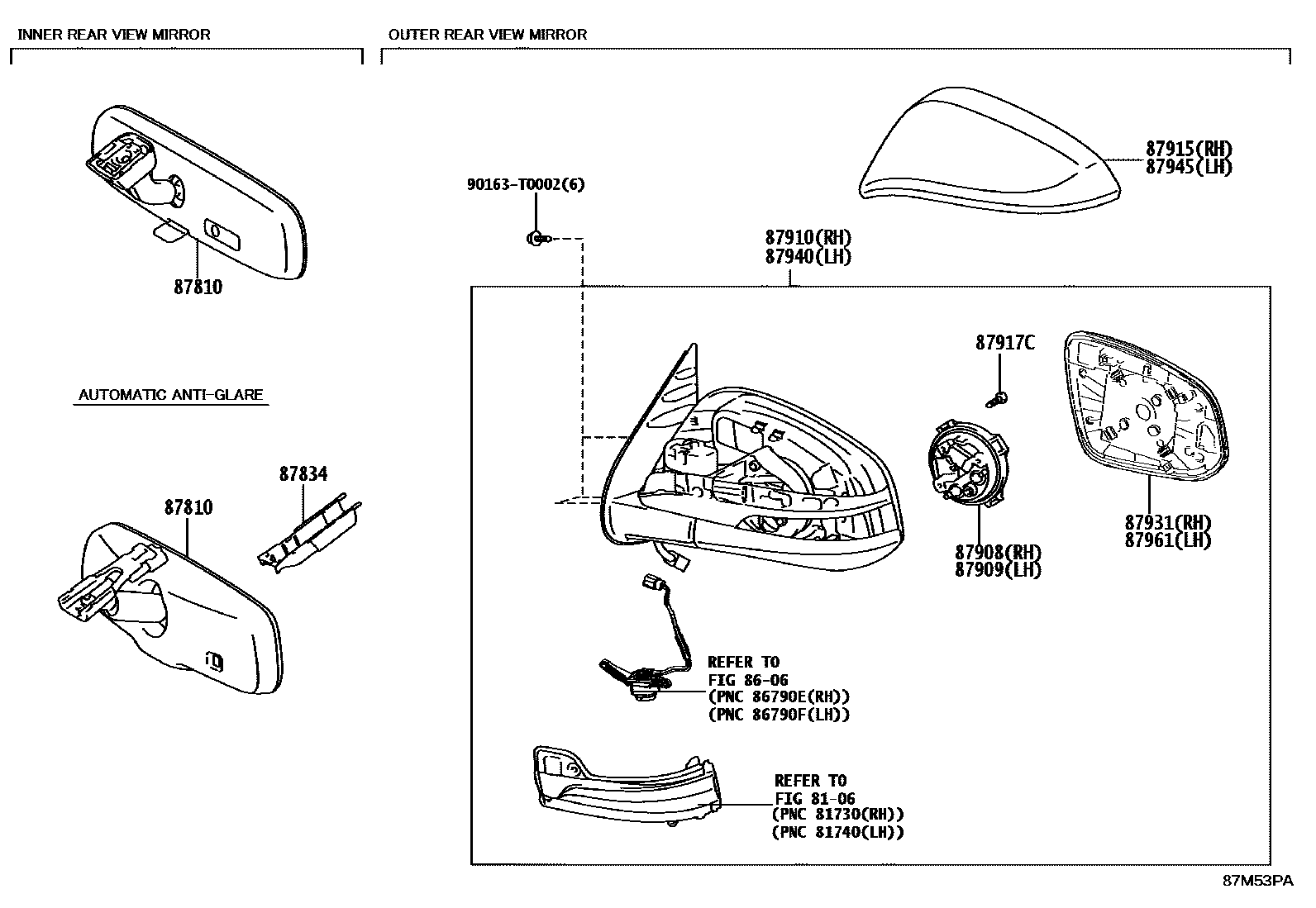

Toyota HILUX 后视镜 EPC diagram — 87M53PA
后视镜 — 87M53PA (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02260 · 87810-0K010 · 87810-0K020
87834Interior rearview mirror stay fixing cover87818-0K030
87908Right exterior rearview mirror actuator assembly87908-F0390
87909Left exterior rearview mirror actuator assembly87908-F0390
87910Right exterior rearview mirror assembly87910-0KT80 · 87910-0KT90 · 87910-0KU10 · 87910-0KU50 · 87910-0KU90 · 87910-0KY60 · 87910-0KY70 · 87910-0KZ00 · 87910-F0120 · 87910-F0140 · 87910-F0160 · 87910-F0180 · 87910-F0360 · 87910-F0370 · 87910-F0380 · 87910-F0390 · 87910-F0410 · 87910-F0430 · 87910-F0450
87915Right exterior rearview mirror cover87915-0K390
87917CExterior rearview mirror screws87917-0KM00
87931Right exterior rearview mirror87931-0A060 · 87931-0KC60 · 87931-0KU00 · 87931-0KY90
87939Right exterior rearview mirror hole cover87939-0KS60 · 87939-0KY60
87940Left exterior rearview mirror assembly87940-0KT80 · 87940-0KT90 · 87940-0KU10 · 87940-0KU50 · 87940-0KU90 · 87940-0KY60 · 87940-0KY70 · 87940-0KZ00 · 87940-F0120 · 87940-F0140 · 87940-F0160 · 87940-F0180 · 87940-F0360 · 87940-F0370 · 87940-F0380 · 87940-F0390 · 87940-F0410 · 87940-F0430 · 87940-F0450
87945Left exterior rearview mirror cap87945-0K390
87948Left exterior rearview mirror hole cover87948-0KS60 · 87948-0KY60
87961Left exterior rearview mirror87961-0A050 · 87961-0KB20 · 87961-0KU00 · 87961-0KY90
