Toyota HILUX 车载电话和呼救装置 — Figure 8615

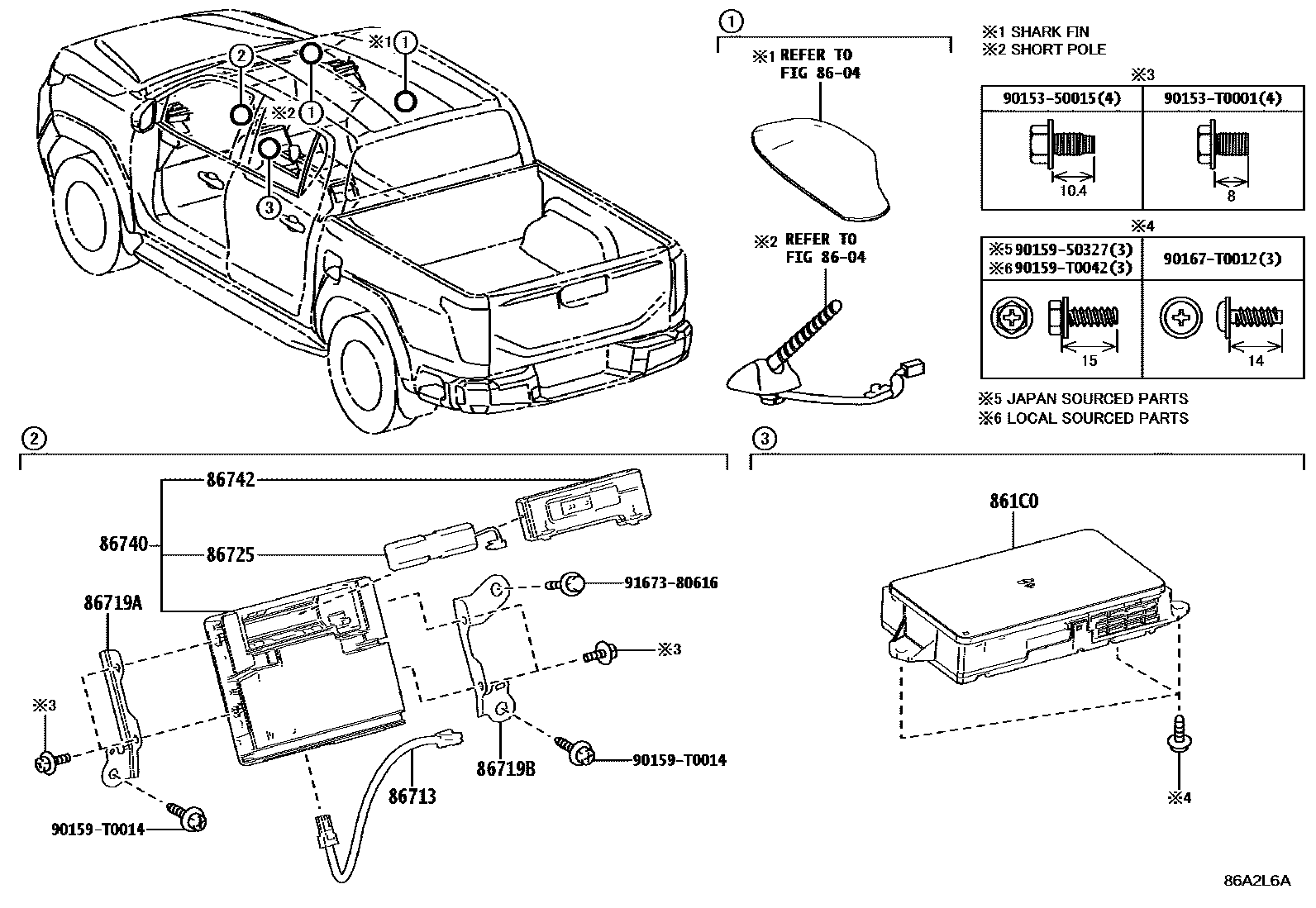

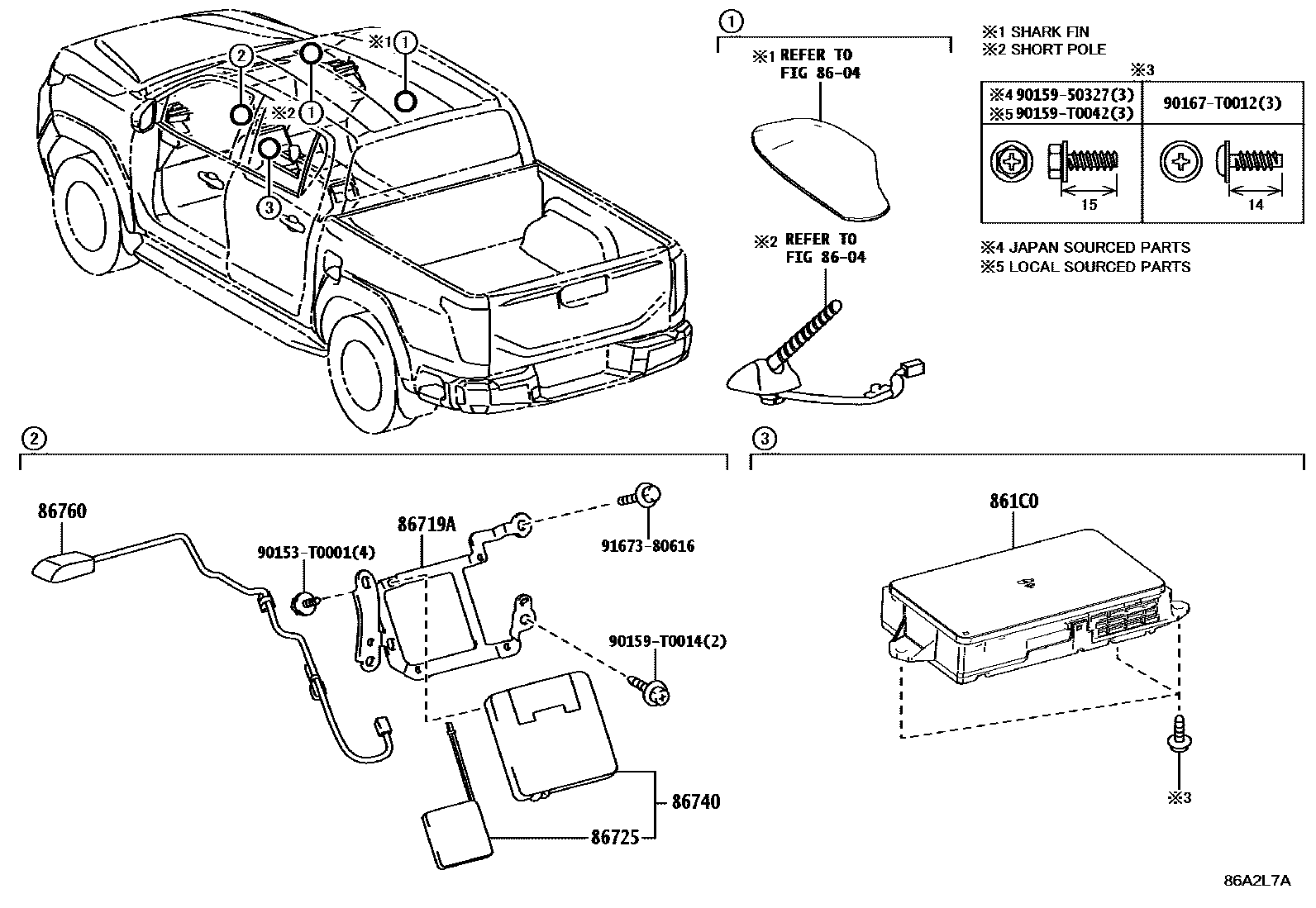

Toyota HILUX EPC diagram 8615, 车载电话和呼救装置, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Mobile wireless charger bracket assembly | 861C0-0K040 · 861C0-0K050 |
| 86713 | Telephone ECU wiring harness | 86713-71030 |
| 86719A | Phone holder No. 1 | 86719-0K090 · 86719-0K110 |
| 86719B | Phone holder No. 2 | 86719-0K130 |
| 86725 | mobile phone battery | 86725-0K010 · 86725-77020 · 86725-78011 |
| 86740 | Telephone transceiver assembly | 86740-0K340 · 86741-0K250 |
| 86742 | transceiver cover | 86742-0D020 · 86742-77020 |
| 86760 | Telephone antenna assembly | 86764-0K020 |
