Toyota HILUX 倒车影像和摄像头 — Figure 8606

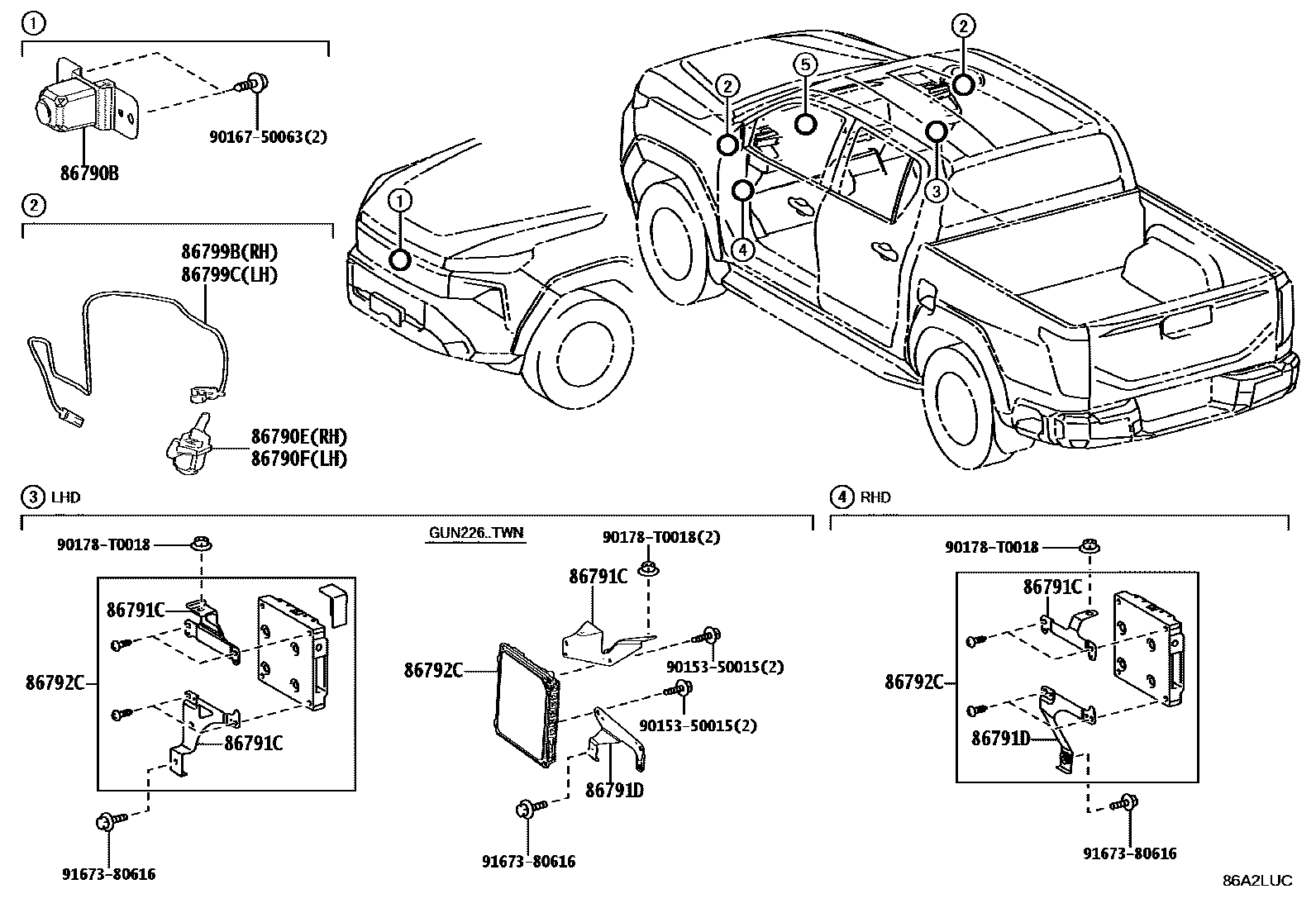

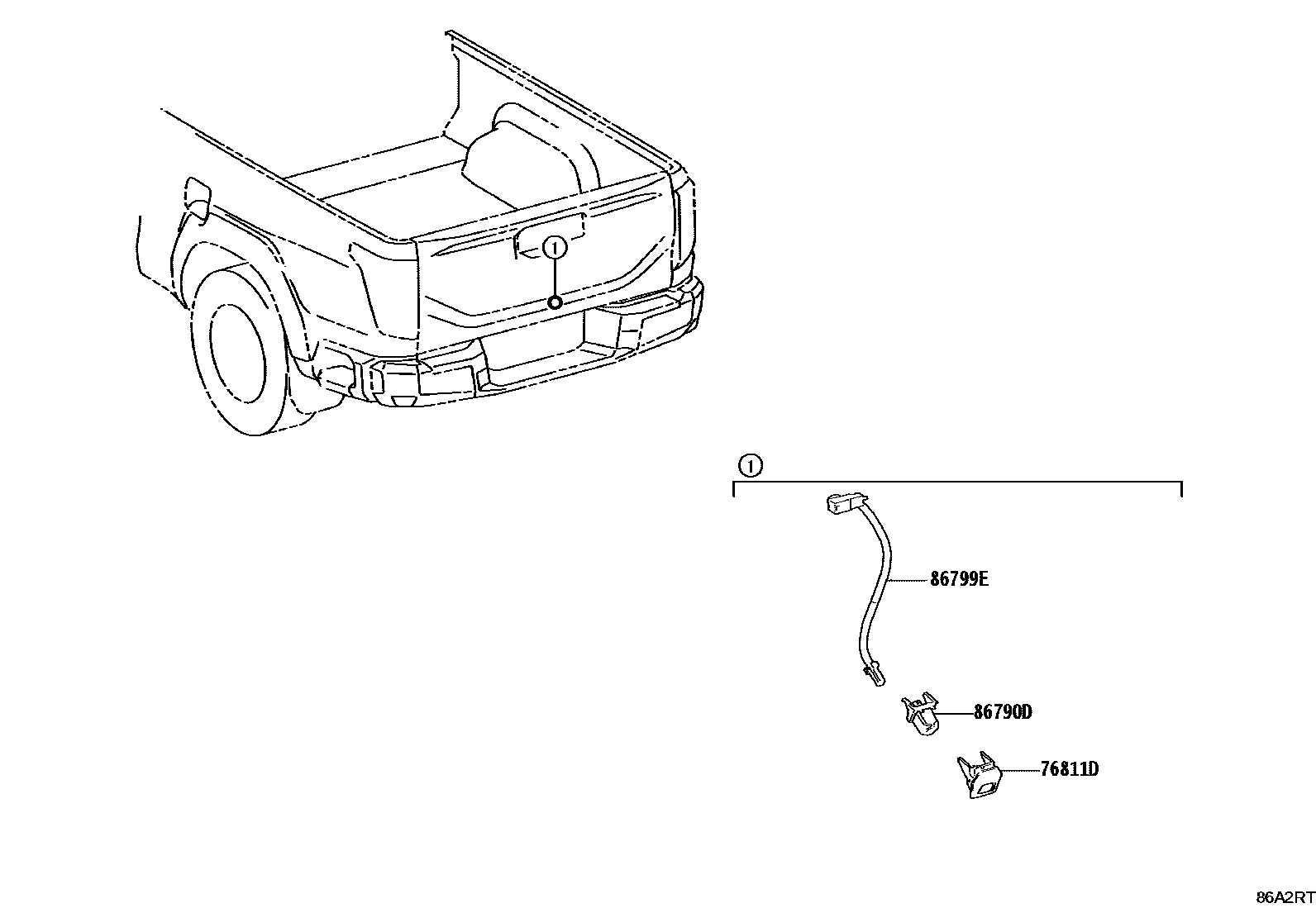

Toyota HILUX EPC diagram 8606, 倒车影像和摄像头, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0K310 · 86790-71230 |
| 86790D | Rear reversing image camera assembly | 86790-0K400 · 86790-71190 · 86790-71320 · 867B0-71010 |
| 86790E | Right image camera assembly | 86790-0K380 · 86790-71170 |
| 86790F | Left image camera assembly | 86790-0K370 · 86790-71160 |
| 86791C | Parking assist ECU No. 1 bracket | 86791-0K110 · 86791-0K130 · 86791-71010 · 86791-71030 |
| 86791D | Parking assist ECU No. 2 bracket | 86791-0K120 · 86791-0K140 · 86791-71020 · 86791-71120 |
| 86792C | Parking assist ECU | 86792-71300 · 86792-71340 · 86792-71400 · 86792-71440 · 86792-71490 · 86792-71700 |
| 86799B | Reversing camera right side wiring harness | 86799-0K080 |
| 86799C | Reversing camera left side wiring harness | 86799-0K080 |
| 86799E | CABLE, CAMERA TELEVISION, ARRIERE | 86799-0K090 · 86799-71020 · 86799-71030 |
