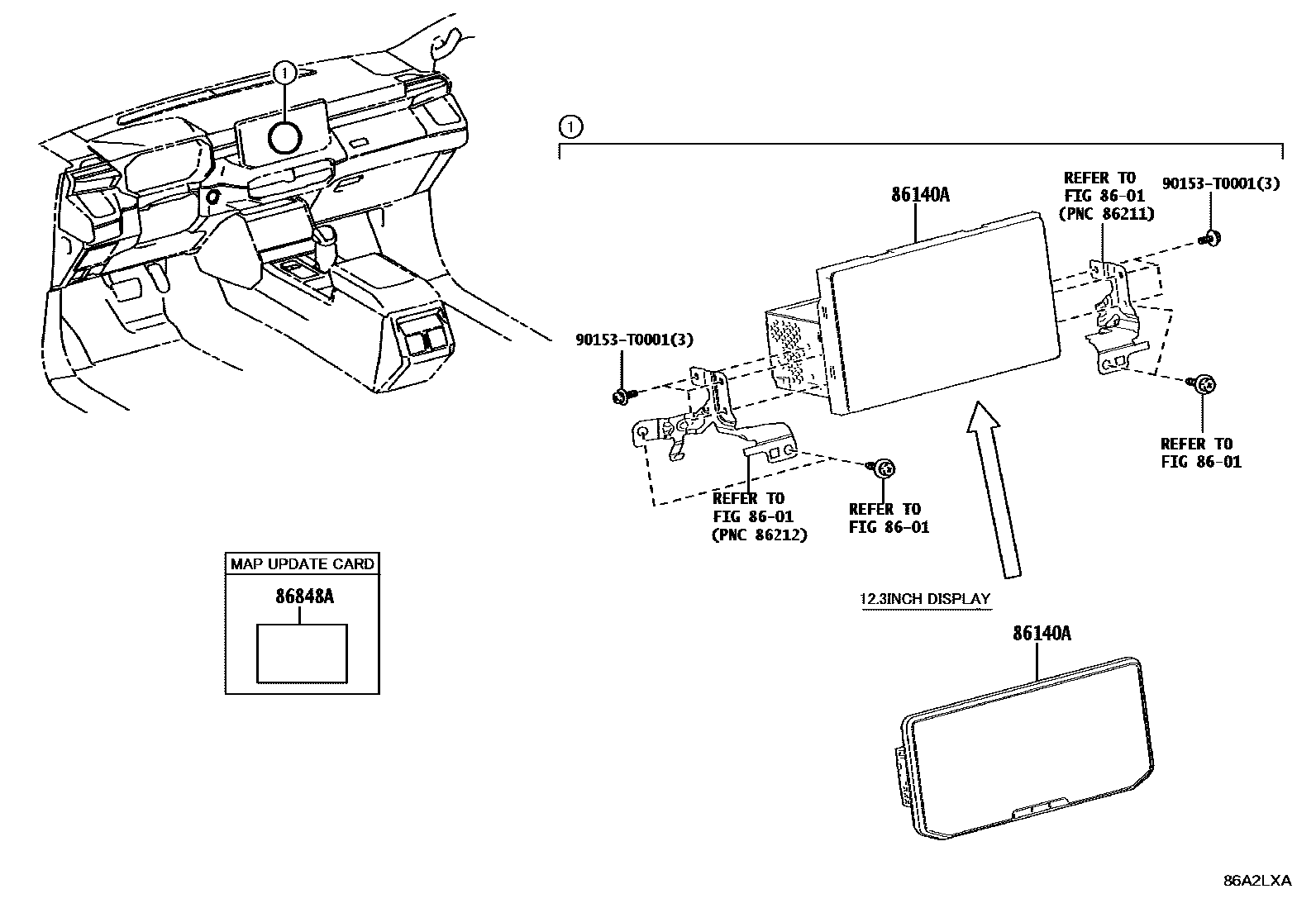

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-0K390 · 86100-0K400 · 86100-0K450 · 86140-F0390 · 86140-F0410 · 86140-F0420 · 86140-F0460 · 86140-F0480 · 86140-F0520 · 86140-F0540 · 86140-F0670 · 86140-F0890 · 86140-F0A40 |
| 86730A | Telephone amplifier assembly | 86730-0K010 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0K360 · 86808-0K410 |
| 86848A | Map serial number update card | 86848-78030 · 86848-78040 |
| 86860 | Navigation antenna assembly | 86860-0K020 · 86880-0K100 |
