Toyota HILUX 扬声器 — Figure 8602

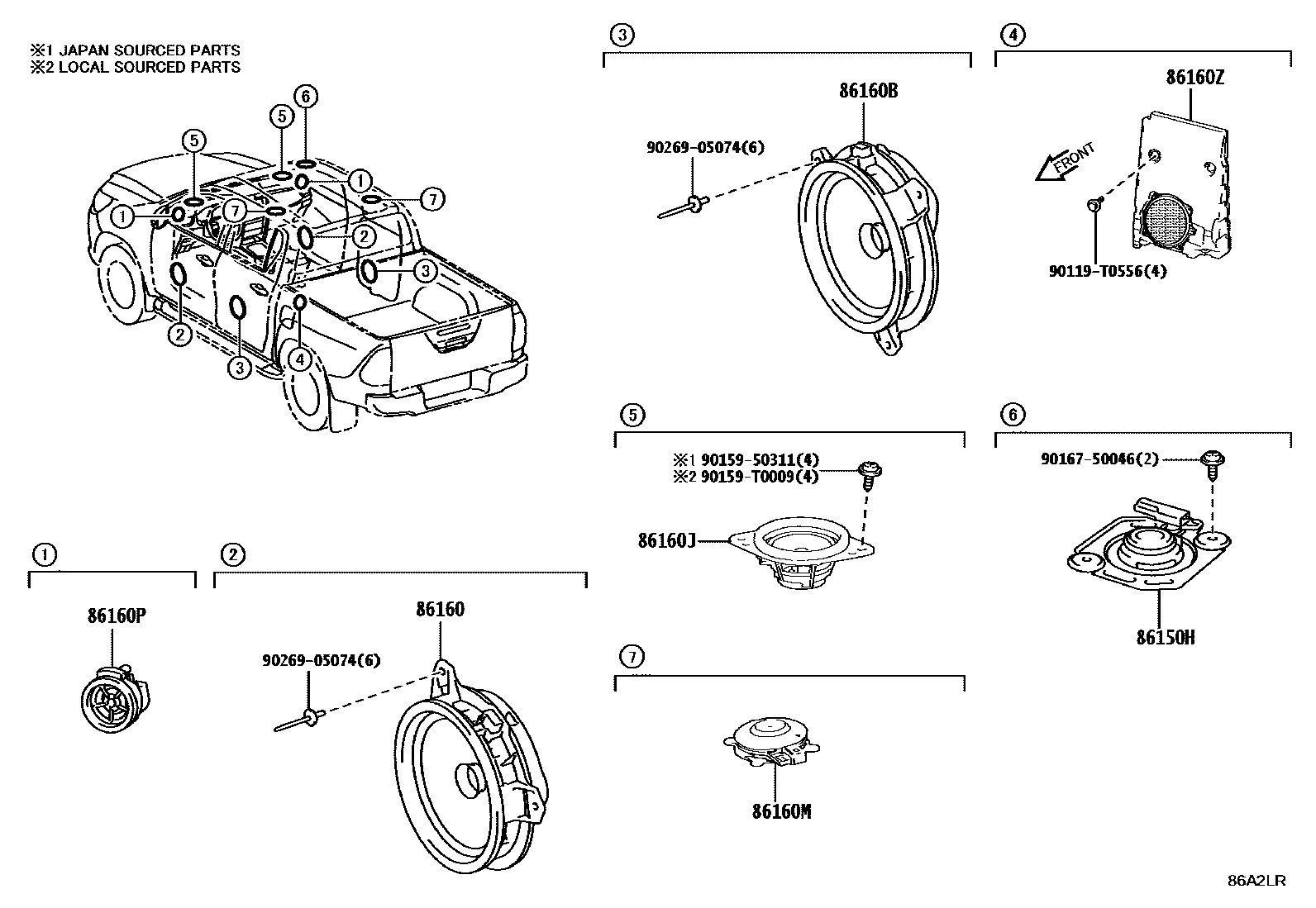

Toyota HILUX EPC diagram 8602, 扬声器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150H | Speaker assembly with stand | 86150-0K390 |
| 86160 | No. 1 front speaker assembly | 86150-0K520 · 86160-0K380 · 86160-0K500 |
| 86160B | Rear speaker assembly | 86160-0K390 · 86160-0K500 |
| 86160J | No. 3 front speaker assembly | 86160-0G220 · 86160-0K620 |
| 86160M | Roof speaker assembly | 86150-0K500 |
| 86160P | No. 2 front speaker assembly | 86150-0K490 |
| 86160Z | No. 3 rear speaker assembly | 86150-0K170 |
