Toyota HILUX 挡风玻璃清洗器 — Figure 8503

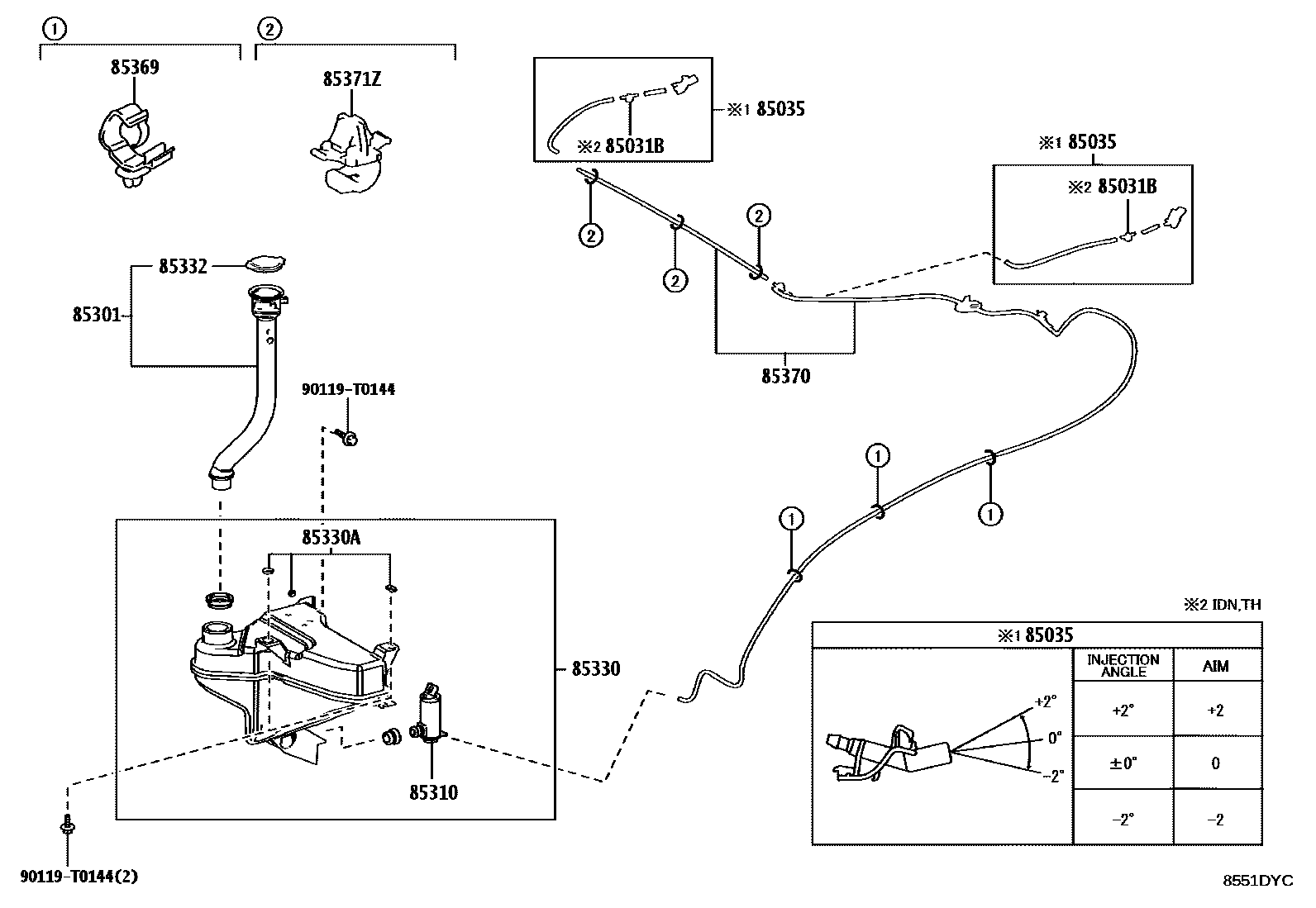

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-V2010 |
| 85035 | Cleaner nozzle sub-assembly | 85380-0K510 · 85380-0K520 · 85380-0K530 · 85380-0K540 · 85380-0K550 · 85380-0K560 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0K180 |
| 85310 | Windshield washer motor and pump assembly | 85330-48040 |
| 85330 | Windshield washer fluid tank assembly | 85310-0K500 |
| 85330A | Windshield washer fluid tank bushing | 90069-50020 |
| 85332 | Windshield washer fluid tank cap | 85316-0K180 |
| 85369 | card holder | 82711-0K070 |
| 85370 | Windshield washer hose assembly | 85370-0K450 · 85370-0K470 |
| 85371Z | Cleaner hose clamp | 85371-12040 |
