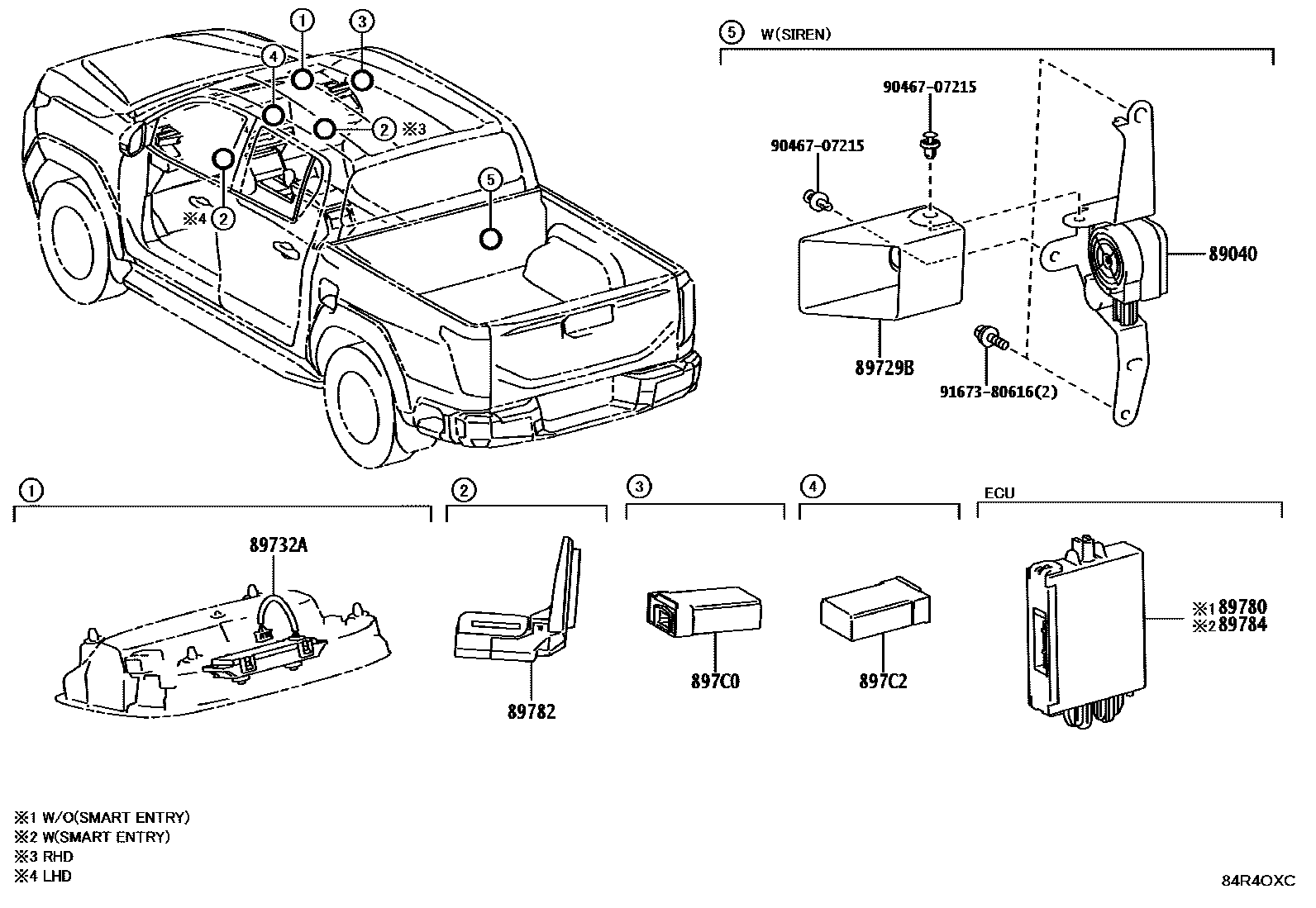

Toyota HILUX 防盗装置 — Figure 8424
Toyota HILUX EPC diagram 8424, 防盗装置, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-71010 |
| 89729B | CONDUITE, SIRENE AVERTISSEMENT ANTIVOL | 89729-0K020 |
| 89732A | anti-theft alarm ultrasonic sensor | 89732-71030 |
| 89780 | Transceiver key ECU assembly | 89780-0K171 · 89780-0K200 |
| 89782 | transceiver key coil | 89782-0K160 |
| 89784 | Shutdown code system ECU | 89784-0G020 · 89784-0K040 |
