Toyota HILUX 空气囊 — Figure 8421

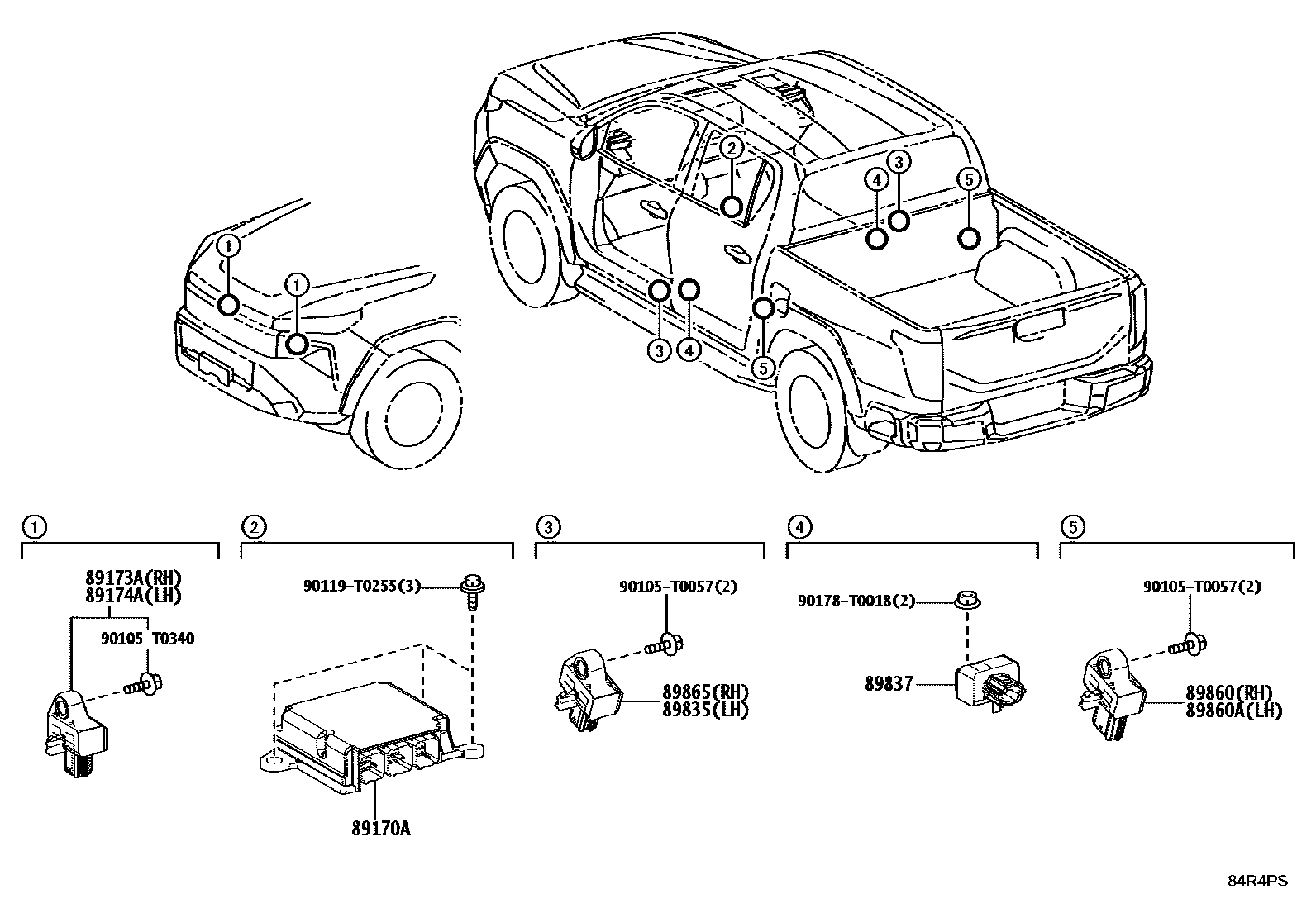

Toyota HILUX EPC diagram 8421, 空气囊, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0KM60 |
| 89173A | Right front air bag sensor | 89173-19535 |
| 89174A | Left front air bag sensor | 89173-19535 |
| 89835 | Left door side air bag sensor | 89831-0K090 · 89831-42020 |
| 89837 | Front floor side air bag sensor | 89831-0K080 · 89831-71010 |
| 89860 | Right side airbag sensor assembly | 89831-0K100 · 89831-52130 |
| 89860A | Left side air bag sensor assembly | 89831-0K100 · 89831-52130 |
| 89865 | Right door side air bag sensor | 89831-0K090 · 89831-42020 |
