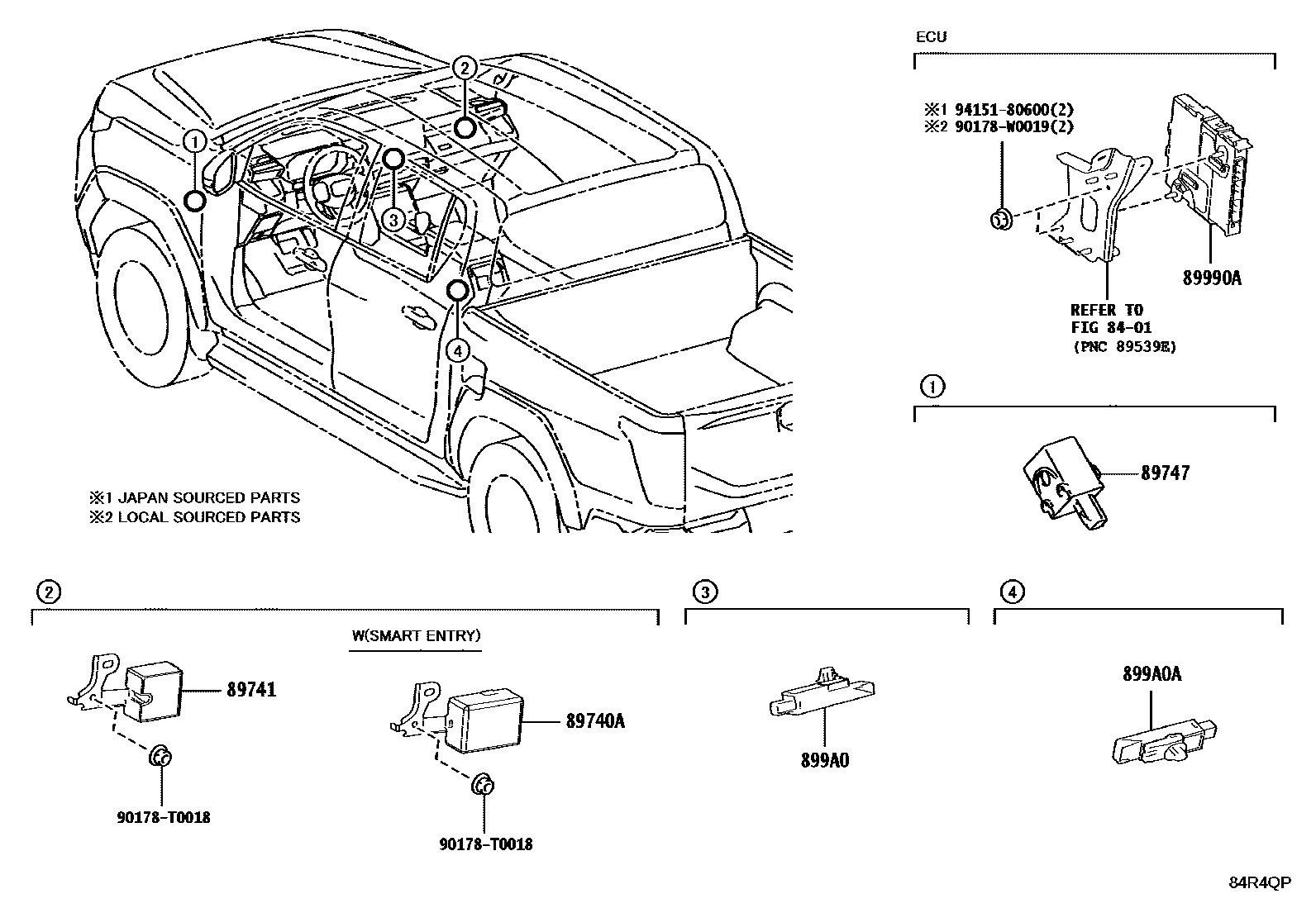

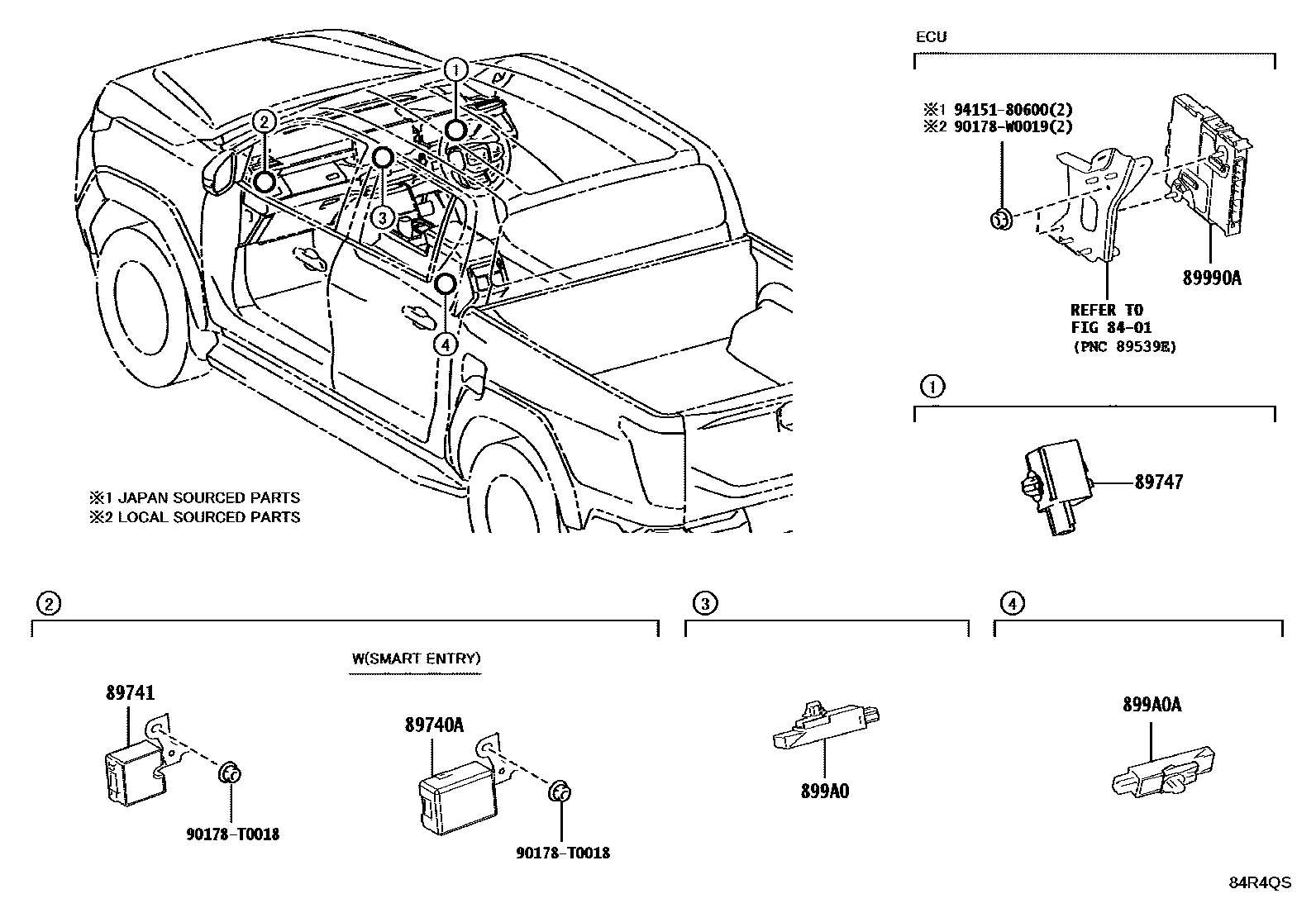

Toyota HILUX 遥控门锁 — Figure 8420
Toyota HILUX EPC diagram 8420, 遥控门锁, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-0K110 · 89740-0K440 |
| 89741 | door control receiver | 89741-0K350 · 89741-0K360 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-0K100 · 899H0-0K110 · 899H0-0K130 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0A010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0K060 |
