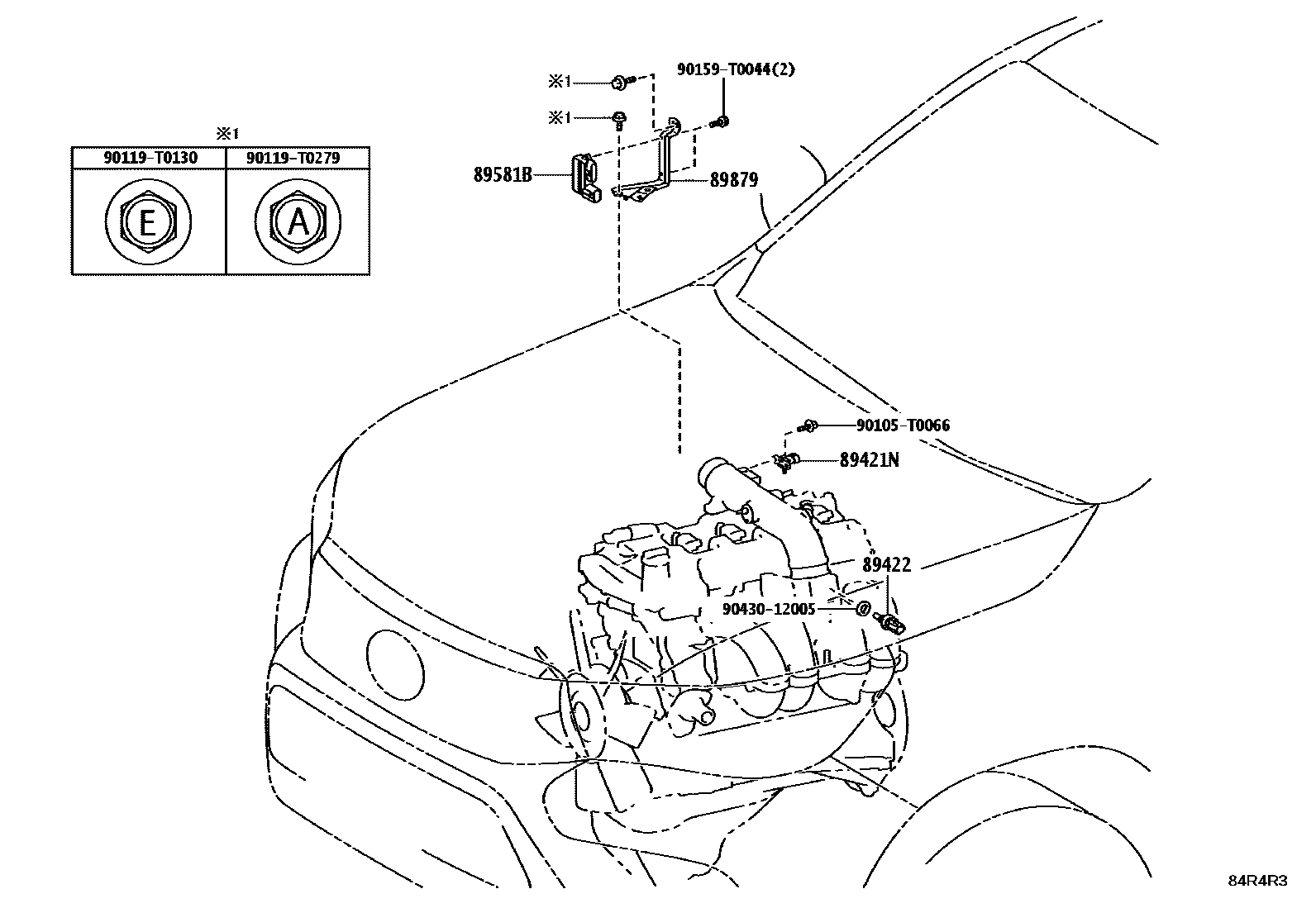

Toyota HILUX 电子燃油喷射系统 — Figure 8404
Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421N | air pressure sensor | 89421-71010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89581B | Air injection control driver | 89581-60010 |
| 89661 | Engine control ECU | 89661-FBL70 · 89661-FBV60 |
| 89667 | Engine control ECU bracket | 89667-0K301 · 89667-0K331 |
| 89668 | No. 2 engine control ECU bracket | 89668-0K330 · 89668-0K350 · 89668-0K400 |
| 89879 | Injector driver bracket | 89589-0K050 · 89589-0K070 |
