Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 21 images and 151 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-30050 |
| 28300F | No. 2 starter relay assembly | 28300-0L011 · 28300-21020 |
| 28371B | IGR relay | 90987-T2001 |
| 28371L | IGP relay | 90987-T2001 |

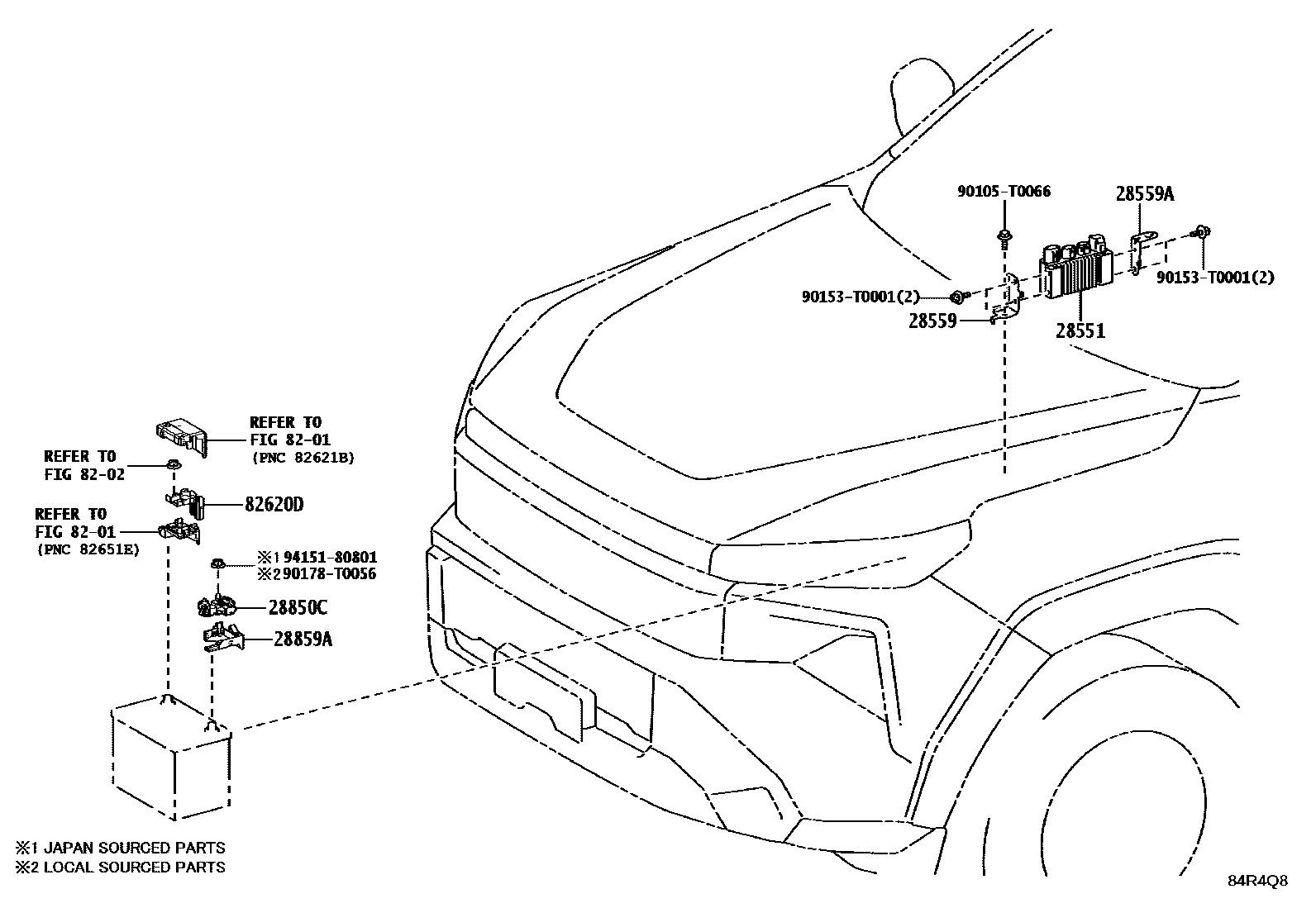

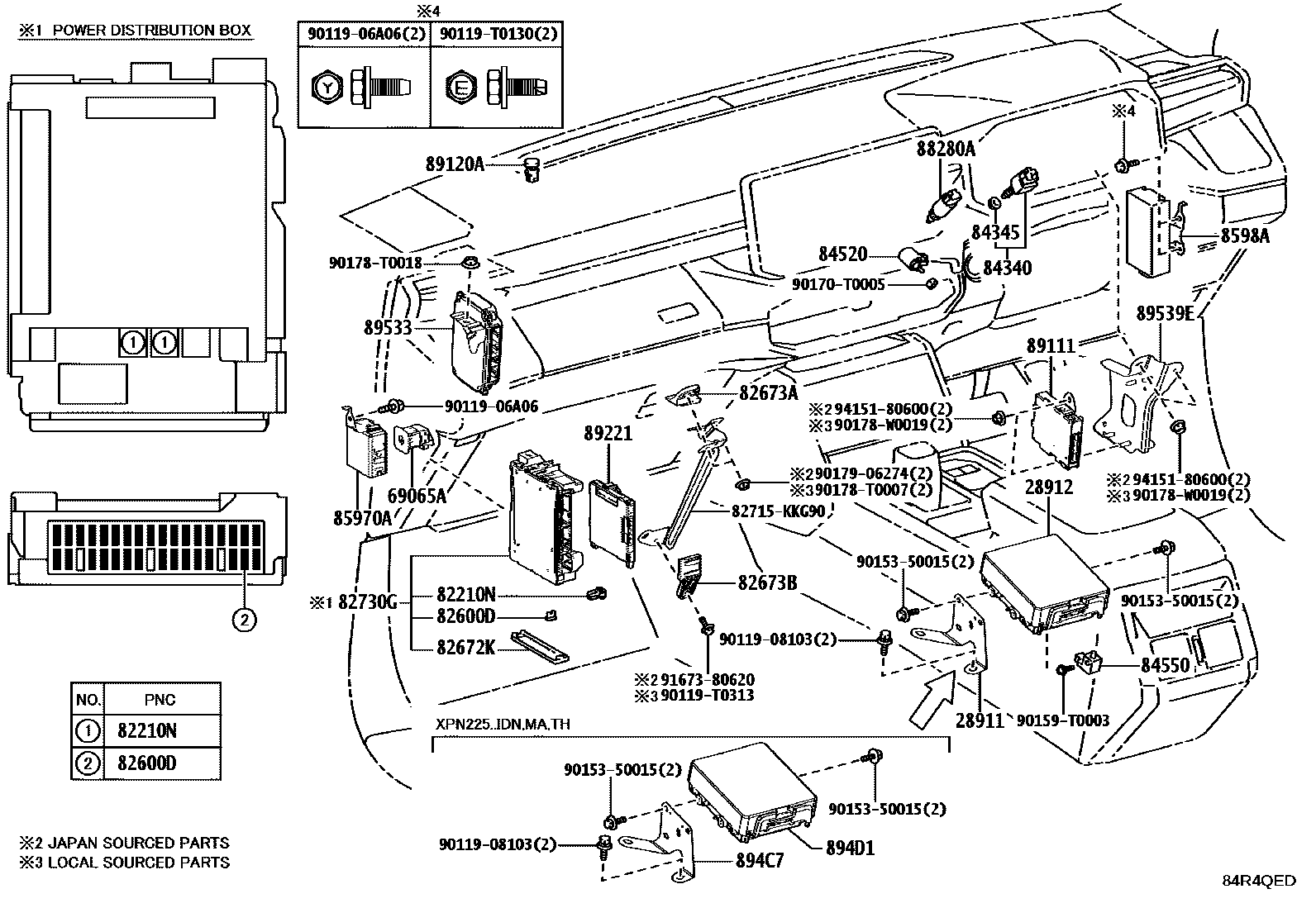

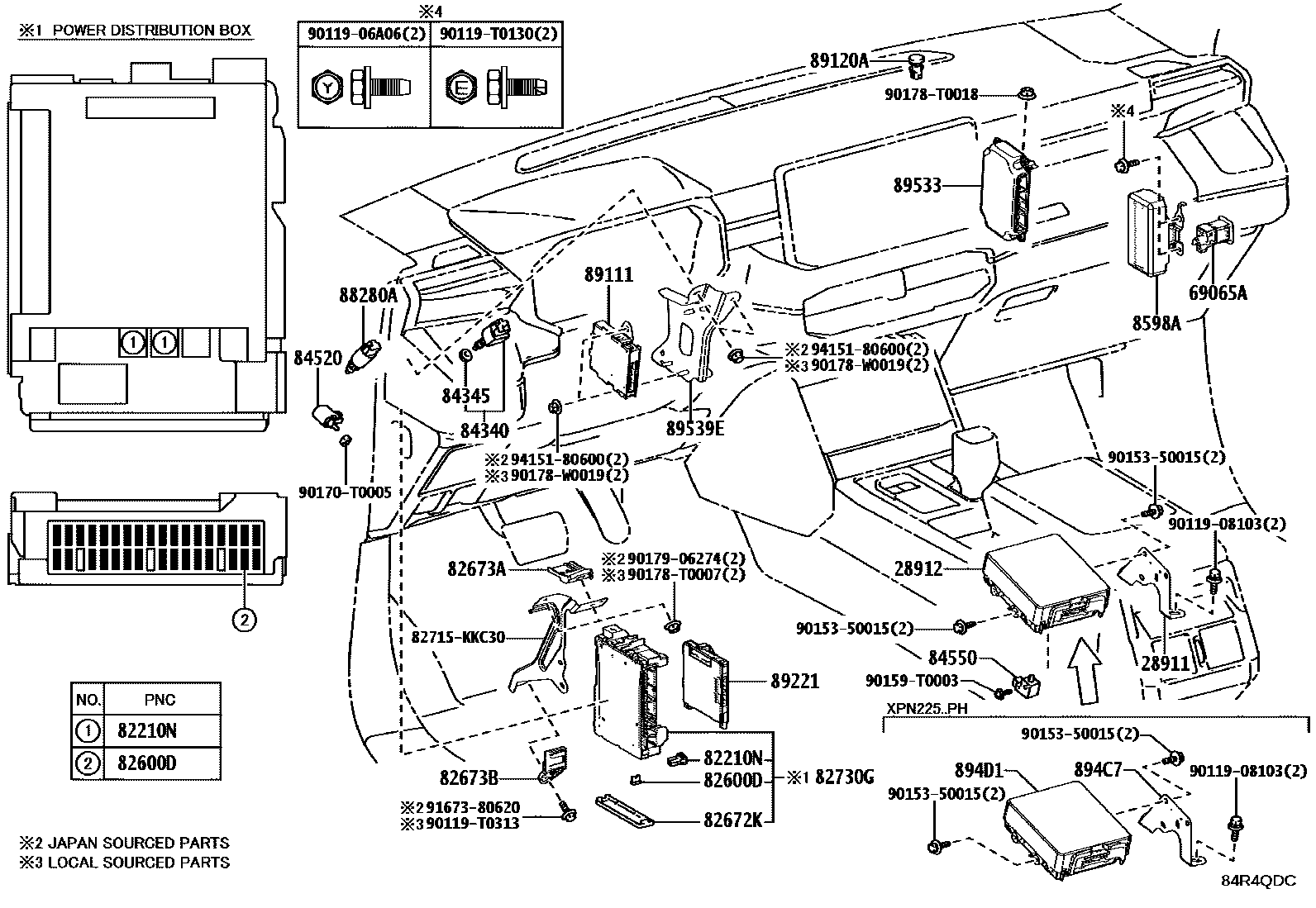

| 28551 | glow plug controller | 28551-0E010 · 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-0L010 · 28559-0L030 · 28559-0L050 · 28559-0L090 |
| 28559A | Glow plug controller bracket No. 2 | 28559-0L020 · 28559-0L040 · 28559-0L060 · 28559-0L100 |
| 28610 | Intake air heater or glow plug relay assembly | 90987-02025 · 90987-T2002 |
| 28850C | Battery status sensor assembly | 28850-K0010 |
| 28859A | Battery current sensor mount | 28859-0E010 |
| 33576D | No. 1 reversing light switch bracket | 33576-0K010 · 33576-0K040 |
| 33576E | No. 2 reversing light switch bracket | 33576-0K020 · 33576-0K050 |
| 33576F | No. 3 reversing light switch bracket | 33576-0K030 · 33576-0K060 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-0K010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210Q | Front cabin fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600K | Front cabin fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |

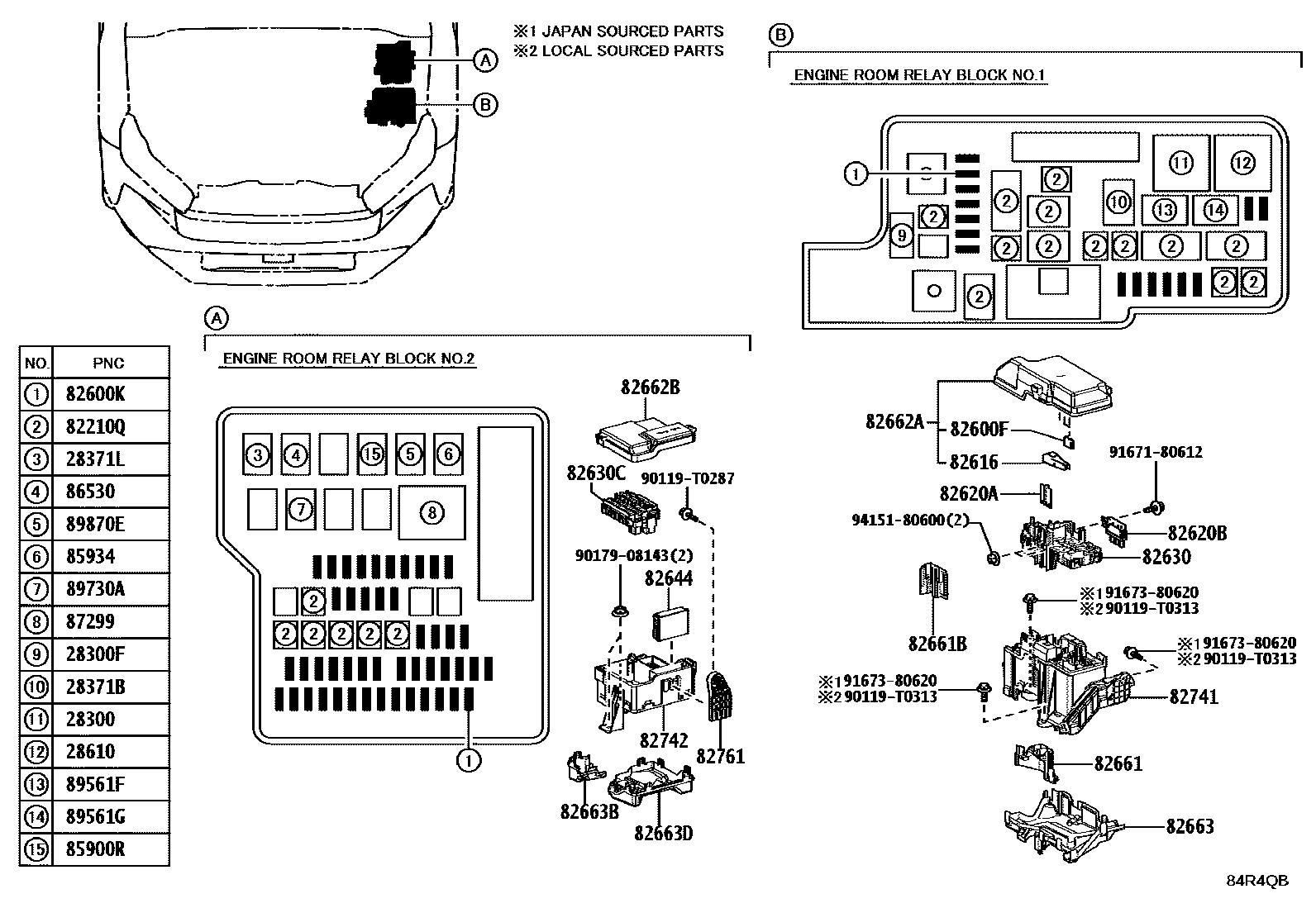

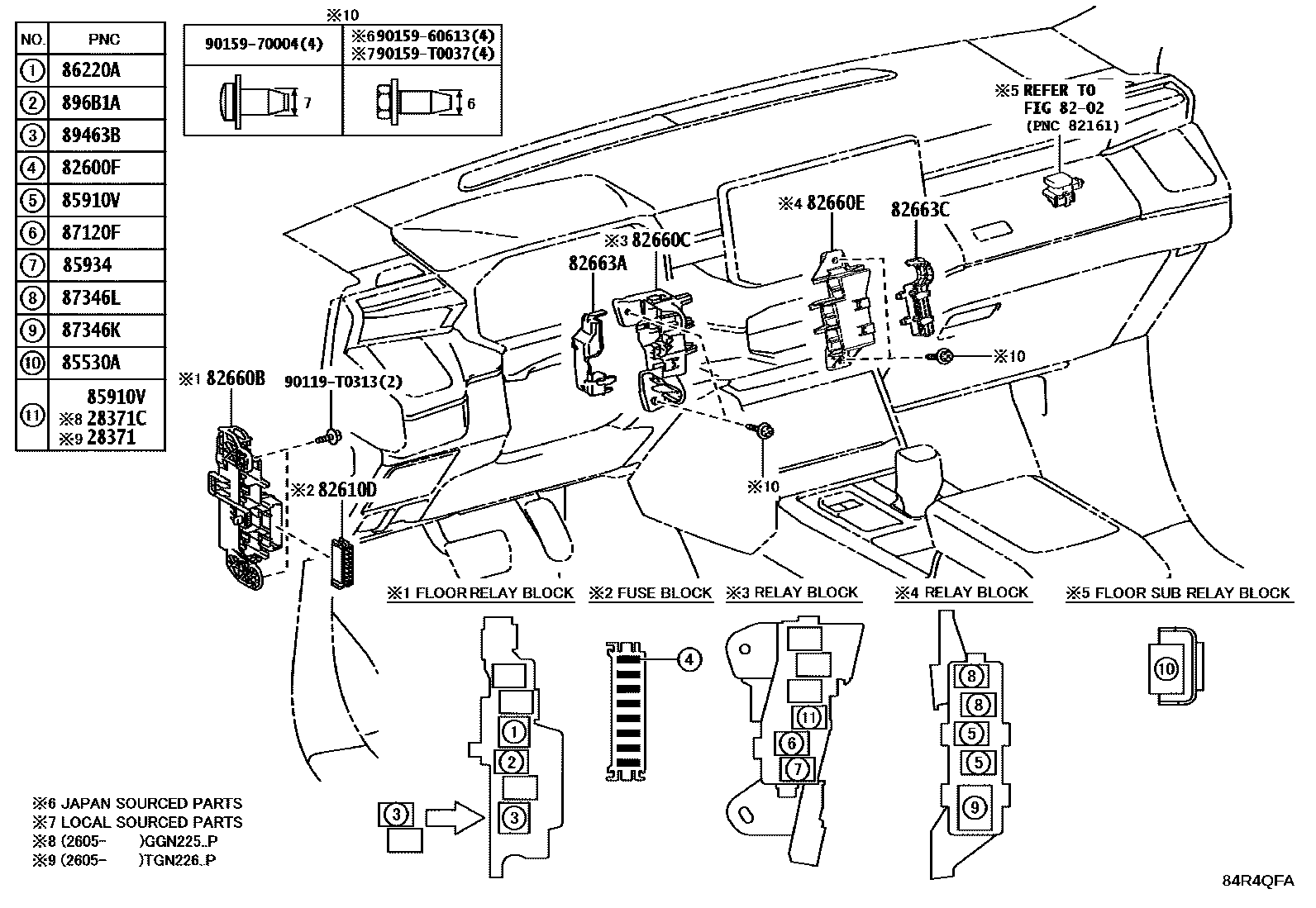

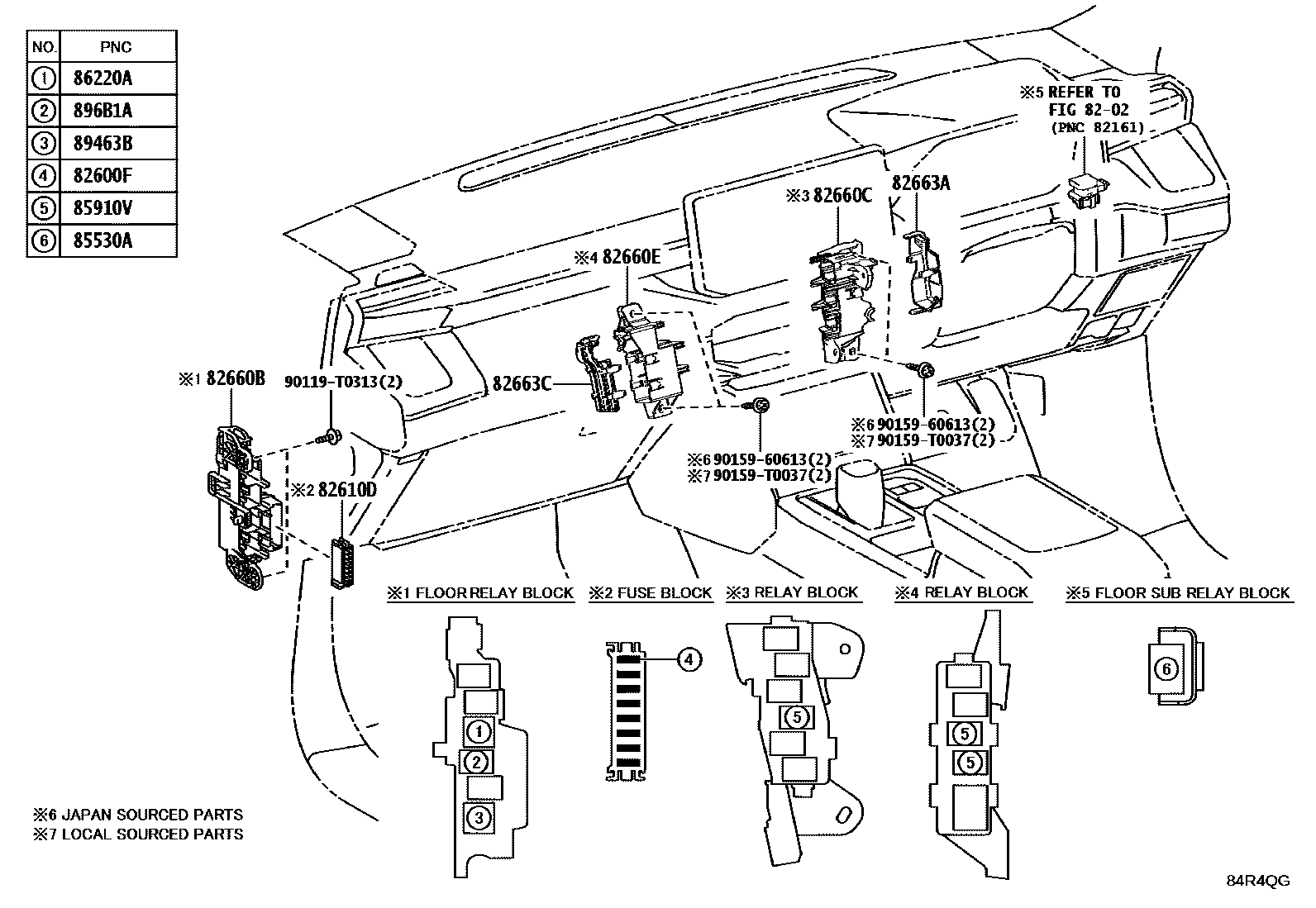

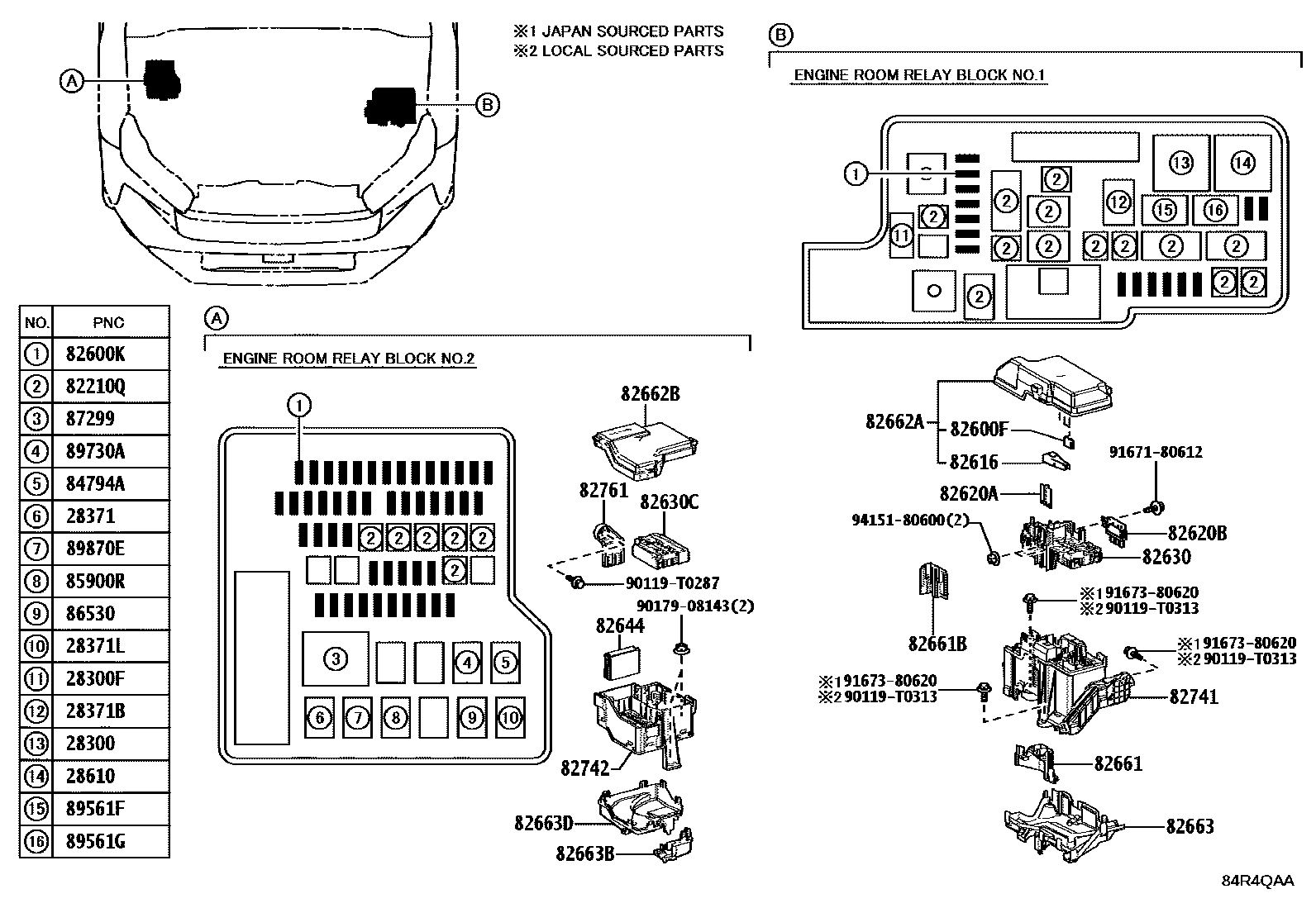

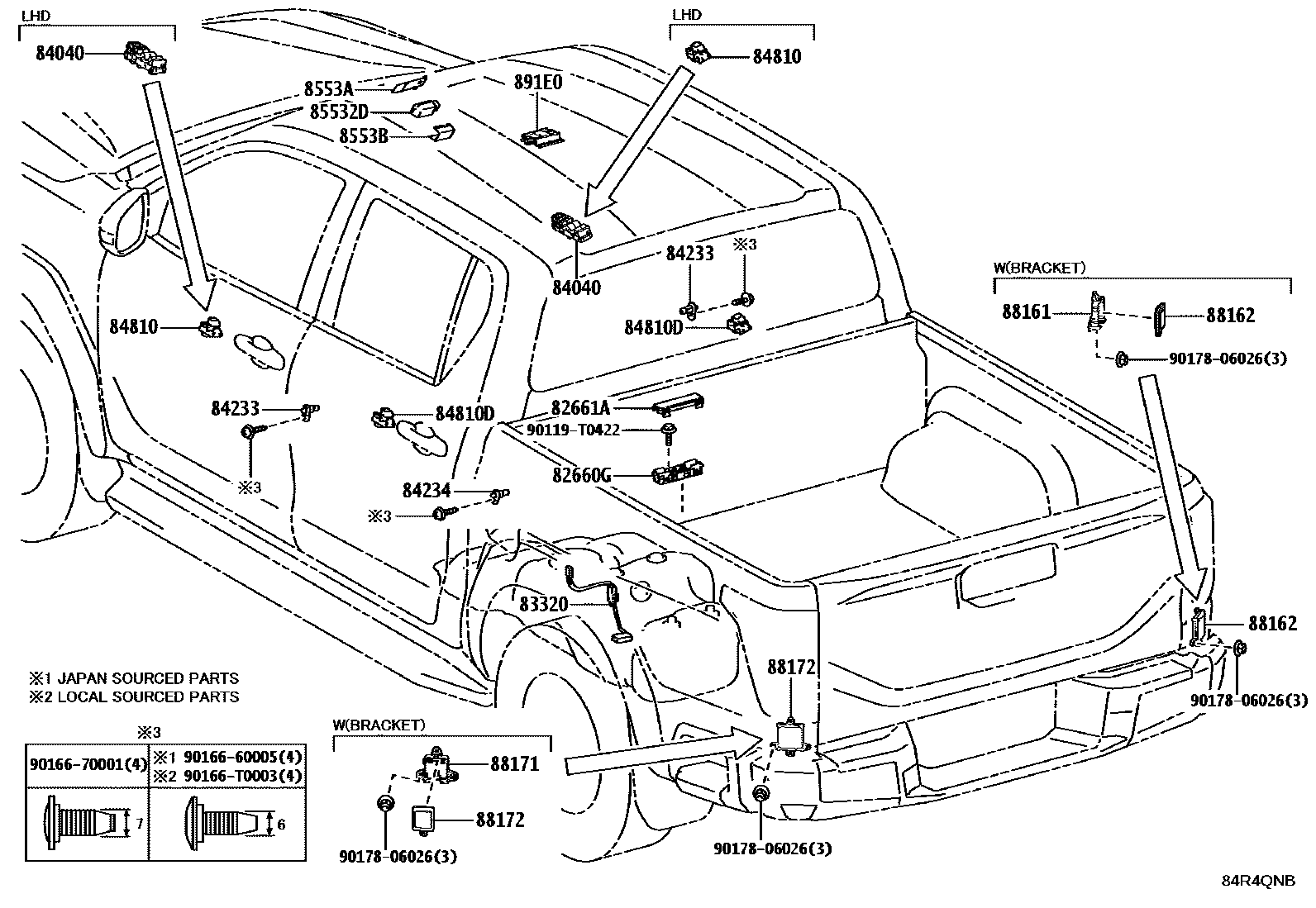

| 82610D | Fuse box assembly | 82610-0K010 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-42110 |
| 82620B | Fuse box assembly | 82620-42140 |
| 82620D | Fuse box assembly | 82620-0K030 |
| 82630 | Fuse holder assembly | 82630-0K040 |
| 82630C | Fuse holder assembly | 82630-0K050 |
| 82644 | Semiconductor power integrated ECU | 82644-15020 · 82644-71010 |
| 82660B | Relay assembly | 82660-0K280 |
| 82660C | Relay assembly | 82660-0K240 · 82660-0K250 |
| 82660E | Relay assembly | 82660-0K260 · 82660-0K270 |
| 82660G | Relay assembly | 82660-0K180 |
| 82661 | No. 1 relay box cover | 82661-0K210 · 82661-0K220 |
| 82661A | No. 2 relay box cover | 82661-0K140 |
| 82661B | No. 3 relay box cover | 82661-0K170 |
| 82662A | No. 1 relay box upper cover | 82662-0KB80 |
| 82662B | No. 2 relay box upper cover | 82662-0KB90 |
| 82663 | Relay box lower cover | 82663-0K170 |
| 82663A | No. 2 relay box lower cover | 82663-0K050 · 82663-0K060 |
| 82663B | No. 3 relay box lower cover | 82663-0K230 |
| 82663C | No. 4 relay box lower cover | 82663-0K220 |
| 82663D | No. 5 relay box lower cover | 82663-0K180 |
| 82672K | Electric power distribution box cover | 82672-0K150 |
| 82673A | Junction box bracket | 82673-0K300 · 82673-0K320 |
| 82673B | Junction box bracket | 82673-0K310 · 82673-0K330 |
| 82730G | Distribution box assembly | 82730-0KE70 · 82730-0KE80 · 82730-0KE90 · 82730-0KF10 · 82730-0KF30 · 82730-0KF40 · 82730-0KF80 · 82730-0KF90 |
| 82741 | Engine room relay box | 82741-0K060 |
| 82742 | Engine room No. 2 relay box | 82741-0K070 |
| 82761 | No. 1 relay box bracket | 82761-0K010 · 82761-0K020 |
| 83320 | Fuel gauge sensor assembly | 83320-0K181 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 |
| 84040 | Multi-channel network main switch assembly | 84040-0K250 · 84040-0K260 · 84040-0K290 · 84040-0K300 |
| 84052 | Unlock warning switch assembly | 84052-0K020 |

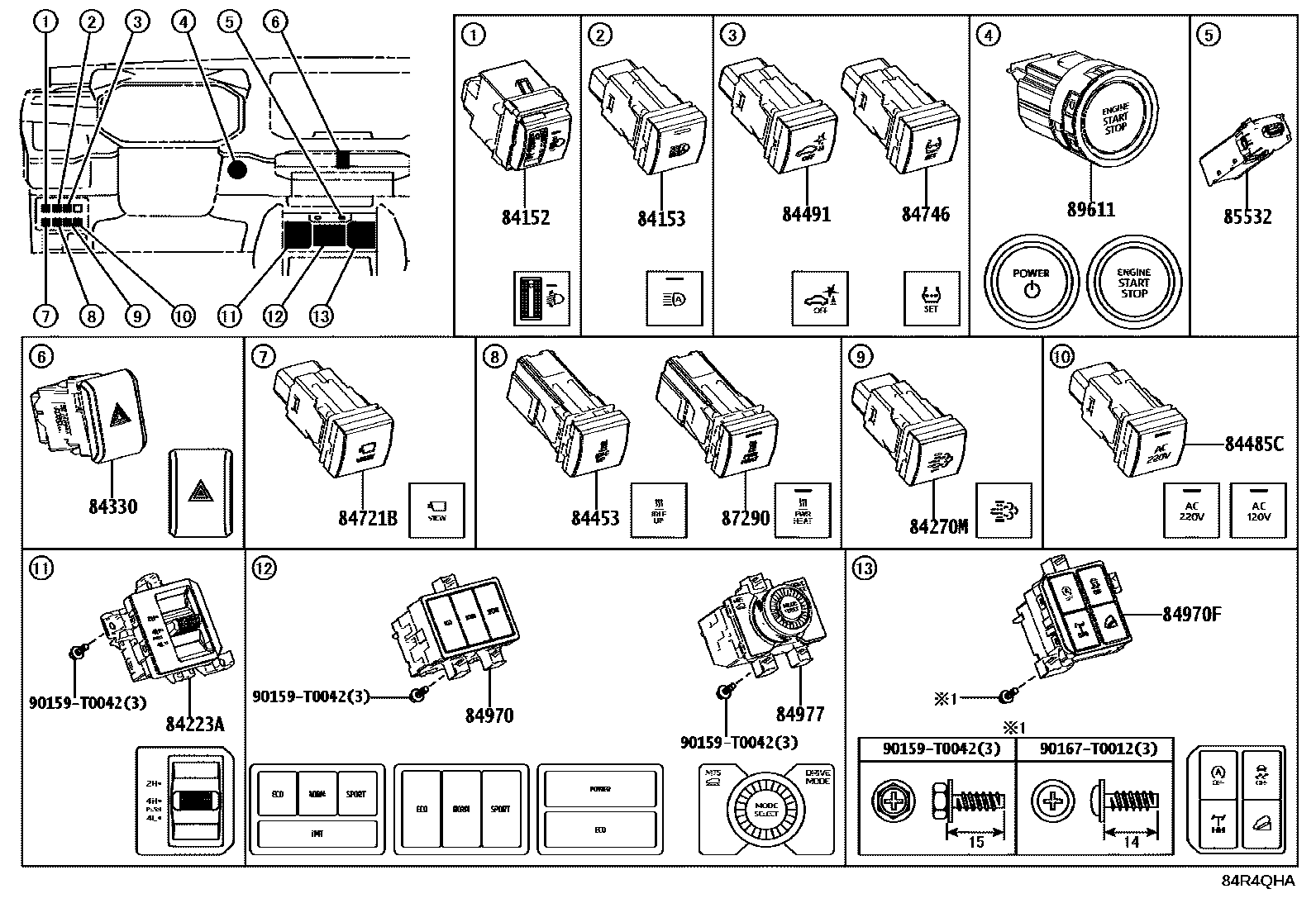

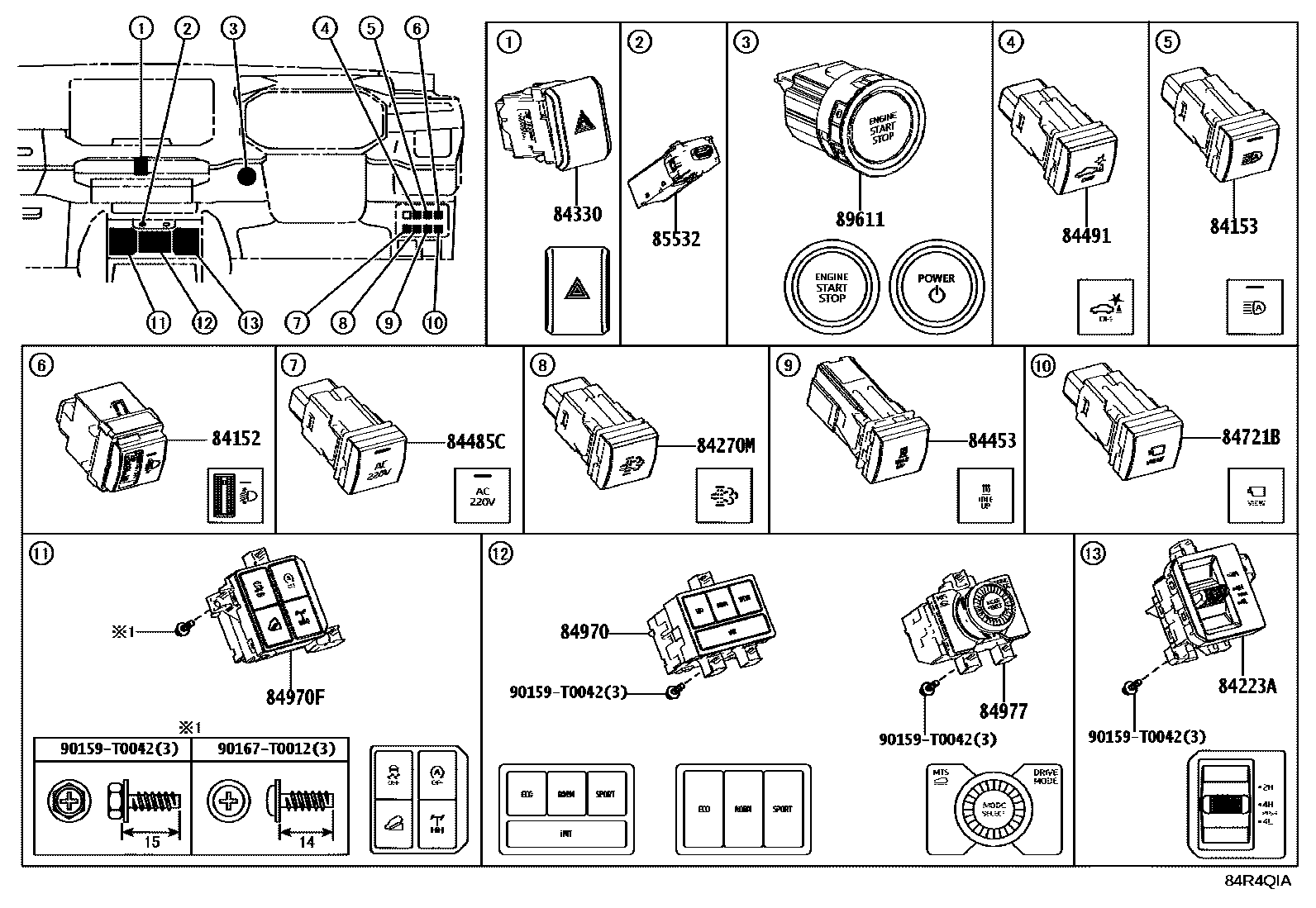

| 84152 | Headlight beam height adjustment switch | 84152-VT010 |
| 84153 | Automatic high beam switch | 84153-VT030 |

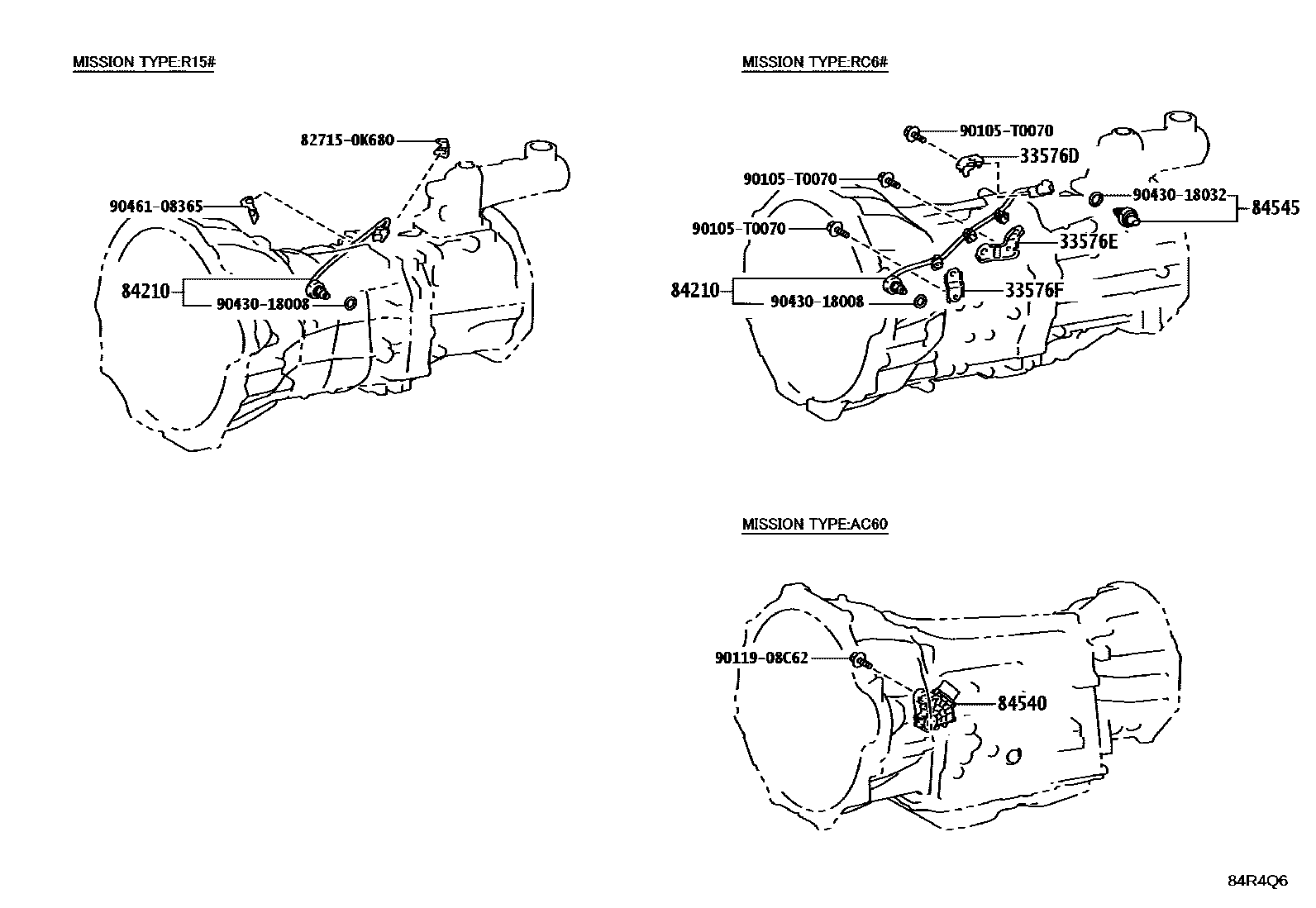

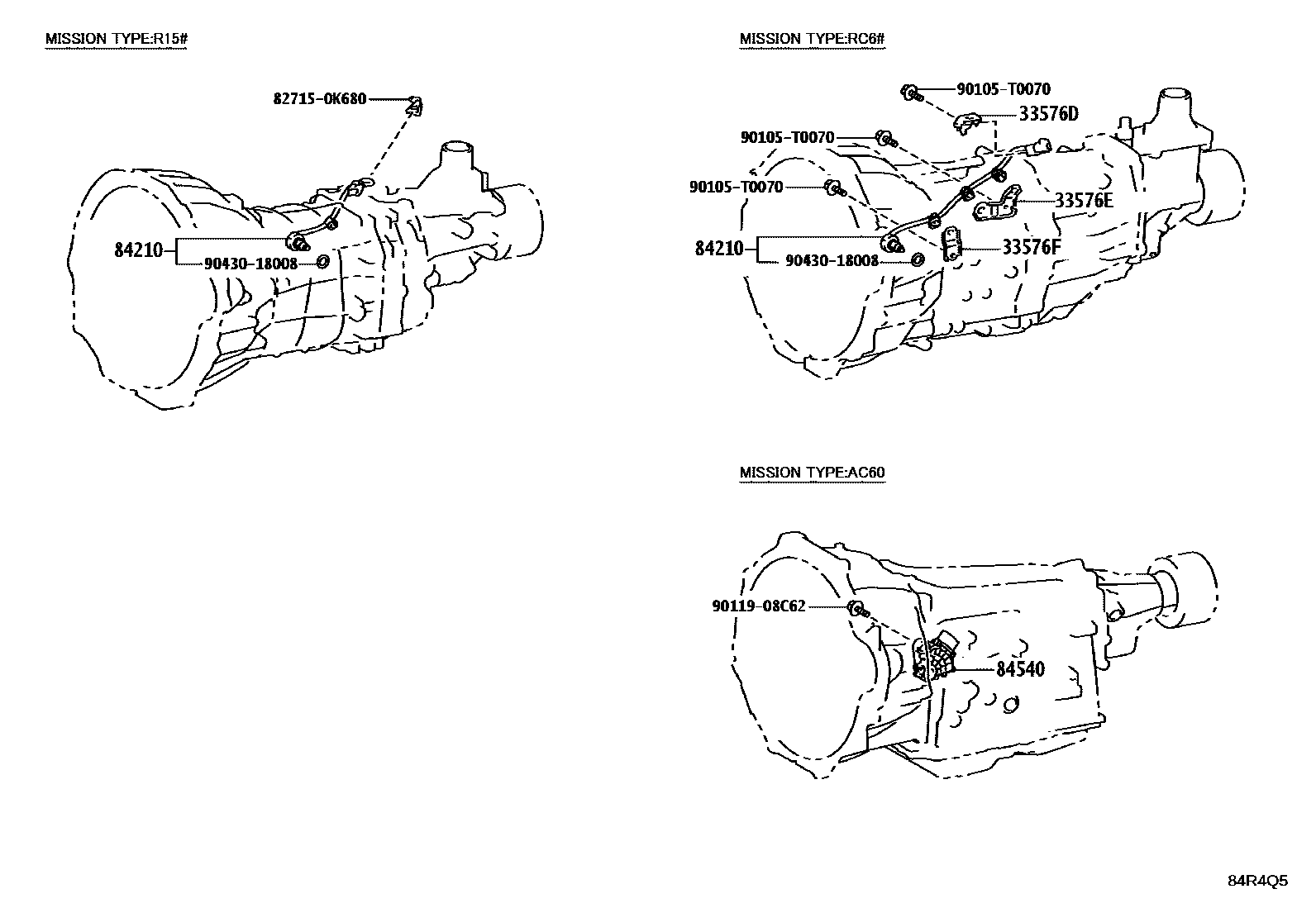

| 84210 | Reversing light switch assembly | 84210-71040 · 84210-71050 |
| 84223A | transfer case position switch | 84223-0K050 · 84223-0K060 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-0G060 |
| 84270M | Diesel particulate reduction switch assembly | 84270-0K080 |

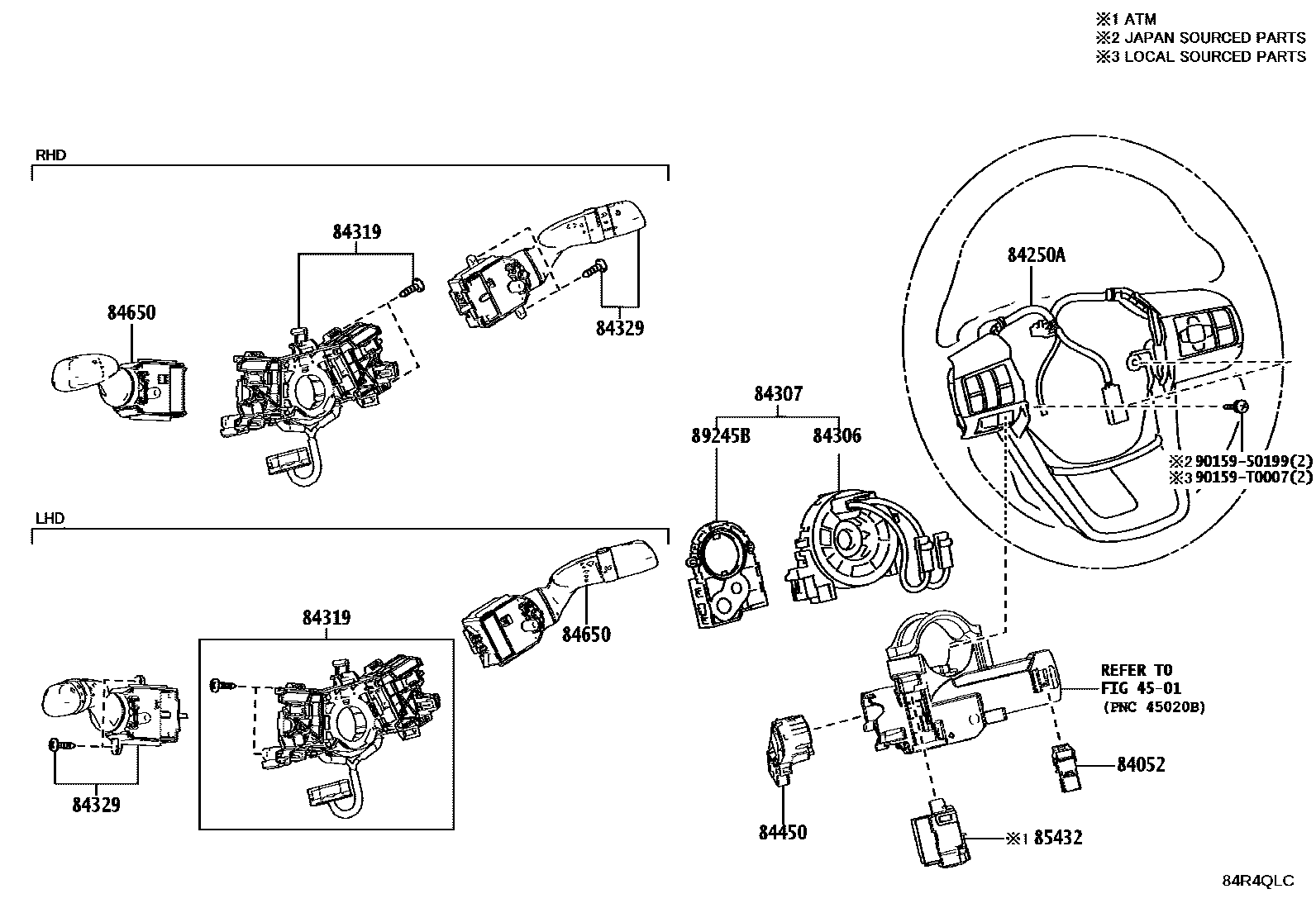

| 84306 | Spiral cable sub-assembly | 84308-06050 · 84308-0K130 |
| 84319 | Steering wheel switch housing | 84319-0G010 · 84319-0G020 |
| 84329 | turn signal switch | 84329-0G010 · 84329-0G020 · 84329-0G040 · 84329-0G060 · 84329-0G070 · 84329-0G080 · 84329-0K010 · 84329-0K020 · 84329-0K030 · 84329-0K040 · 84329-0K050 |
| 84330 | Hazard warning signal switch assembly | 84332-0K090 |
| 84340 | brake light switch assembly | 84340-09380 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84390B | Electric parking brake switch assembly | 84390-0K010 · 84390-0K020 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84453 | Idle speed boost switch | 84453-0K030 |
| 84485C | power outlet switch | 84485-0K010 · 84485-0K020 |
| 84491 | Parking assist cancel switch | 84491-0K010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-60050 |
| 84545 | neutral position switch | 84545-71010 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84650 | Windshield wiper switch assembly | 84652-0K440 · 84652-0K450 · 84652-0K460 · 84652-0K470 |
| 84721B | Panoramic display switch | 84721-0K050 |
| 84746 | tire pressure warning switch | 84746-0K050 |
| 84751 | Seat heater switch | 84751-0K030 |
| 84751F | Seat heater switch | 84751-0K020 |
| 84794A | Front wiper de-icer relay | 90987-T2001 |
| 84810 | Electric window lift switch assembly | 84810-0K120 |
| 84810D | Rear electric window lift switch assembly | 84810-0K120 |

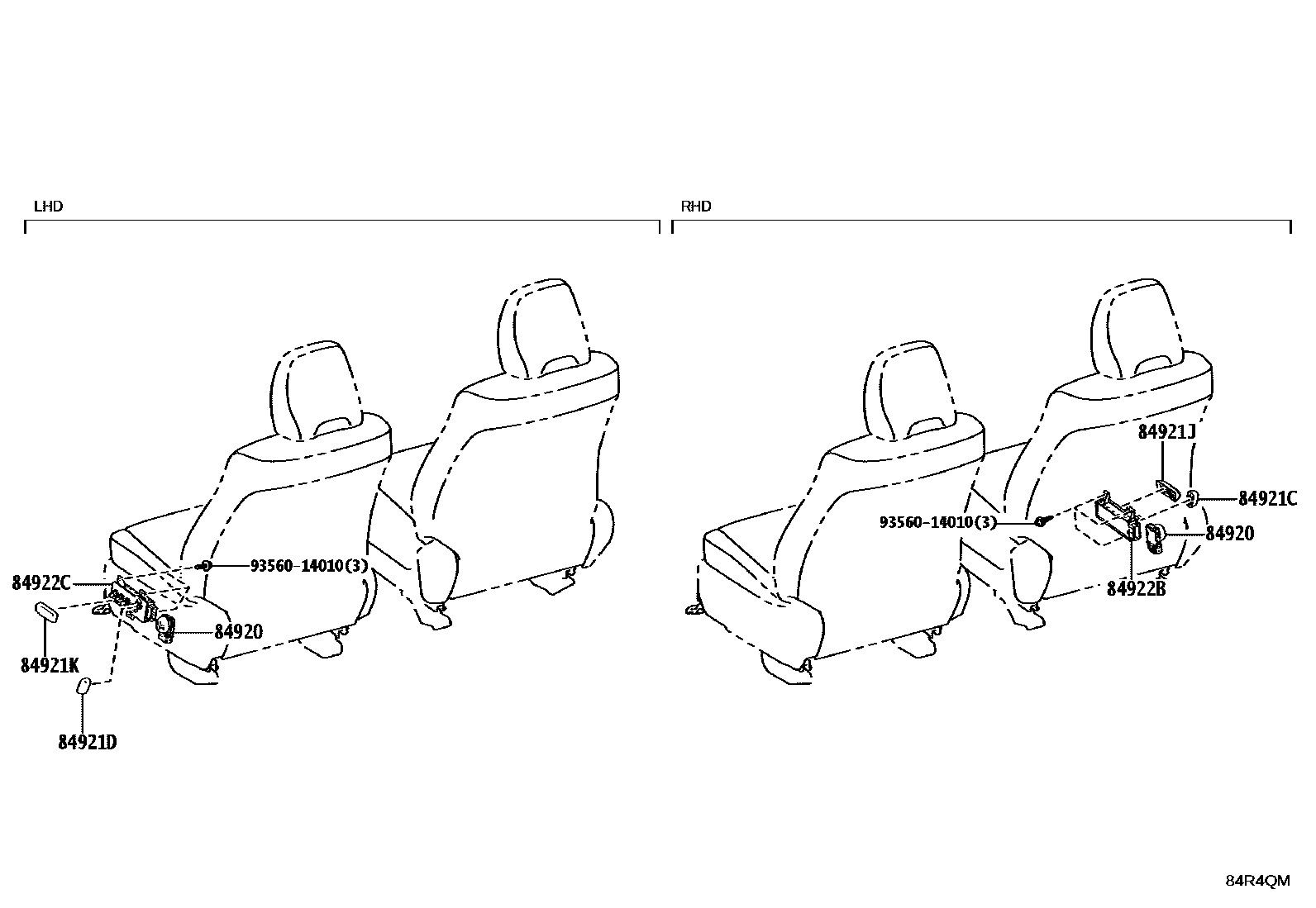

| 84922B | Front right electric seat switch | 84922-06150 |
| 84922C | Front left electric seat switch | 84922-06140 |
| 84970 | Combination switch assembly | 84970-0K470 · 84970-0K480 · 84970-0K500 |
| 84970F | No. 3 combination switch assembly | 84970-0K520 · 84970-0K530 · 84970-0K550 · 84970-0K570 · 84970-0K600 · 84970-0K630 · 84970-0K640 · 84970-0K650 · 84970-0K680 · 84970-0K700 · 84970-0K710 |
| 84977 | driving monitor switch | 84977-0K030 |
| 85432 | Key interlock solenoid valve | 85432-06040 |

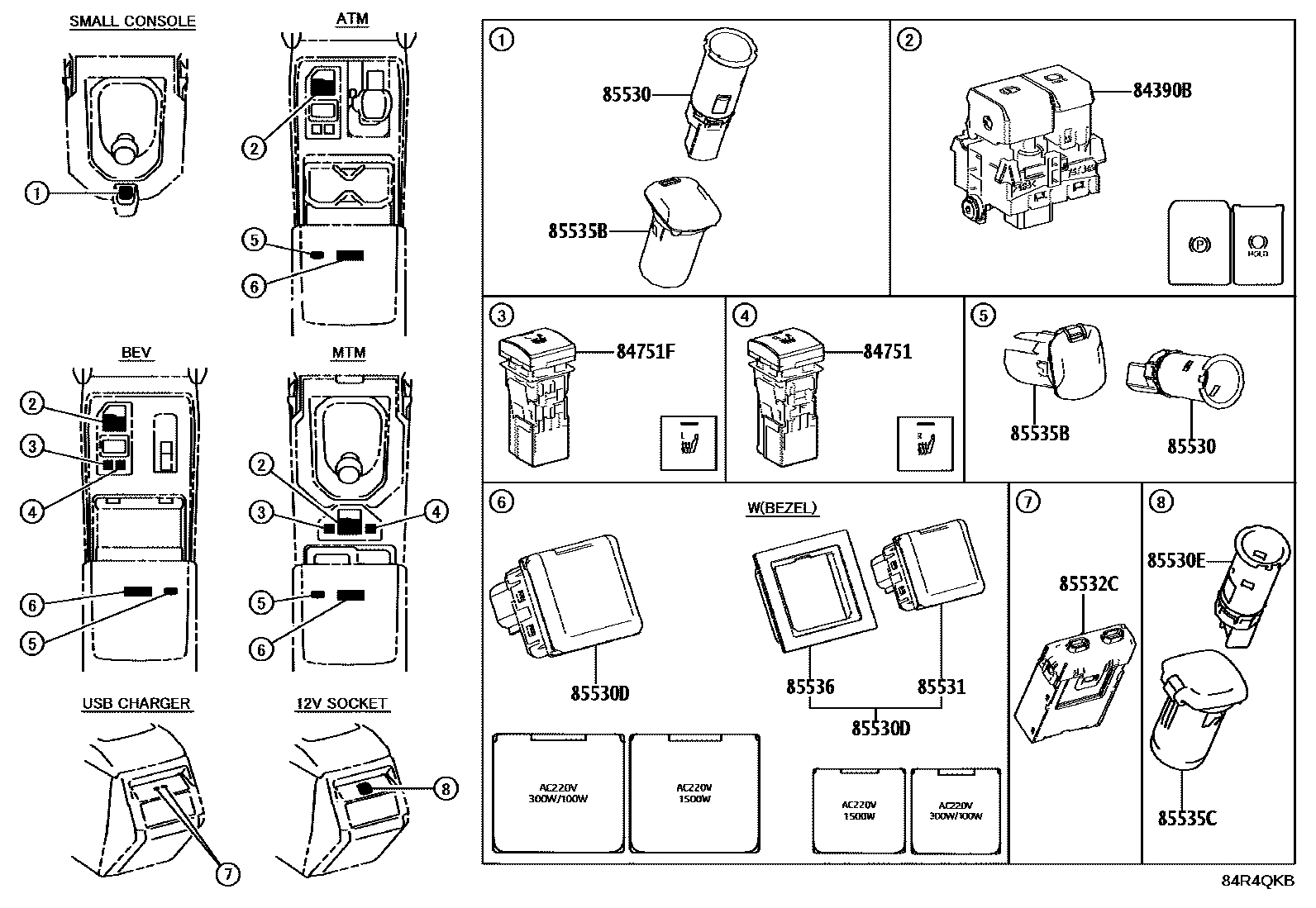

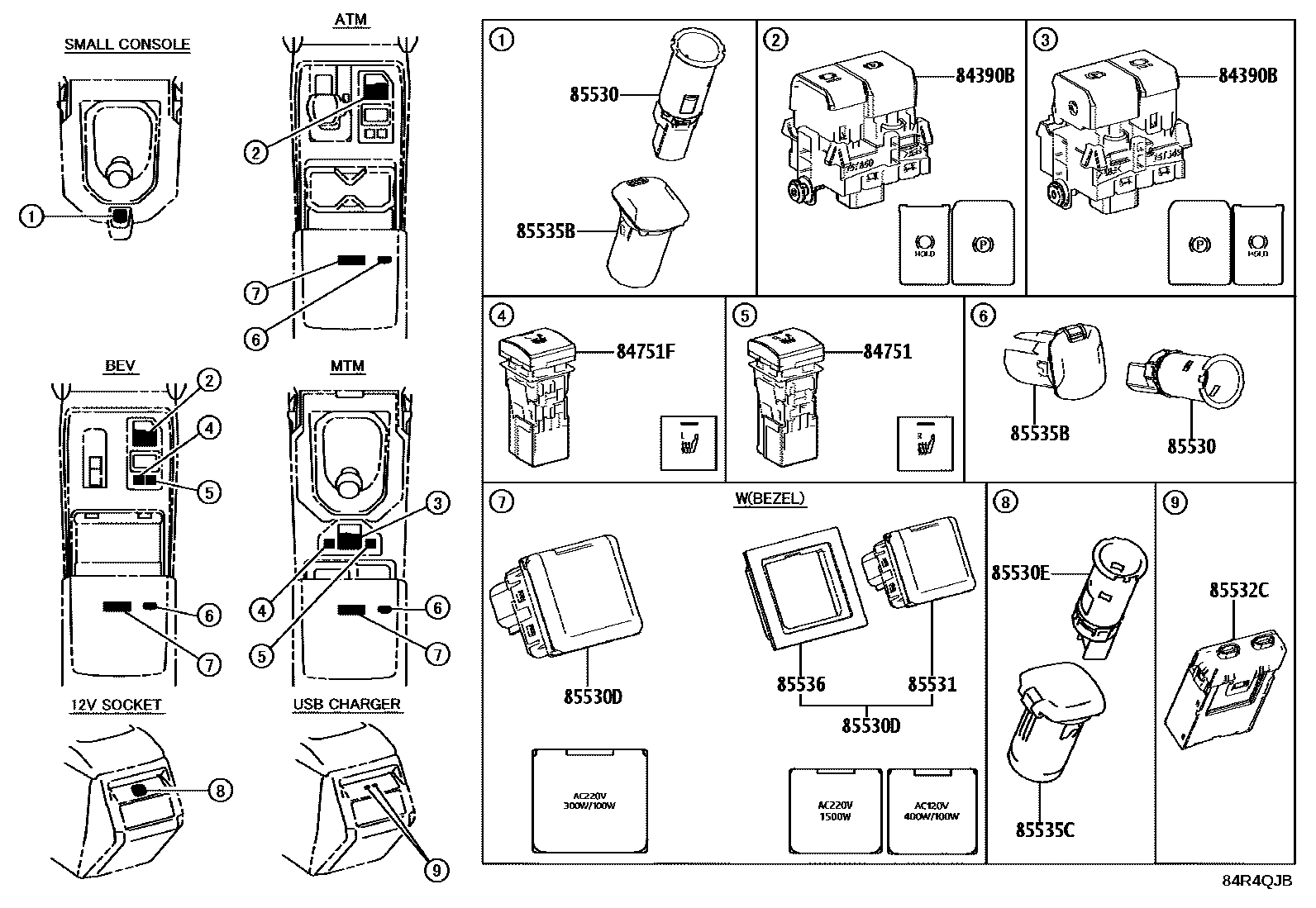

| 85530 | No. 1 power socket assembly | 85530-0K150 |
| 85530A | power outlet relay | 90987-02027 · 90987-T2001 |
| 85530D | No. 2 power socket assembly | 85530-60540 · 85530-71100 · 85530-71110 · 85540-71010 |
| 85530E | No. 3 power socket assembly | 85530-0K150 |
| 85531 | power socket | 85530-71070 · 85531-60090 |
| 85532 | USB charging socket | 85532-0K090 |
| 85532C | USB charging socket No. 2 | 85532-0K070 |
| 85532D | USB charging socket No. 3 | 85532-YY030 |
| 85535B | No. 1 power outlet cover | 85535-0K190 |
| 85535C | Rear power outlet cover | 85535-0K190 |
| 85536 | Power socket box | 85536-60130 |
| 8553A | SUPPORT, CHARGEUR USB | 8553A-YY010 |
| 8553B | CACHE, CHARGEUR USB | 8553B-YY010 |
| 85900R | DC/DC cut-off relay | 90987-02027 · 90987-T2001 |
| 85910 | Circuit breaking relay assembly | 90987-02027 · 90987-T2001 |
| 85910E | Injector relay | 90987-02027 · 90987-T2001 |
| 85910V | seat heater relay | 90987-T2001 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 8598A | door control battery | 8598A-0G010 |
| 86220A | Inverter relay | 90987-02025 · 90987-T2002 |

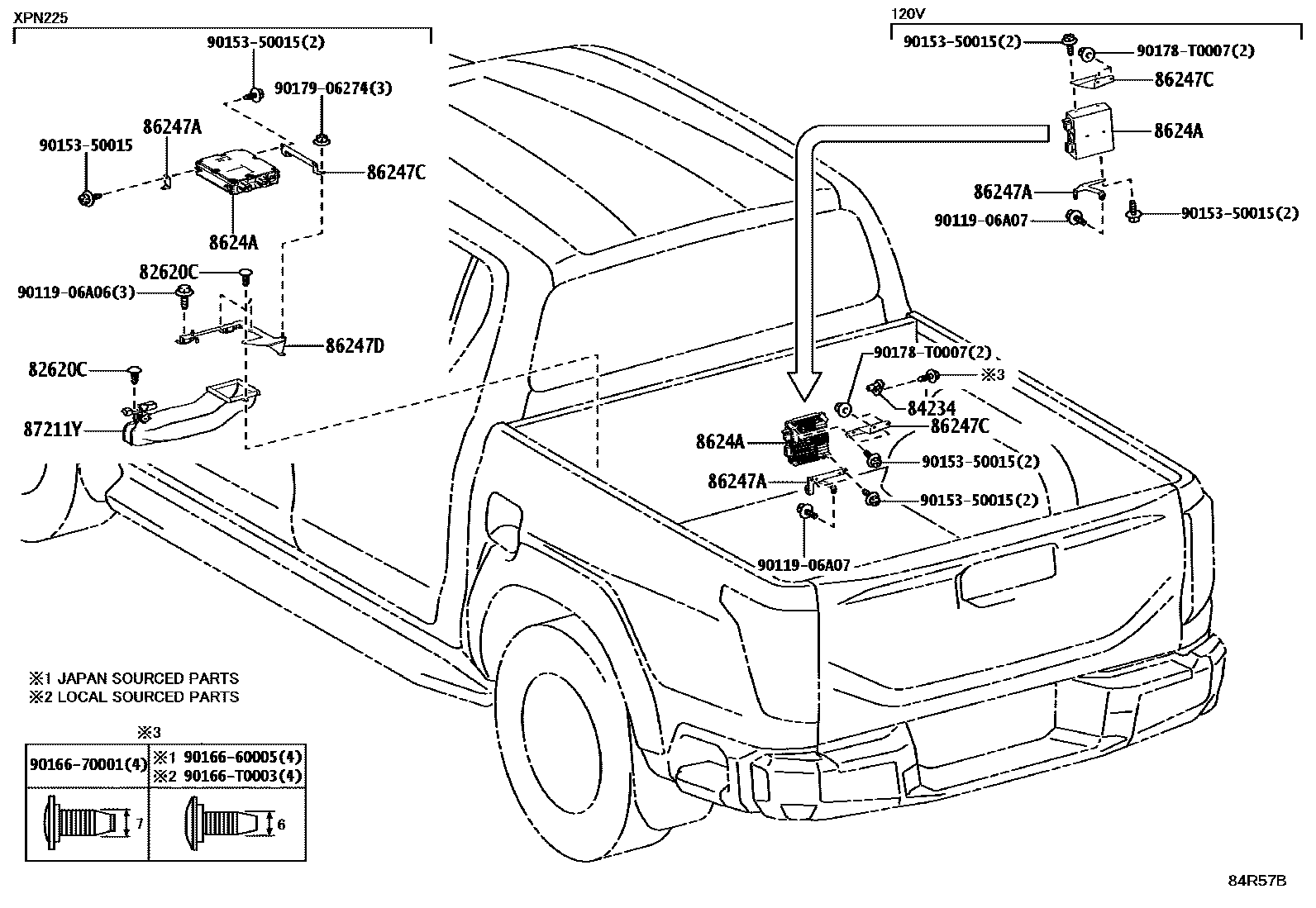

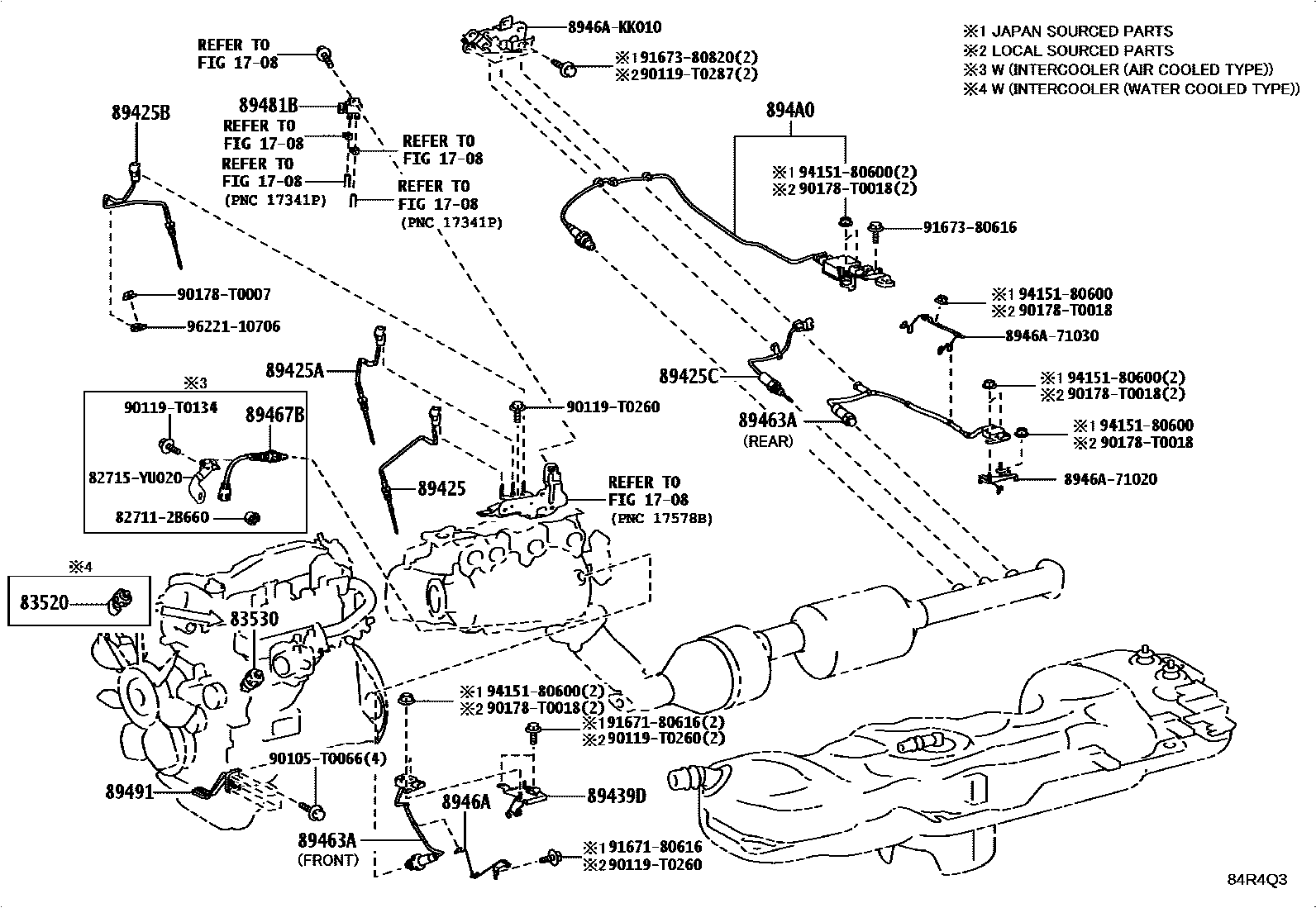

| 86247A | Voltage inverter bracket | 86247-KK020 · 86247-KK040 |
| 86247C | Voltage inverter bracket No. 2 | 86247-KK030 · 86247-KK050 |
| 8624A | voltage inverter | 8624A-71011 · 8624A-71020 |
| 86530 | Speaker relay assembly | 90987-T2001 |
| 87120F | Viscous Heater Relay | 90987-T2001 |
| 87290 | Heater switch assembly | 87290-0K060 |
| 87299 | heater relay | 90987-T2003 |
| 87346K | PTC heater relay | 90987-T2002 |
| 87346L | PTC heater relay | 90987-T2001 |
| 88161 | Blind spot monitor right bracket | 88161-0K010 |
| 88162 | Blind spot monitor right sensor | 88162-0K050 · 88162-0K100 |
| 88171 | Blind spot monitor left bracket | 88161-0K010 |
| 88172 | Blind spot monitor left sensor | 88162-0K050 · 88162-0K100 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89100-0K050 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891E0 | ENS CAPTEUR, RECONN OBJET HABITACLE | 891E0-0K020 |
| 89221 | Multi-channel network body ECU | 89221-F0E90 |
| 89245B | steering sensor | 8924B-06030 |
| 89425 | Exhaust gas temperature sensor | 89425-71070 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-71080 |
| 89425B | No. 3 exhaust gas temperature sensor | 89425-71090 |
| 89425C | No. 4 exhaust gas temperature sensor | 89425-71060 |
| 89439D | Sensor No. 1 Bracket | 8946A-60020 |
| 89463A | Nitrogen oxide sensor | 89463-71011 · 89463-71041 |
| 89463B | Nitrogen oxide relay | 90987-02027 · 90987-02030 · 90987-T2001 · 90987-T2009 |
| 89465 | oxygen sensor | 89465-0K190 · 89465-0K200 |
| 89467B | air fuel ratio sensor | 89467-60150 · 89467-71130 |
| 8946A | Exhaust sensor clip bracket | 8946A-60190 |
| 89481B | Differential pressure sensor | 89481-71010 |
| 89491 | Engine oil level sensor | 89491-26190 |
| 894A0 | Particle sensing assembly | 894A0-71040 |
| 89533 | Four-wheel drive control ECU | 89533-0K010 · 89533-0K020 · 89533-0K030 · 89533-0K040 · 89533-0K050 · 89533-0K060 · 89533-0K070 · 89533-71230 · 89533-71250 · 89533-71260 · 89533-71270 · 89533-71280 · 89533-71290 · 89533-71300 |
| 89539E | ECU bracket | 89114-KK010 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 · 90987-T2001 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 · 90987-T2001 |
| 89611 | One-button start switch | 89611-02290 |
| 89615 | knock control sensor | 89615-20090 |
| 896B1A | DCU main relay | 90987-02027 · 90987-T2001 |
| 89730A | Relay (for safety warnings) | 90987-02027 · 90987-T2001 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2001 |
