Toyota HILUX 线束和卡夹 — Figure 8202

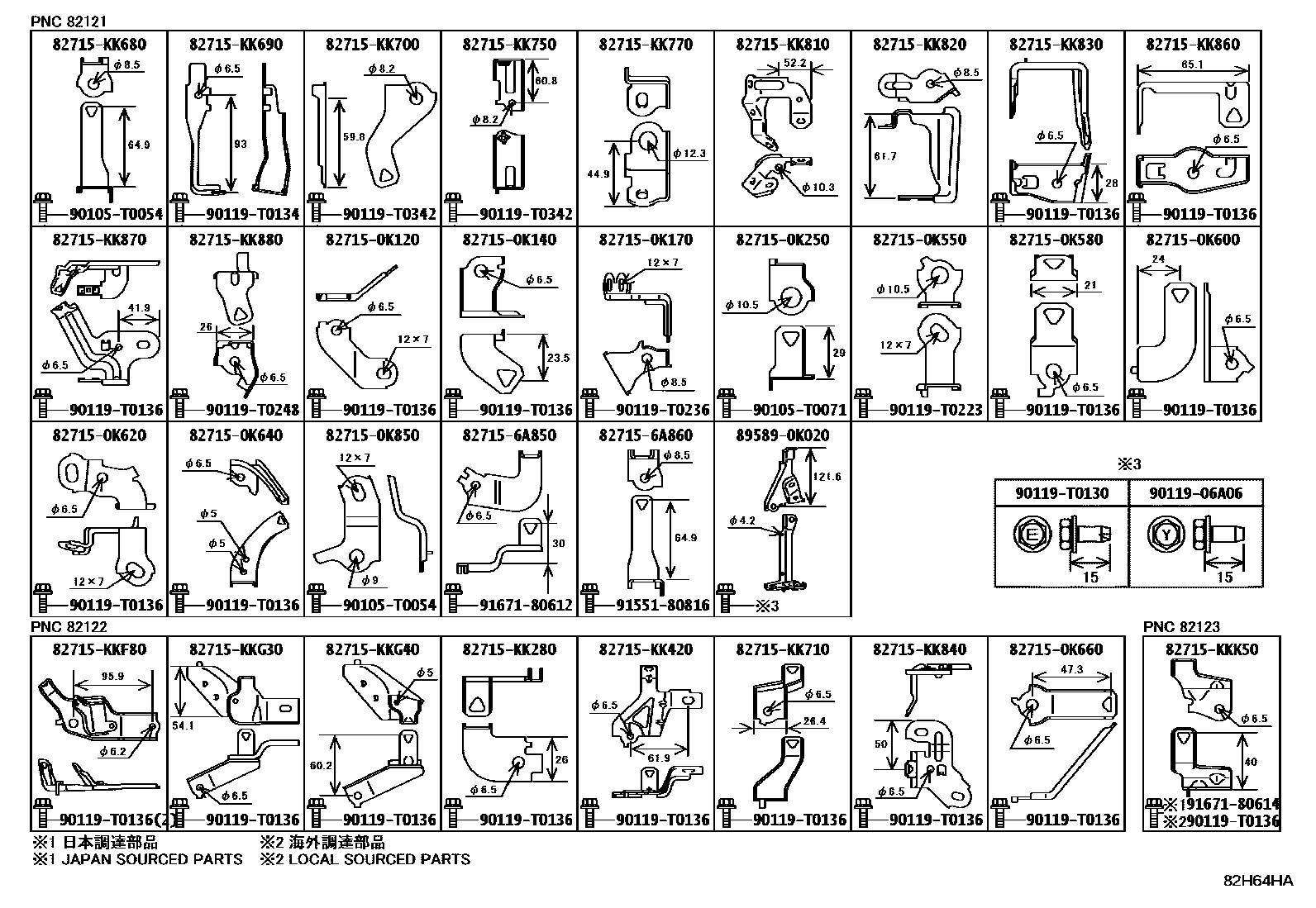

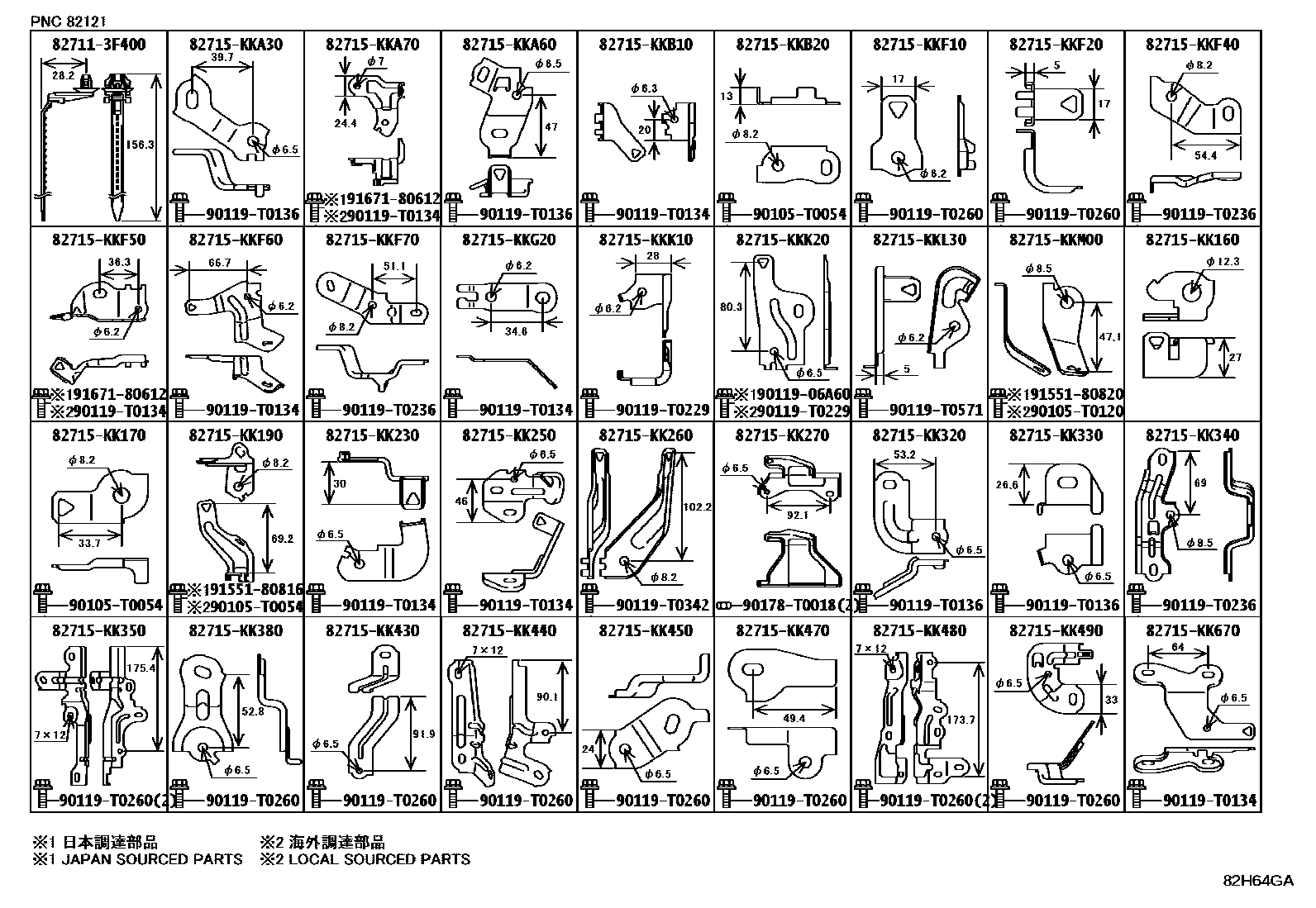

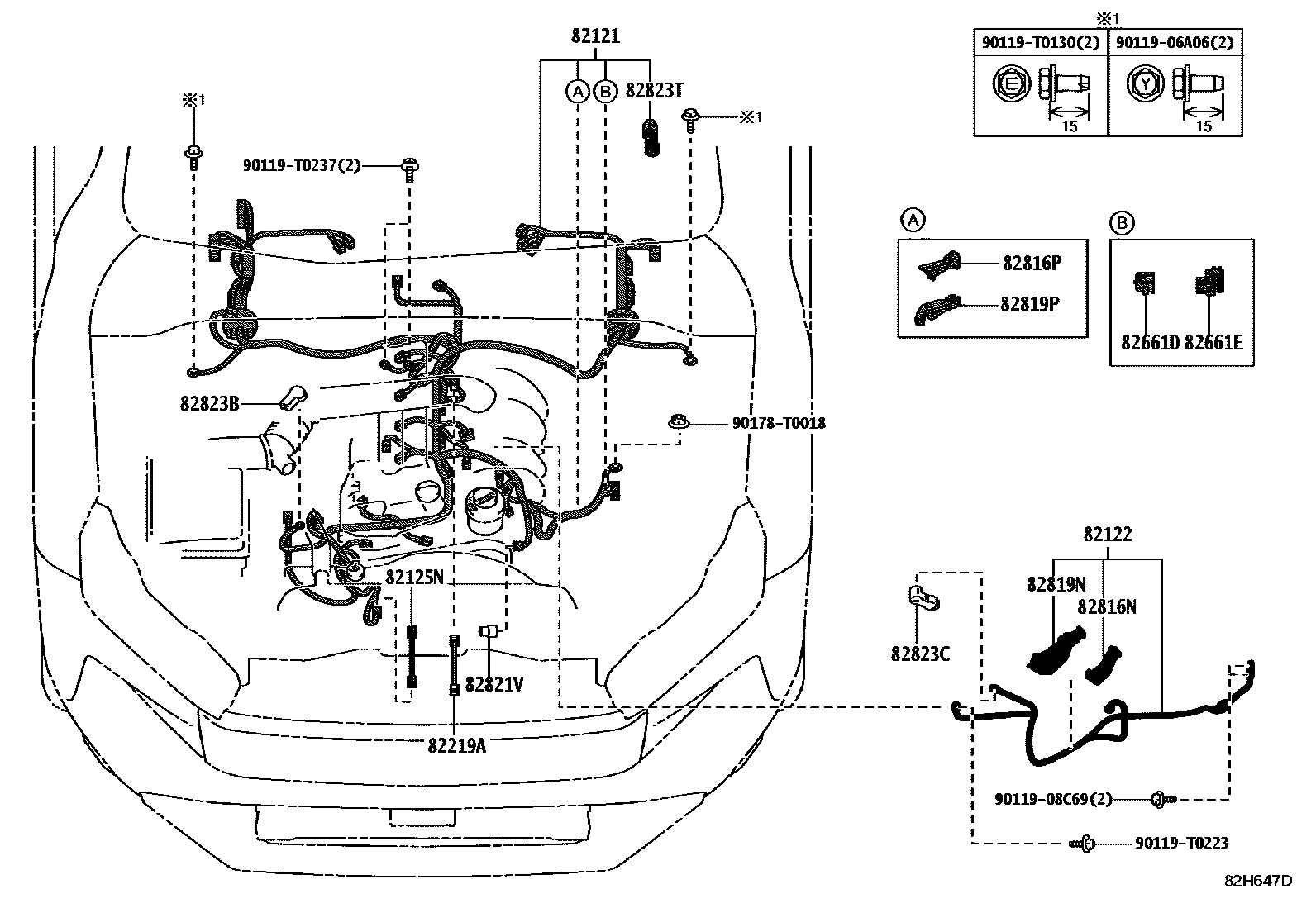

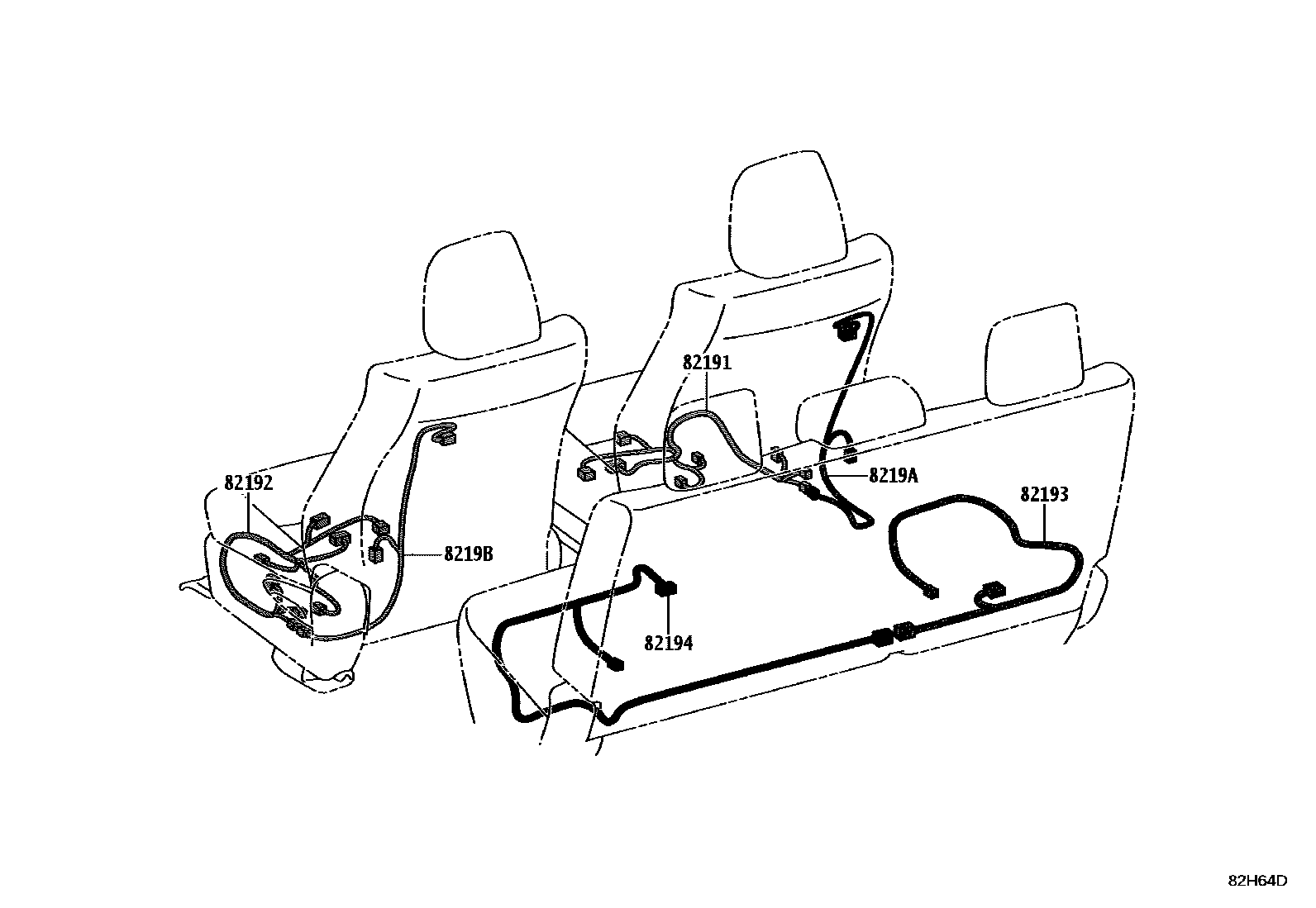

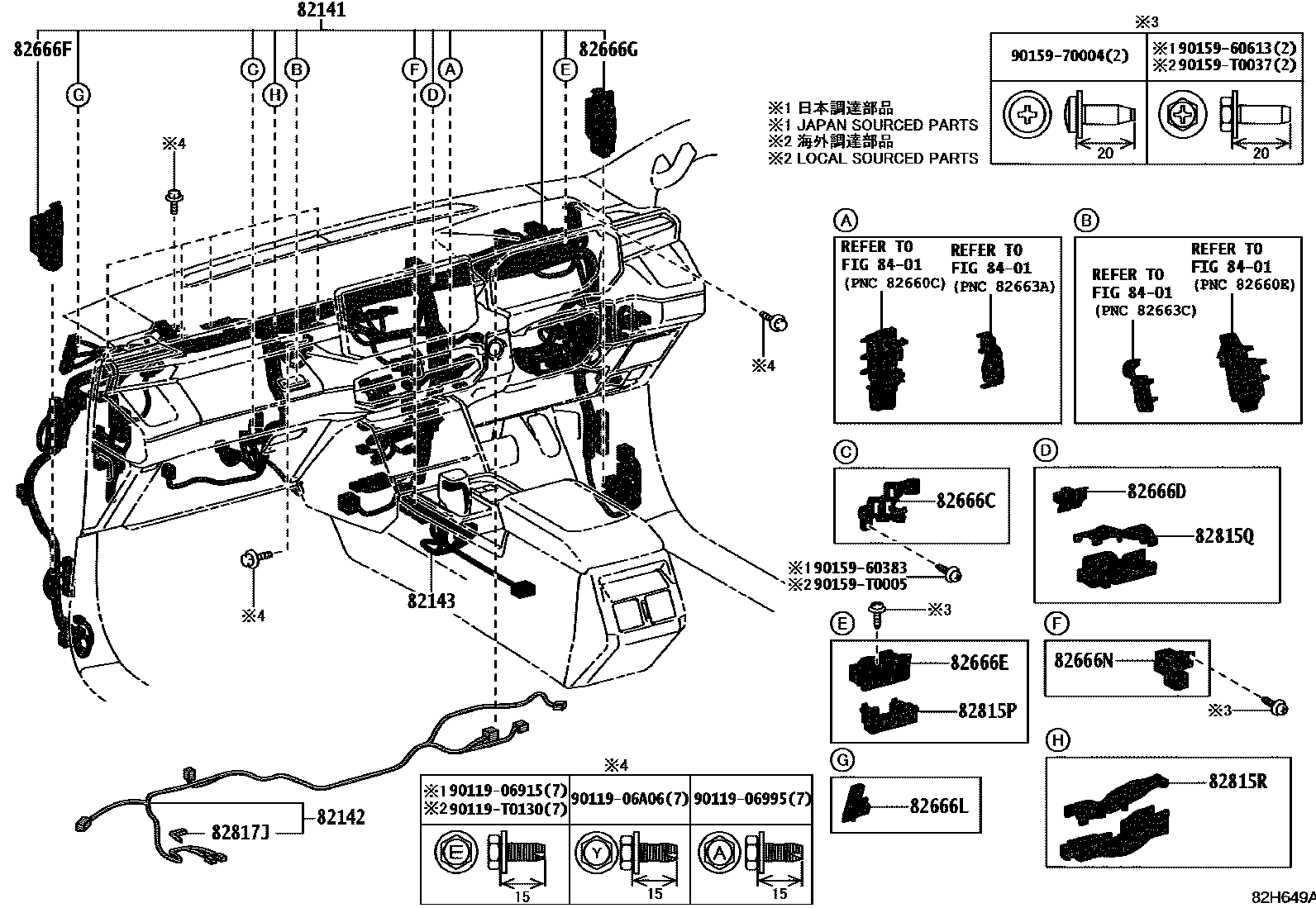

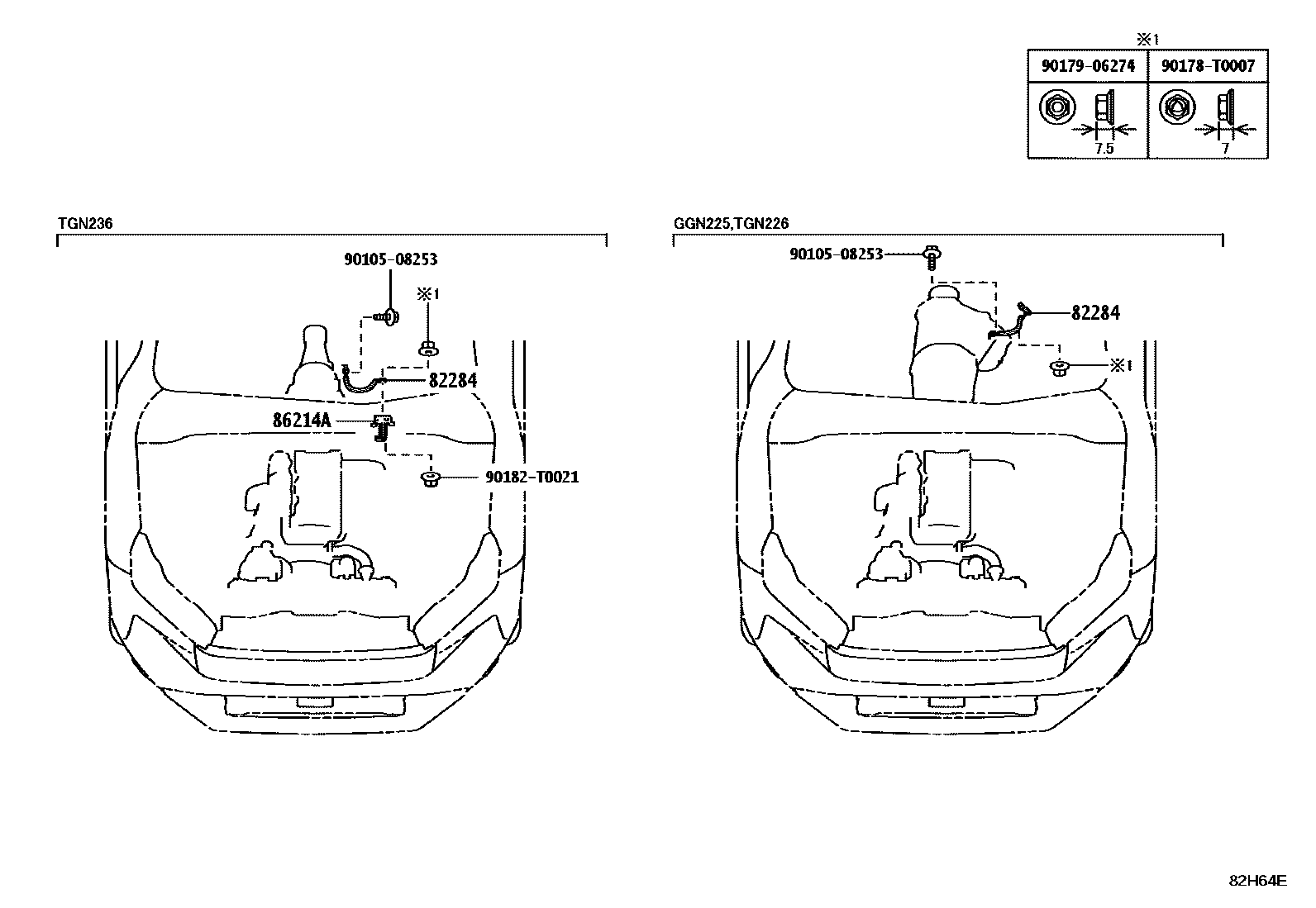

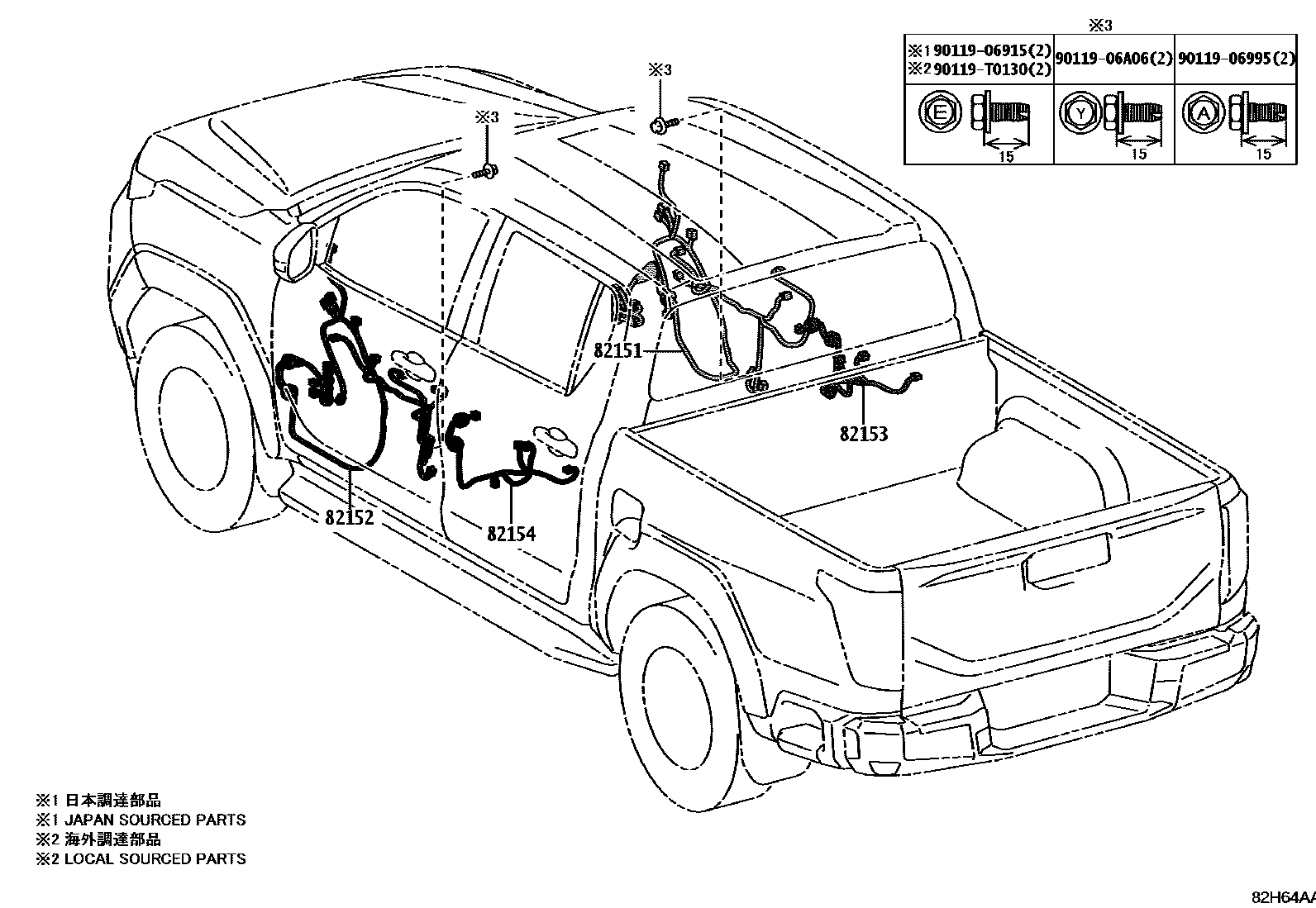

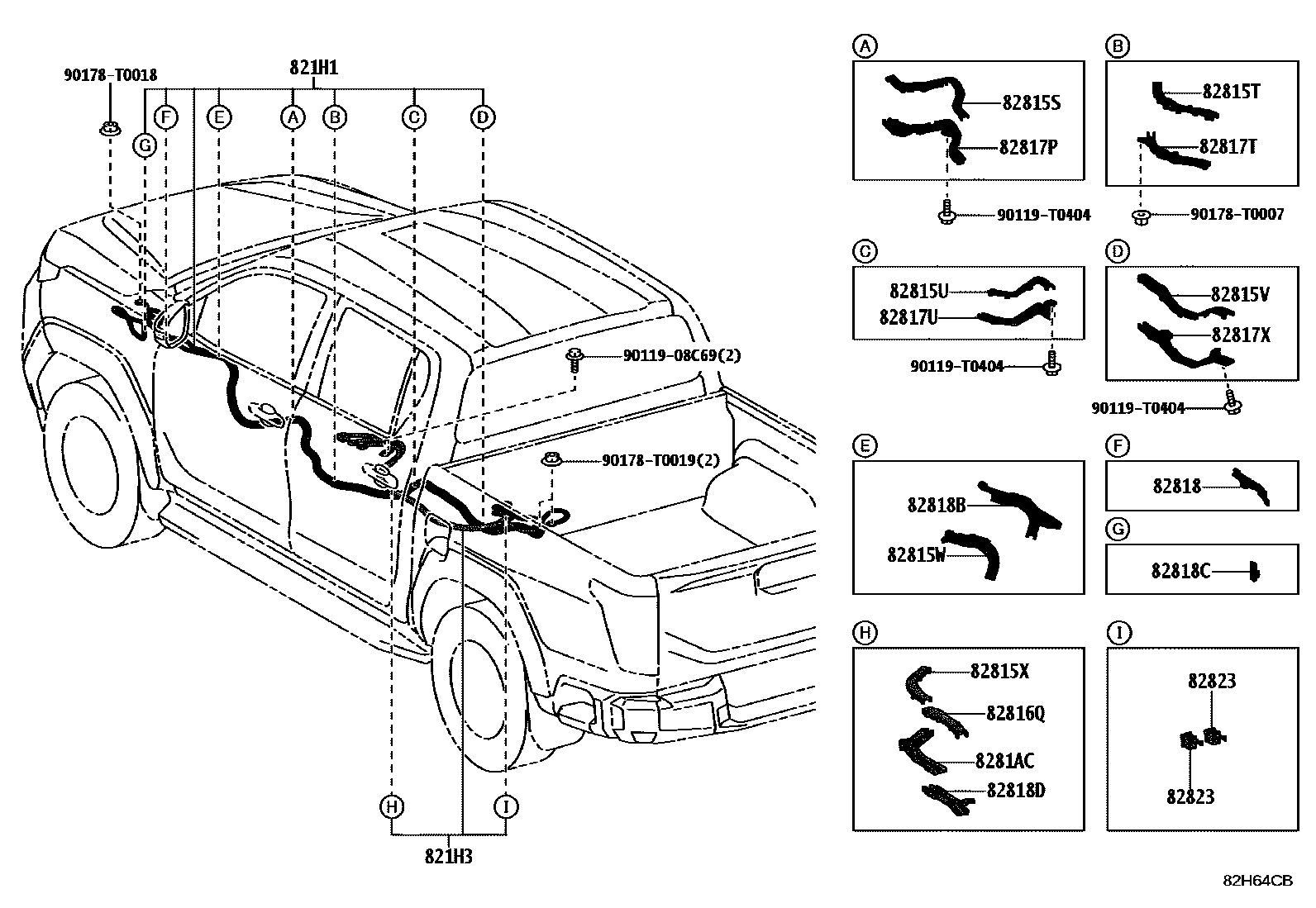

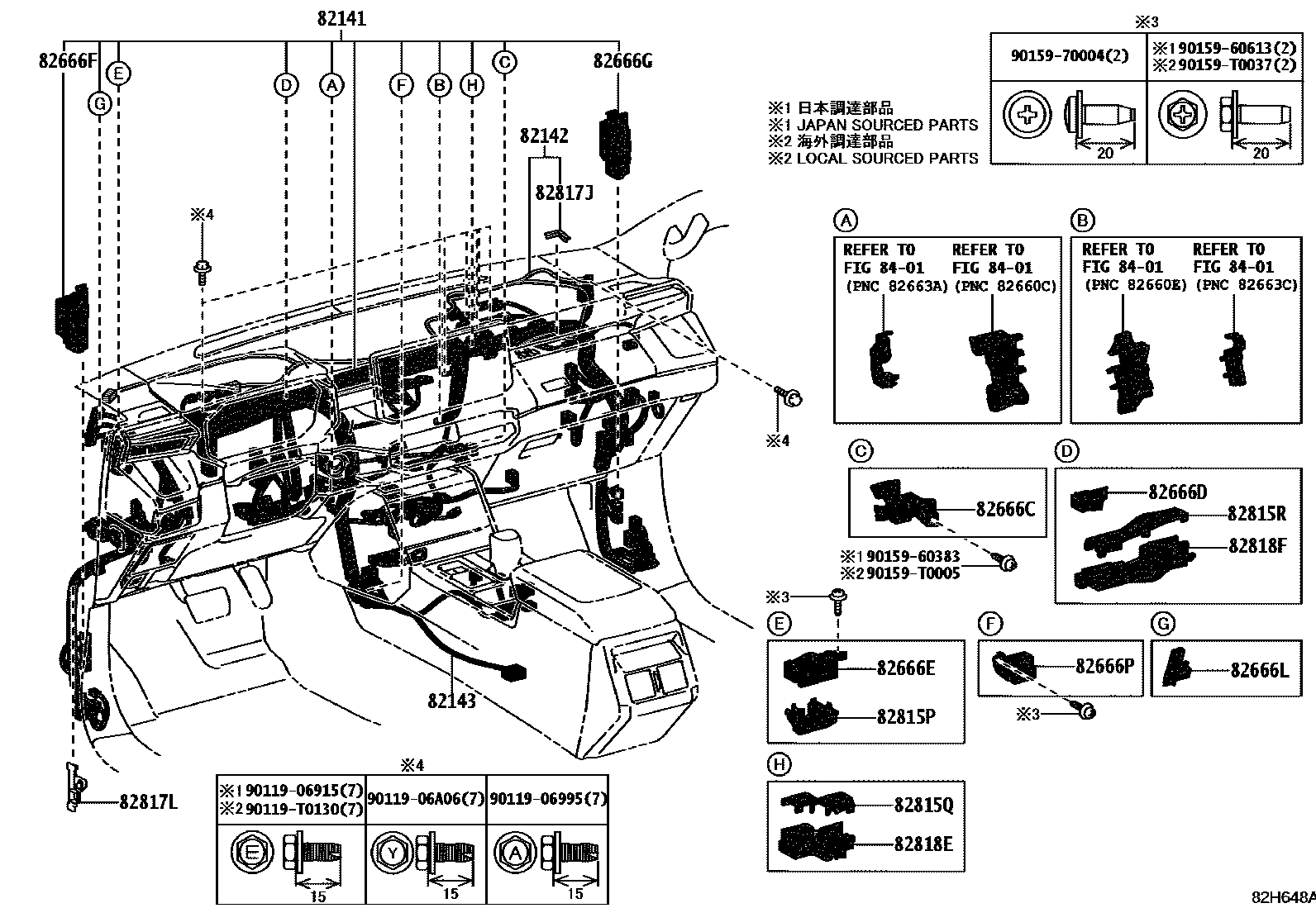

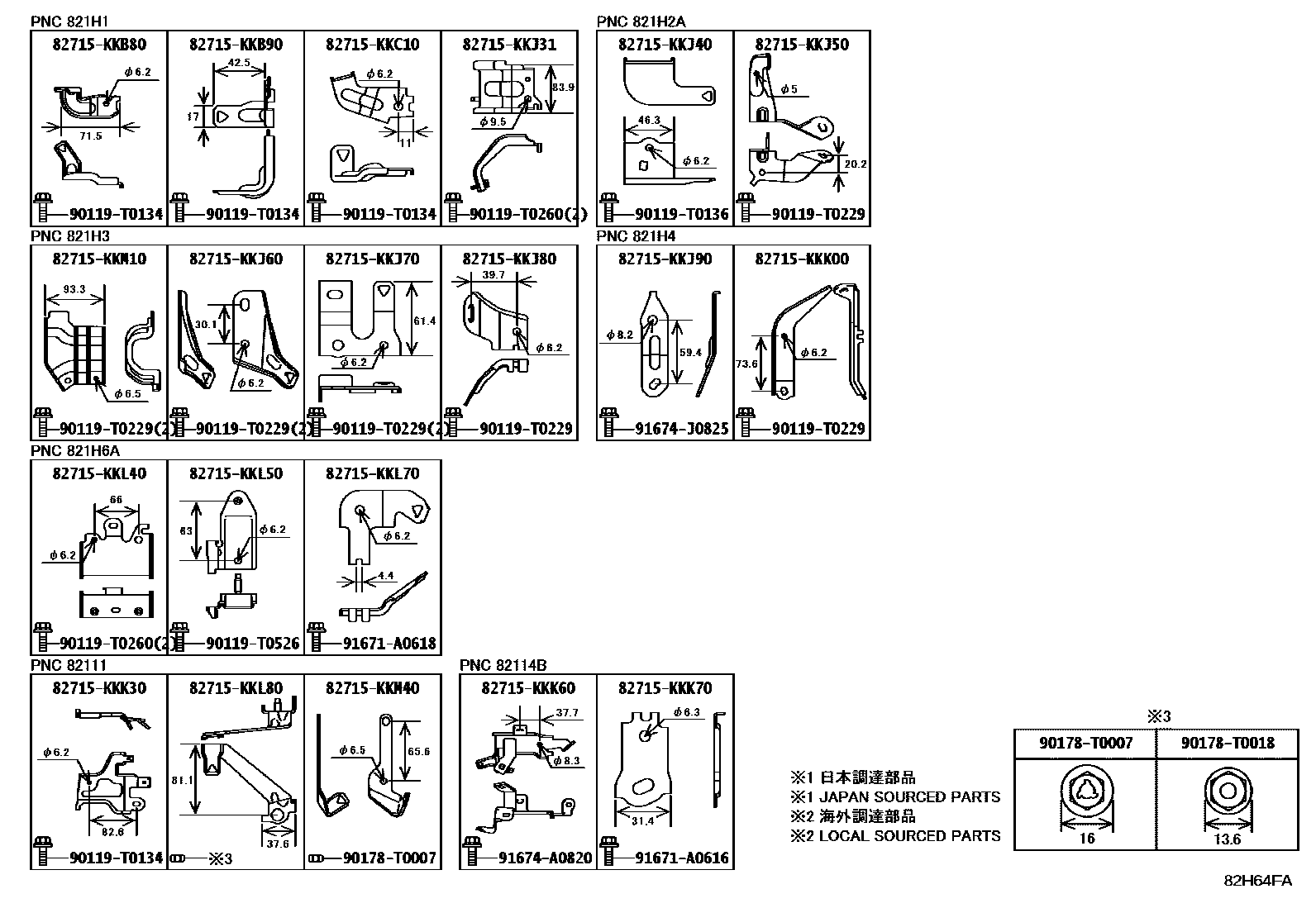

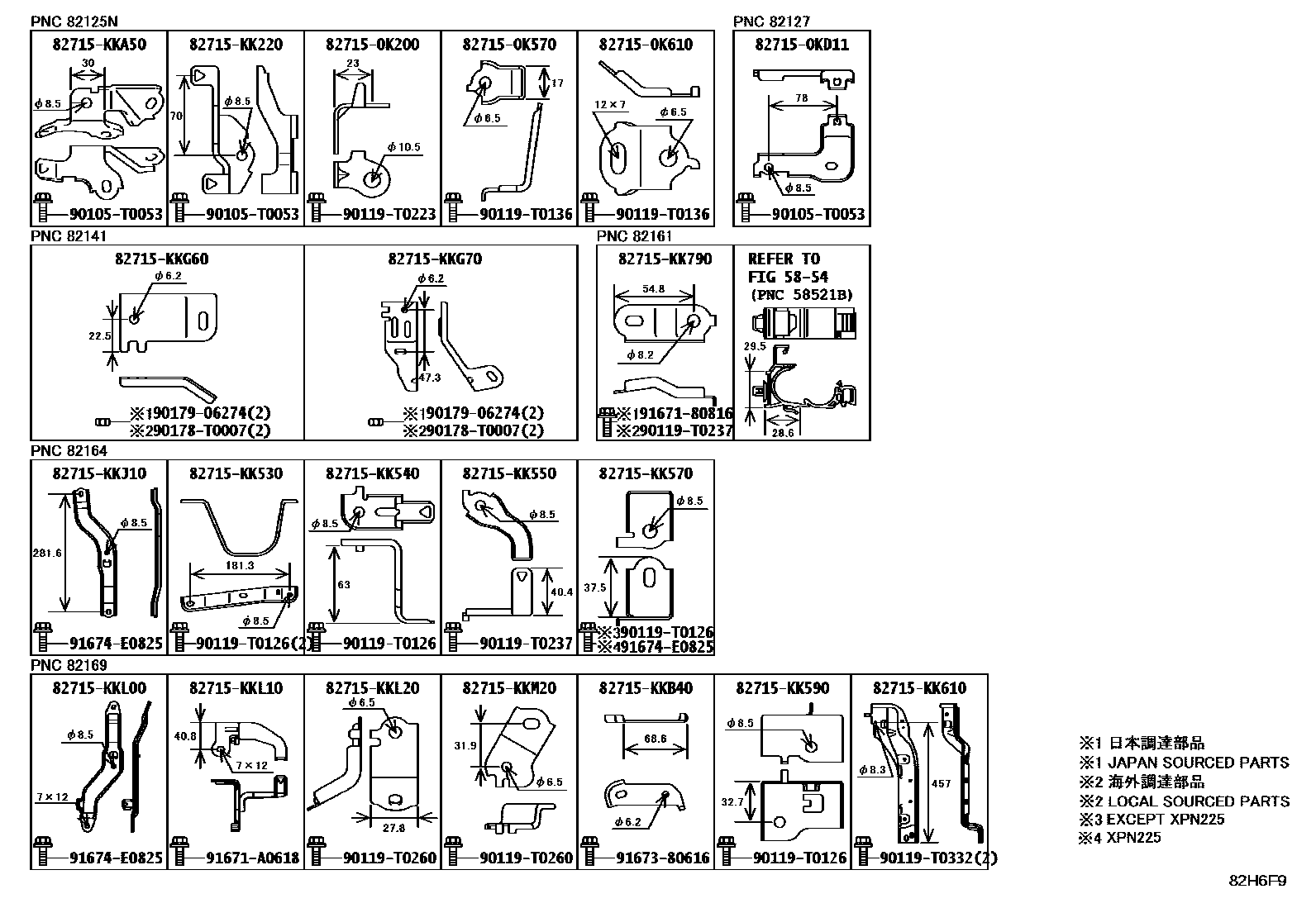

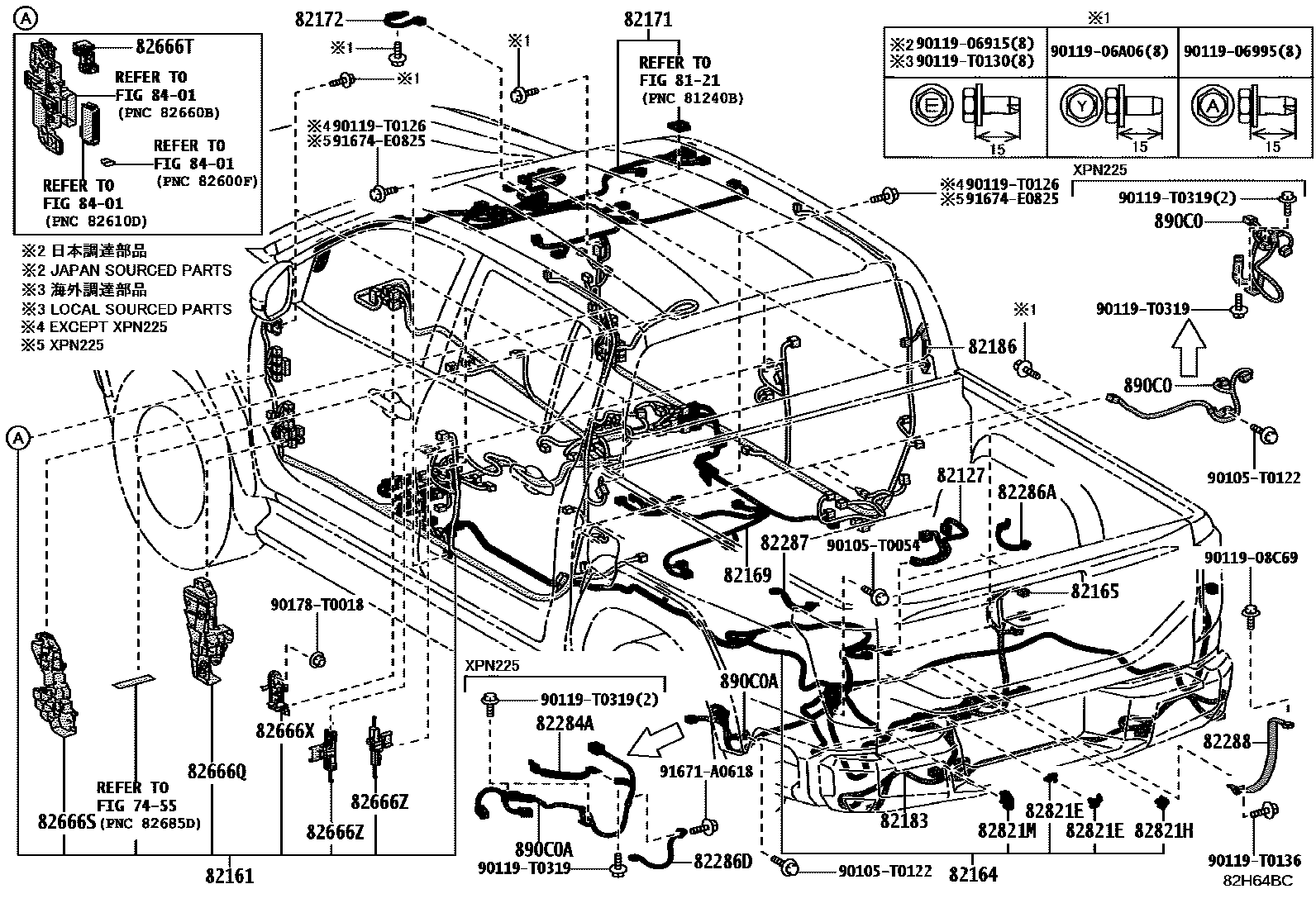

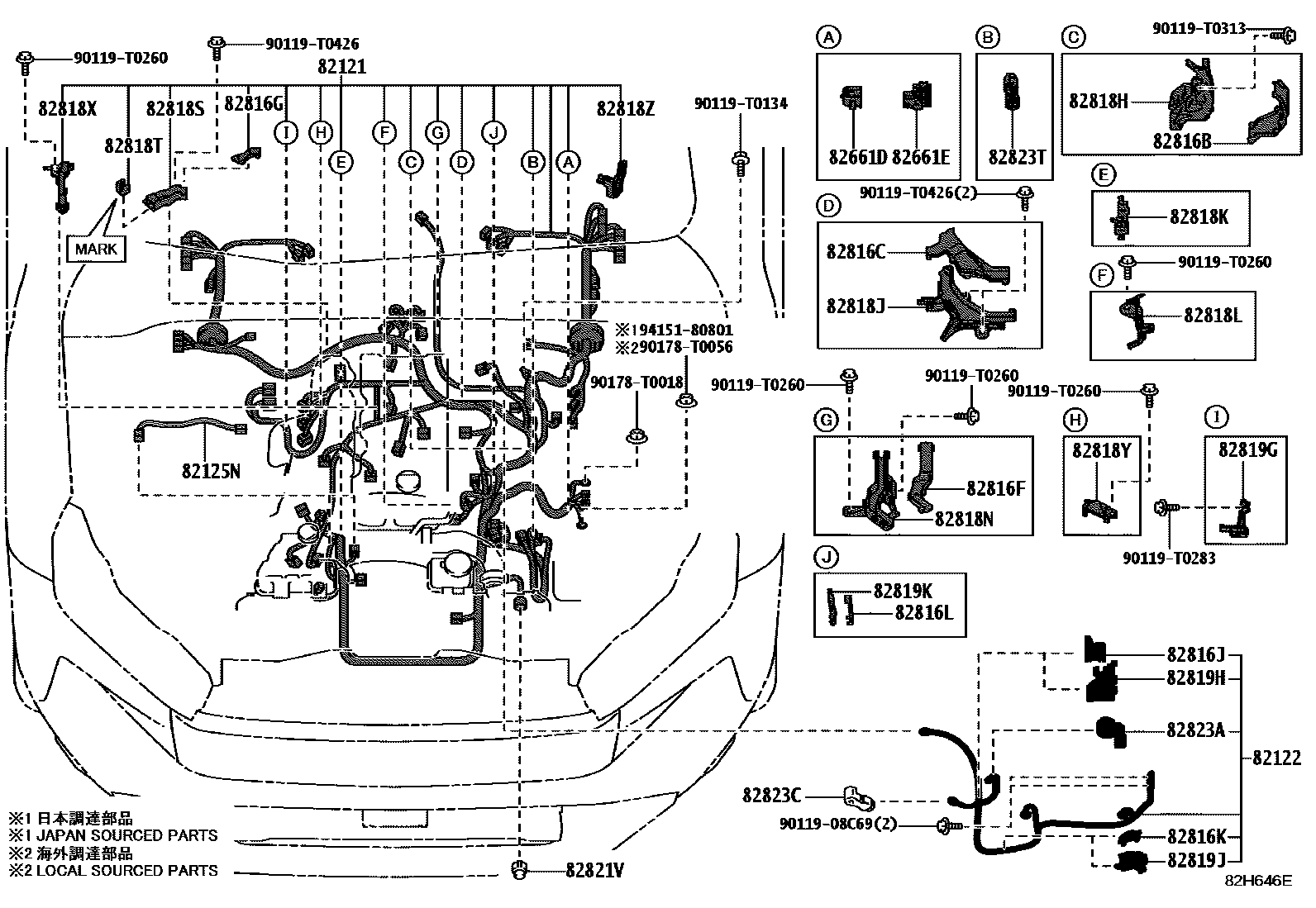

Toyota HILUX EPC diagram 8202, 线束和卡夹, with 15 images and 131 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 8211G-KKX60 · 8211J-KK670 · 8211J-KKF10 · 8211J-KKF80 · 8211J-KKJ80 · 8211J-KKN60 · 8211J-KKP40 · 8211J-KKQ70 · 8211J-KKR10 · 8211J-KKR90 · 8211J-KKU40 · 8211J-KKU60 · 8211J-KKW10 · 8211J-KKW40 · 8211J-KKX60 · 8211J-KKX80 · 8211J-KKX90 · 8211J-KKY10 · 8211J-KKY30 · 8211J-KKY40 · 8211K-KKF00 · 8211K-KKU40 · 8211K-KKV50 · 8211K-KKV70 · 8211K-KKX90 · 8211K-KKY10 · 8211K-KKY40 · 8211K-KKZ00 · 8211K-KKZ50 · 8211L-KK020 · 8211L-KK070 · 8211L-KK080 · 8211L-KK090 · 8211L-KK100 · 8211L-KK110 · 8211L-KK160 · 8211L-KK170 · 8211L-KK190 · 8211L-KK220 · 8211L-KK230 · 8211L-KK270 · 8211L-KK330 · 8211L-KK380 · 8211L-KK400 · 8211L-KK410 · 8211L-KK430 · 8211L-KK470 · 8211L-KK480 · 8211L-KK520 · 8211L-KK540 · 8211L-KK620 · 8211L-KK650 · 8211L-KK660 · 8211L-KK680 · 8211L-KK750 · 8211L-KK770 |
| 82111B | condenser | 90980-04206 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK070 |
| 82113 | Engine room wiring harness No. 3 | 82113-KK170 |
| 82114 | Engine room wiring harness No. 4 | 82114-KK150 · 82114-KK160 · 82114-KK180 |
| 82119C | Engine room wiring harness No. 5 | 82119-KK470 · 82119-KK480 · 82119-KK500 · 82119-KK510 · 82119-KK530 · 82119-KK540 · 82119-KK550 · 82119-KK560 |
| 8211A | Engine room wiring harness No. 6 | 8211A-KK340 · 8211A-KK350 · 8211A-KK370 |
| 82121 | Engine wiring harness | 8213D-KK650 · 8213D-KK670 · 8213D-KK680 · 8213D-KK720 · 8213D-KK730 · 8213D-KKB40 · 8213D-KKC10 · 8213D-KKC30 · 8213D-KKC50 · 8213D-KKC90 · 8213D-KKD00 · 8213D-KKF10 · 8213D-KKF20 · 8213D-KKF60 · 8213D-KKJ60 · 8213D-KKJ90 · 8213D-KKM50 · 8213D-KKM90 · 8213D-KKP30 · 8213D-KKP50 · 8213D-KKR80 · 8213D-KKS70 · 8213D-KKT80 · 8213D-KKX20 · 8213D-KKX40 · 8213D-KKX70 · 8213D-KKX90 · 8213D-KKZ20 · 8213D-KKZ80 · 8213E-KK180 · 8213E-KK340 · 8213E-KK430 · 8213E-KK490 · 8213E-KK500 · 8213E-KK580 · 8213E-KK770 · 8213E-KK780 · 8213E-KK860 · 8213E-KKA00 · 8213E-KKA70 · 8213E-KKA90 · 8213E-KKB20 · 8213E-KKB40 · 8213E-KKD10 |
| 82122 | Engine No. 2 wiring harness | 82122-KK650 · 82122-KK670 · 82122-KK690 · 82122-KK700 · 82122-KK730 · 82122-KK740 · 82122-KK800 · 82122-KK810 |
| 82123 | Engine No. 3 wiring harness | 8211U-KK010 |
| 82124 | Engine No. 4 wiring harness | 8211V-KK030 · 8211V-KK040 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K011 |
| 82141 | Dashboard wiring harness | 8214V-KKL10 · 821C1-KK470 · 821C1-KK490 · 821C1-KK510 · 821C1-KK610 · 821C1-KK730 · 821C1-KK760 · 821C1-KK830 · 821C1-KKC40 · 821C1-KKC60 · 821C1-KKC70 · 821C1-KKC80 · 821C1-KKC90 · 821C1-KKD50 · 821C1-KKE10 · 821C1-KKG30 · 821C1-KKG40 · 821C1-KKJ20 · 821C1-KKJ60 · 821C1-KKK60 · 821C1-KKL20 · 821C1-KKL60 · 821C1-KKN80 · 821C1-KKP10 · 821C1-KKP30 · 821C1-KKQ20 · 821C1-KKR50 · 821C1-KKR90 · 821C1-KKS00 · 821C1-KKS10 · 821C1-KKS50 · 821C1-KKS70 · 821C1-KKT20 · 821C1-KKU10 · 821C1-KKU80 · 821C1-KKU90 · 821C1-KKV40 · 821C3-KKA10 · 821C3-KKA30 · 821C3-KKA90 · 821C3-KKB00 · 821C3-KKB90 · 821C3-KKK20 · 821C3-KKK70 · 821C3-KKL20 · 821C3-KKL40 · 821C3-KKL50 · 821C3-KKL60 · 821C3-KKL70 · 821C3-KKL90 · 821C3-KKM00 · 821C3-KKM10 · 821C3-KKM20 · 821C3-KKM30 · 821C3-KKM40 · 821C3-KKM50 · 821C3-KKM60 · 821C3-KKN10 · 821C3-KKN30 · 821C3-KKR30 · 821C3-KKT50 · 821C3-KKT60 · 821C3-KKU20 · 821C3-KKU30 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKF10 · 82142-KKF30 · 82142-KKF40 · 82142-KKF50 · 82142-KKF70 · 82142-KKF80 · 82142-KKG00 · 82142-KKG30 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KKG40 · 82143-KKJ20 · 82143-KKJ50 · 82143-KKJ60 · 82143-KKK30 · 82143-KKK40 · 82143-KKK70 · 82143-KKK80 · 82143-KKL80 · 82143-KKM10 · 82143-KKM20 · 82143-KKM70 · 82143-KKM80 · 82143-KKN20 · 82143-KKN70 |
| 82151 | Right front door wiring harness | 821B7-KK420 · 821B7-KK440 · 821B7-KK460 · 821B7-KK480 · 821B7-KK570 · 821B7-KK740 · 821B7-KK750 · 821B7-KK770 · 821B7-KK780 · 821B7-KK790 · 821B7-KKA30 · 821B7-KKD90 · 821B7-KKJ00 · 821B7-KKJ20 · 821B7-KKJ30 · 821B7-KKJ40 |
| 82152 | Left front door wiring harness | 821AA-KK070 · 821AA-KK090 · 821AA-KK100 · 821AA-KK110 · 821B8-KKN90 · 821B8-KKP10 · 821B8-KKP30 · 821B8-KKP50 · 821B8-KKQ40 · 821B8-KKS10 · 821B8-KKS20 · 821B8-KKS40 · 821B8-KKS50 · 821B8-KKS60 · 821B8-KKU00 · 821B8-KKX60 |
| 82153 | Rear door wiring harness No. 1 | 82153-KK790 |
| 82154 | Rear door wiring harness No. 2 | 82154-KKC90 |
| 82161 | floor wiring harness | 8219K-KKW60 · 8219K-KKW70 · 8219K-KKZ70 · 8219L-KK330 · 8219L-KK340 · 8219L-KK390 · 8219L-KK430 · 8219L-KK550 · 8219L-KK600 · 8219L-KK650 · 8219L-KK700 · 8219L-KK790 · 8219L-KK800 · 8219L-KK820 · 8219L-KKB80 · 8219L-KKJ00 · 8219L-KKJ10 · 8219L-KKJ50 · 8219L-KKJ80 · 8219L-KKJ90 · 8219L-KKK00 · 8219L-KKK80 · 8219L-KKS80 · 8219M-KK320 · 8219M-KK340 · 8219M-KK350 · 8219M-KK370 · 8219M-KK450 · 8219M-KK560 · 8219M-KK570 · 8219M-KK590 · 8219M-KK740 · 8219M-KKA20 · 8219M-KKB10 · 8219M-KKF00 · 8219M-KKF30 · 8219M-KKF40 · 8219M-KKF50 · 8219M-KKF60 · 8219M-KKF70 · 8219M-KKF80 · 8219M-KKF90 · 8219M-KKG00 · 8219M-KKJ60 · 8219M-KKJ70 · 8219M-KKK40 · 8219M-KKK90 · 8219M-KKS40 · 8219M-KKU10 · 8219M-KKU60 |
| 82164 | Frame wiring harness set | 82137-KK370 · 82137-KK480 · 82137-KK490 · 82137-KK500 · 82137-KK510 · 82137-KK520 · 82137-KK540 · 82137-KK570 · 82137-KK610 · 82137-KK660 · 82137-KK710 · 82137-KK730 · 82137-KK740 · 82137-KK790 · 82137-KK810 · 82137-KK850 · 82137-KK860 · 82137-KK880 · 82137-KK890 · 82137-KKA30 · 82137-KKB00 · 82137-KKB70 · 82137-KKB90 · 82137-KKC20 · 82137-KKC40 · 82137-KKC50 |
| 82165 | No. 2 frame wiring harness | 82165-KK320 · 82165-KK330 · 82165-KK380 · 82165-KK390 · 82165-KK410 |
| 82169 | No. 3 frame wiring harness | 82169-KK270 · 82169-KK300 |
| 82171 | Roof No. 1 wiring harness | 82171-KKQ90 · 82171-KKR30 · 82171-KKX20 · 82171-KKX30 · 82171-KKX40 · 82171-KKX60 · 82171-KKZ60 · 82171-KKZ80 · 82171-KKZ90 · 8217A-KK210 · 8217A-KK220 · 8217A-KK230 · 8217A-KK240 · 8217A-KK250 · 8217A-KK260 · 8217A-KK290 · 8217A-KK300 · 8217A-KK880 · 8217A-KK890 · 8217A-KKA00 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK190 · 82183-KK220 · 82183-KK560 · 82183-KK570 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK060 |
| 82191 | Front right seat wiring harness | 82191-0K430 · 82191-0K440 |
| 82192 | Front left seat wiring harness | 82192-0K380 · 82192-0K390 |
| 82193 | Rear right seat wiring harness | 82193-0K010 |
| 82194 | Rear left seat wiring harness | 82194-0K010 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K340 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-0K260 |
| 821H1 | Underfloor wiring harness | 821H1-KK090 |
| 821H3 | HV battery pack wiring harness | 821H3-KK050 |
| 82219A | sensor harness | 82219-0K010 |
| 82284 | Ground wire | 82284-KK020 · 82284-KK030 |
| 82661D | No. 1 relay box side cover | 82661-0K160 |
| 82661E | No. 2 relay box side cover | 82661-0K200 |
| 82666C | No. 4 connector holder | 82666-0K230 · 82666-0K240 |
| 82666D | No. 5 connector holder | 82666-0K540 · 82666-0K550 |
| 82666E | No. 6 connector holder | 82666-0K560 · 82666-0K570 |
| 82666F | No. 7 connector holder | 82666-0K580 |
| 82666G | No. 8 connector holder | 82666-0K590 |
| 82666L | No. 9 connector holder | 82666-0K640 |
| 82666N | No. 10 connector holder | 82666-0K630 |
| 82666P | No. 11 Connector Block | 82666-0K620 |
| 82666Q | No. 12 connector holder | 82666-0K660 |
| 82666S | No. 13 connector holder | 82666-0K670 |
| 82666T | No. 14 connector socket | 82666-0K680 |
| 82666X | No. 17 connector holder | 82666-0K650 |
| 82666Z | No. 19 connector holder | 82666-0K280 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 |
| 82815G | No. 5 wire harness protector cover | 82815-0K540 |
| 82815H | No. 6 wire harness protector cover | 82815-0KB00 |
| 82815M | No. 10 wire harness protector cover | 82815-0KB80 |
| 82815P | No. 12 wire harness protector cover | 82815-0KC00 · 82815-0KC10 |
| 82815Q | No. 13 wire harness protector cover | 82815-0KC20 · 82815-0KC30 |
| 82815R | No. 14 wire harness protector cover | 82815-0KC40 · 82815-0KC50 |
| 82815S | No. 15 wire harness protector cover | 82815-0K120 |
| 82815T | No. 16 wire harness protector cover | 82815-0K130 |
| 82815U | No. 17 wire harness protector cover | 82815-0K140 |
| 82815V | No. 1 wire harness protector cover | 82815-0K150 |
| 82815W | No. 2 wire harness protector cover | 82815-0K300 |
| 82815X | No. 3 wire harness protector cover | 82815-0K180 |
| 82815Y | No. 4 wire harness protector cover | 82815-0KB60 |
| 82816B | No. 1 wire harness protector cover | 82815-0K270 |
| 82816C | No. 2 wire harness protector cover | 82815-0K250 · 82815-0K280 |
| 82816F | No. 4 wire harness protector cover | 82815-0K340 · 82815-0K350 |
| 82816G | No. 5 wire harness protector cover | 82815-0K240 |
| 82816J | No. 7 wire harness protector cover | 82815-0K070 |
| 82816K | No. 8 wire harness protector cover | 82815-0K310 · 82815-0K400 |
| 82816L | No. 9 wire harness protector cover | 82815-0K590 |
| 82816N | No. 11 wire harness protector cover | 82815-0K800 |
| 82816P | No. 12 wire harness protector cover | 82815-0K661 |
| 82816Q | No. 13 wire harness protector cover | 82815-0K370 |
| 82816V | No. 18 wire harness protector cover | 82815-0KB10 |
| 82817 | No. 1 wire harness protection device | 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0KE90 |
| 82817G | No. 8 wire harness protection device | 82817-0KF70 |
| 82817J | No. 9 wire harness protection device | 82817-12860 |
| 82817L | No. 11 wire harness protection device | 82817-0K240 · 82817-0K840 · 82817-0K860 · 82817-0KA40 |
| 82817P | No. 14 wire harness protection device | 82817-0K370 |
| 82817T | No. 15 wire harness protection device | 82817-0K380 |
| 82817U | No. 16 wire harness protection device | 82817-0K590 |
| 82817X | No. 17 wire harness protection device | 82817-0K600 |
| 82818 | No. 2 wire harness protection device | 82817-0KB70 |
| 82818B | No. 3 wire harness protection device | 82817-0KB80 |
| 82818C | No. 4 wire harness protection device | 82817-0KC40 |
| 82818D | No. 5 wire harness protection device | 82817-0KC00 |
| 82818E | No. 6 wire harness protection device | 82817-0KF90 |
| 82818F | No. 7 wire harness protection device | 82817-0KG10 |
| 82818G | No. 8 wire harness protection device | 82817-2A790 |
| 82818H | No. 9 wire harness protection device | 82817-0K270 |
| 82818J | No. 10 wire harness protection device | 82817-0K280 · 82817-0KB50 |
| 82818K | No. 11 wire harness protection device | 82817-0K300 |
| 82818L | No. 12 wire harness protection device | 82817-0K310 · 82817-60U70 |
| 82818N | No. 14 wire harness protection device | 82817-0K340 · 82817-0K350 |
| 82818S | No. 15 wire harness protection device | 82817-0KB40 |
| 82818T | No. 16 wire harness protection device | 82818-0K010 · 82818-0K020 |
| 82818X | No. 20 wire harness protection device | 82817-60W20 |
| 82818Y | No. 21 wire harness protection device | 82817-60Z00 |
| 82818Z | No. 22 wire harness protection device | 82817-60Z10 |
| 82819G | No. 23 wire harness protection device | 82817-6AD00 |
| 82819H | No. 24 wire harness protection device | 82817-0K290 |
| 82819J | No. 25 wire harness protection device | 82817-0K400 · 82817-0KB90 |
| 82819K | No. 26 wire harness protection device | 82817-0KC20 |
| 82819N | No. 29 wire harness protective cover | 82817-0KA30 |
| 82819P | No. 30 wire harness protective cover | 82817-0K691 |
| 8281AA | No. 2 wire harness protection device | 82817-0KF50 |
| 8281AB | No. 3 wire harness protection device | 82818-0K030 |
| 8281AC | No. 4 wire harness protection device | 82817-0KA50 |
| 82821A | Connector cover | 82821-35050 |
| 82821E | Connector cover | 82821-30600 |
| 82821H | Connector cover | 82821-33780 |
| 82821M | Connector cover | 82821-58110 |
| 82823 | No. 1 terminal cover | 82823-0K070 |
| 82823A | Terminal cover No. 2 | 82823-0K060 · 82823-30100 |
| 82823B | Terminal cover No. 3 | 82823-22050 |
| 82823C | No. 4 terminal cover | 82823-0K010 · 82823-0K030 · 82823-35040 · 82823-35050 |
| 82823T | Generator terminal cover | 82823-0K080 |
| 82H17B | No. 1 wire harness protection device | 82817-0KF00 |
| 86214A | Radio ground bracket | 86214-KK010 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-0K030 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-0K040 |
| 89623 | CABLE, CAPTEUR DIRECTION ASSISTEE | 89623-0K010 |
