Toyota HILUX 后组合灯 — Figure 8111

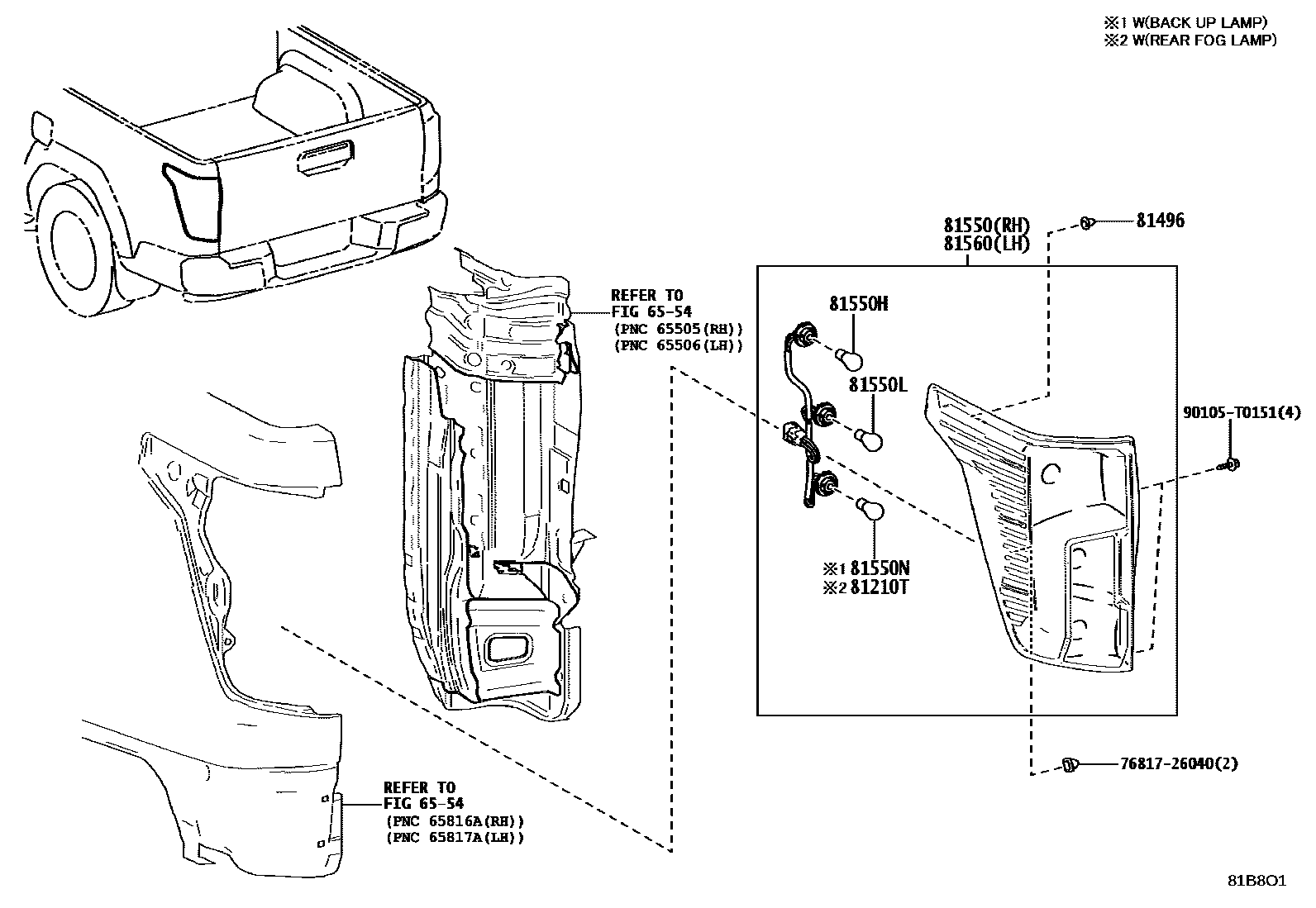

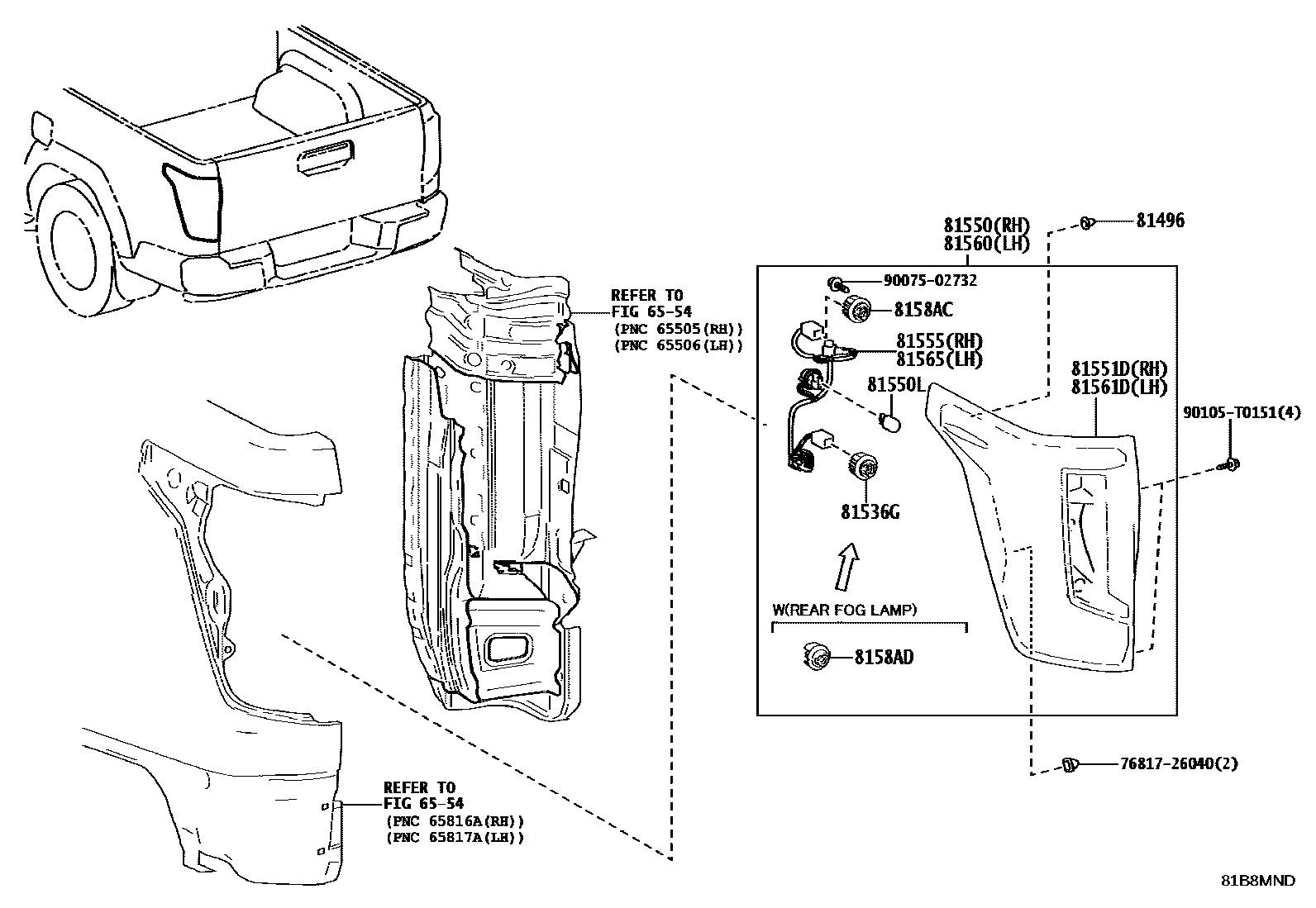

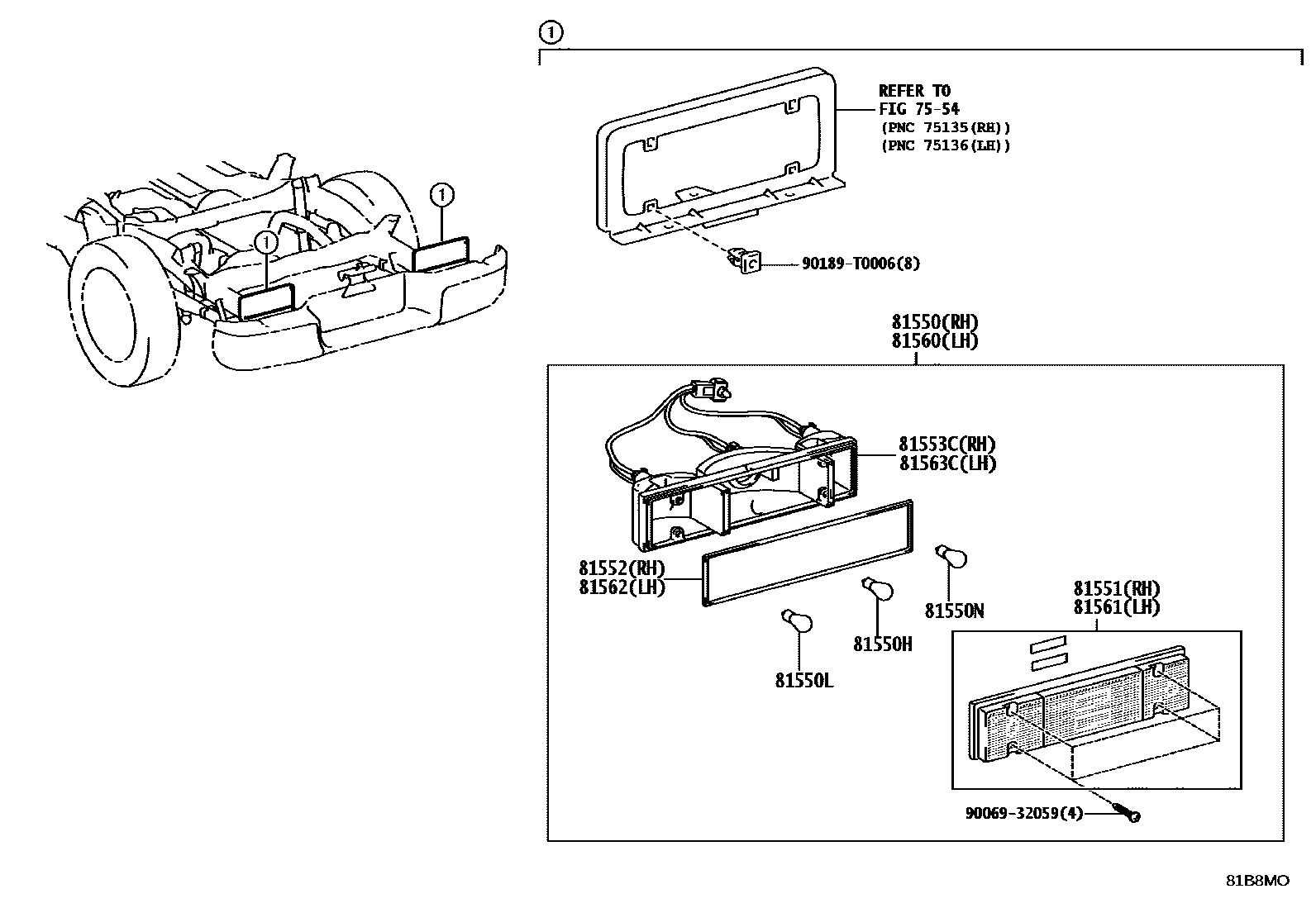

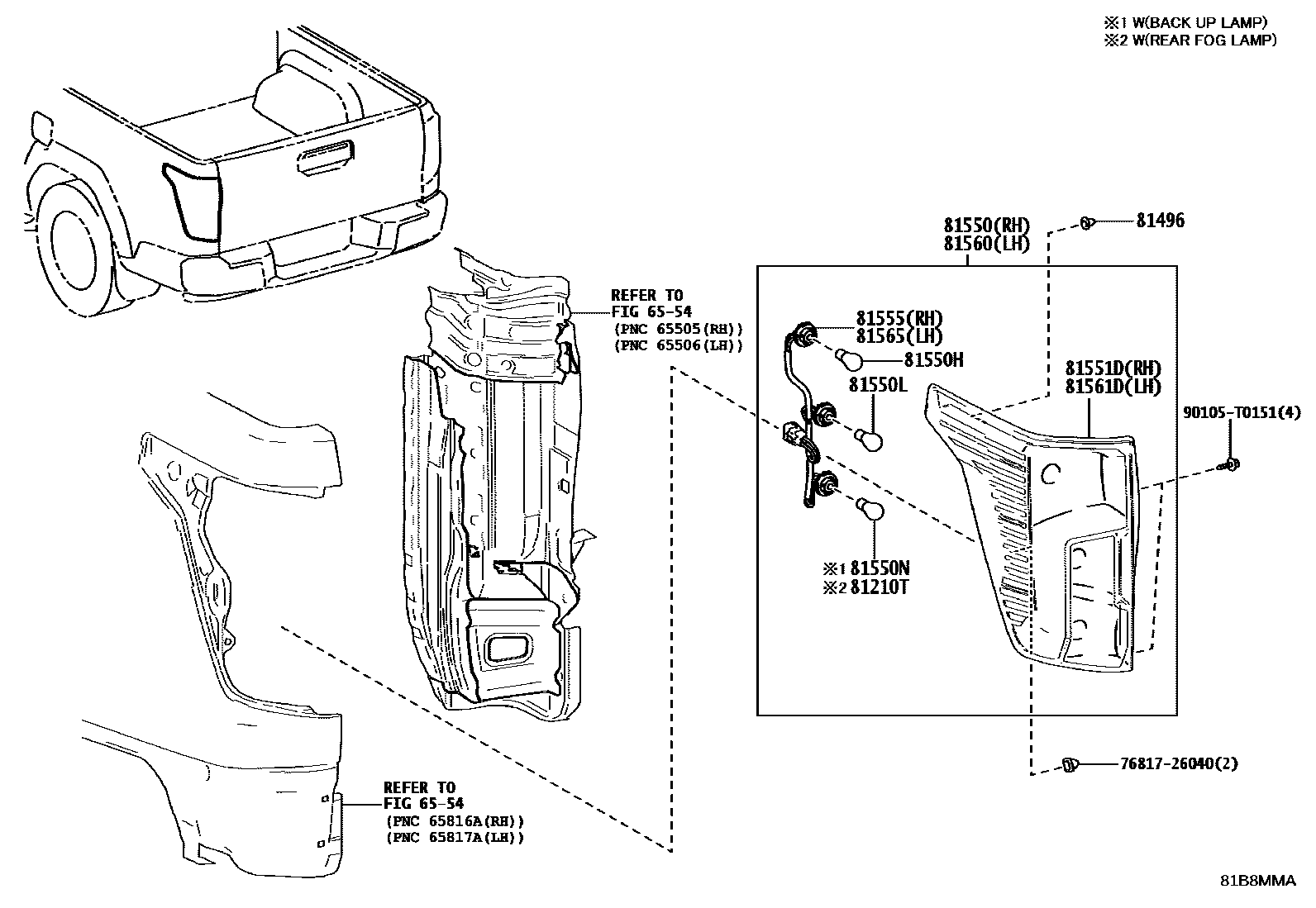

Toyota HILUX EPC diagram 8111, 后组合灯, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210T | Rear fog light bulb | 90981-13093 |
| 81496 | Rear combination light guide block | 81496-0D040 · 81496-52020 |
| 81536G | LED reversing light | 81965-52060 |
| 81550 | Right rear combination light assembly | 81550-0K360 · 81550-0K760 · 81550-0KB00 · 81550-0KB10 · 81550-0KC00 · 81550-0KC10 |
| 81550H | Tail and brake light bulbs | 90981-13094 · 90981-TD004 |
| 81550L | Rear turn signal light bulb | 90981-15021 · 90981-15028 · 90981-TD003 |
| 81550N | reversing light bulb | 90981-13093 · 90981-TD003 |
| 81551 | Right rear combination lamp shade | 81551-0K360 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0KB00 · 81551-0KB10 · 81551-0KC00 · 81551-0KC10 |
| 81552 | Right rear combination lamp shade gasket | 81552-0K360 |
| 81553C | Right rear combination light body | 81553-0K360 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0KB00 · 81555-0KB10 · 81555-0KC00 · 81555-0KC10 |
| 81560 | Left rear combination light assembly | 81560-0K400 · 81560-0K720 · 81560-0KB00 · 81560-0KB10 · 81560-0KC00 · 81560-0KC10 |
| 81561 | Left rear combination lamp shade | 81561-0K400 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0KB00 · 81561-0KB10 · 81561-0KC00 · 81561-0KC10 |
| 81562 | Left rear combination lamp shade gasket | 81552-0K360 |
| 81563C | Left rear combination light body | 81563-0K400 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0KB00 · 81555-0KB10 · 81555-0KC00 · 81555-0KC10 |
| 8158AC | LED brake light | 81965-70010 |
| 8158AD | Rear LED fog lights | 81965-40010 |
