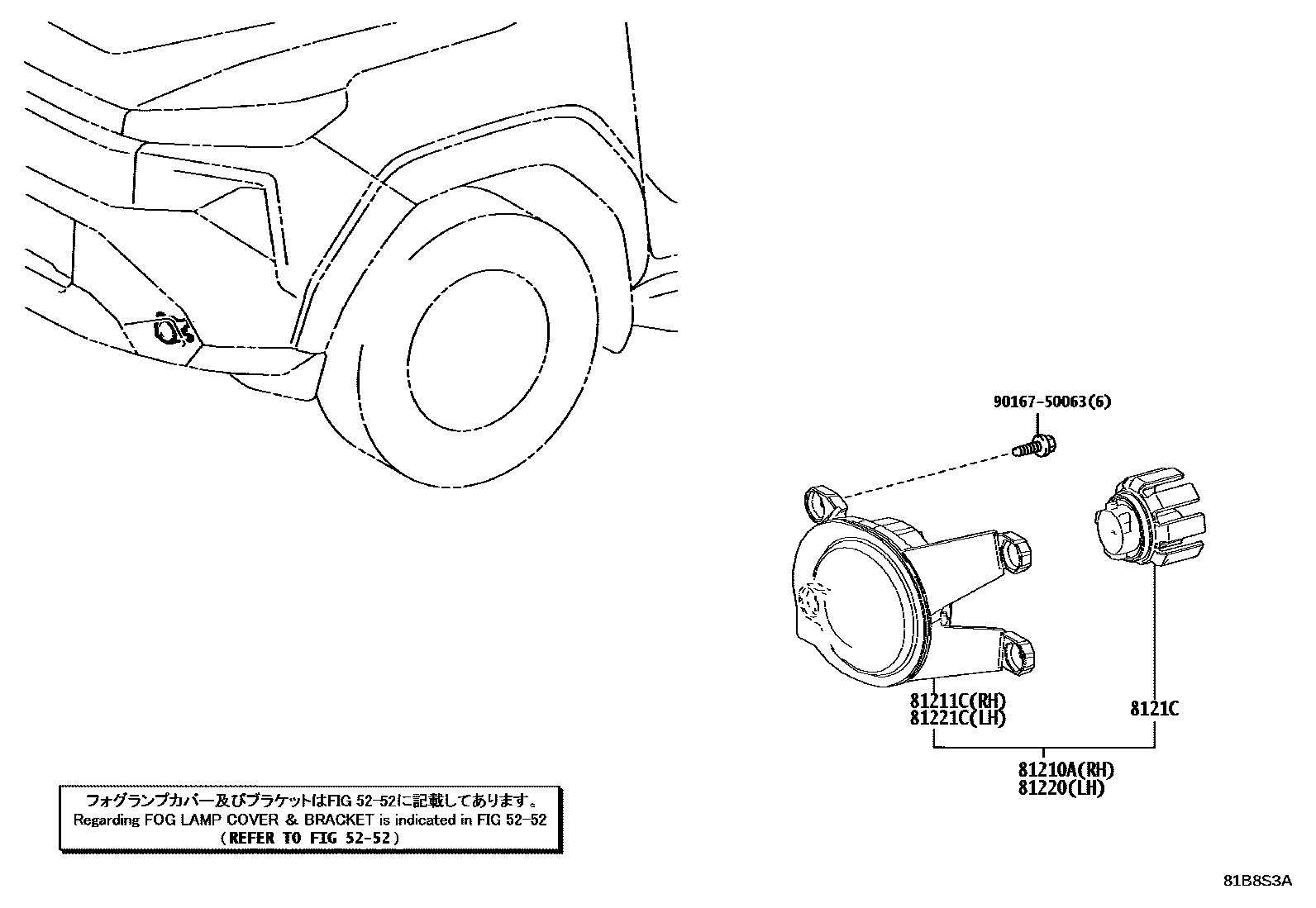

Toyota HILUX Fog Lamp — Figure 8102
Toyota HILUX EPC diagram 8102, Fog Lamp, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-0K190 |
| 81211C | Right fog light assembly | 81211-0K190 |
| 8121C | LED fog lights | 81965-52050 |
| 81220 | Left fog light assembly | 81220-0K150 |
| 81221C | Left fog light assembly | 81221-0K150 |
