Toyota HILUX Headlamp — Figure 8101

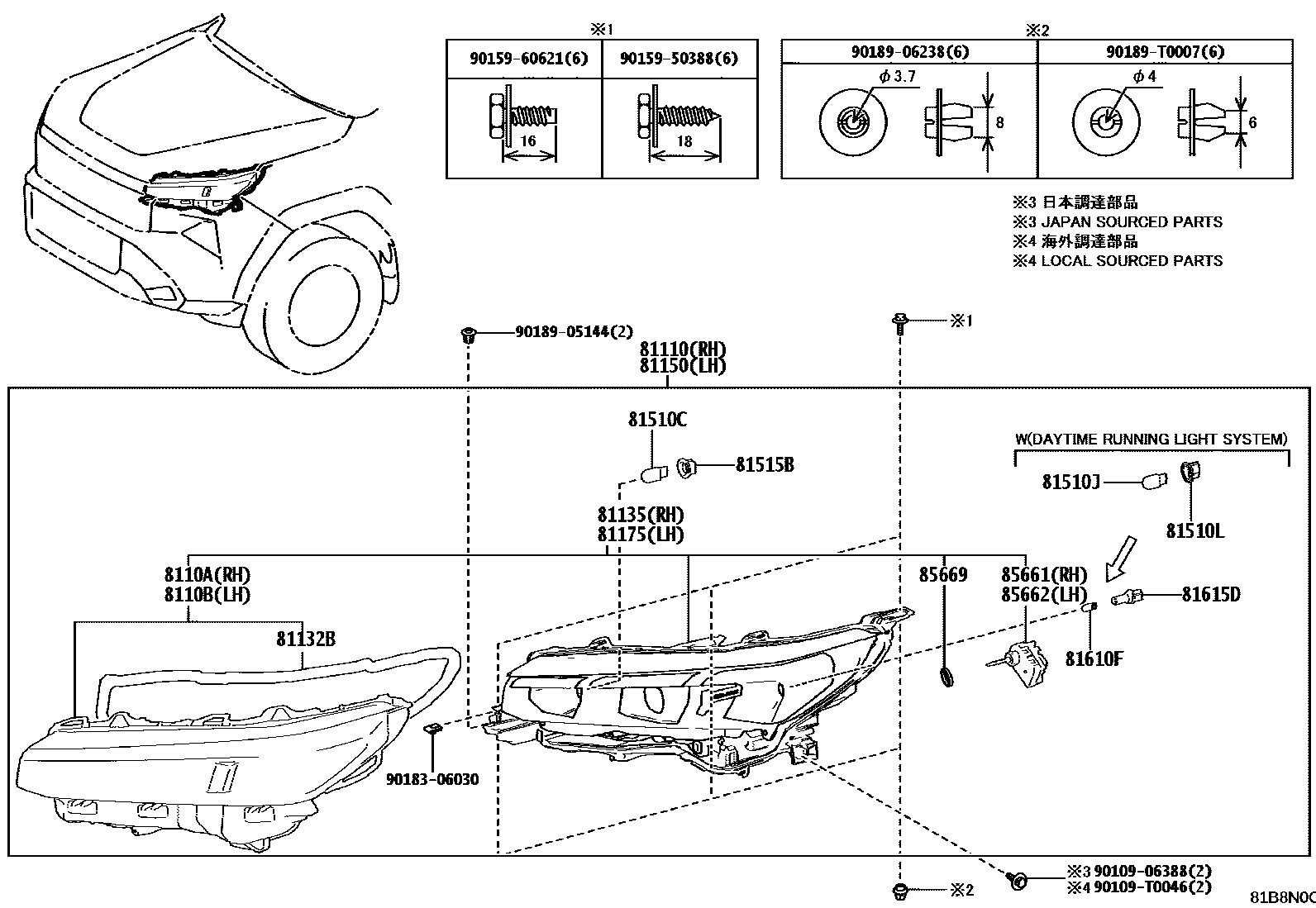

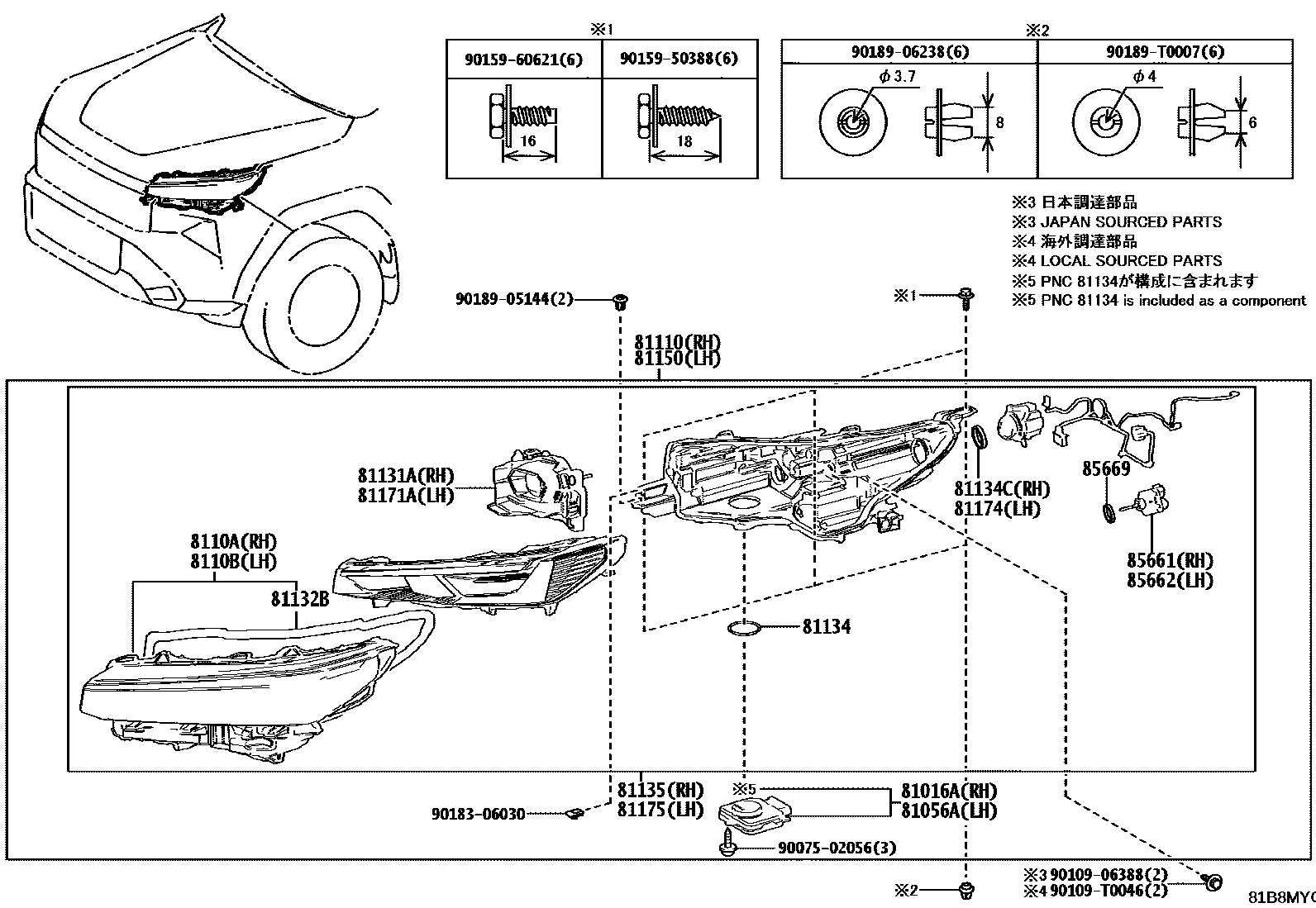

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-F0160 |
| 81056A | Left headlight ECU sub-assembly | 81056-F0160 |
| 8110A | Right headlight cover sub-assembly | 8110A-F0010 · 8110A-F0160 |
| 8110B | Left headlight cover sub-assembly | 8110B-F0010 · 8110B-F0160 |
| 81110 | Right headlight assembly | 81110-F0010 · 81110-F0020 · 81110-F0030 · 81110-F0040 · 81110-F0060 · 81110-F0160 · 81110-F0170 |
| 81131A | Right headlight assembly | 81130-F0160 · 81130-F0170 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23003 |
| 81134C | Right headlight body gasket | 81134-F0160 |
| 81135 | Right headlight assembly assembly | 81145-F0010 · 81145-F0020 · 81145-F0030 · 81145-F0040 · 81145-F0060 · 81145-F0160 · 81145-F0170 |
| 81150 | Left headlight assembly | 81150-F0010 · 81150-F0020 · 81150-F0030 · 81150-F0040 · 81150-F0060 · 81150-F0160 · 81150-F0170 |
| 81171A | Left headlight assembly | 81170-F0160 · 81170-F0170 |
| 81174 | Left headlight body gasket | 81174-F0160 |
| 81175 | Left headlight assembly assembly | 81185-F0010 · 81185-F0020 · 81185-F0030 · 81185-F0040 · 81185-F0060 · 81185-F0160 · 81185-F0170 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81510J | Bulb (for daytime running lights) | 90981-13088 |
| 81510L | Daytime running light lamp holder | 90075-60086 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-0D020 |
| 85662 | Left headlight beam height adjustment motor | 85661-0D020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
