Toyota HILUX 燃油箱和燃油管 — Figure 7751

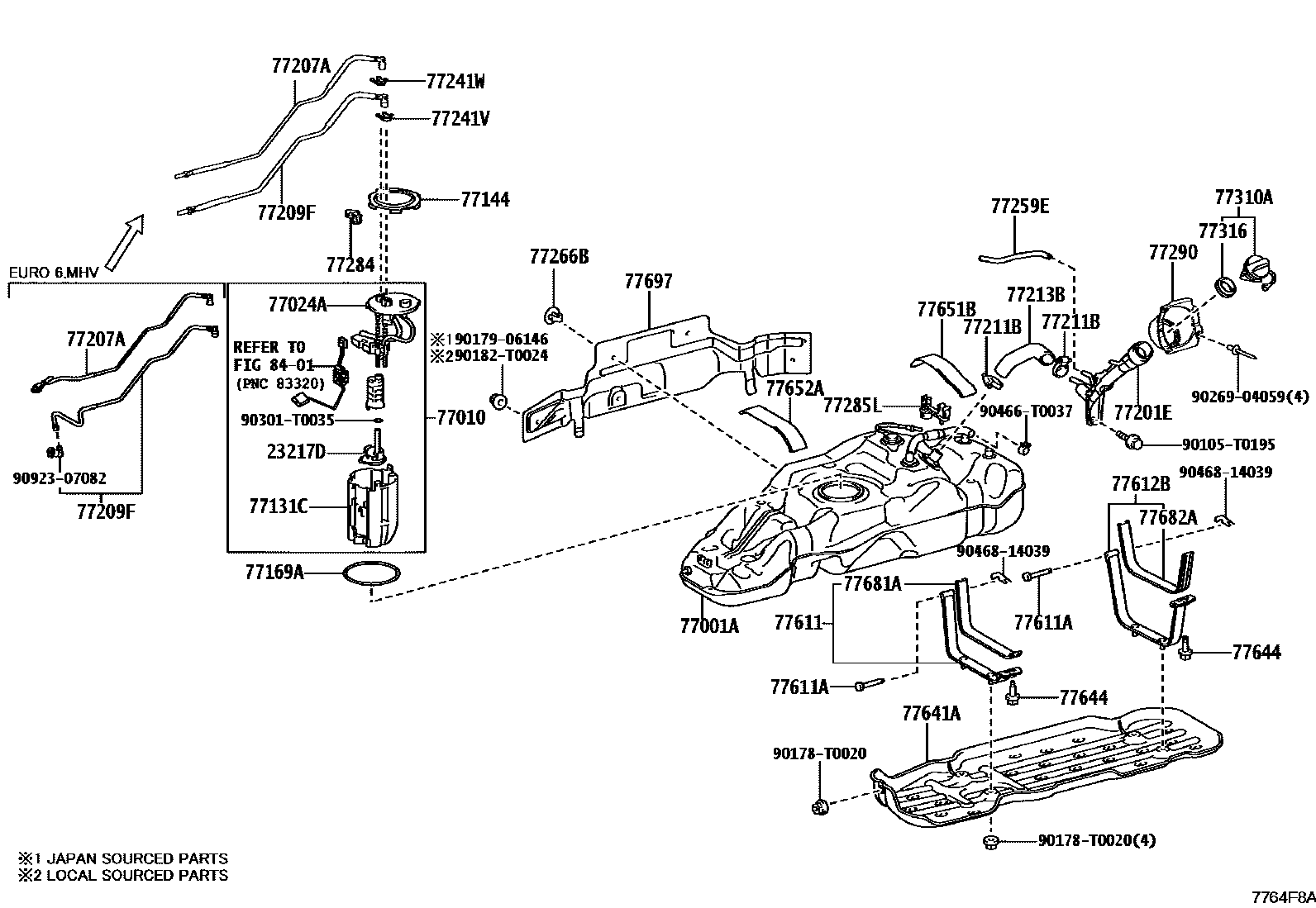

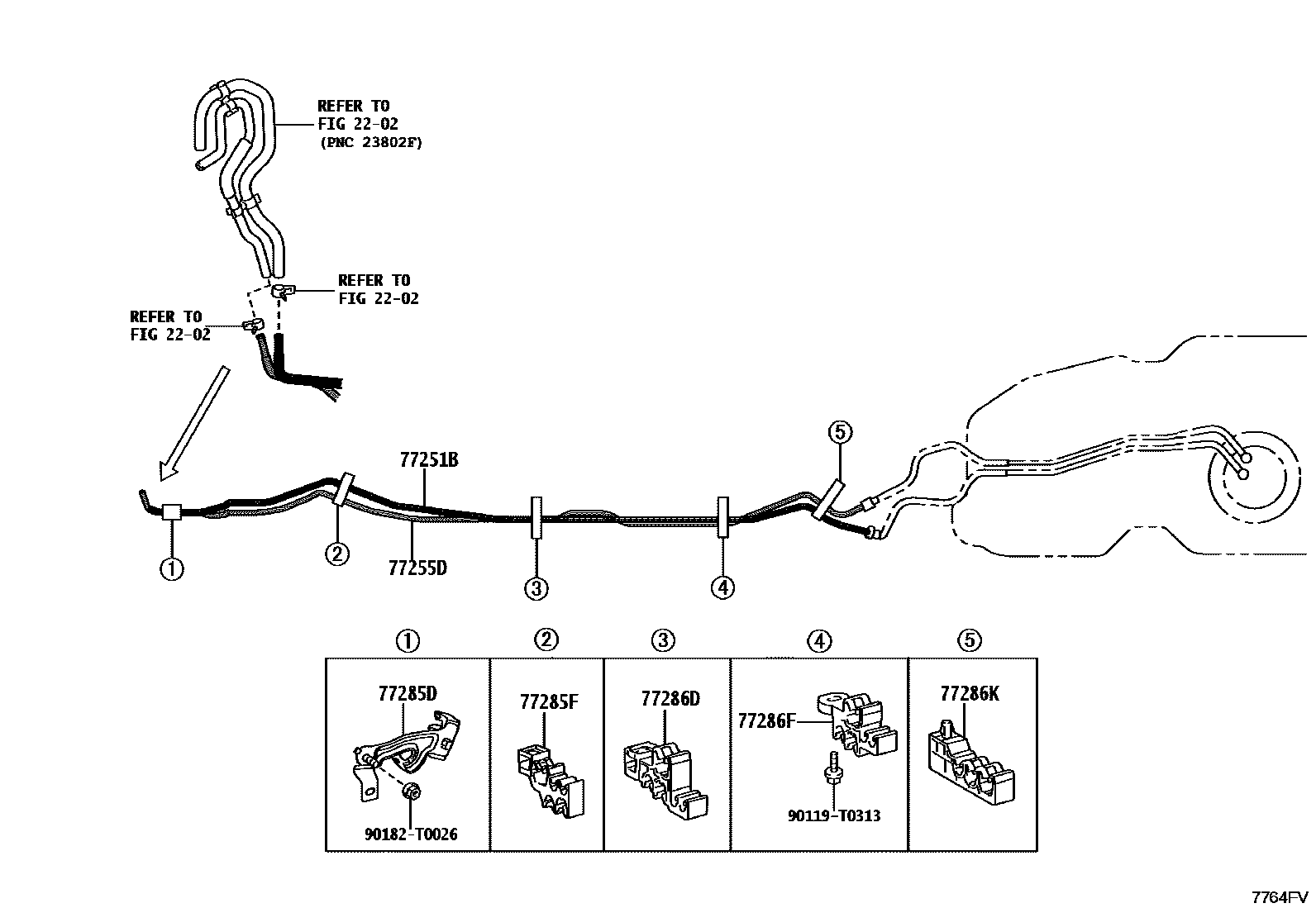

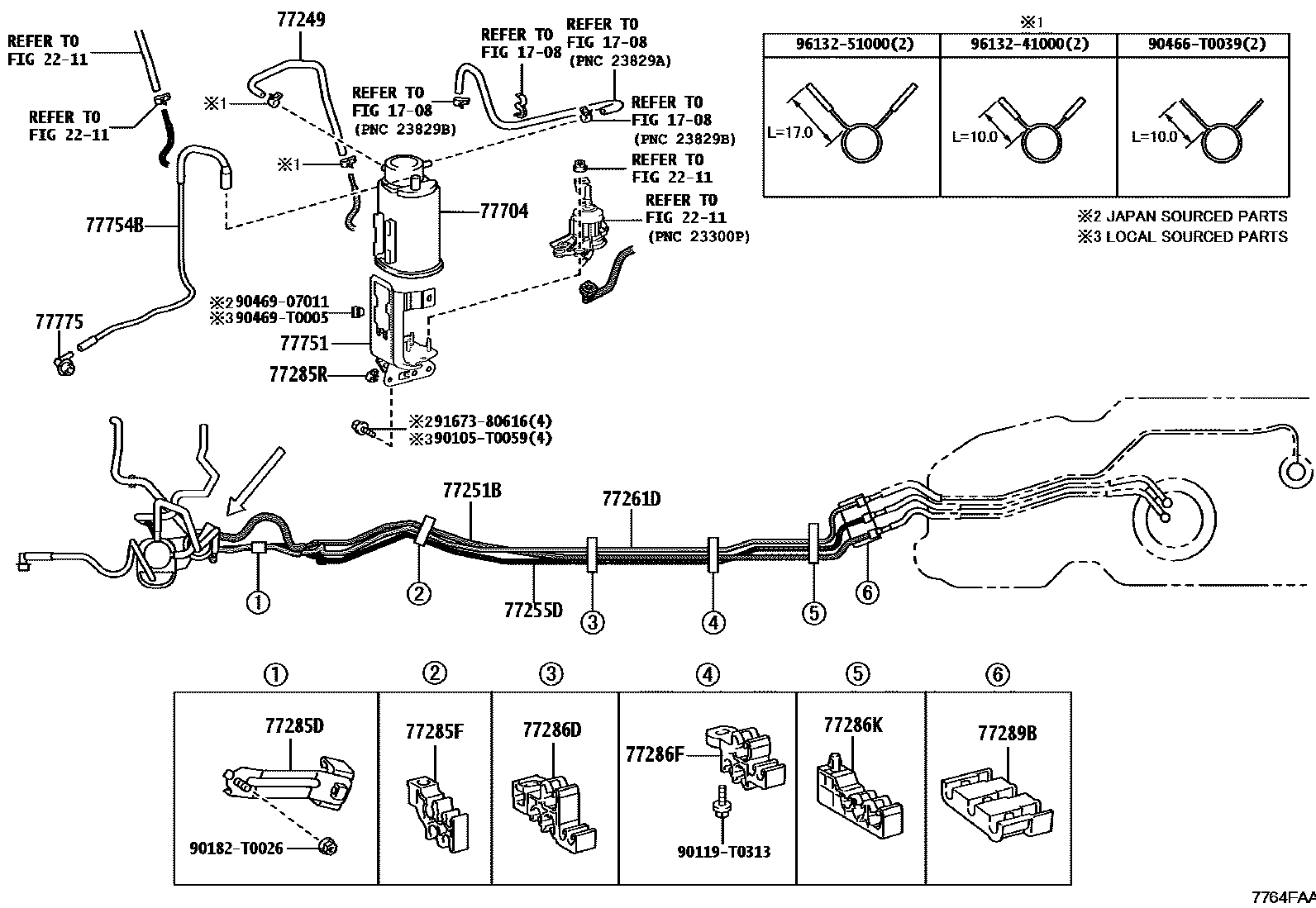

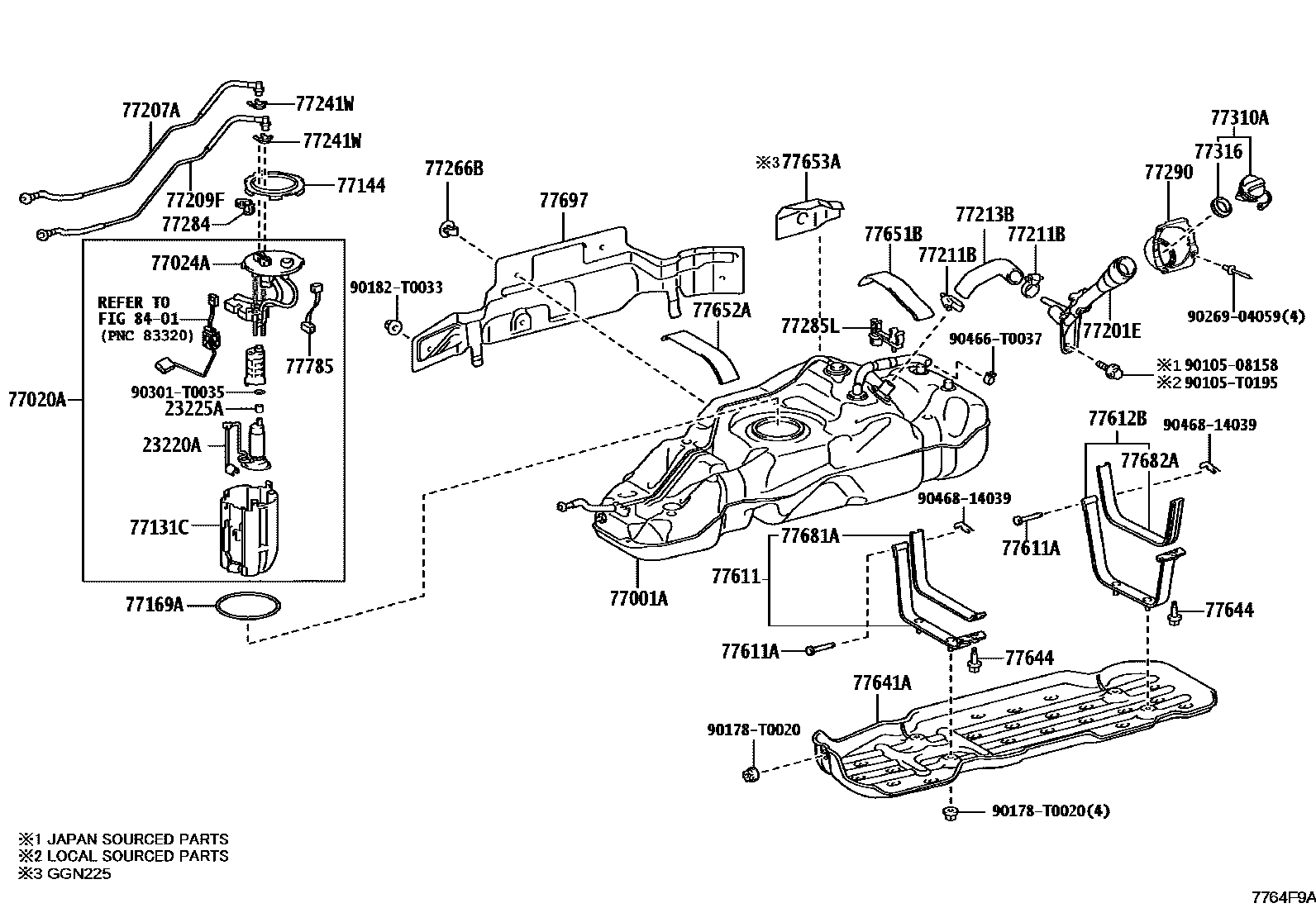

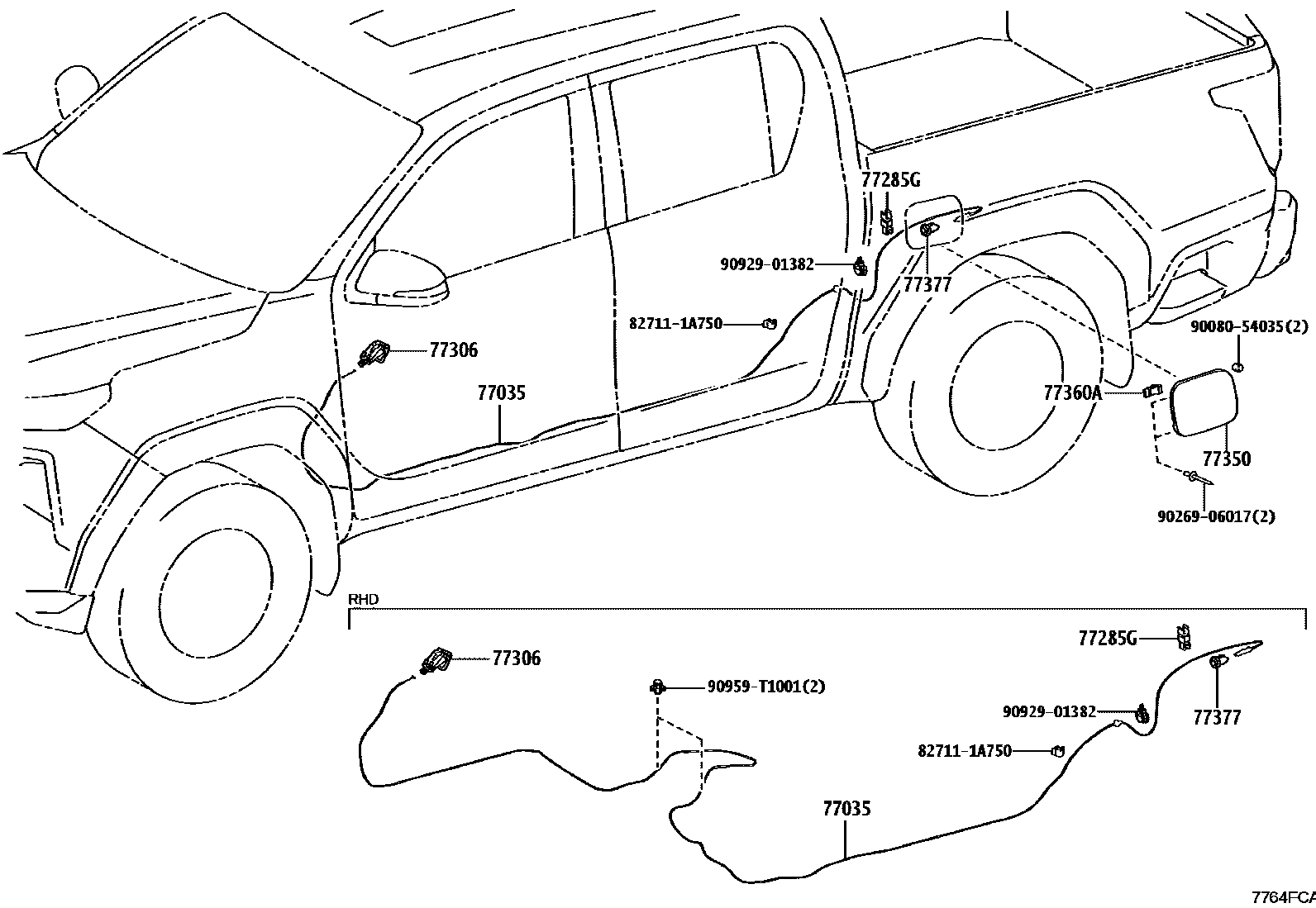

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 7 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0L020 |
| 23220A | Fuel pump assembly with filter | 23220-0C201 |
| 23225A | fuel pump septum | 23225-0V030 |
| 77001A | Fuel tank sub-assembly | 77001-0K401 · 77001-0K471 · 77001-0K681 |
| 77010 | Fuel tank vent pipe assembly | 77010-0K201 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0K391 |
| 77024A | Fuel absorber sub-assembly | 77024-0K170 · 77024-0K190 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0K730 · 77035-0K740 |
| 77131C | No. 1 auxiliary fuel tank | 77131-0K190 · 77131-0K200 |
| 77144 | Fuel pump instrument fixture | 77144-0K040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-0K040 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-71020 · 77201-71060 · 77201-KK071 · 77201-KK080 · 77201-KK090 · 77201-KK121 · 77201-KK140 |
| 77207A | Fuel return pipe sub-assembly | 77204-0K130 · 77204-0K140 · 77204-0K240 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0K190 · 77209-0K200 · 77209-0K300 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213B | Fuel tank to filler pipe hose | 77213-KK010 |
| 77241V | Pipe joint clip | 77241-0K020 |
| 77241W | Pipe joint clip | 77241-0K010 |
| 77243D | No. 1 fuel pipe joint | 77245-71010 |
| 77249 | fuel drain hose | 77249-0G020 |
| 77251B | main fuel pipe | 77205-KK080 · 77251-KK110 · 77251-KK150 |
| 77255D | fuel return pipe | 77255-KK150 · 77255-KK200 · 77255-KK240 |
| 77259D | No. 1 fuel hose | 77259-71060 |
| 77259E | fuel hose | 77259-KK070 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-KK030 |
| 77266B | Clamp (for fuel pipe protection device) | 77512-0K010 · 77644-0K010 |
| 77278E | fuel hose | 95338-10022 |
| 77284 | Fuel pipe clamp | 77289-0K050 |
| 77285D | No. 1 fuel pipe clamp | 77285-0G160 · 77285-0K160 · 77285-0K430 |
| 77285F | No. 1 fuel pipe clamp | 77285-0K230 |
| 77285G | No. 1 fuel pipe clamp | 77285-0K190 |
| 77285L | No. 1 fuel pipe clamp | 77285-0K250 |
| 77285R | No. 1 fuel pipe clamp | 77285-0K340 |
| 77286D | No. 2 fuel pipe clamp | 77286-0K170 |
| 77286F | No. 2 fuel pipe clamp | 77286-0K150 |
| 77286K | No. 2 fuel pipe clamp | 77286-0K220 |
| 77289B | No. 3 fuel pipe clamp | 77289-0K040 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0K120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0K100 |
| 77310A | Fuel tank cap assembly | 77300-0K010 · 77300-0K020 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-KK100 |
| 77360A | Fuel filler cap spring assembly | 77360-0K010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D080 |
| 77611 | fuel tank strap | 77601-71010 · 77601-KK050 · 77601-KK100 |
| 77611A | Pin (for fuel tank strap) | 77653-0K041 |
| 77612B | No. 2 fuel tank strap | 77602-71010 · 77602-KK030 · 77602-KK080 |
| 77641A | No. 1 fuel tank protective shell | 77641-KK010 |
| 77644 | fuel tank bolt | 77644-35030 |
| 77651B | fuel tank liner | 77651-0K070 · 77651-0K080 |
| 77652A | No. 2 fuel tank liner | 77652-0K130 · 77652-0K140 |
| 77681A | Fuel tank strap seat | 77681-71010 · 77681-KK020 · 77681-KK060 |
| 77682A | No. 2 fuel tank strap seat | 77682-71010 · 77682-KK010 · 77682-KK060 |
| 77697 | No. 1 fuel tank insulation pad | 77697-0K080 · 77697-0K130 · 77697-0K140 |
| 77704 | Carbon canister sub-assembly | 77704-0K010 |
| 77751 | Carbon canister base bracket | 77751-0G030 |
| 77754B | Carbon canister outlet hose | 77754-0K010 |
| 77775 | Carbon canister outlet duct | 77775-0K010 |
| 77785 | fuel pump wiring harness | 77785-02110 |
