Toyota HILUX 防护条 — Figure 7552

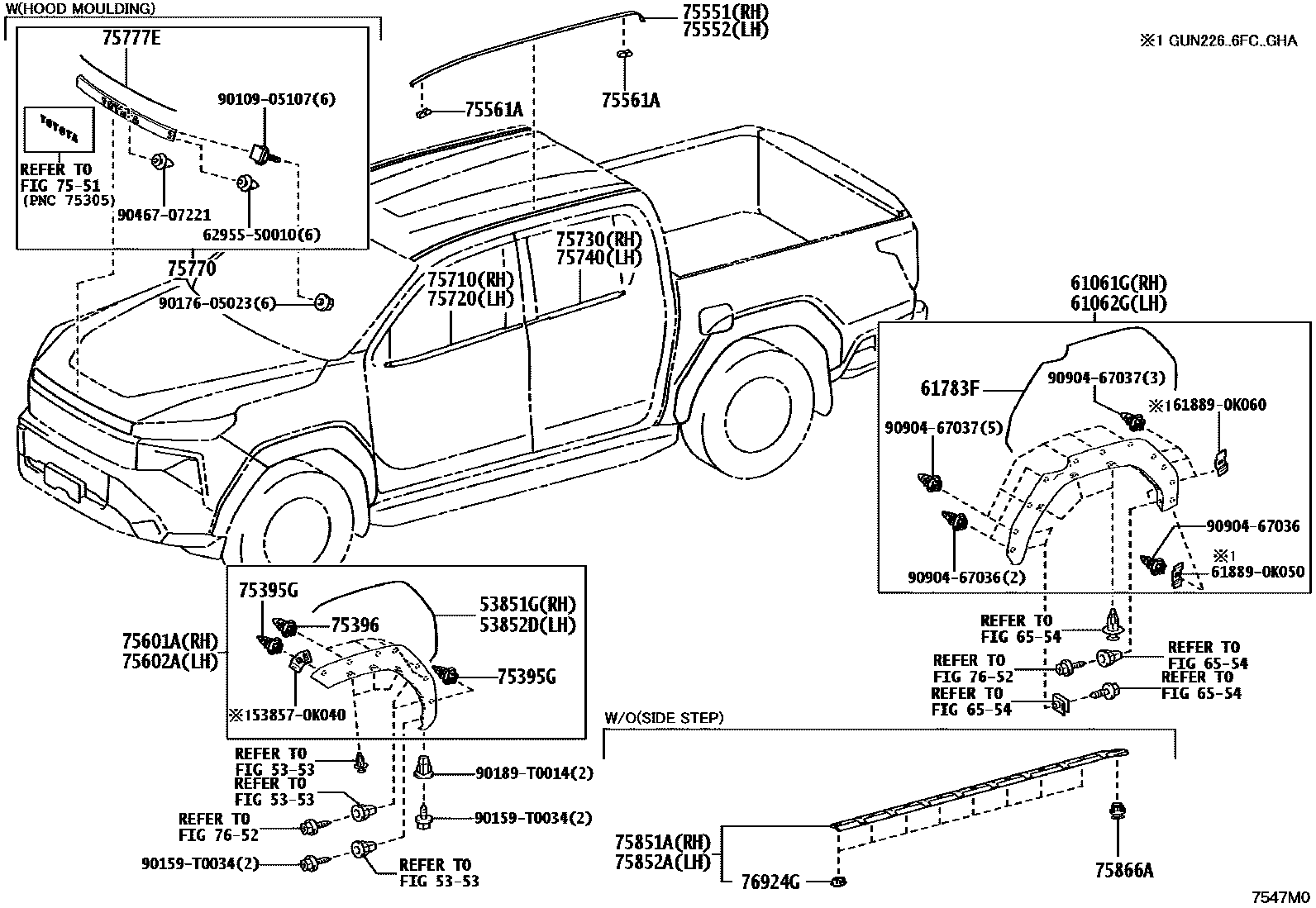

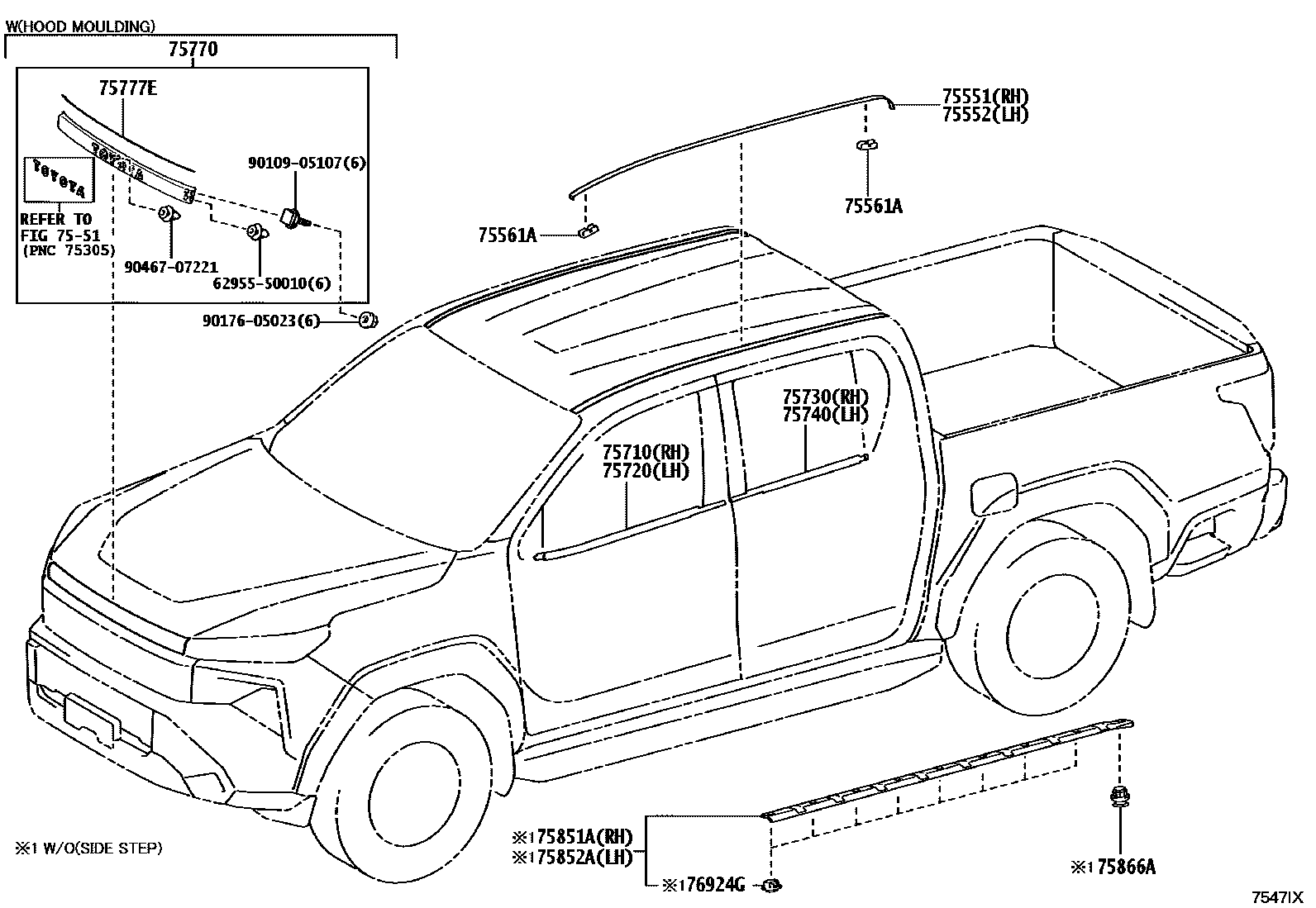

Toyota HILUX EPC diagram 7552, 防护条, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-0K240 |
| 53852D | Left front fender exterior panel pad | 53852-0K240 |
| 61061G | Right rear No. 1 fender external panel sub-assembly | 61061-0K280 |
| 61062G | Left rear No. 1 fender external panel sub-assembly | 61062-0K280 |
| 61783F | No. 1 rear fender outer panel pad | 61783-0K210 · 61784-0K210 |
| 75395G | No. 1 outer protective strip clip | 75395-0K010 |
| 75396 | No. 2 outer protective strip clip | 75396-35020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K160 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K160 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75601A | Right front fender protection strip sub-assembly | 53087-0K090 |
| 75602A | Left front fender protection strip sub-assembly | 53088-0K090 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K010 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K010 |
| 75730 | Right rear door waistline protection strip assembly | 68180-0K010 |
| 75740 | Left rear door waistline protection strip assembly | 68230-0K010 |
| 75770 | Engine cover front protective strip assembly | 75770-0K540 · 75770-0K550 |
| 75777E | Engine cover front protective strip liner | 75777-0K170 |
| 75851A | Right front door sill panel protective strip | 75851-0K010 |
| 75852A | Left front door sill panel protective strip | 75852-0K010 |
| 75866A | Door sill panel protective strip fixings | 76923-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-0K010 |
