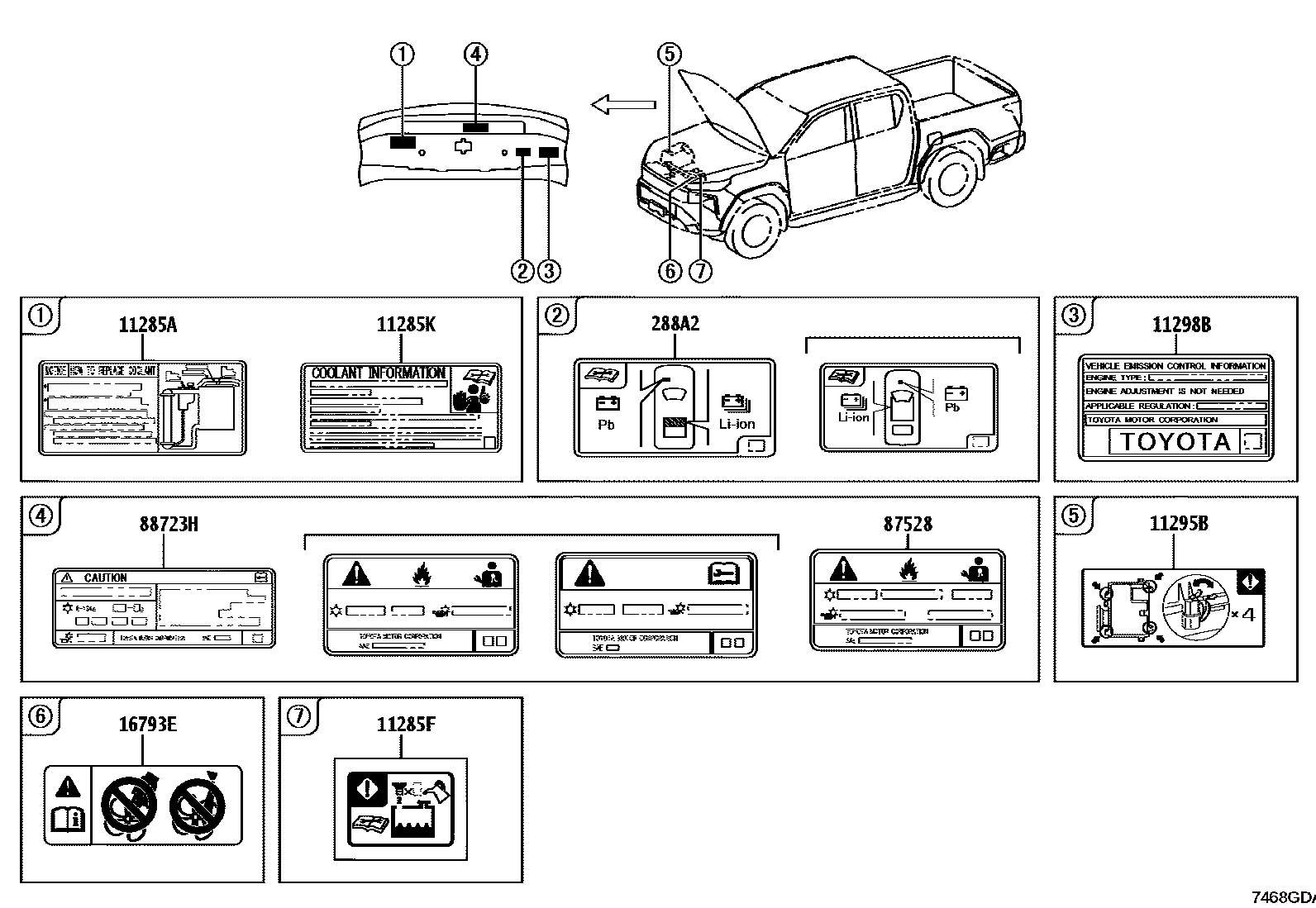

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E010 |
| 11285F | Coolant System Warning Label | 11285-0E030 |
| 11298B | Emission Control Information Label | 11298-0E030 |
| 17792D | Emission control device information label | 17792-11750 · 17792-11800 |
| 288A2 | Battery location label | 288A2-0E010 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74515C | Anti-theft warning information label | 74515-0K020 |
| 74559B | fuel information label | 74559-20140 · 74559-89101 · 74559-YE010 |
| 74751 | tire pressure information label | 42661-0KS10 · 42661-0KT50 |
| 82685D | warning nameplate | 82684-48010 |
| 861C8 | Mobile Wireless Charger Warning Label | 861C8-48010 |
| 88723H | Cooler maintenance warning label | 88723-0K261 · 88723-0K270 · 88723-0K470 |
