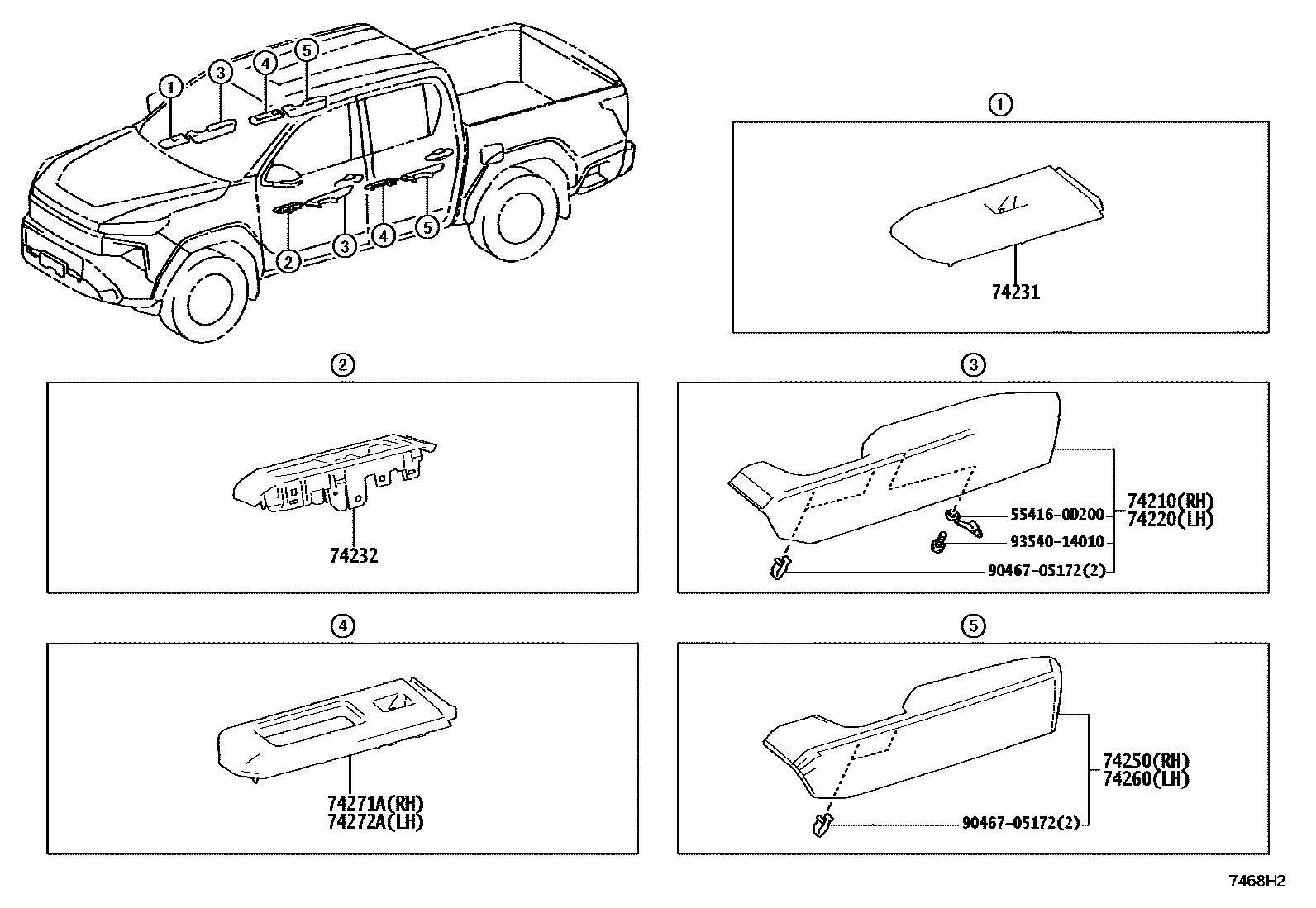

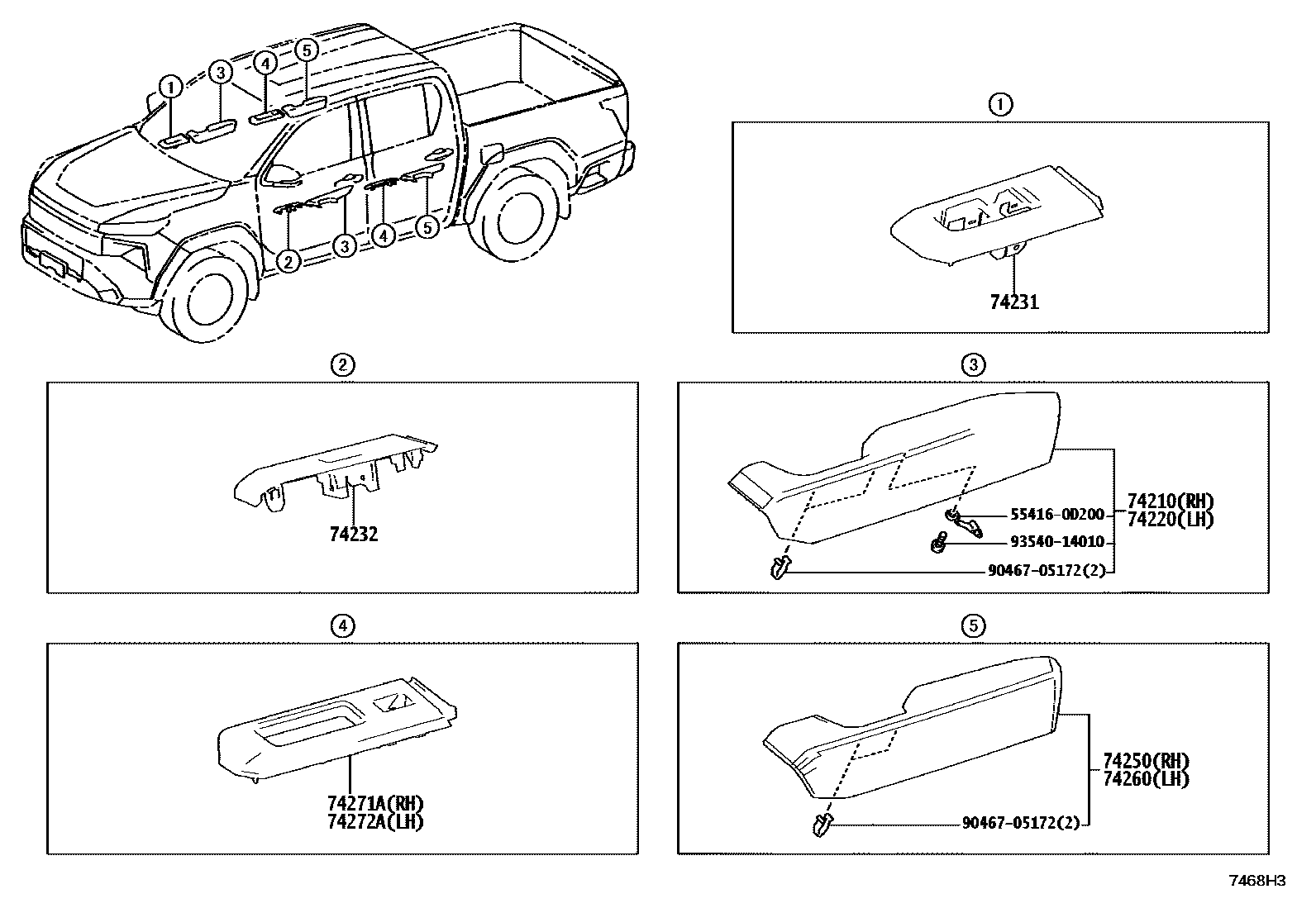

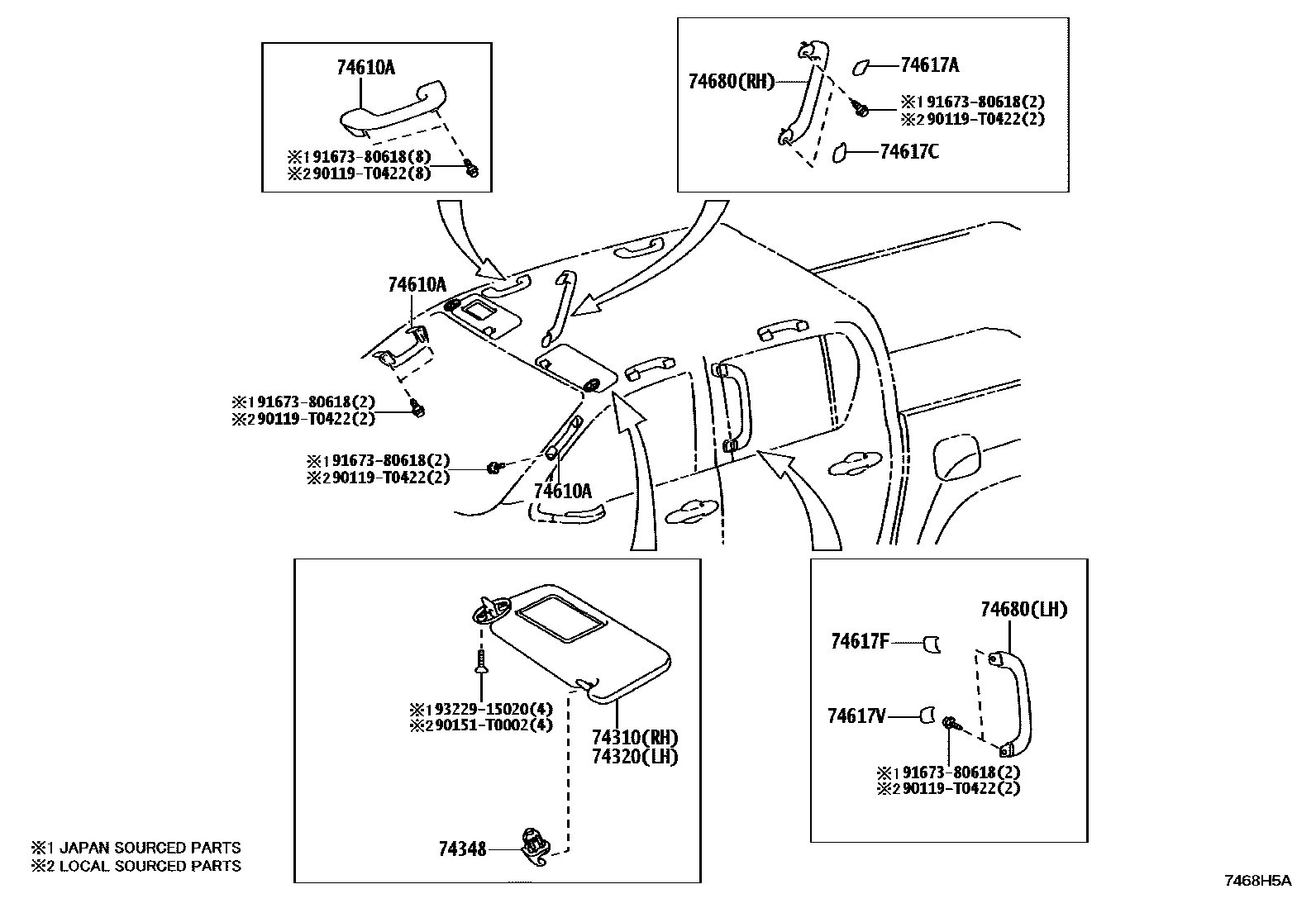

Toyota HILUX 扶手和遮阳板 — Figure 7451
Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-KK040 · 74231-KK060 |
| 74232 | Left front armrest upper panel | 74232-KK020 · 74232-KK060 |
| 74271A | Right rear door armrest upper panel | 74271-KK020 |
| 74272A | Left rear door armrest upper panel | 74272-KK020 |
| 74610A | Auxiliary handle sub-assembly | 74603-0K070 |
