Toyota HILUX 座椅和座椅滑轨 — Figure 7151

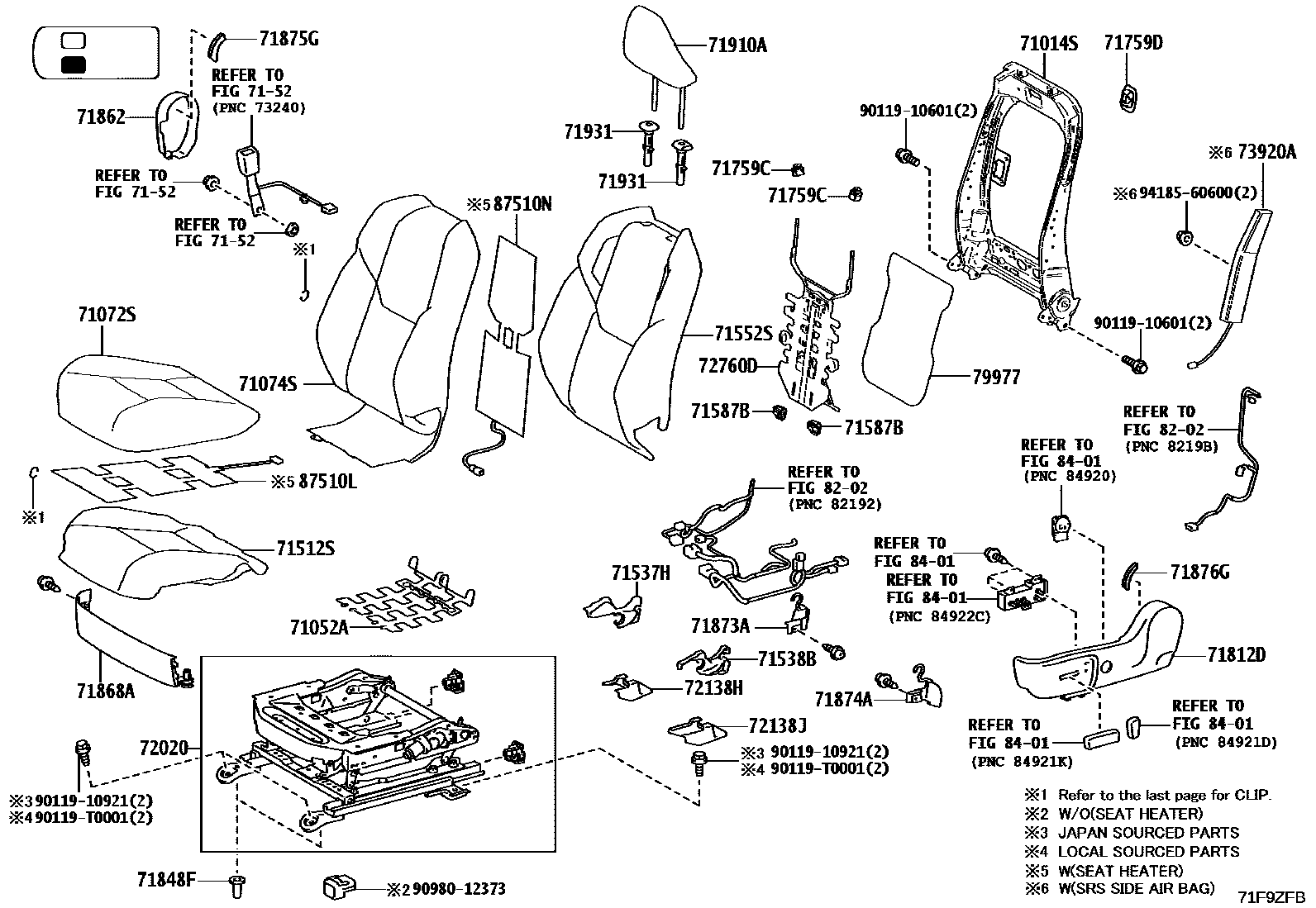

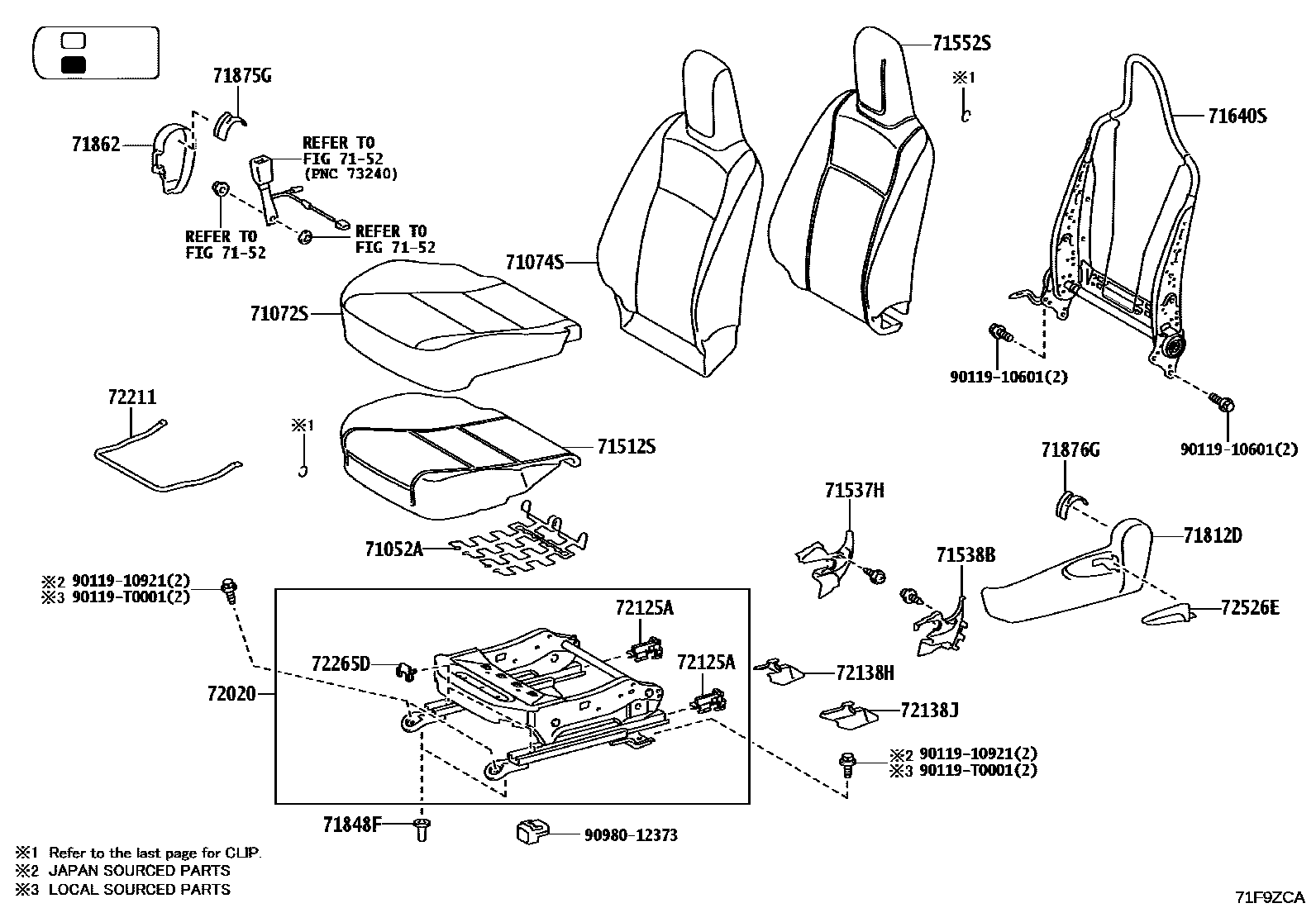

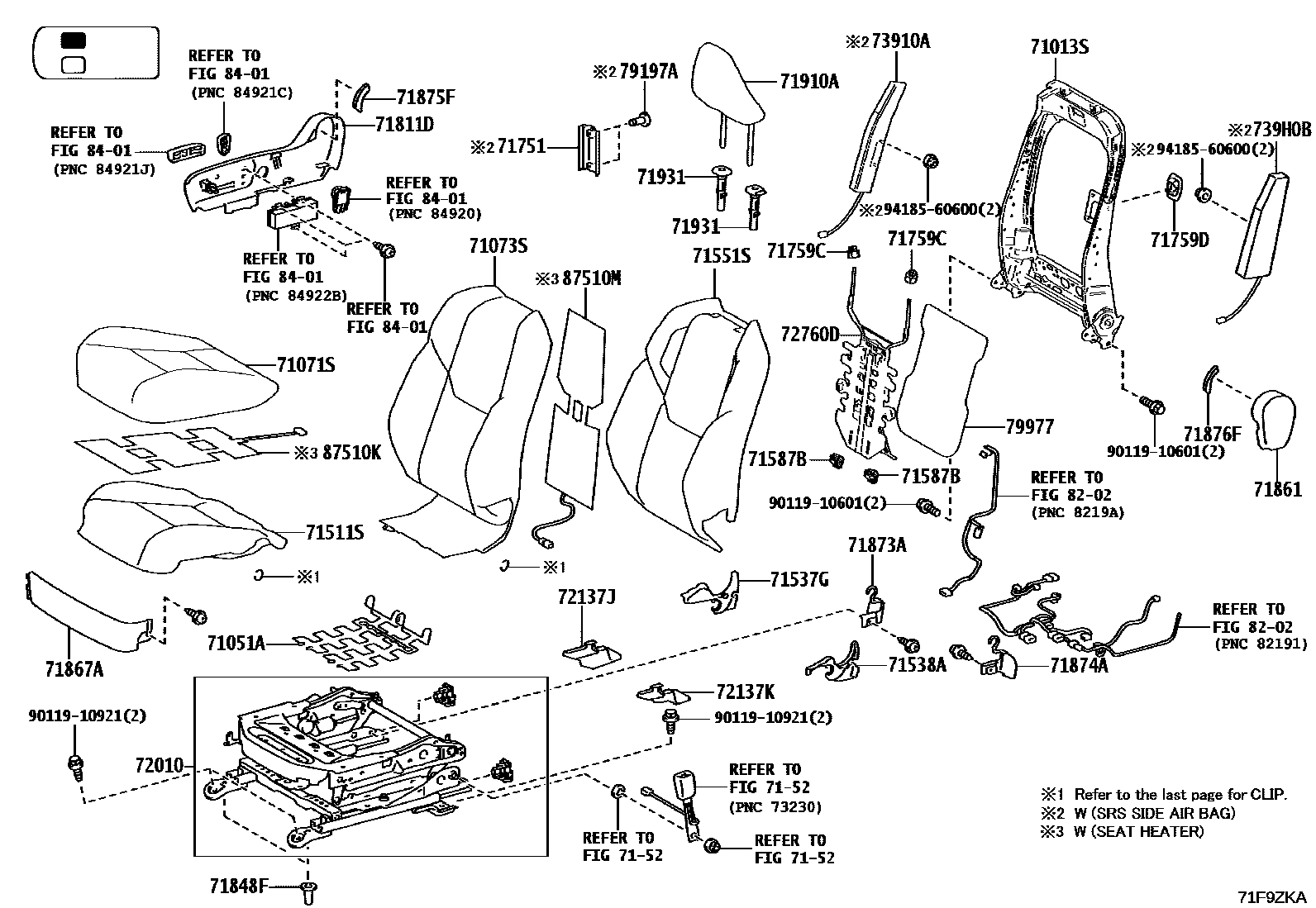

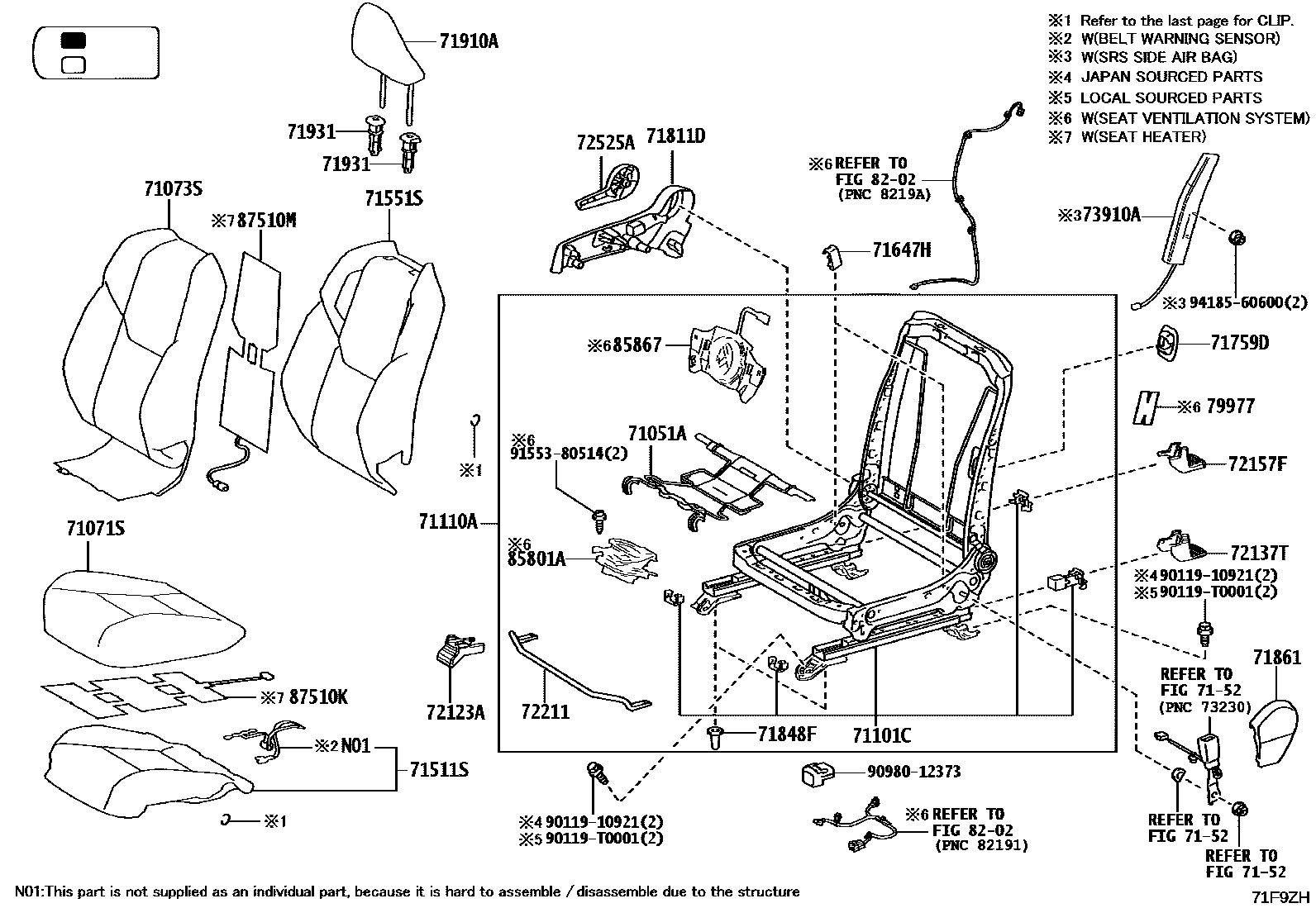

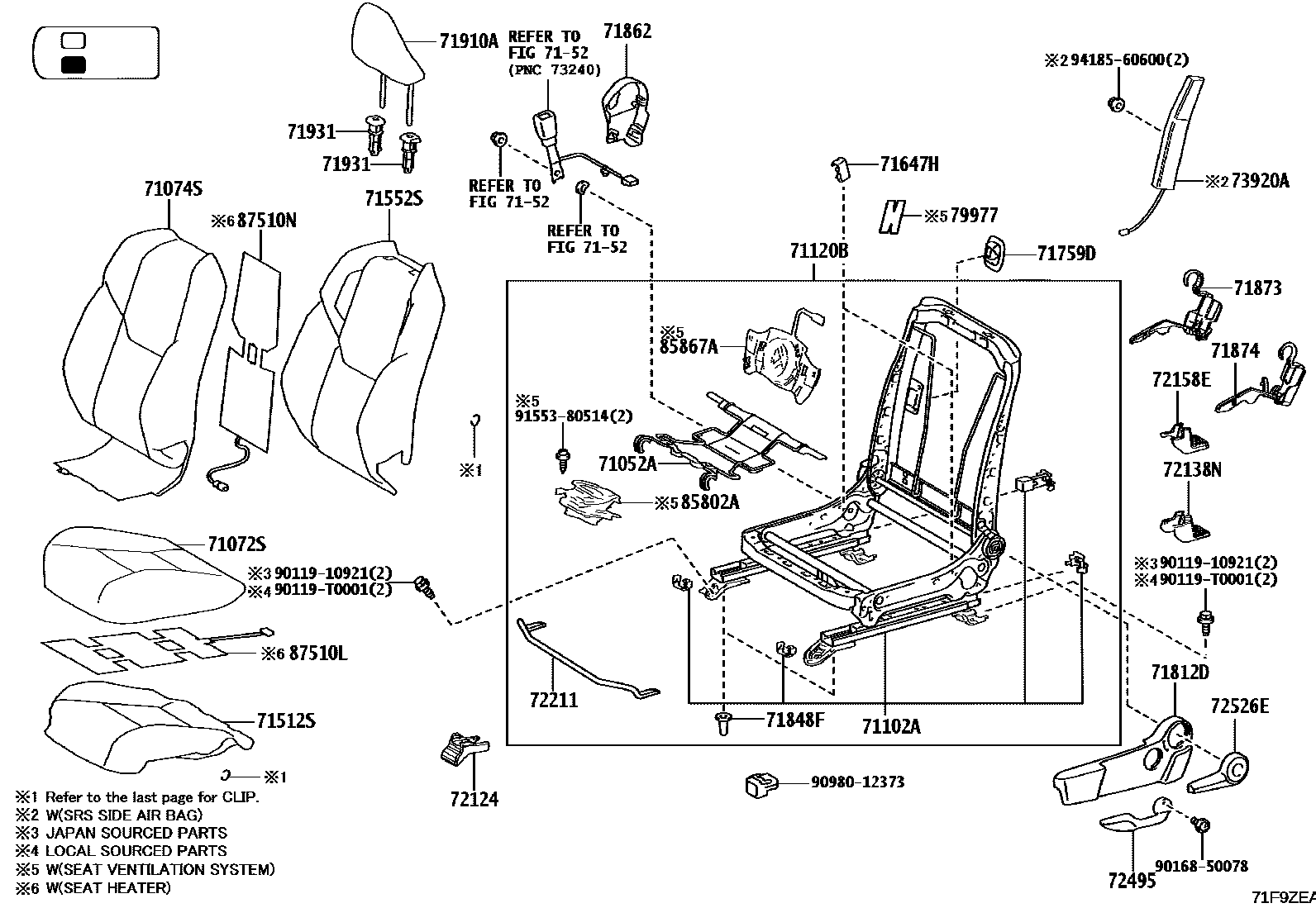

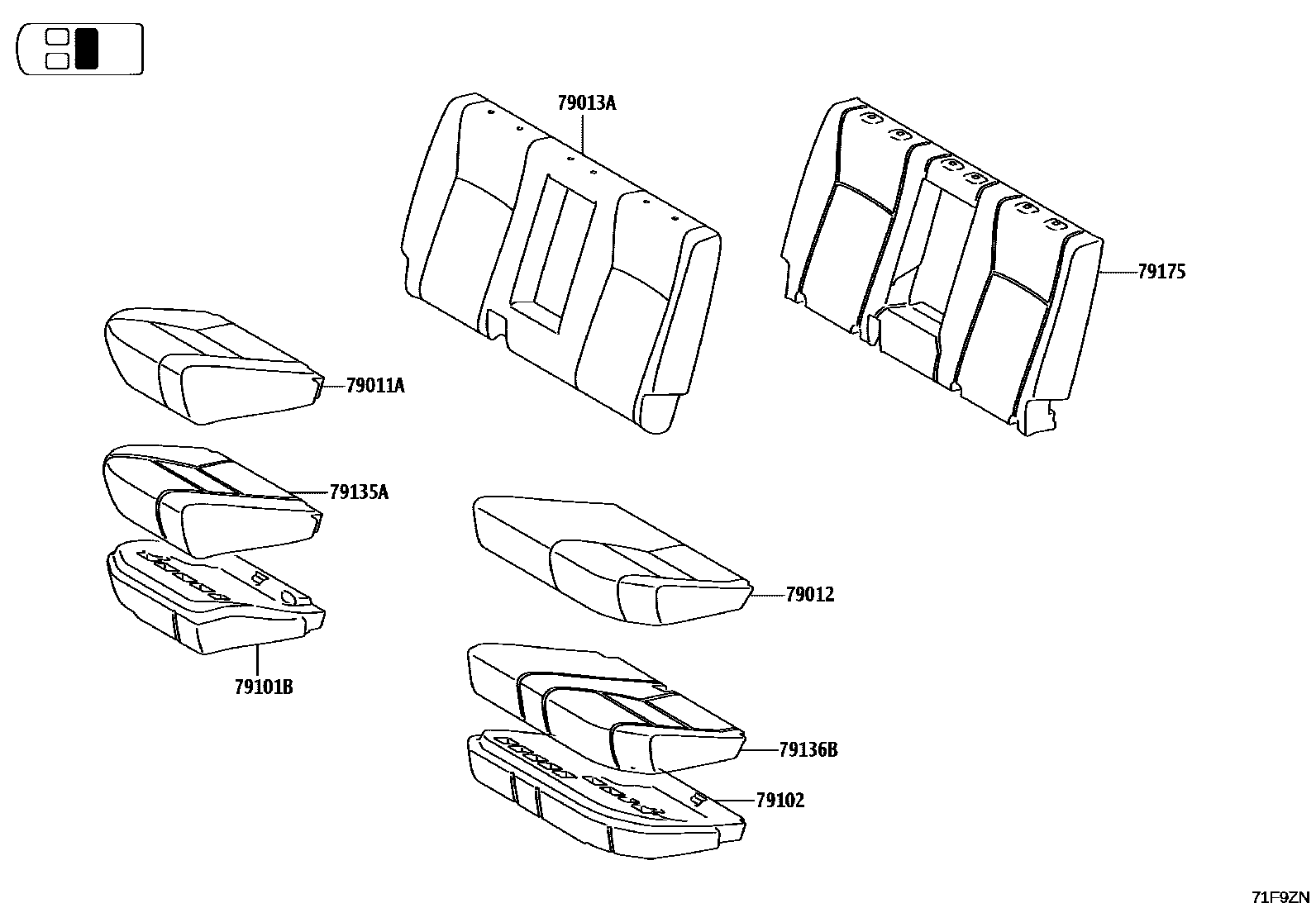

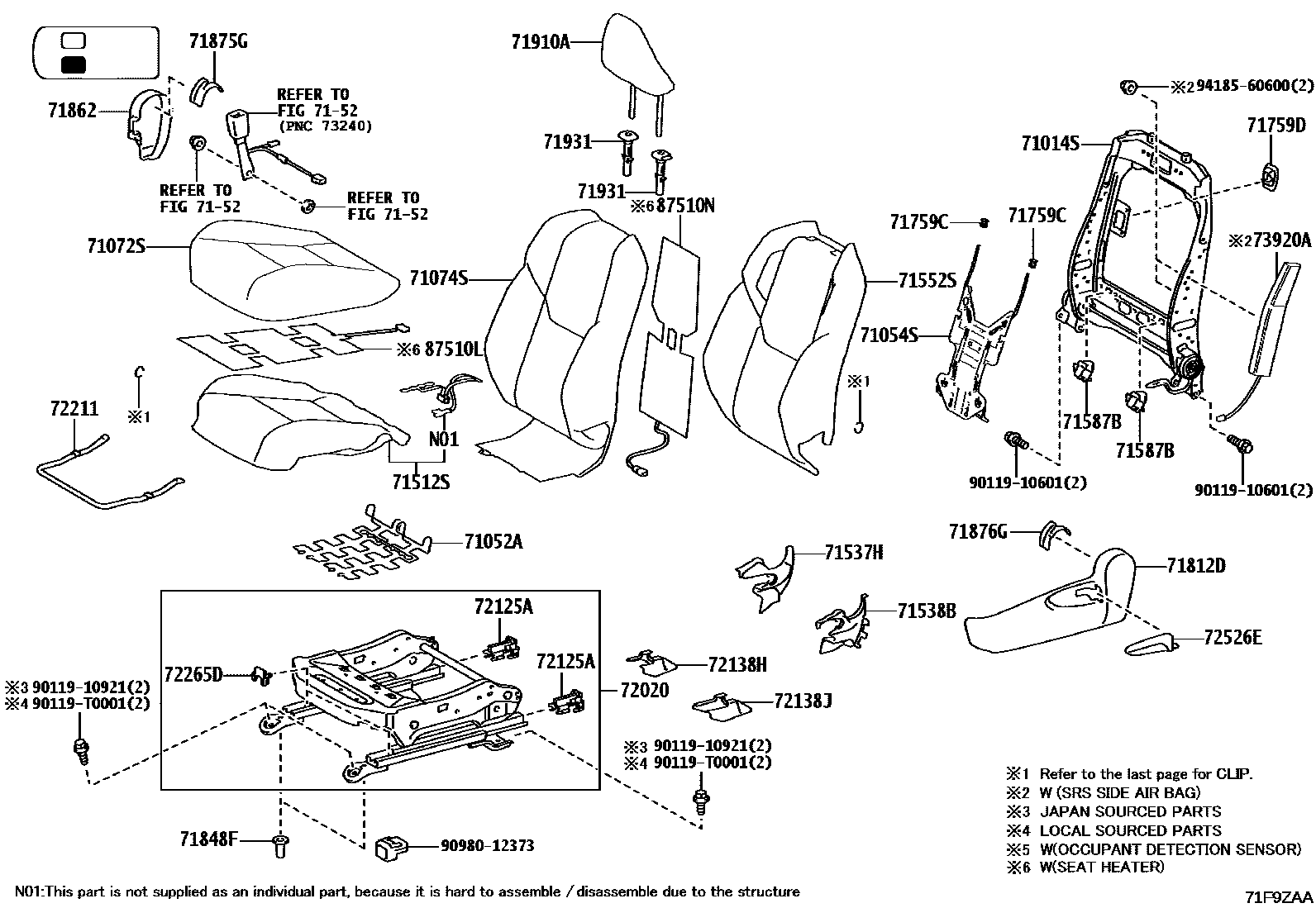

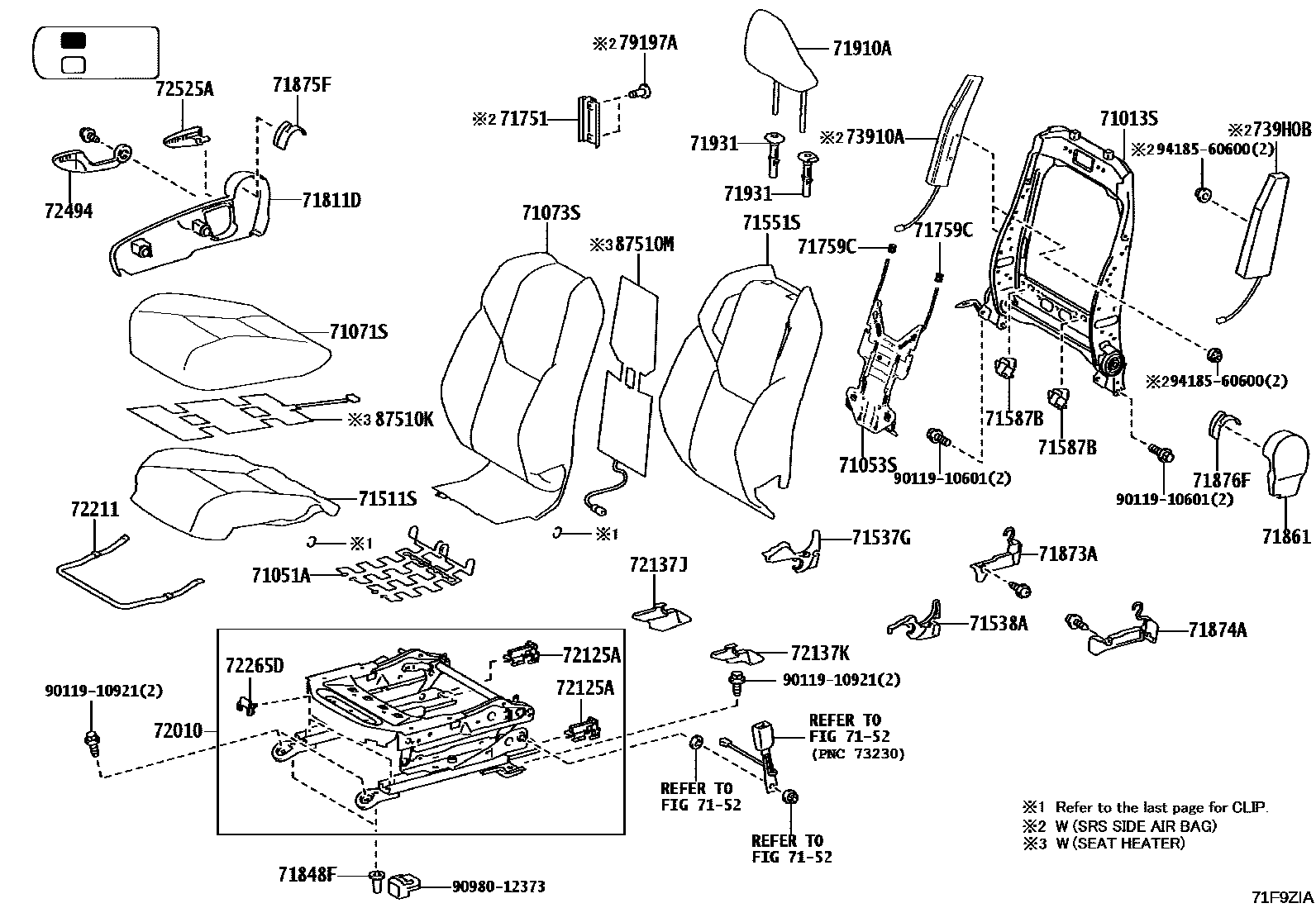

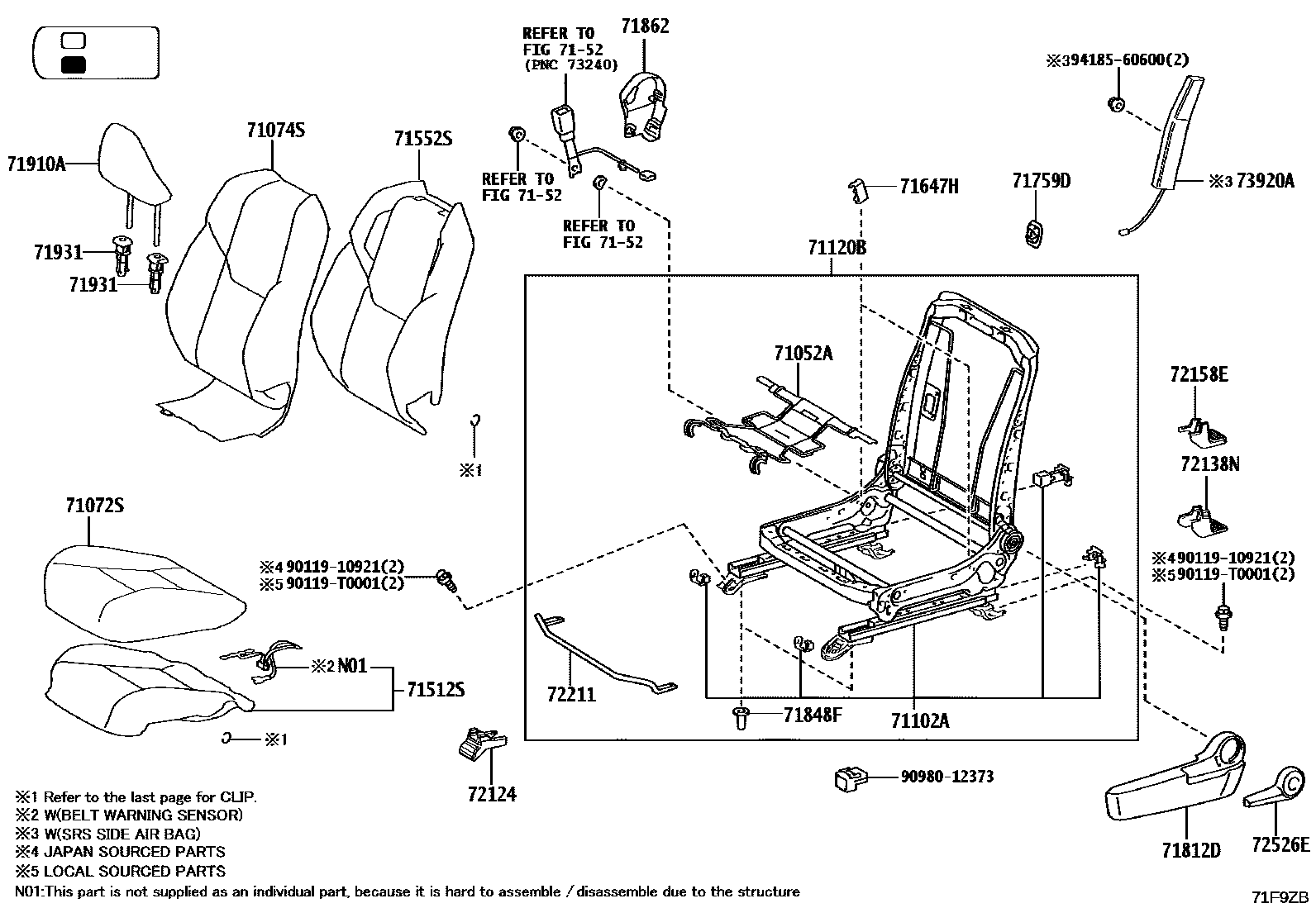

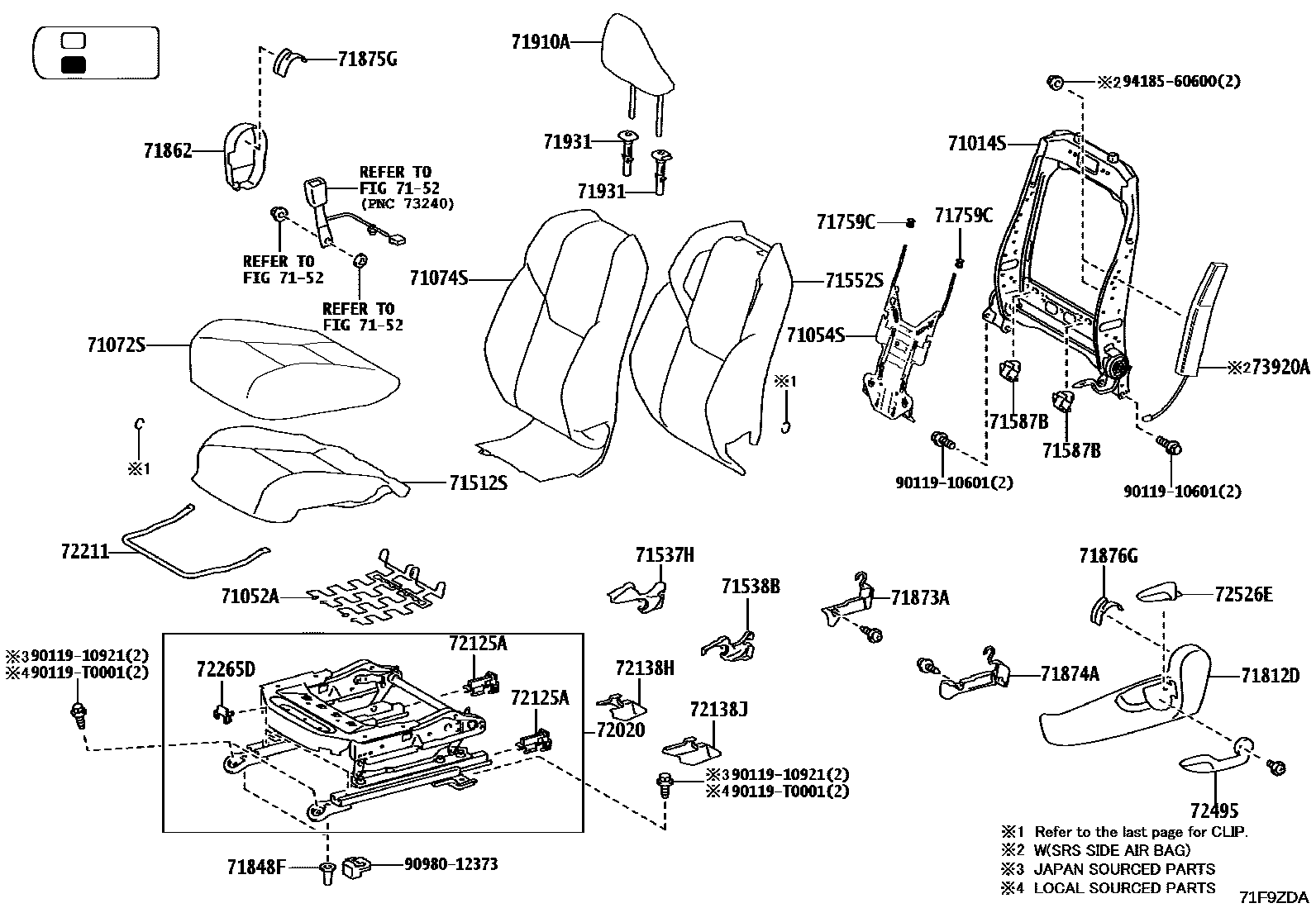

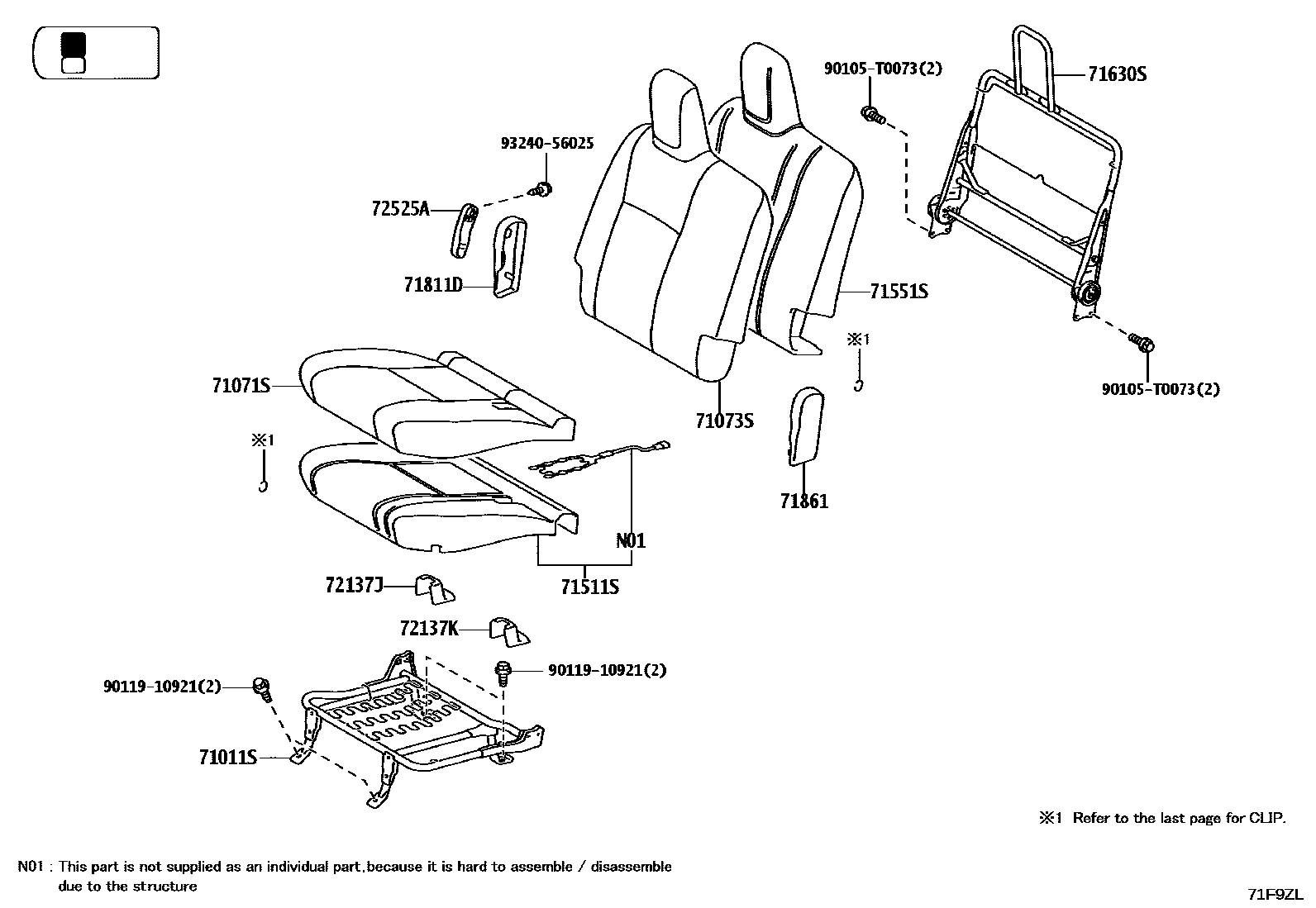

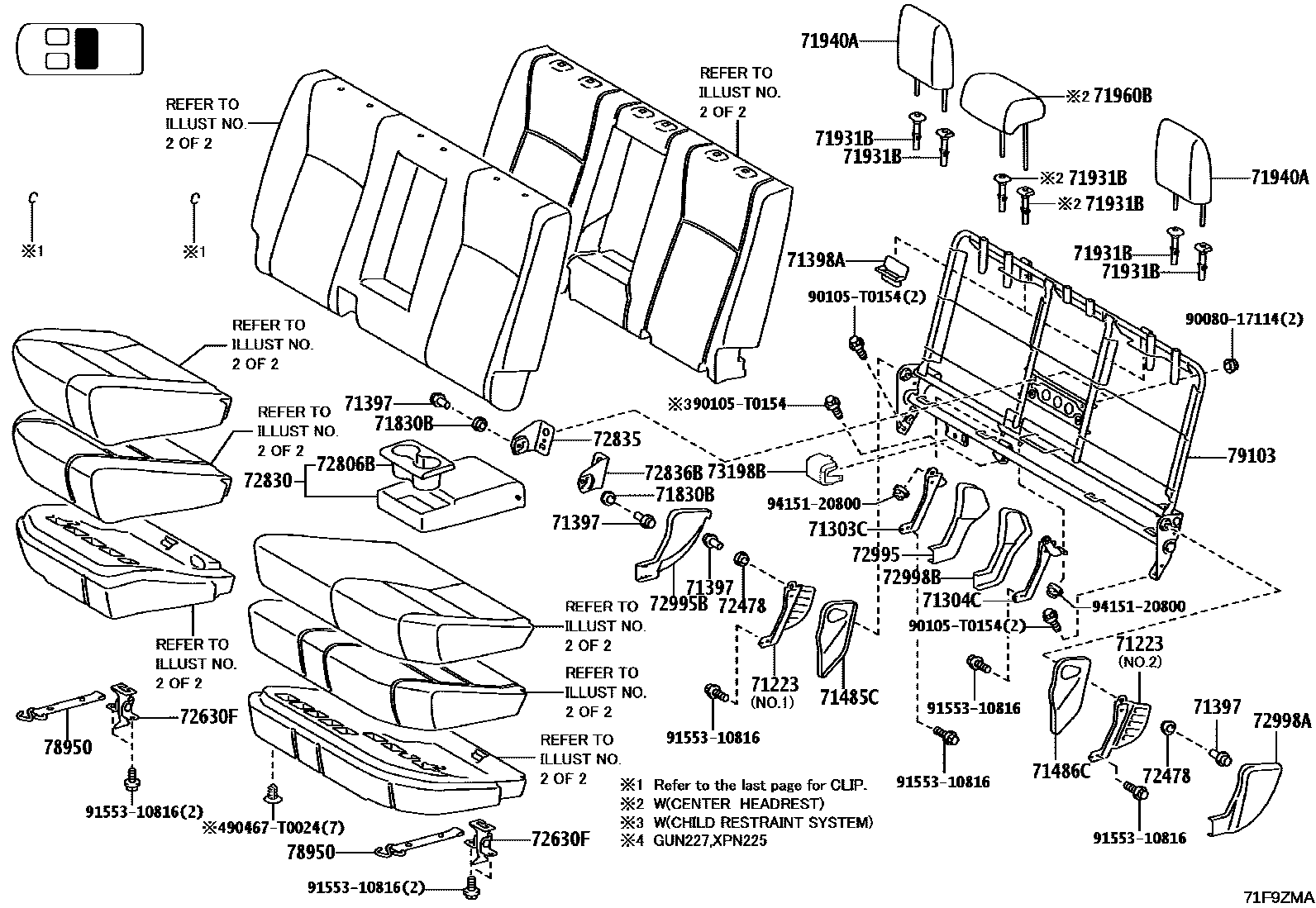

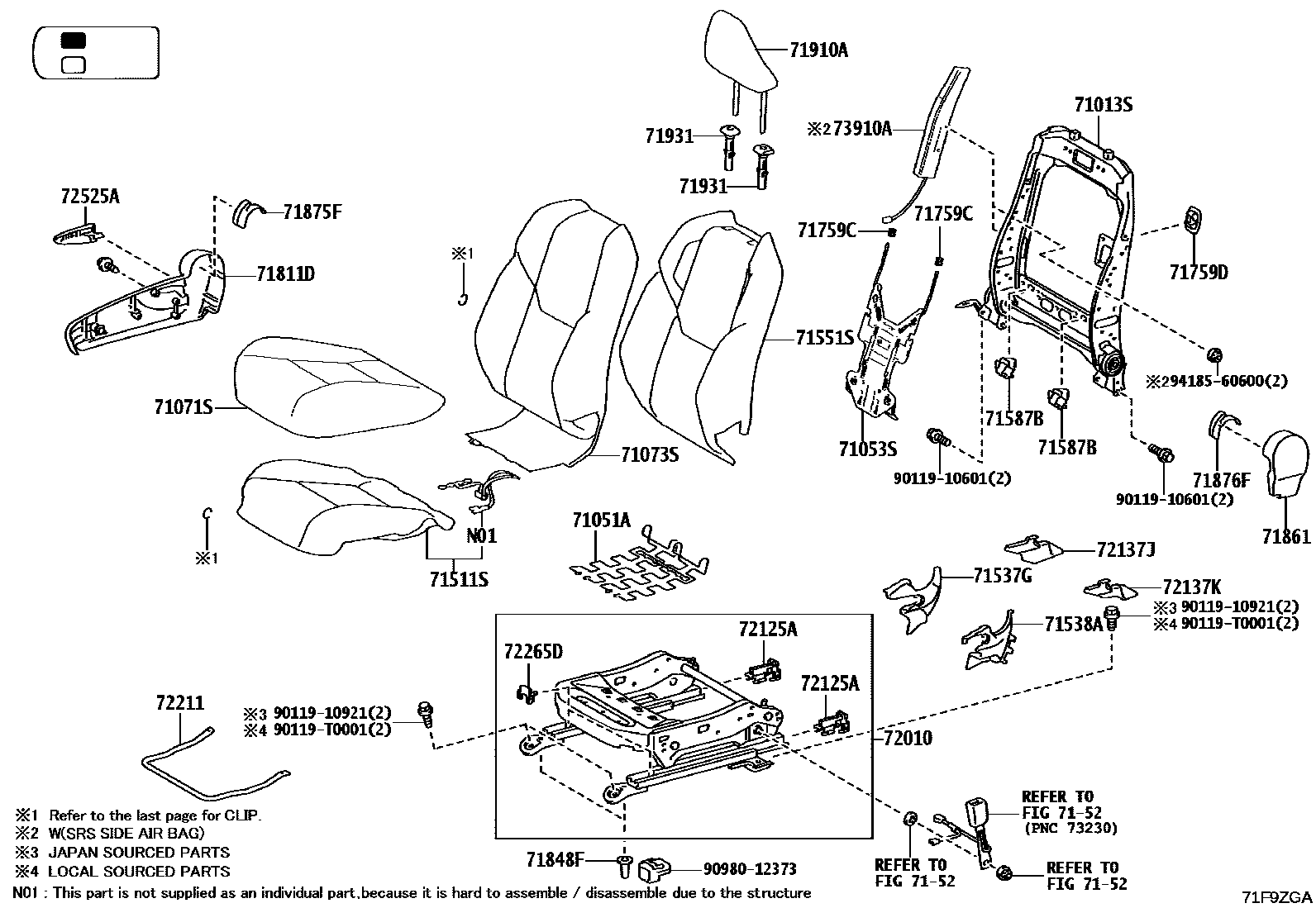

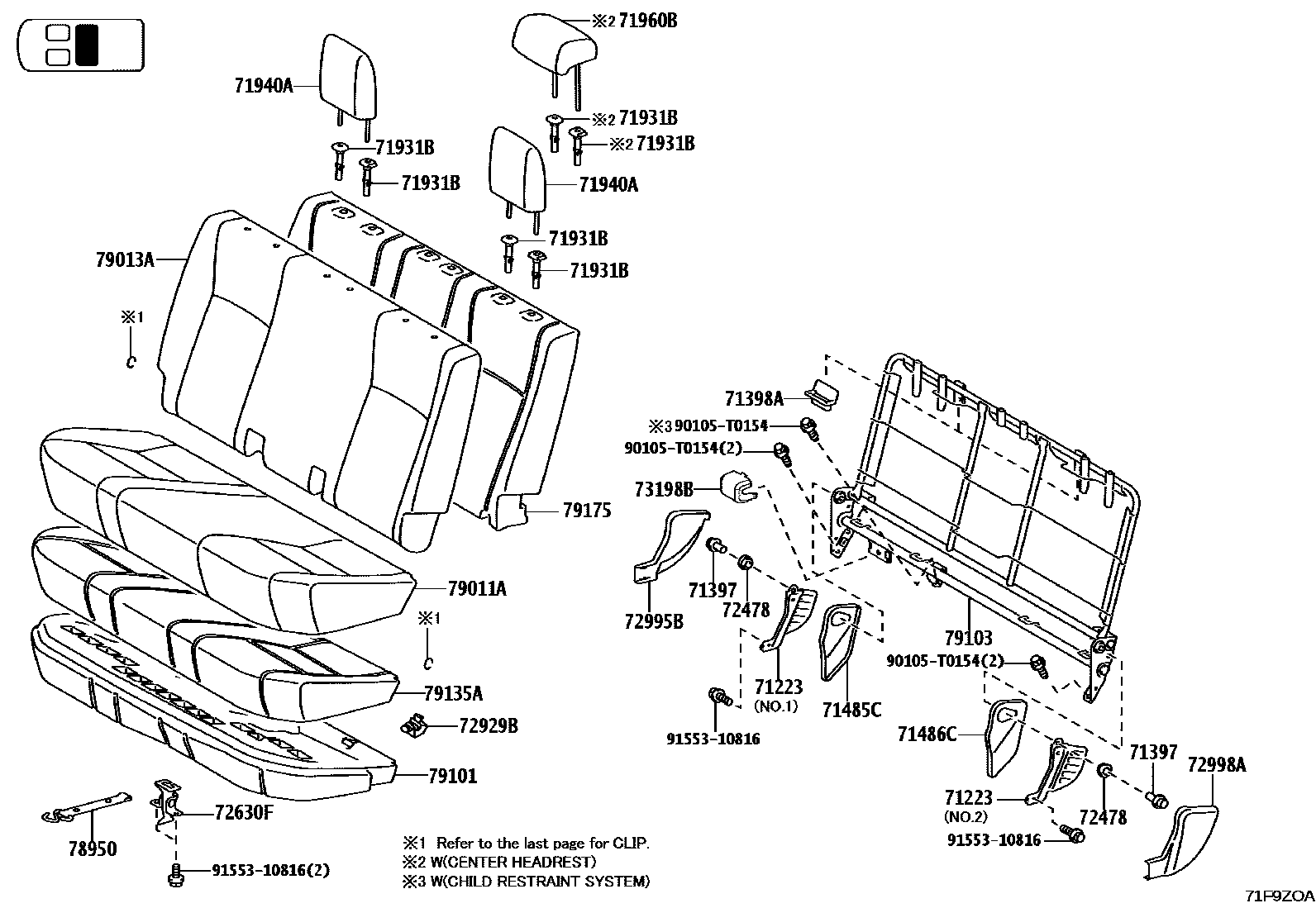

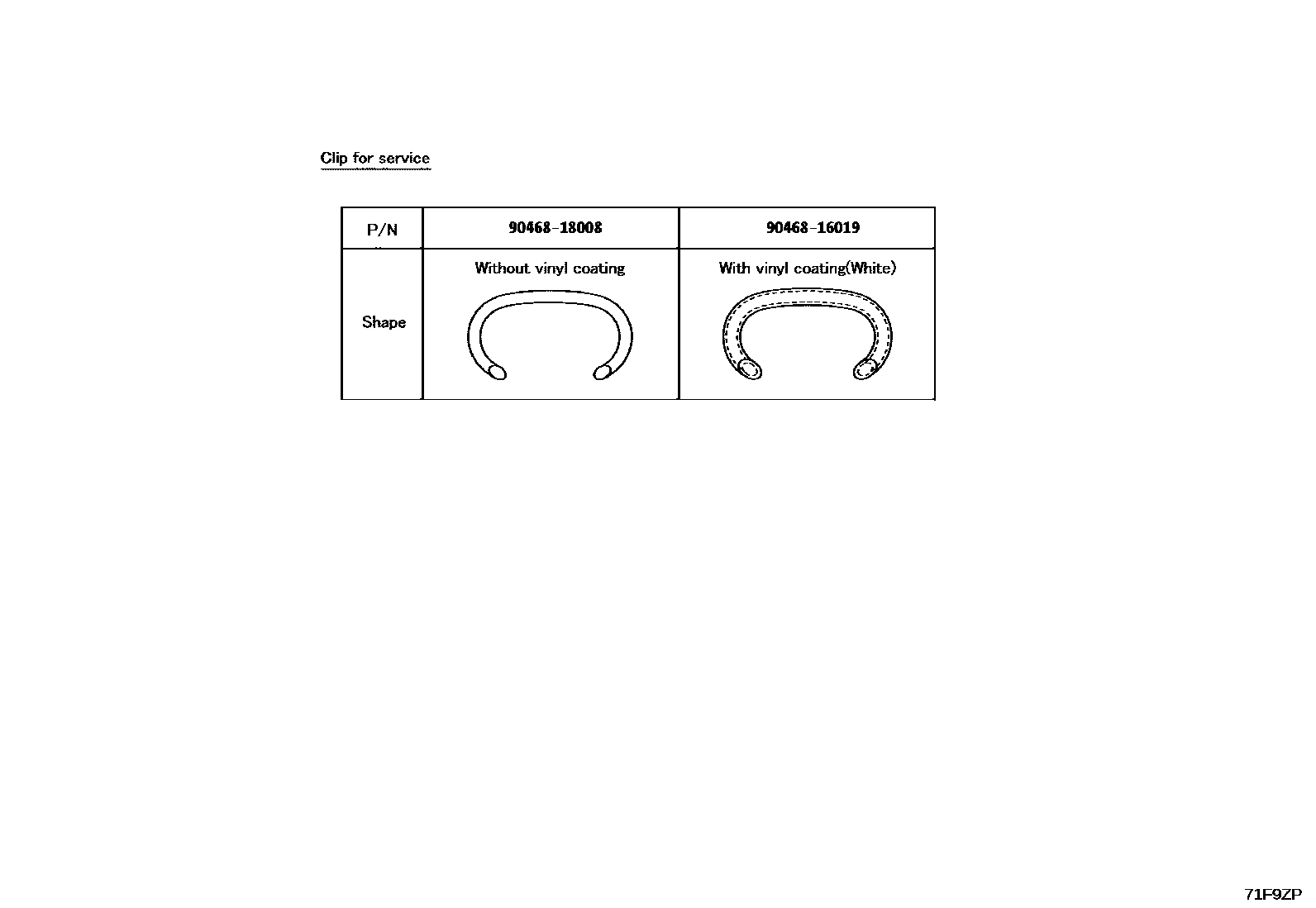

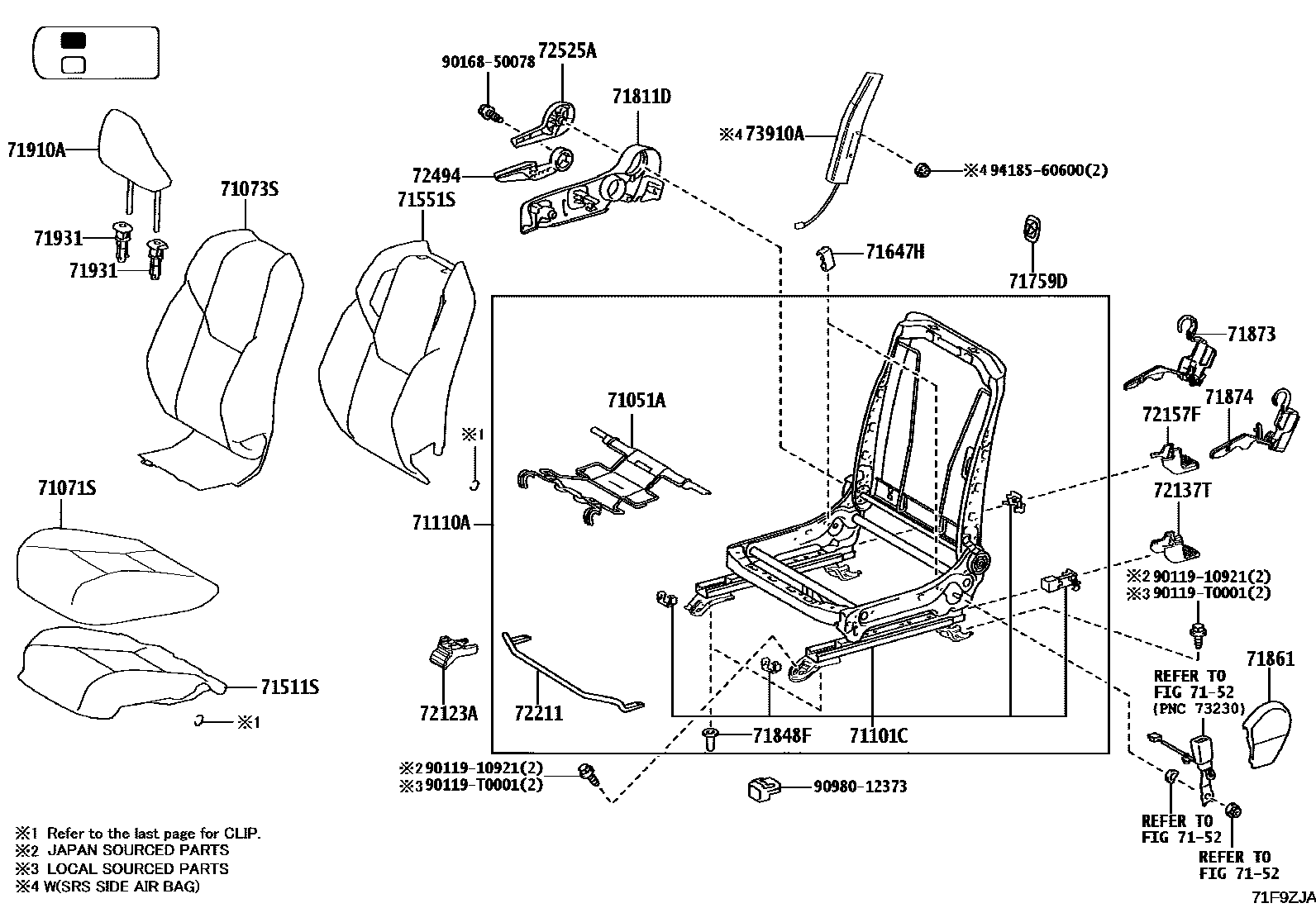

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 16 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0K400 · 71013-0KB20 · 71013-0KB30 · 71013-0KB40 |
| 71014S | Front left seat back frame sub-assembly | 71014-0K340 · 71014-0KA50 · 71014-0KA60 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06070 · 71051-0K240 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06070 · 71051-0K240 · 71051-0K280 |
| 71053S | Front right seat back spring sub-assembly | 71053-06160 |
| 71054S | Front left seat back spring sub-assembly | 71053-06160 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YPD70 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-YPF30 |
| 71101C | Right front seat sub-assembly | 71101-0K010 · 71101-0K030 · 71101-0K050 · 71101-0K060 |
| 71102A | Left front seat sub-assembly | 71102-0K010 · 71102-0K040 · 71102-0K050 · 71102-0K060 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-0K110 · 71110-0K120 · 71110-0K130 · 71110-0K140 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-0K070 · 71120-0K080 · 71120-0K090 · 71120-0K100 |
| 71223 | Rear seat cushion side bracket | 71223-0K050 · 71223-0K090 · 71224-0K060 · 71224-0K100 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71304-0K090 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-0K090 |
| 71397 | Rear seat block | 71397-0K090 |
| 71398A | Rear seat back retainer | 71398-KK010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0K820 · 71501-0K860 · 71501-0K890 · 71501-0KA30 · 71501-0KA50 · 71501-0KA80 · 71511-0KF10 · 71511-0KF20 · 71511-0KF60 · 71511-0KF70 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0K690 · 71502-0K700 · 71502-0K730 · 71502-0K750 · 71502-0K790 · 71502-0K810 · 71502-0K830 · 71502-0K860 · 71512-0KG20 · 71512-0KG70 · 71512-0KG80 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0KP30 · 71551-0KP40 · 71551-0KP50 · 71551-0KP60 · 71551-0KP70 · 71551-0KQ00 · 71551-0KQ10 · 71551-0KQ20 · 71551-0KQ30 · 71551-0KR30 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0KP60 · 71552-0KP70 · 71552-0KP90 · 71552-0KQ20 · 71552-0KQ30 · 71552-0KQ40 · 71552-0KQ50 · 71552-0KR60 · 71552-0KR70 |
| 71587B | Front seat back edge protective cover | 71587-F4030 |
| 71647H | Front seat cushion edge protective cover | 71537-0D400 |
| 71751 | Seat cover hanger | 71751-0K070 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 |
| 71830B | Bushing (for rear seat armrest) | 90386-12029 |
| 71848F | Seat adjuster cover No. 1 | 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-0K200 · 71874-0K210 |
| 71873A | Front seat cushion lower guard | 71873-06510 · 71873-06520 |
| 71874 | Front left seat cushion lower guard | 71873-0K210 · 71874-0K200 |
| 71874A | Front left seat cushion lower guard | 71874-06480 · 71874-06490 |
| 72010 | Front right seat adjuster assembly | 72010-0K080 · 72010-0K090 · 72010-0K510 · 72010-0K540 |
| 72020 | Front left seat adjuster assembly | 72020-0K060 · 72020-0K070 · 72020-0K560 · 72020-0K620 |
| 72125A | Rear seat upper slide rail cover | 72125-0D030 |
| 72211 | Seat slide adjustment handle | 72211-0D160 · 72211-0K200 |
| 72265D | Seat rail upper rail cover | 72265-0D080 |
| 72478 | height adjuster bushing | 72478-0K010 |
| 72495 | Left height adjuster handle | 72495-0D100 |
| 72630F | Rear No. 2 seat lock assembly | 72650-0K271 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 |
| 72835 | Rear right seat armrest | 72835-0K030 |
| 72836B | Rear left seat armrest | 72836-0K030 |
| 72929B | Rear seat cushion strap fasteners | 72929-0K010 |
| 73198B | Rear seat bracket cover | 73198-KK010 |
| 73910A | Front right seat airbag assembly | 73910-0K170 · 73910-0K250 · 73910-0K300 |
| 73920A | Front left seat airbag assembly | 73920-0K170 · 73920-0K250 · 73920-0K290 |
| 739H0B | ENS. AIRBAG, CENTRAL SIEGE AVANT | 739H0-0K020 |
| 79101 | No. 1 seat cushion frame sub-assembly | 79101-0K240 · 79101-0K570 |
| 79101B | Right No. 1 seat cushion frame sub-assembly | 79101-0K260 · 79101-0K600 |
| 79102 | Left No. 1 seat cushion frame sub-assembly | 79102-0K250 · 79102-0K550 · 79102-0KA10 |
| 79103 | No. 1 seat back frame sub-assembly | 79010-0K020 · 79010-0K040 · 79010-0K200 · 79010-0K230 |
| 79135A | Right seat No. 1 seat cushion cushion | 71503-0K060 · 71503-0K090 · 71611-0K010 · 79135-0K250 |
| 79136B | Seat cushion, seat No. 1, left | 71504-0K030 · 71504-0K110 · 71612-0K020 · 71612-0K120 |
| 79175 | Seat 1 back cushion | 79175-0K270 · 79175-0K290 |
| 79197A | rivets | 79197-0K010 |
| 79977 | Seat back felt pad | 79977-0K360 |
| 87510K | Front right seat cushion heater assembly | 87510-0K260 · 87510-0K270 · 87510-0K290 |
| 87510L | Front left seat cushion heater assembly | 87510-0K260 · 87510-0K270 · 87510-0K290 |
| 87510M | Front right seat back heater assembly | 87530-0K120 · 87530-0K130 |
| 87510N | Front left seat back heater assembly | 87530-0K120 · 87530-0K130 |
