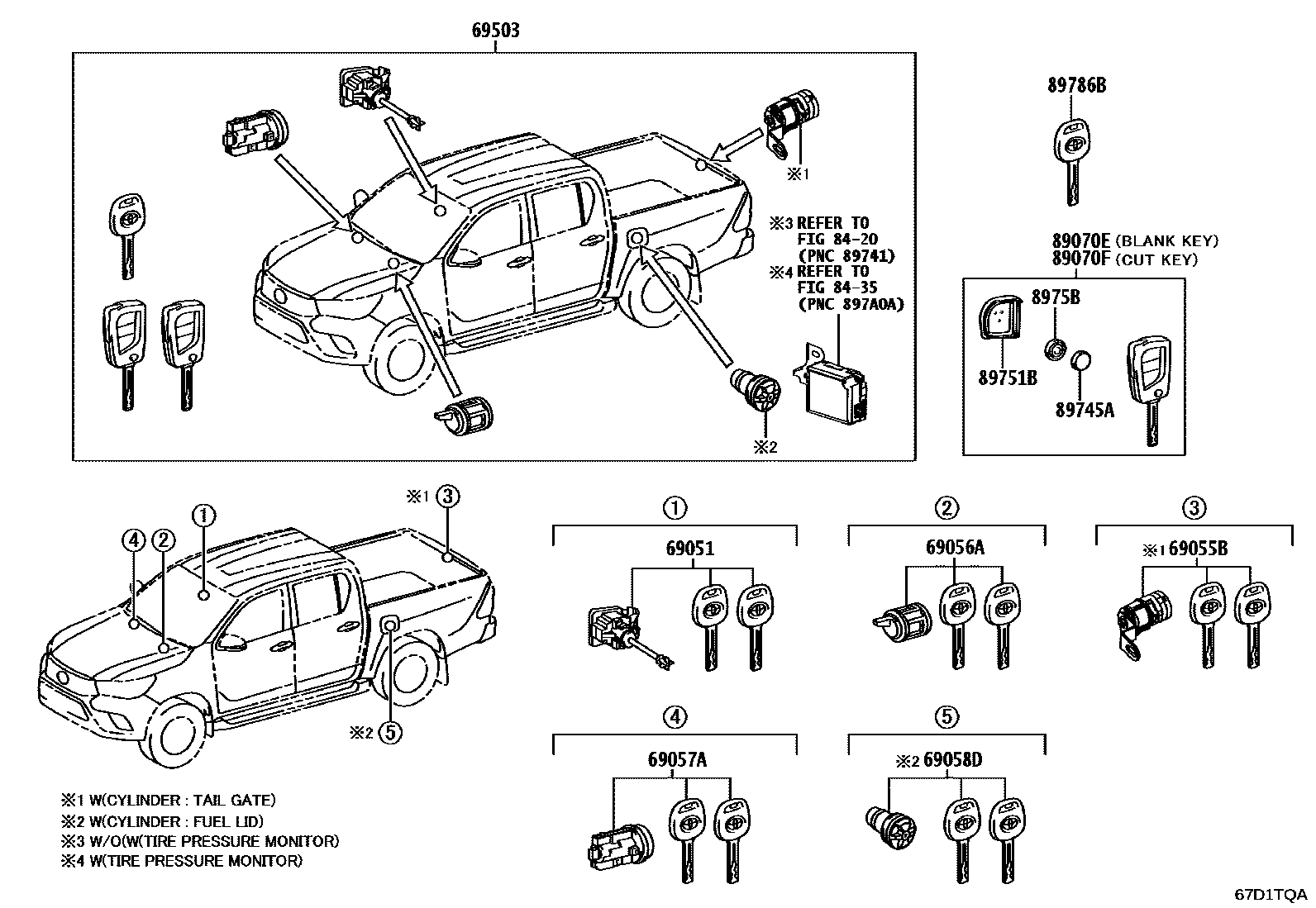

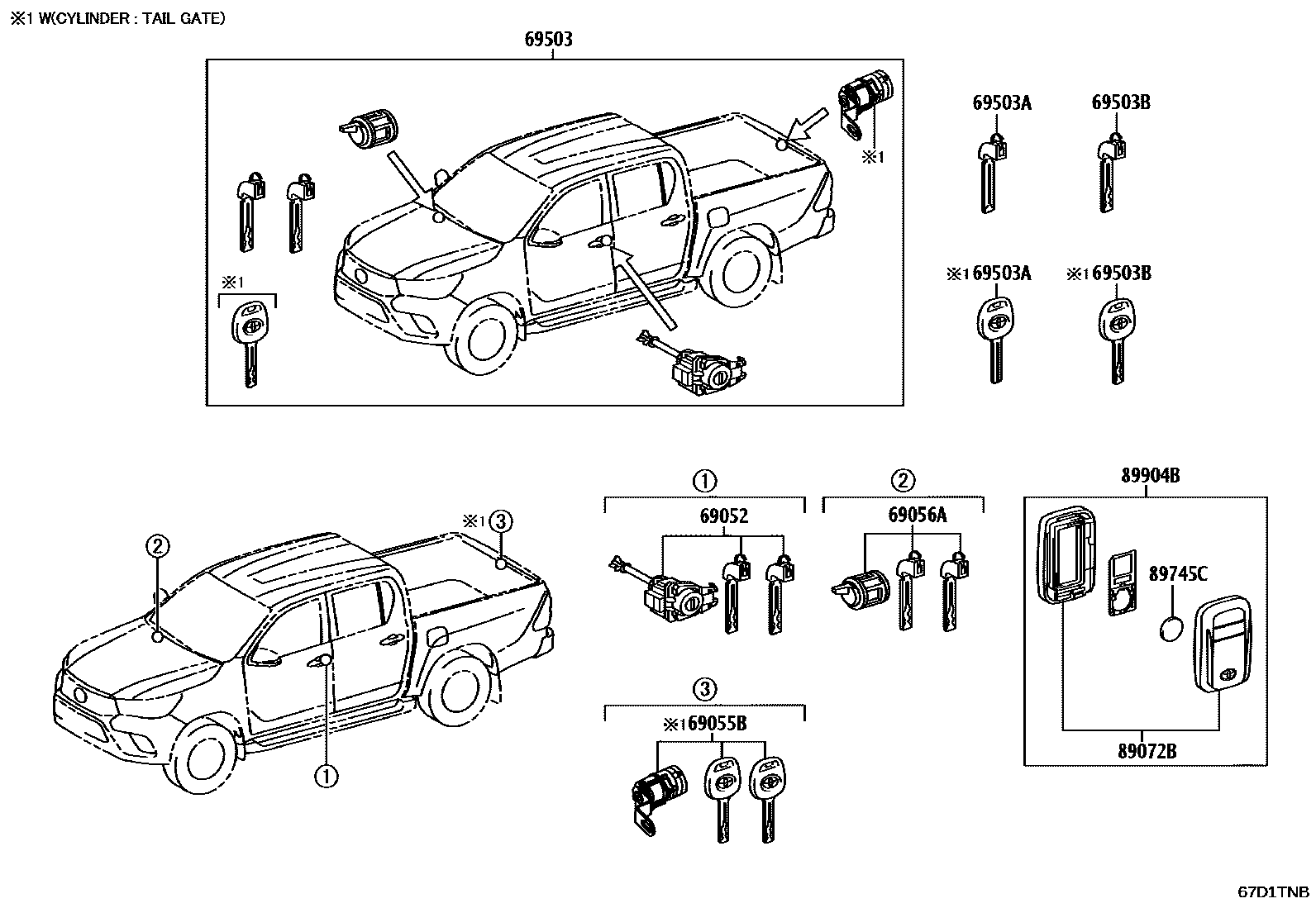

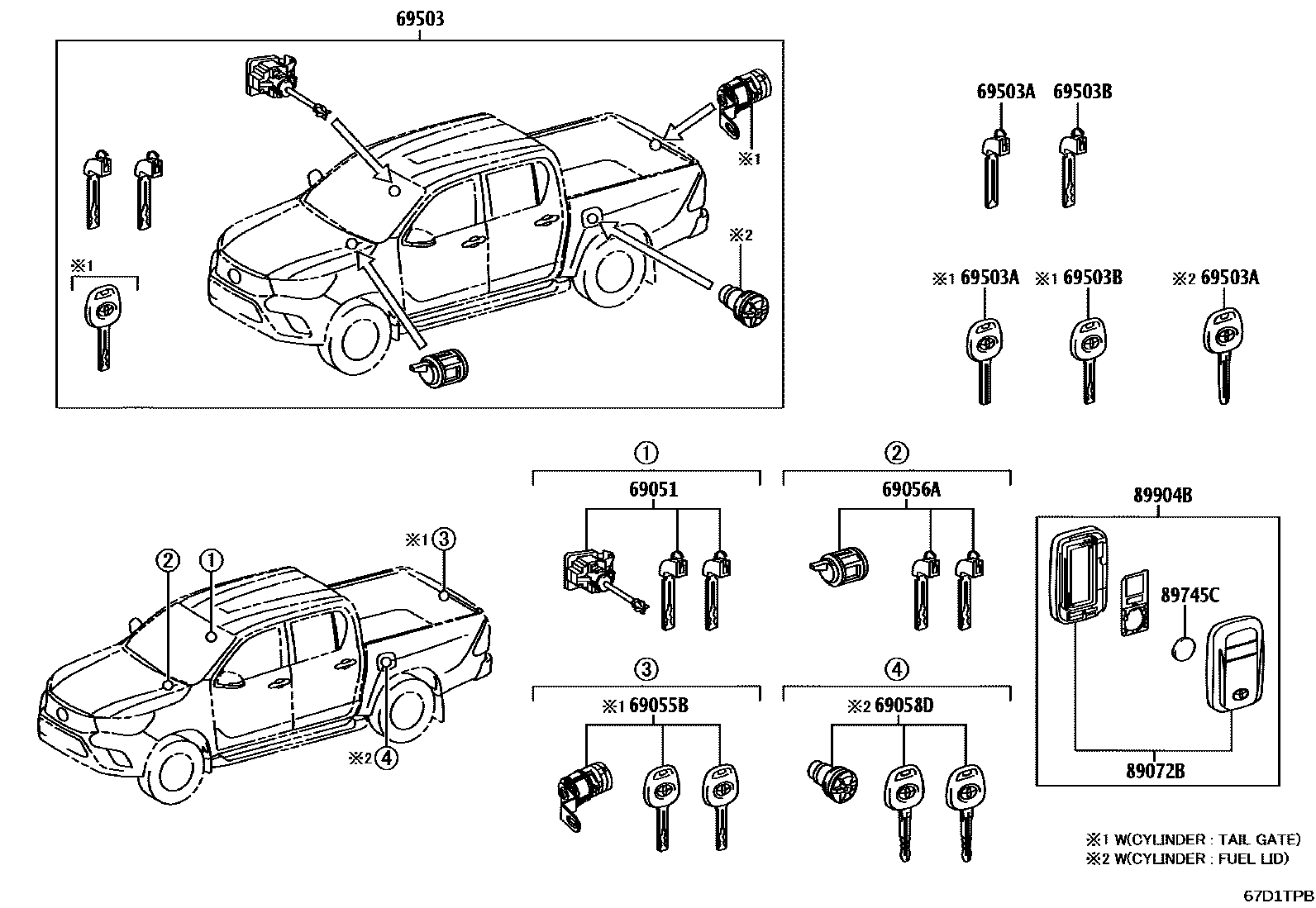

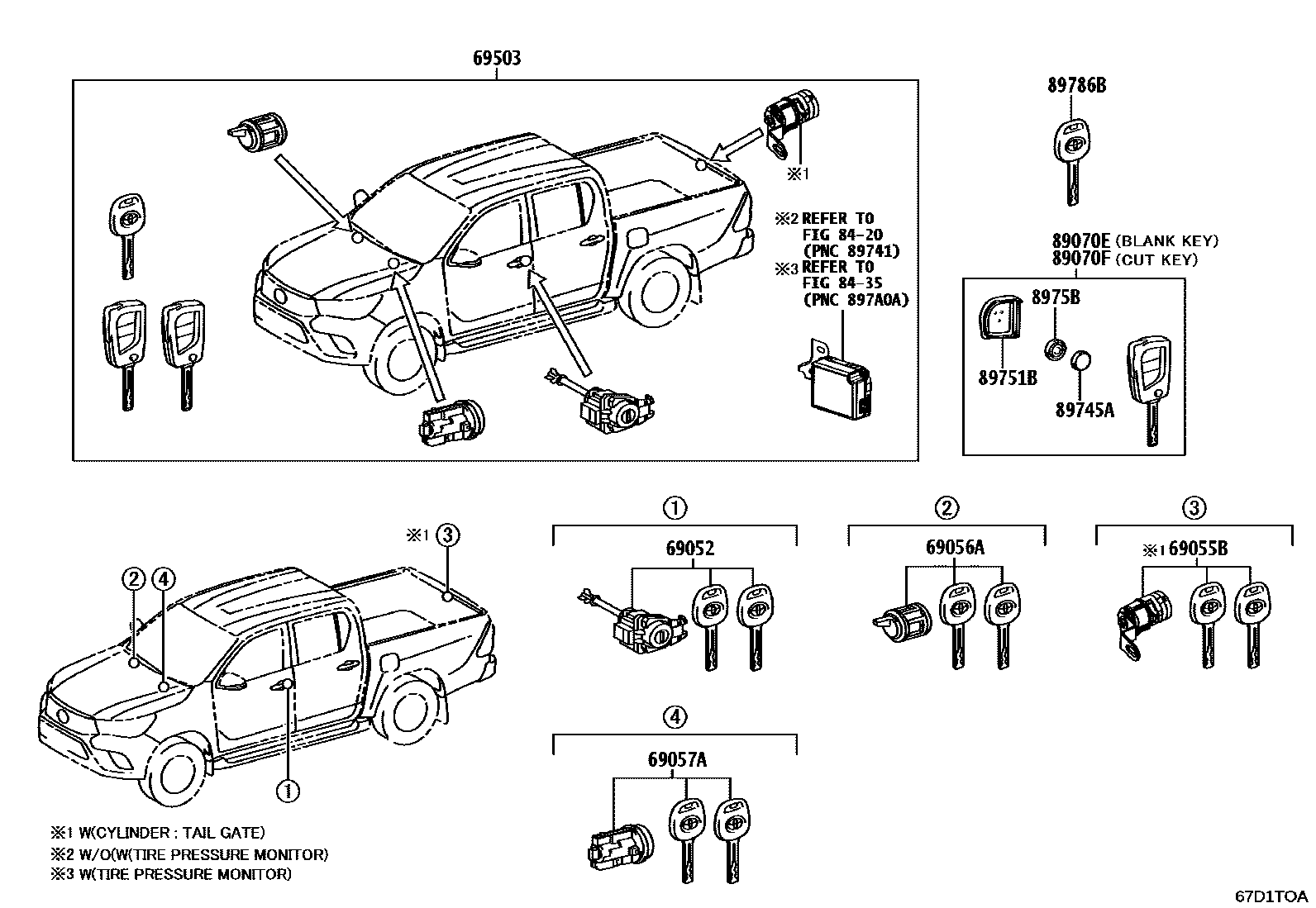

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K070 · 69051-0K250 |
| 69052 | Left door lock cylinder and key assembly | 69052-0K060 · 69052-0K160 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0K090 · 69055-0K100 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0K050 · 69056-0K100 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0K390 |
| 69058D | Fuel tank filler cap lock cylinder and key assembly | 69058-0K030 · 69058-0K040 |
| 69503 | Door lock cylinder components | 69005-0KP90 · 69005-0KQ00 · 69005-0KQ40 · 89704-F0A70 · 89704-F0A80 · 89704-F0A90 · 89704-F0B10 · 89704-F0C50 · 89704-F0C70 · 89704-F0C80 |
| 69503A | external tooth key | 69515-0K130 · 69515-0K140 · 69515-K0020 |
| 69503B | internal tooth key | 69515-08030 · 69515-0K120 |
| 89070E | Remote key assembly | 89070-0KS70 · 89070-0KS90 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0KS30 · 89070-0KS50 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0KB40 · 89072-0KC20 · 89072-0KD90 |
| 89745A | Transmitter battery | 89745-0K010 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751B | Transmitter housing cover | 89751-02280 |
| 8975B | Remote control battery case cover | 8975B-02030 |
| 89786B | transceiver key secondary transmitter | 89786-0K130 · 89786-0K180 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0K040 · 8990H-0K100 · 8990H-0K150 |
