Toyota HILUX 后门板和后门玻璃 — Figure 6755

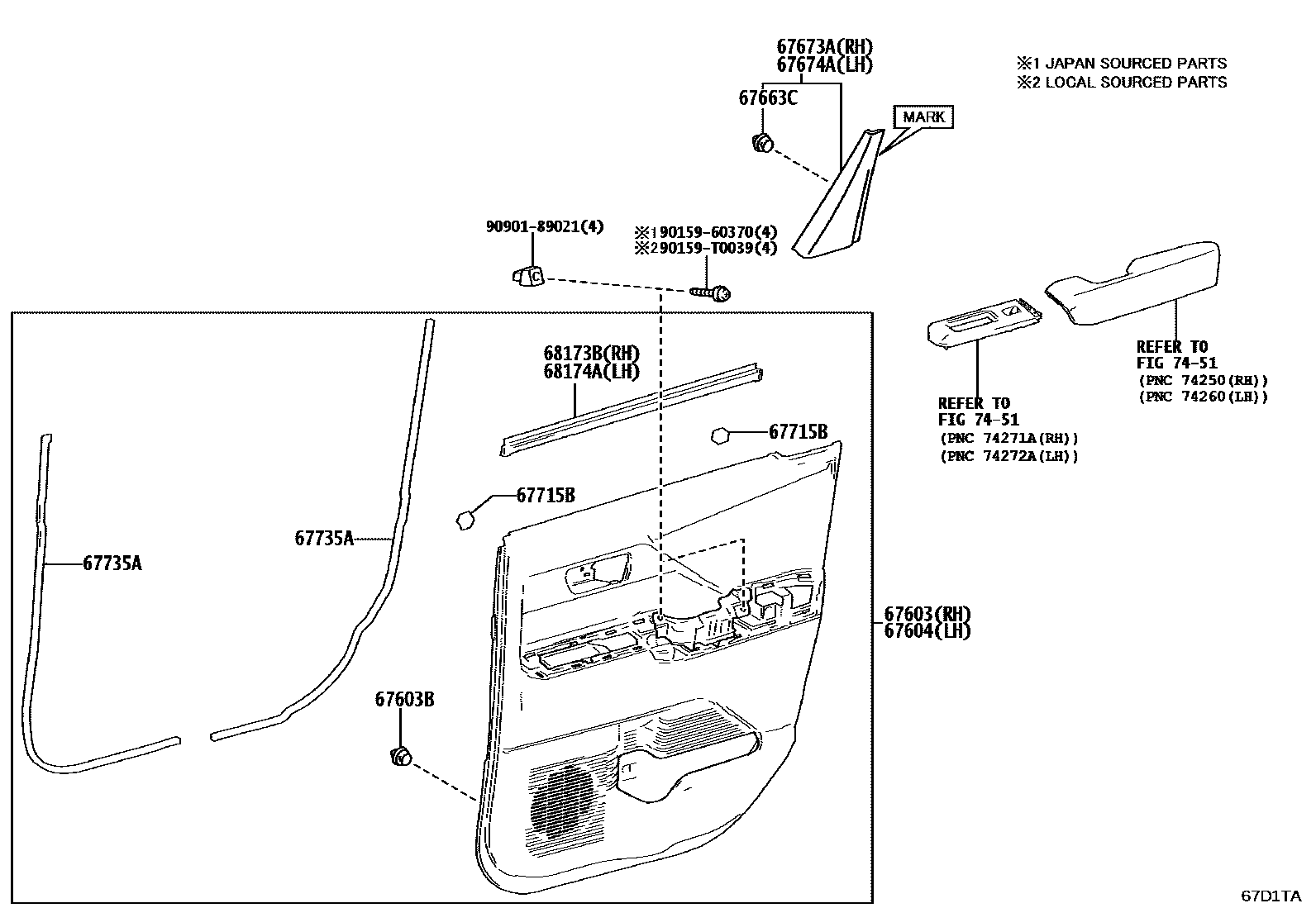

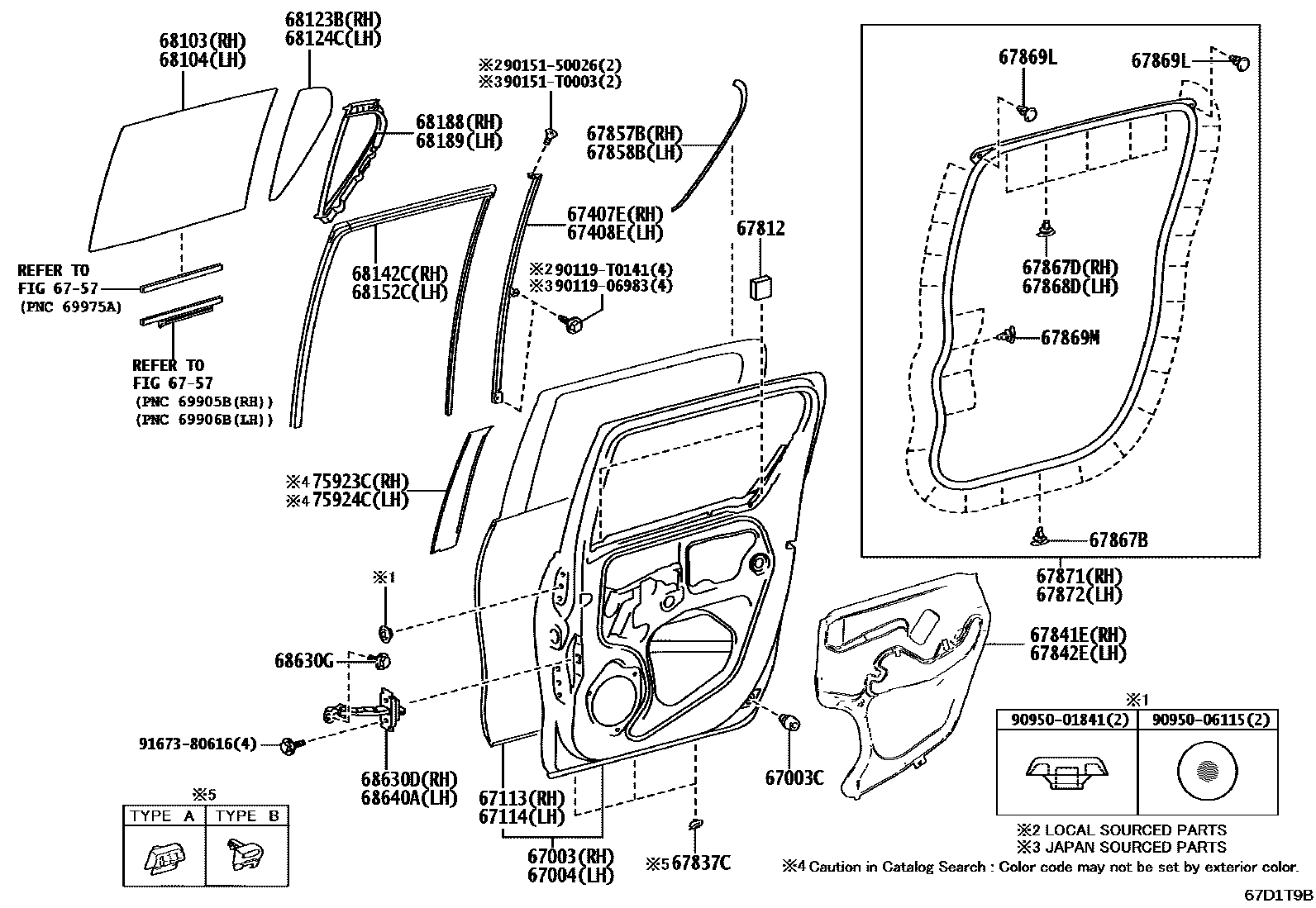

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-KK011 |
| 67003C | Rear door panel cushion | 90541-09131 |
| 67004 | Left rear door panel sub-assembly | 67004-KK011 |
| 67113 | Right rear door outer panel | 67113-KK010 |
| 67114 | Left rear door outer panel | 67114-KK010 |
| 67407E | Right rear door window divider sub-assembly | 67407-0K100 |
| 67408E | Left rear door window divider sub-assembly | 67408-0K100 |
| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67663C | Clips (for door frame decorative strips) | 90467-T0019 |
| 67673A | Right rear door frame decorative strip | 67673-0K040 · 67673-KK010 |
| 67674A | Left rear door frame decorative strip | 67674-0K040 · 67674-KK010 |
| 67715B | Rear door decorative mat | 67713-KK010 |
| 67735A | Right rear door lower decorative mat | 67735-KK020 |
| 67812 | Rear door silencer pad | 69759-0K030 |
| 67837C | Rear door dust seal retainer | 67837-0K091 · 67837-0K093 · 67837-0K121 |
| 67841E | Right rear door access hole cover | 67841-0K270 |
| 67842E | Left rear door access hole cover | 67842-0K270 |
| 67857B | Right rear door panel protector | 67857-0K030 |
| 67858B | Left rear door panel protector | 67858-0K030 |
| 67867B | Door seal strip clip (for rear door) | 67867-12150 |
| 67867D | Right rear door seal strip fixing | 67867-52010 |
| 67868D | Left rear door seal strip fixing | 67867-52030 |
| 67869L | Rear door seal strip clip | 9004A-46317 |
| 67869M | Car door seal strip clip | 67867-0K020 |
| 67871 | Right rear door sealing strip | 67871-0K081 |
| 67872 | Left rear door sealing strip | 67872-0K081 |
| 68103 | Right rear door glass sub-assembly | 68113-0K210 · 68113-0K240 |
| 68104 | Left rear door glass sub-assembly | 68114-0K210 · 68114-0K240 |
| 68123B | Right rear door corner window glass | 68123-0K231 · 68123-0K241 |
| 68124C | Left rear door corner window glass | 68124-0K231 · 68124-0K241 |
| 68142C | Right rear door glass lift slot | 68142-0K080 |
| 68152C | Left rear door glass lift slot | 68152-0K080 |
| 68173B | Right rear door glass inner sealing strip | 68173-0K080 |
| 68174A | Left rear door glass inner sealing strip | 68174-0K080 |
| 68188 | Right rear door corner window seal | 68188-0K111 |
| 68189 | Left rear door corner window seal | 68189-0K111 |
| 68630D | Right rear door opening limiter assembly | 68630-0K091 |
| 68630G | Rear door opening limiter bolt | 90109-T0011 |
| 68640A | Left rear door opening limiter assembly | 68630-0K091 |
| 75923C | No. 2 right side light-shielding film | 75923-0K030 |
| 75924C | No. 2 left shading film | 75924-0K030 |
