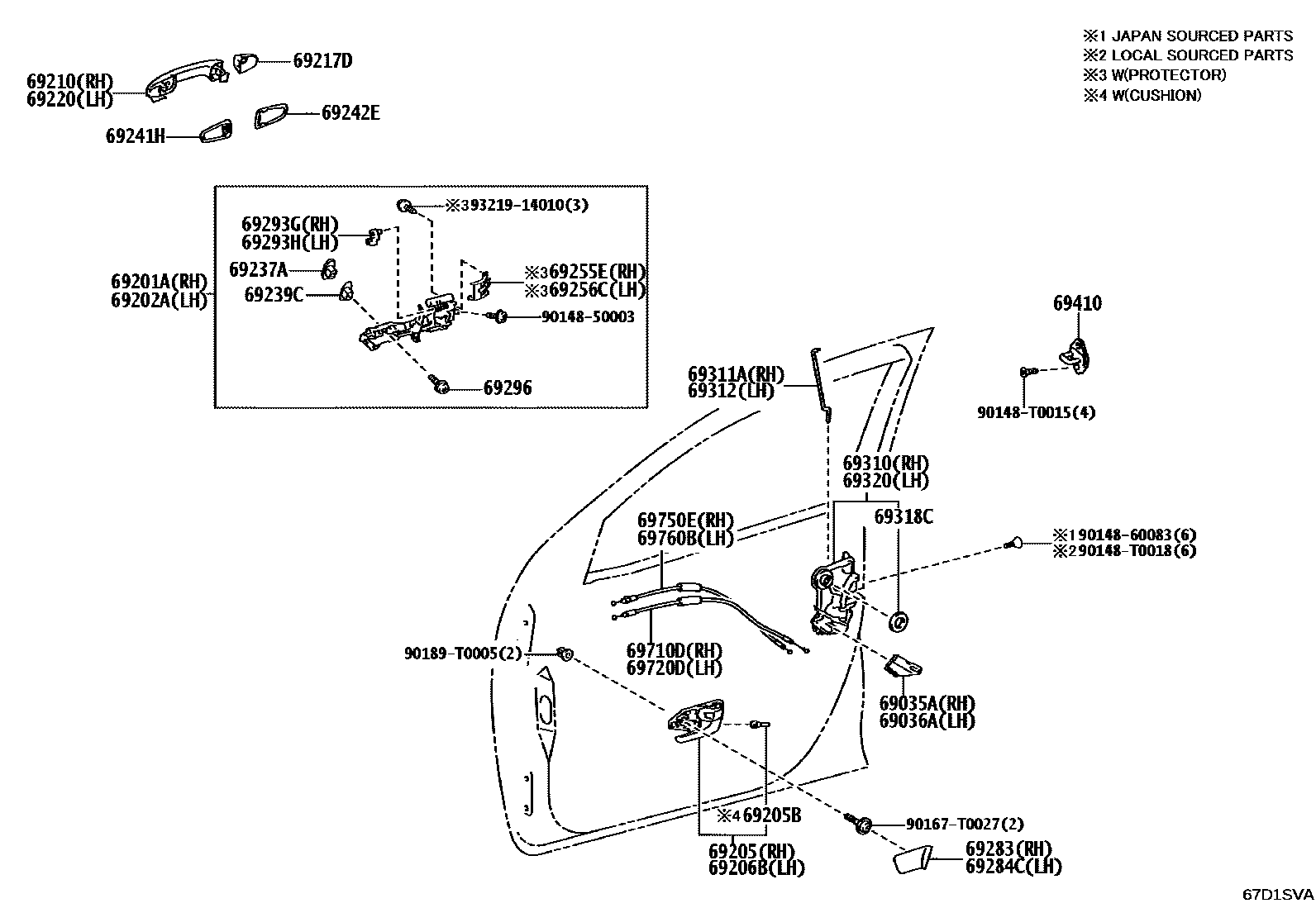

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69035A | Right front door lock cover sub-assembly | 69035-02040 |
| 69036A | Left front door lock cover sub-assembly | 69036-02040 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0K061 · 69201-0K161 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0K061 · 69202-0K161 |
| 69210 | Right front door outer handle assembly | 69210-0K210 · 69210-0K924 |
| 69217D | Front door outer handle cover | 69217-0K430 · 69217-0K440 · 69217-0K919 · 69217-0K920 |
| 69220 | Left front door outer handle assembly | 69210-0K210 · 69210-0K924 |
| 69237A | Front door handle nut | 69237-0K040 |
| 69239C | Front door handle bushing | 69239-0K080 |
| 69241H | Front door exterior handle pad | 69241-0K041 |
| 69242E | Front door rear outer handle pad | 69242-0K030 |
| 69255E | Right door outer handle protector | 69255-0K051 |
| 69256C | Left door outer handle protector | 69256-0K051 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69293H | Left front door outer handle buckle | 69293-12040 |
| 69296 | Car door inner handle screws | 90148-50006 |
| 69310 | Right front door lock assembly | 69030-02470 · 69030-02480 |
| 69311A | Right front door lock opening lever | 69311-0K120 |
| 69312 | Left front door lock opening lever | 69312-0K120 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02450 · 69040-02470 |
| 69410 | Front door lock plate assembly | 69410-0K070 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-0K160 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-0K160 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-0K160 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-0K160 |
