Toyota HILUX 天窗板和背板 — Figure 6153

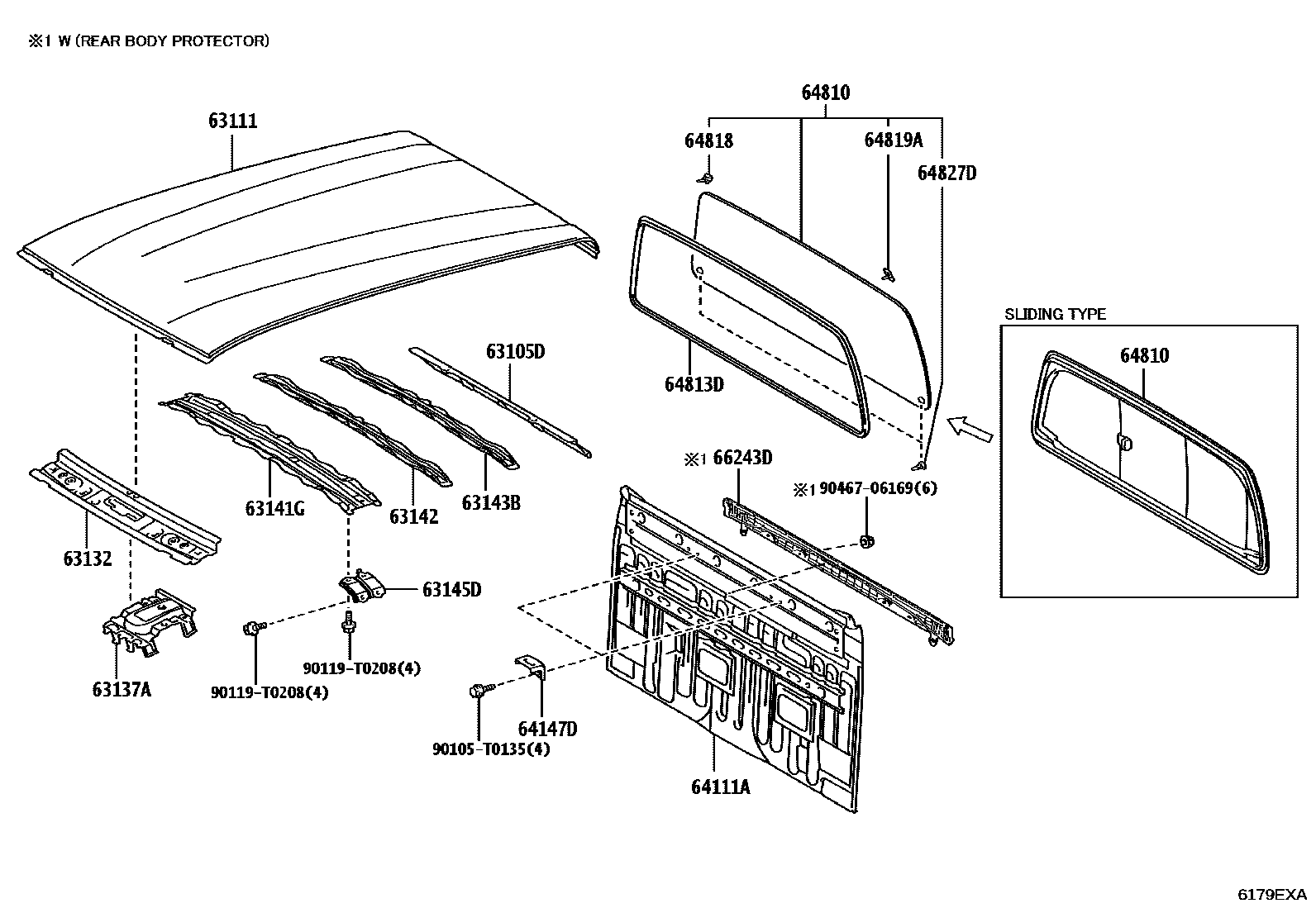

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63105D | Rear window upper frame sub-assembly | 63135-KK050 |
| 63111 | roof panel | 63111-KK010 · 63111-KK130 |
| 63132 | Windshield inner roof panel | 63132-KK021 |
| 63137A | No. 1 ceiling light bracket | 63137-KK010 |
| 63141G | No. 1 roof panel reinforcement | 63141-KK020 |
| 63142 | No. 2 roof panel reinforcement | 63142-KK010 |
| 63143B | No. 3 roof panel reinforcement | 63143-KK010 |
| 63145D | roof reinforcement bracket | 63145-KK030 |
| 64111A | backplane | 64101-KK210 · 64101-KK290 |
| 64147D | Upper back panel corner panel | 64147-KK010 |
| 64810 | Rear window assembly | 64801-0K112 · 64801-0K122 · 64801-0K132 · 64801-0K310 · 64810-0K100 |
| 64813D | Back window glass adhesive seal | 56117-KK041 |
| 64818 | Back window glass spacer | 64818-0K090 |
| 64819A | No. 2 back window glass spacer | 64819-0K110 |
| 64827D | Back window glass clip | 64827-0K110 |
