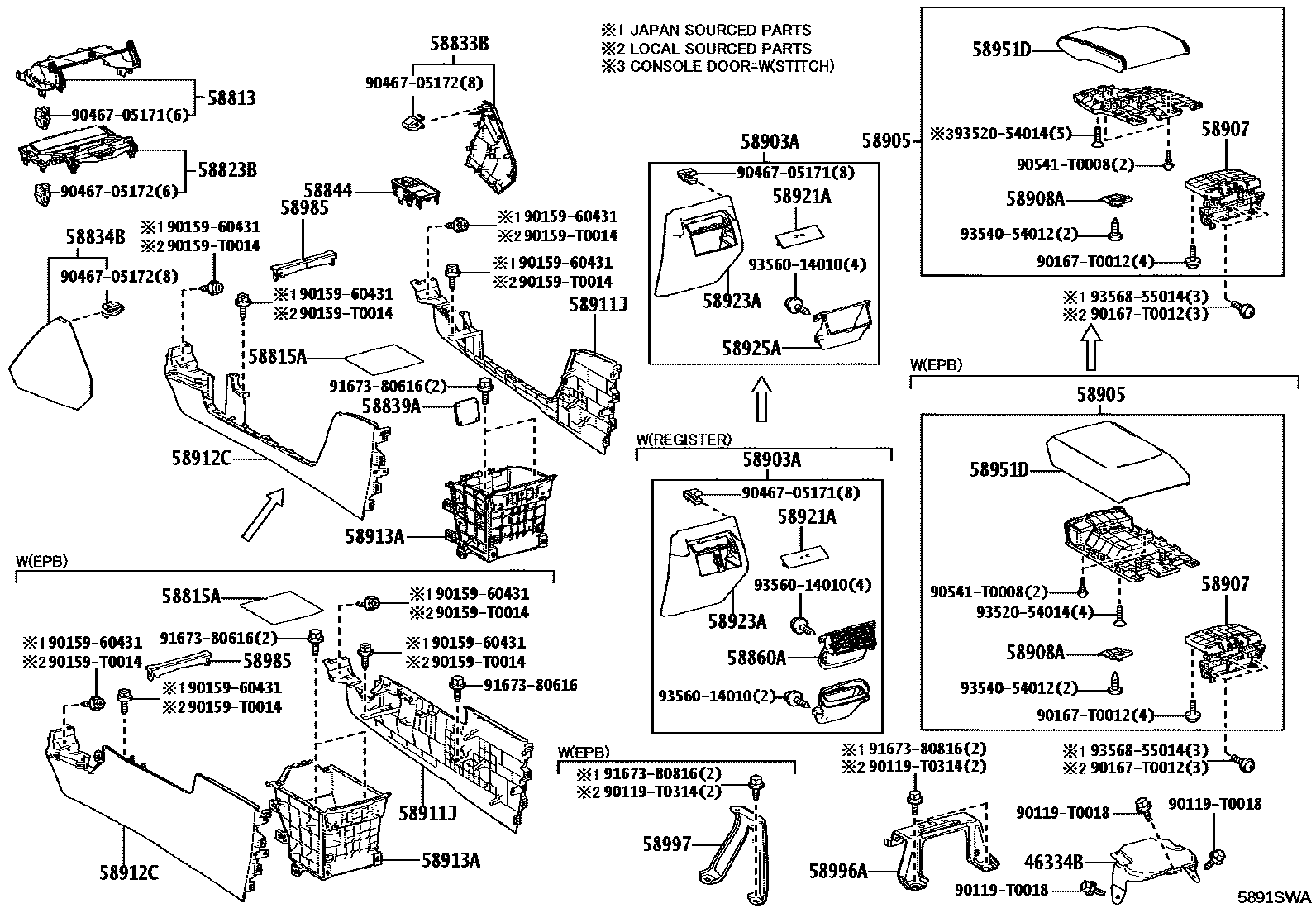

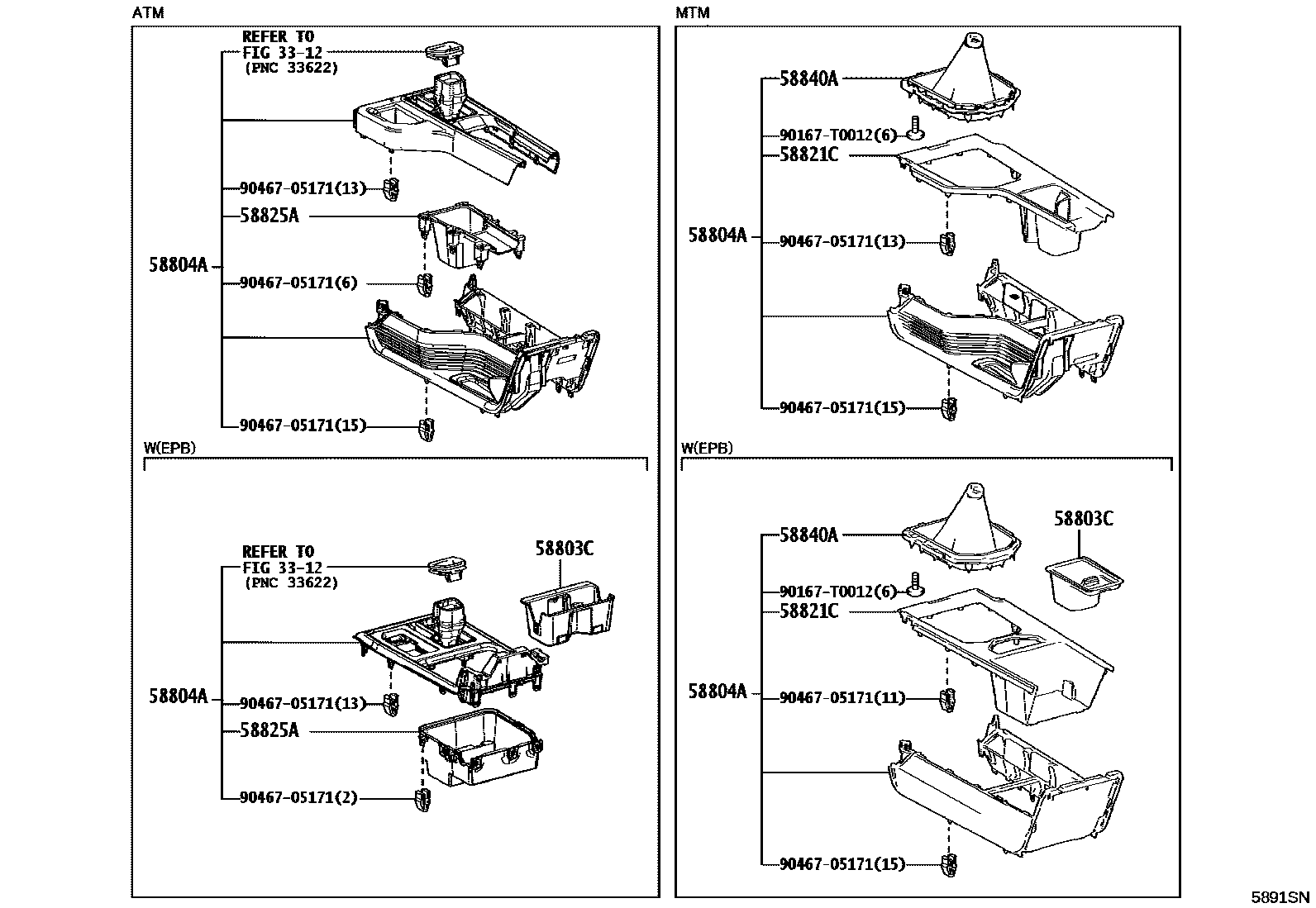

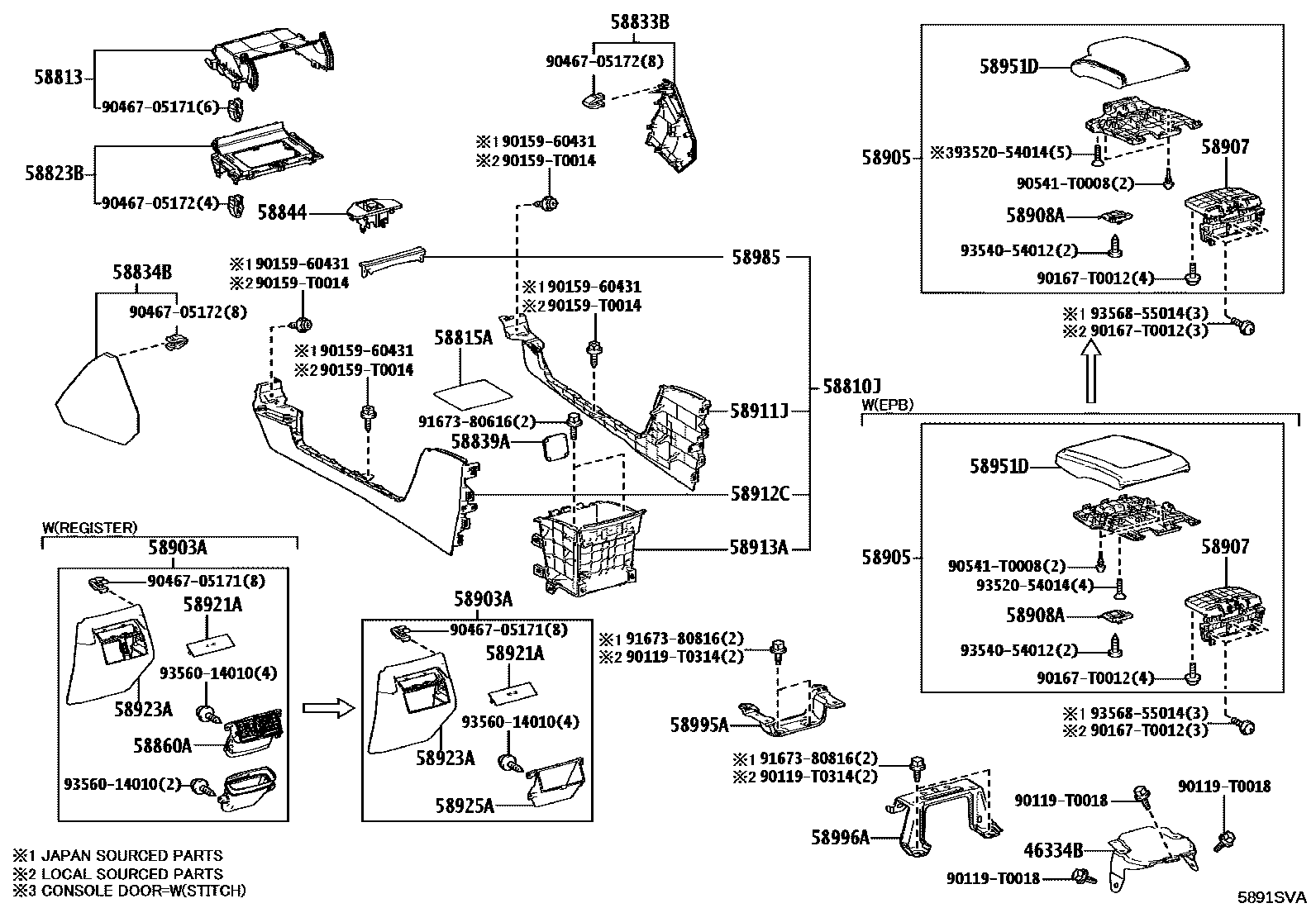

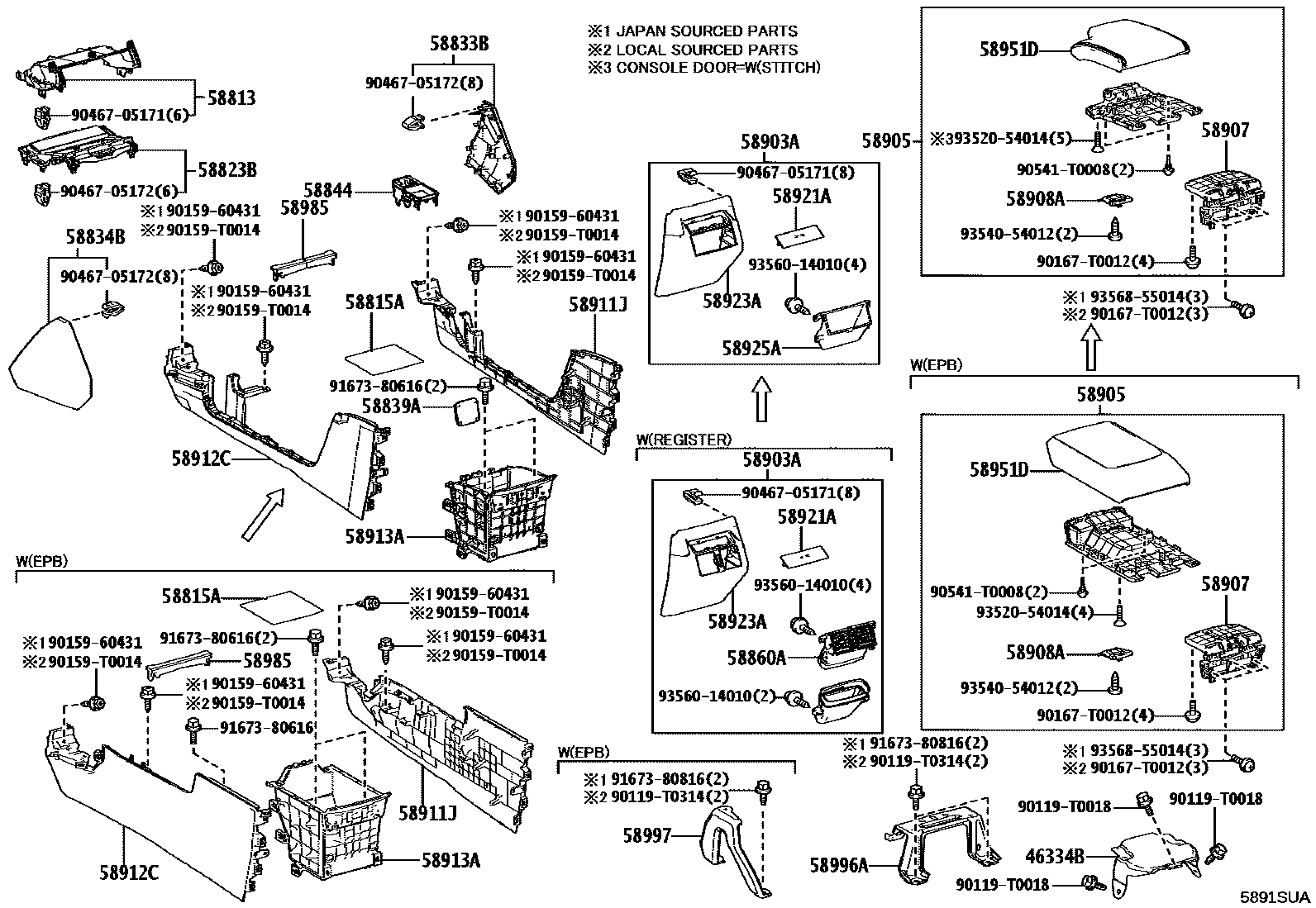

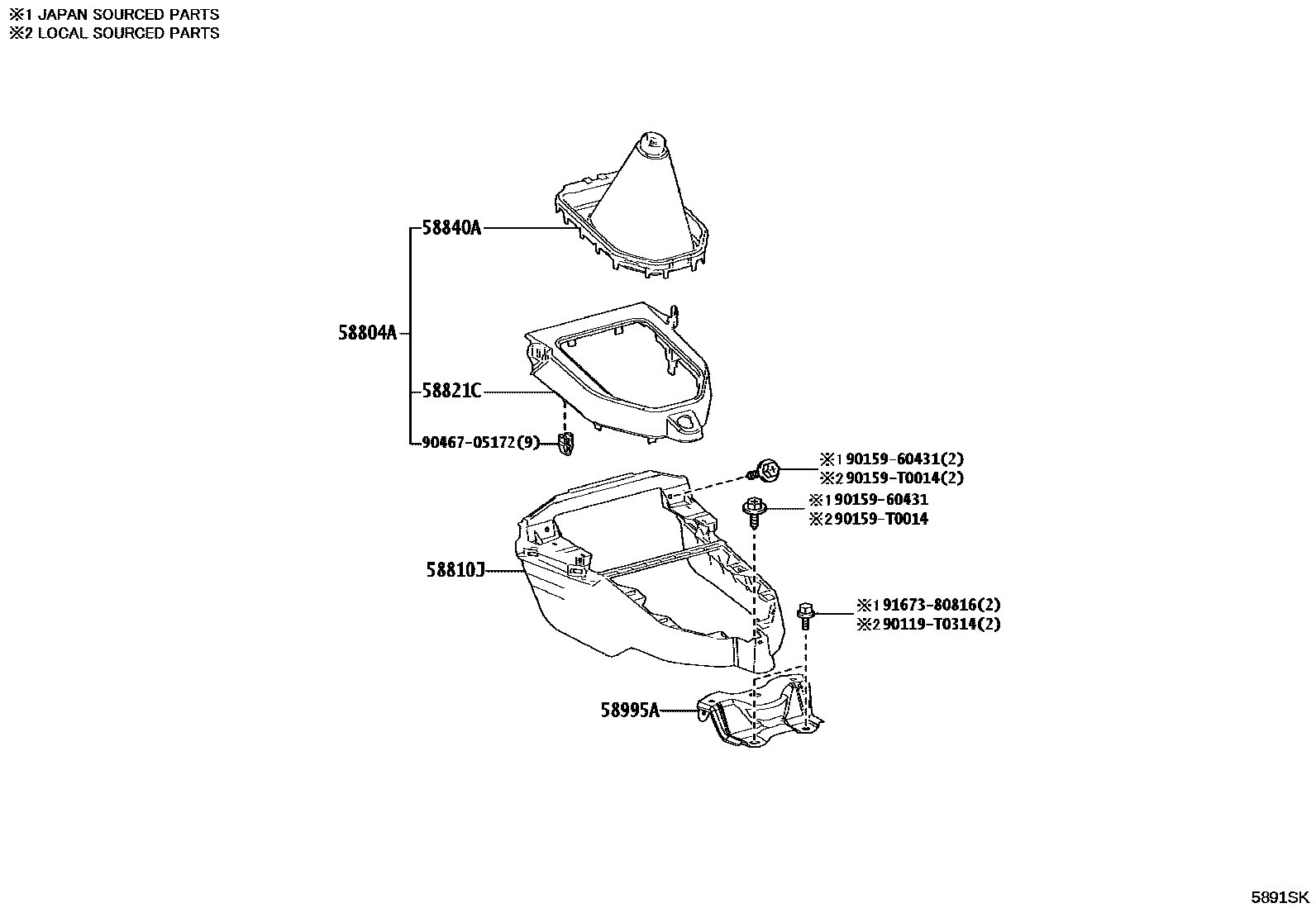

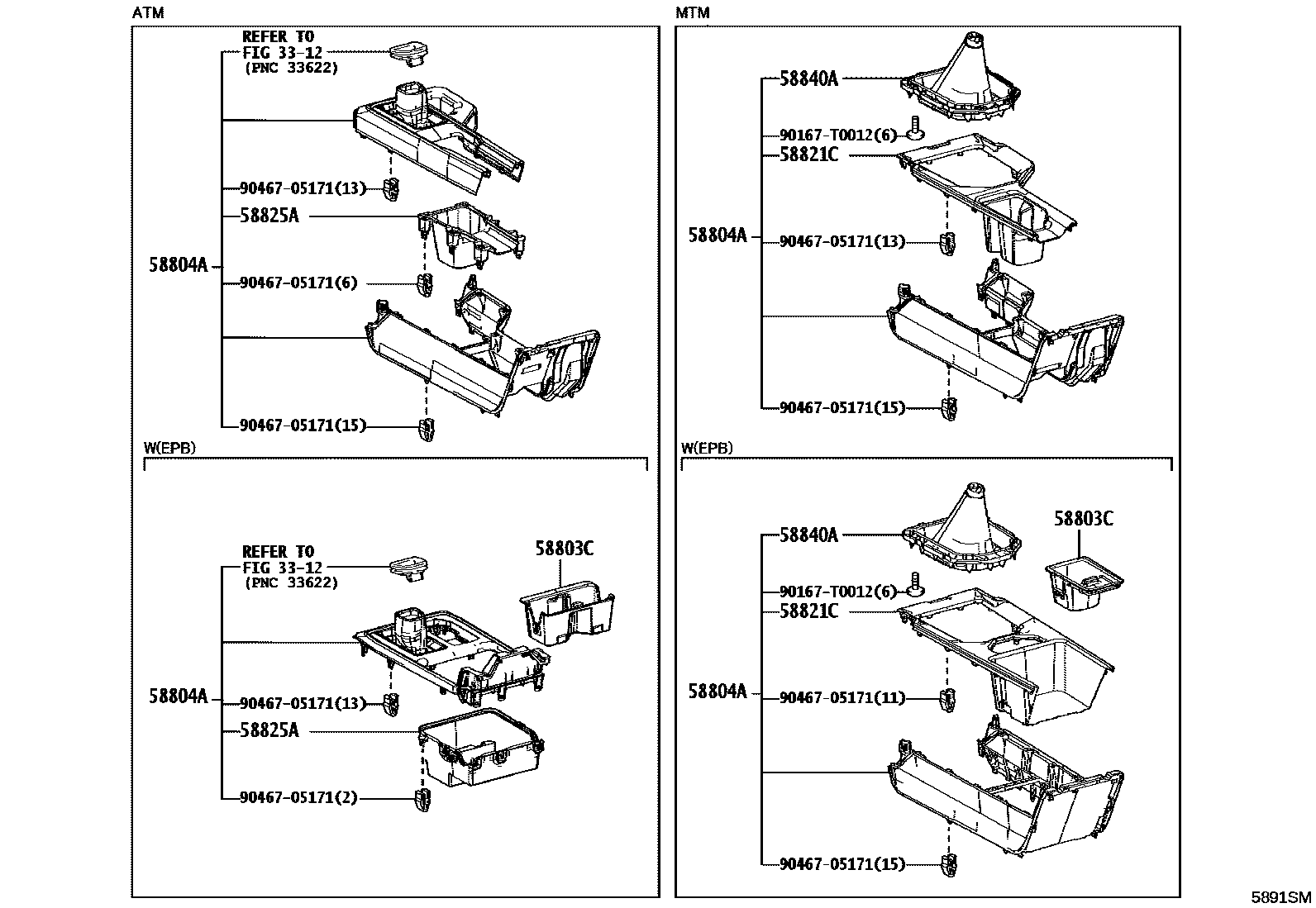

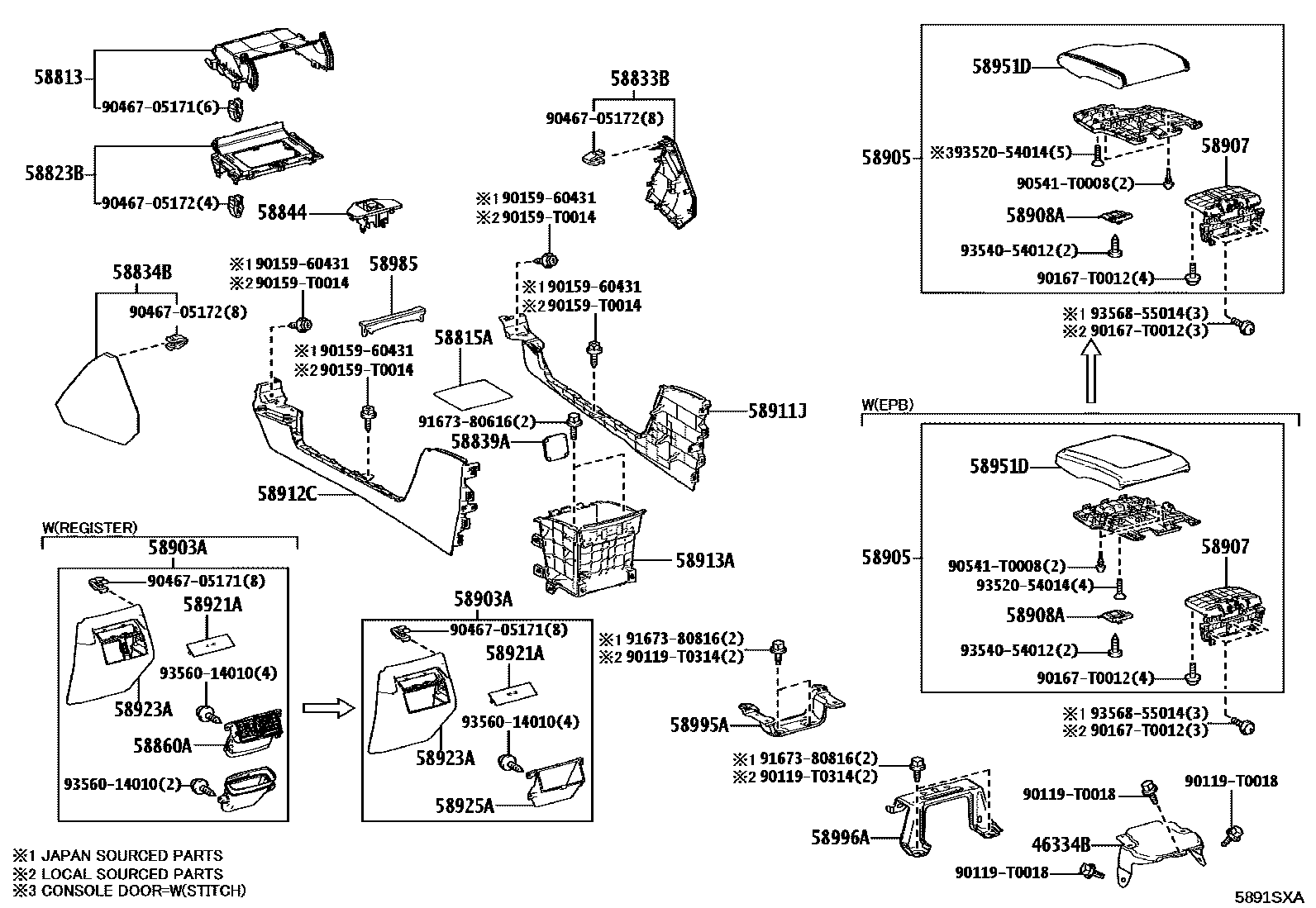

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 7 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46334B | PROTECTEUR, LEVIER INTERMEDIAIRE | 46334-KK010 |
| 58803C | Armrest box cup holder sub-assembly | 58803-KK010 · 58803-KK020 · 58803-KK030 |
| 58813 | Upper armrest box | 58813-KK170 · 58813-KK190 |
| 58815A | Armrest box felt pad | 58815-KK030 · 58815-KK040 |
| 58823B | Armrest box cover | 58823-KK070 · 58823-KK080 · 58823-KK090 · 58823-KK100 |
| 58825A | Armrest box groove | 58825-KK010 · 58825-KK020 · 58825-KK030 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58833-KK180 · 58833-KK200 |
| 58834B | Armrest box upper panel decorative part No. 2 | 58834-KK180 · 58834-KK200 |
| 58844 | armrest box frame | 58844-KK050 · 58844-KK060 · 58844-KK070 · 58844-KK080 · 58844-KK150 · 58844-KK160 |
| 58860A | Armrest box air regulator assembly | 58860-KK020 |
| 58908A | Armrest box lid lock assembly | 58908-KK010 |
| 58925A | Rear armrest box groove | 58925-KK070 |
| 58985 | Armrest box fixing bracket | 58985-KK010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-KK020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-KK030 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-KK010 · 58997-KK020 |
