Toyota HILUX 后地板和后地板梁 — Figure 5852

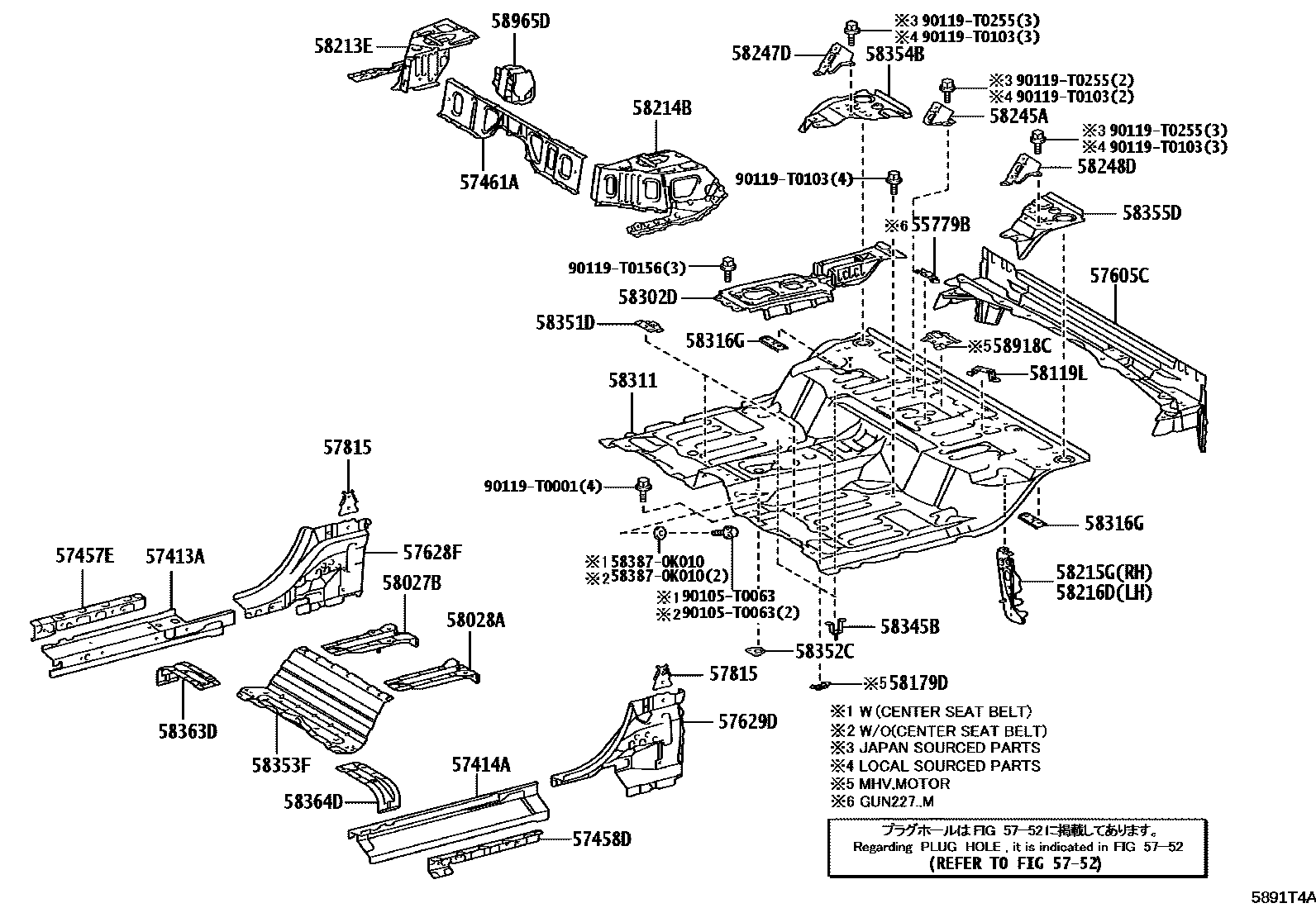

Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55779B | Wiring harness mounting bracket | 57649-KK010 |
| 57413A | Rear floor right inner longitudinal beam | 57413-KK020 |
| 57414A | Rear floor left inner longitudinal beam | 57414-KK020 |
| 57457E | Floor right rear longitudinal beam lining plate | 57457-KK010 |
| 57458D | Floor left rear longitudinal beam lining | 57458-KK010 |
| 57461A | central floor beam | 57461-KK010 · 57461-KK021 |
| 57605C | Rear floor cross member sub-assembly | 57605-KK050 |
| 57628F | Rear floor right longitudinal beam plate | 57628-KK040 |
| 57629D | Rear floor left longitudinal beam plate | 57629-KK040 |
| 57815 | Seat Belt Anchor Reinforcement No. 1 | 61665-KK010 |
| 58027B | Seat belt anchor reinforcement sub-assembly | 58027-KK030 |
| 58028A | No. 2 seat belt anchor reinforcement sub-assembly | 58028-KK030 |
| 58119L | rear floor side panel | 58348-KK021 |
| 58179D | floor clip bracket | 58179-KK010 |
| 58213E | Right seat floor side panel | 58201-KK061 |
| 58214B | Left seat floor side panel | 58202-KK031 |
| 58215G | Rear seat No. 1 mounting bracket | 58215-KK010 |
| 58216D | Rear left seat mounting bracket | 58216-KK010 |
| 58245A | Rear center seat hinge No. 1 bracket | 58248-KK010 |
| 58247D | Rear right seat outer hinge bracket | 58247-KK011 |
| 58248D | Rear left seat outer hinge bracket | 58204-KK011 |
| 58302D | Rear floor front panel sub-assembly | 58302-KK010 · 58302-KK030 |
| 58311 | rear floor pan | 58311-KK010 · 58311-KK070 · 58311-KK160 · 58311-KK170 |
| 58316G | Rear seat No. 1 fixed parts | 58316-KK010 |
| 58345B | Rear floor insulation pad bracket No. 1 | 58345-0K010 |
| 58351D | Rear floor reinforcement | 57555-KK010 |
| 58352C | Rear floor reinforcement No. 2 | 58352-KK010 |
| 58353F | Rear floor reinforcement No. 3 | 58353-KK010 · 58353-KK060 |
| 58354B | Rear floor reinforcement No. 4 | 58354-0K060 |
| 58355D | Rear floor reinforcement No. 5 | 58355-0K060 |
| 58363D | Rear floor No. 2 right reinforcement | 58363-KK020 |
| 58364D | Rear floor No. 2 left reinforcement | 58364-KK020 |
| 58918C | SUPPORT D'APPUI DE BOITE | 58918-KK040 |
| 58965D | jack stand | 58967-KK010 |
