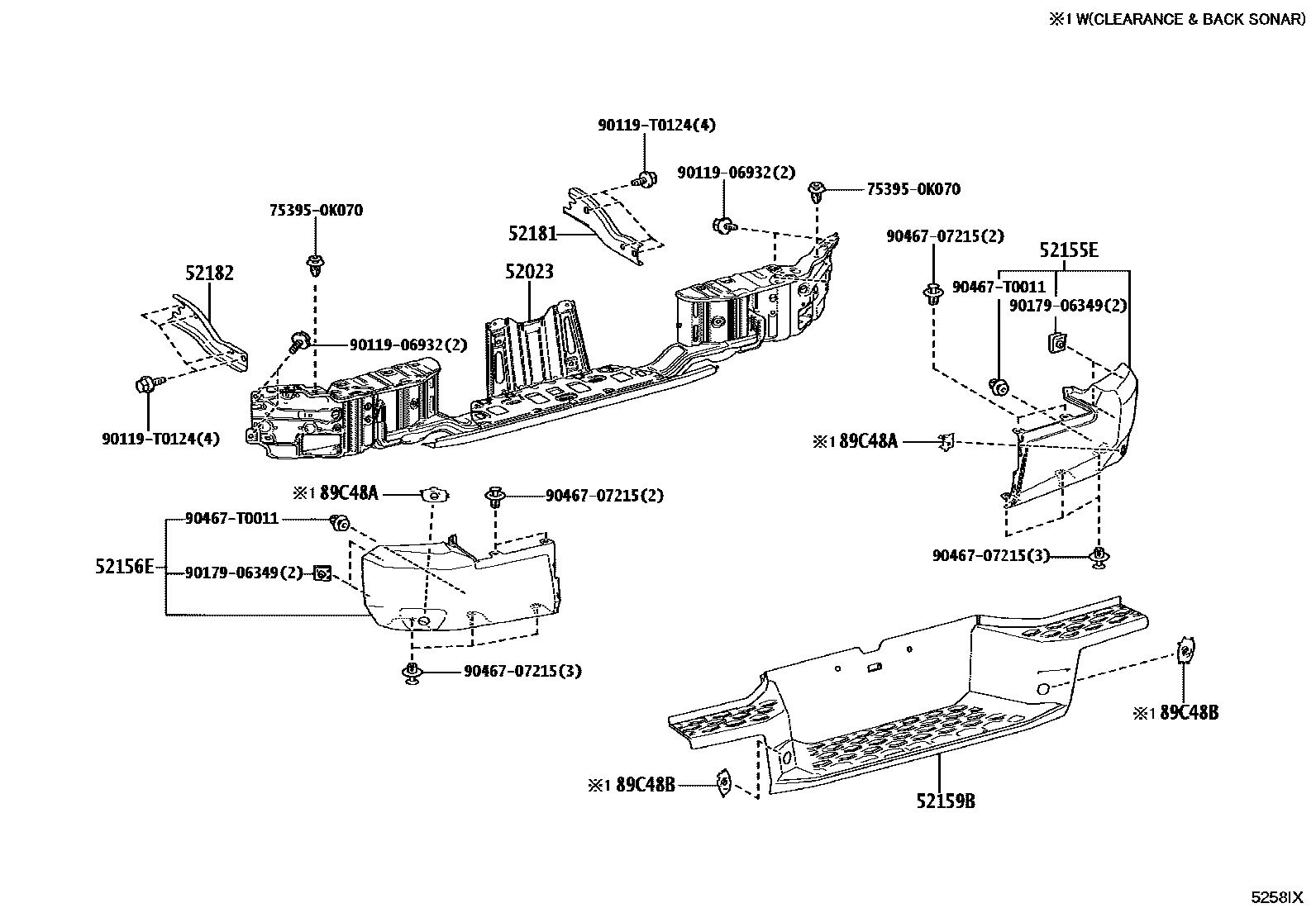

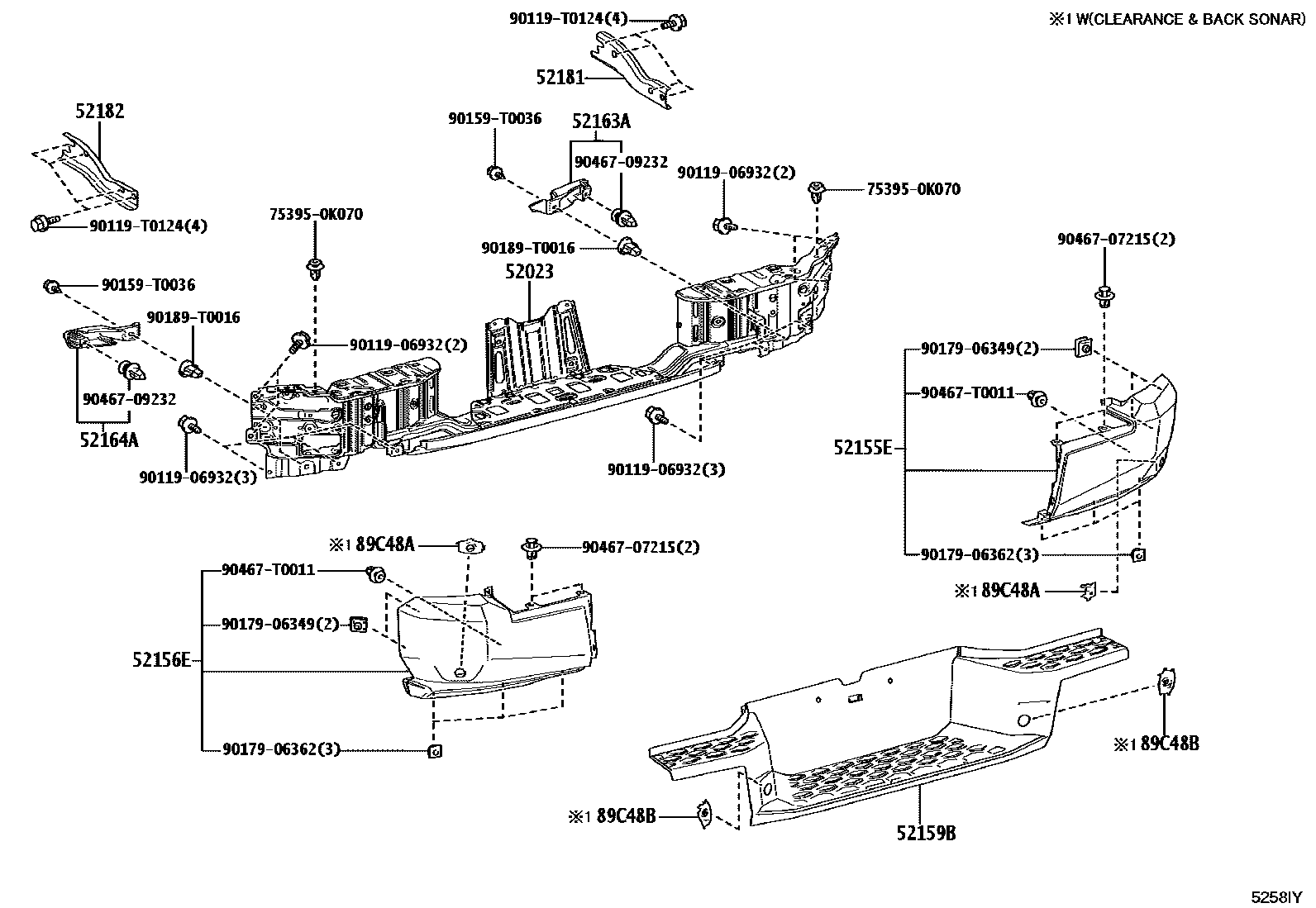

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0K150 · 52023-0K160 · 52023-0K170 |
| 52155E | Rear bumper extension right side pad | 52155-0K041 · 52155-0K051 · 52155-0K071 · 52155-0K080 |
| 52156E | Rear bumper extension left lining | 52156-0K041 · 52156-0K051 · 52156-0K071 · 52156-0K080 |
| 52159B | rear bumper bezel | 52159-0K610 · 52159-0K710 |
| 52163A | Rear bumper right side fender | 52163-0K070 |
| 52164A | Rear bumper left fender | 52164-0K070 |
| 52181 | Rear bumper right arm | 52181-0K100 |
| 52182 | Rear bumper left arm | 52182-0K100 |
