Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

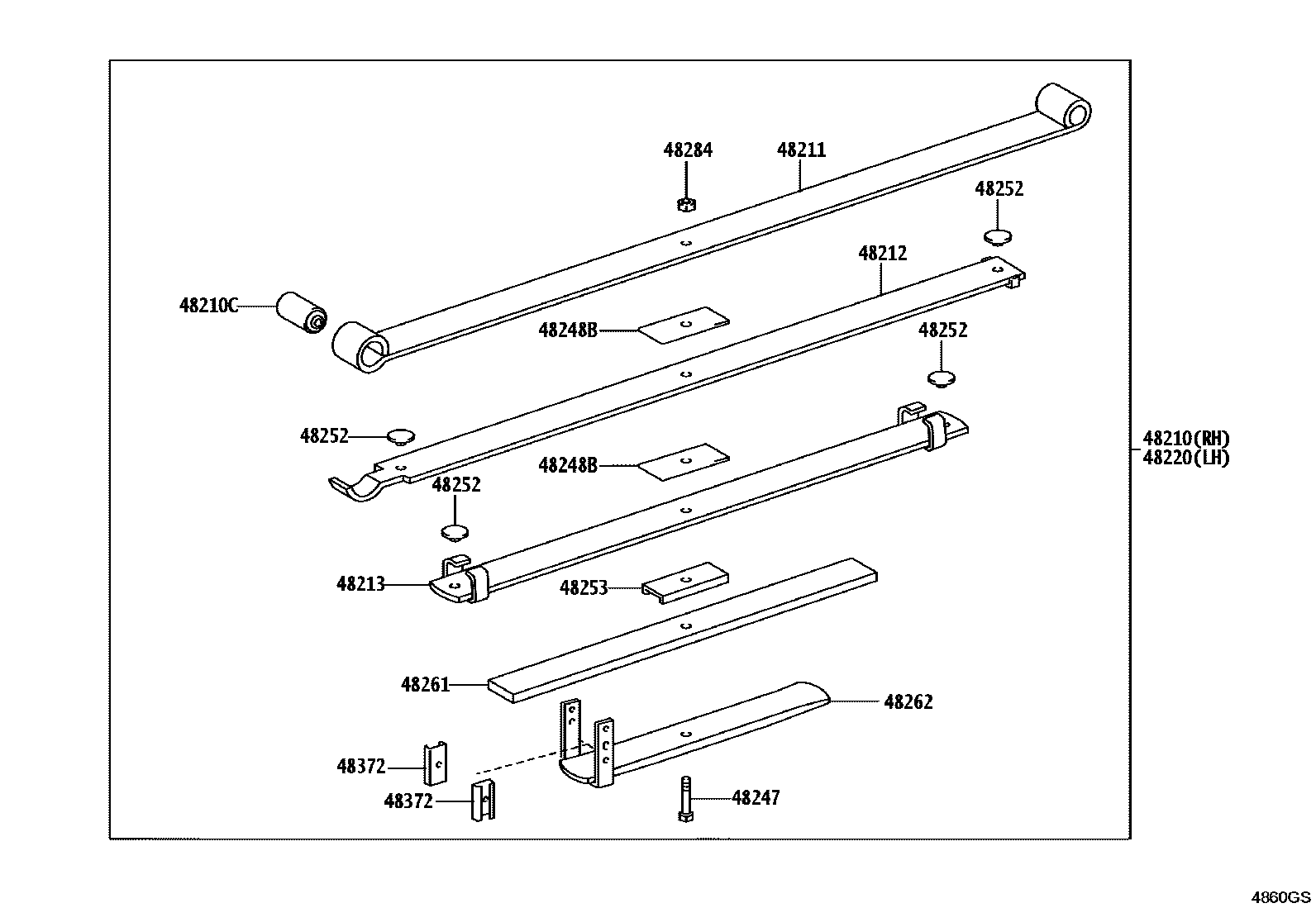

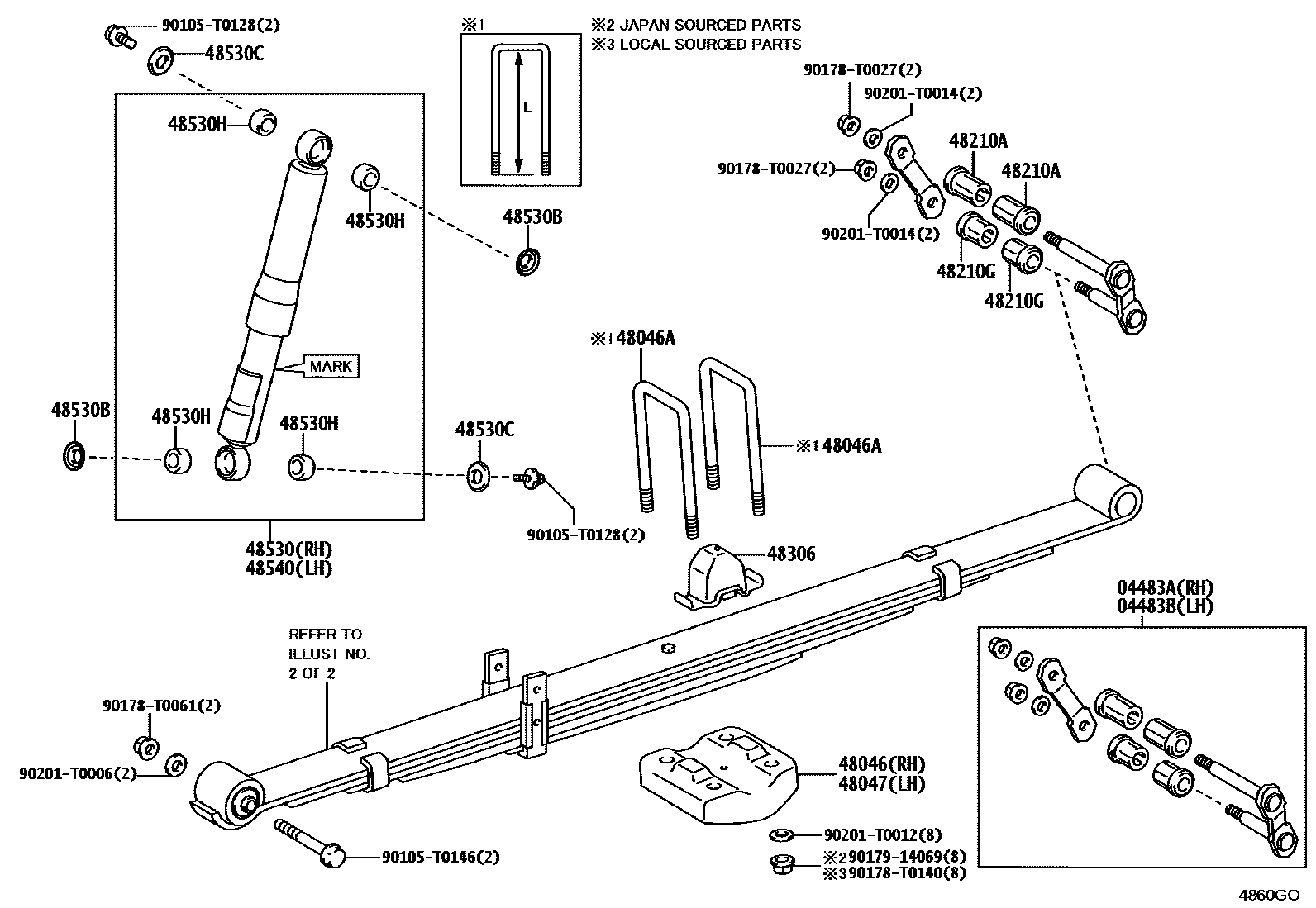

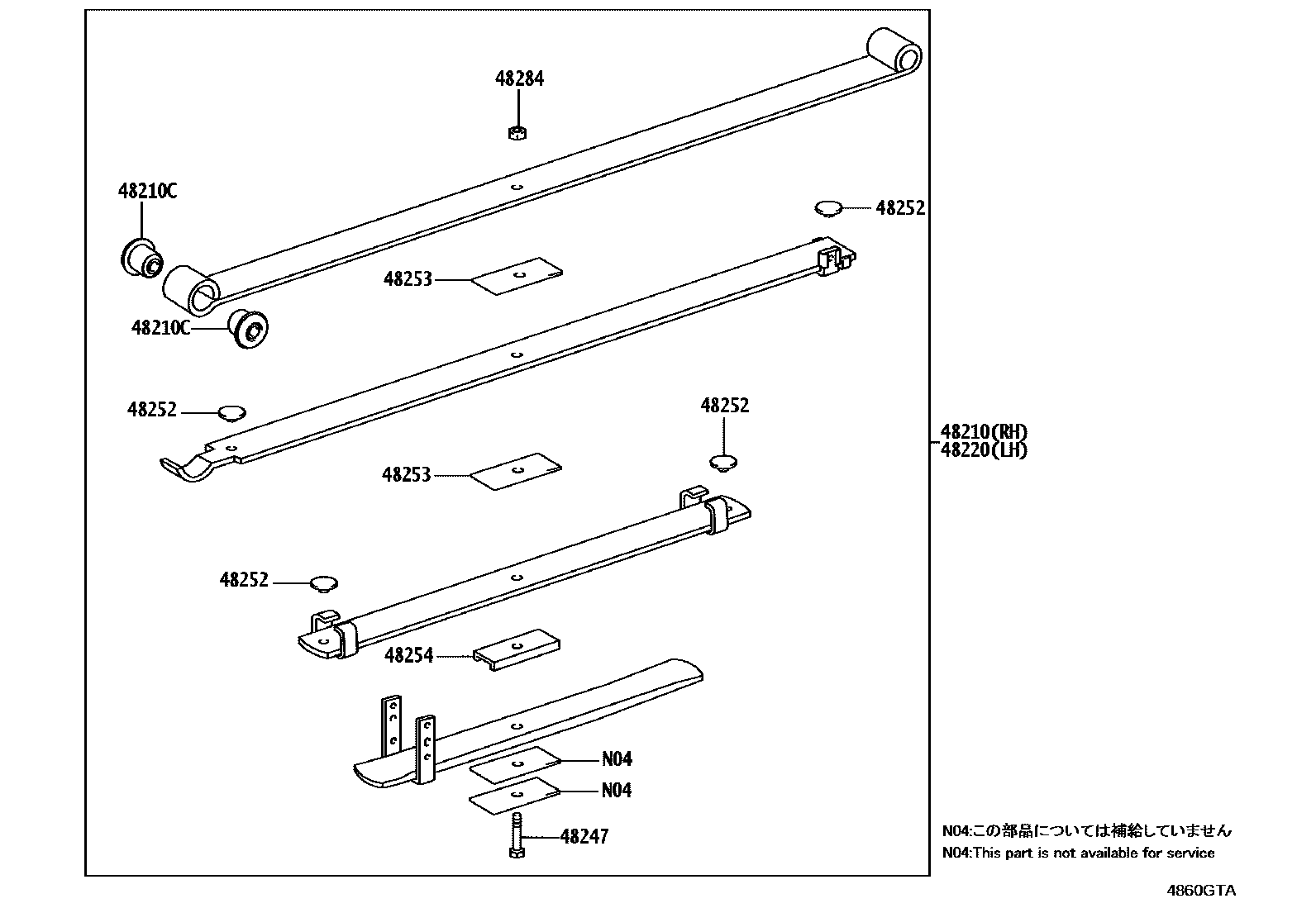

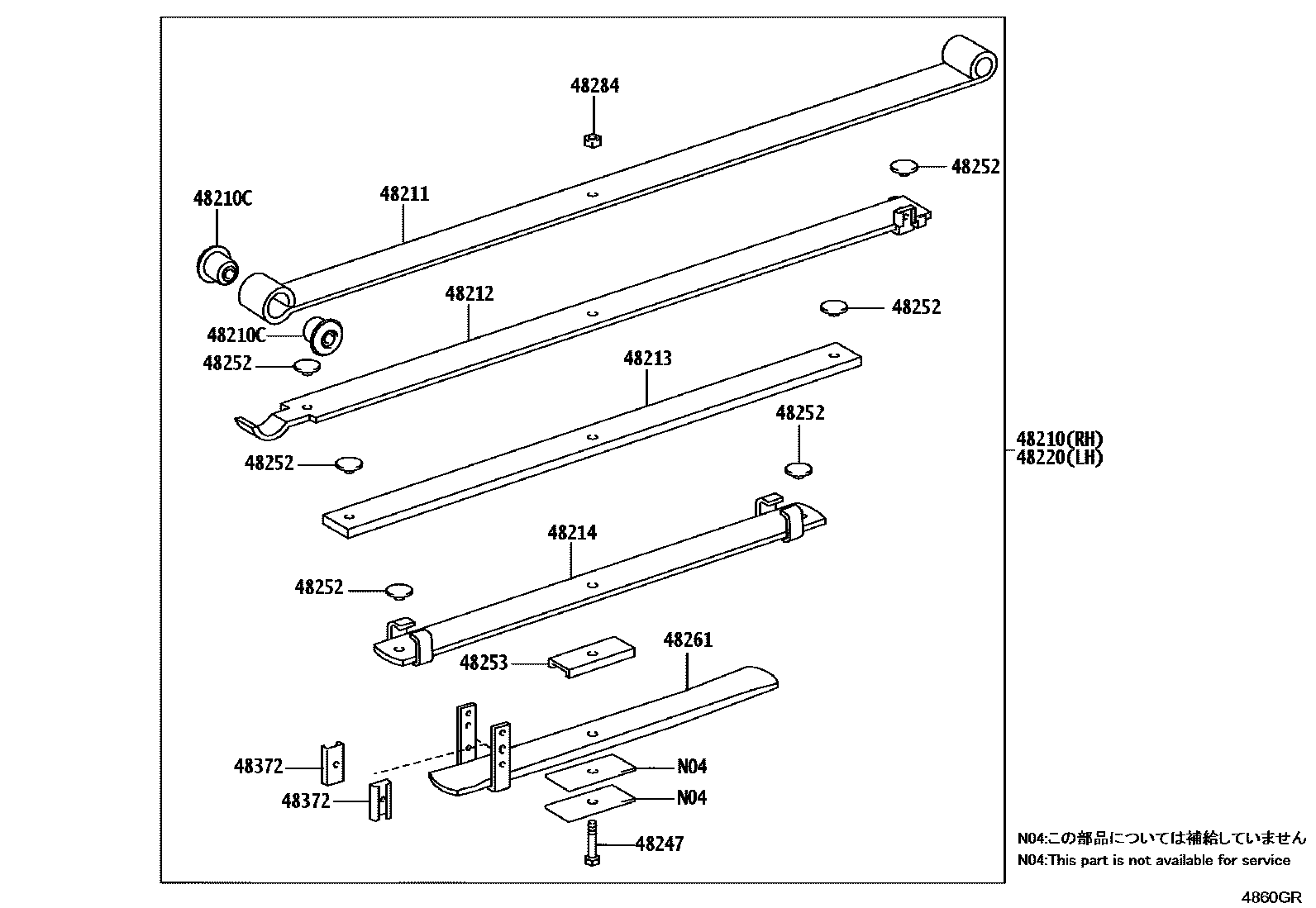

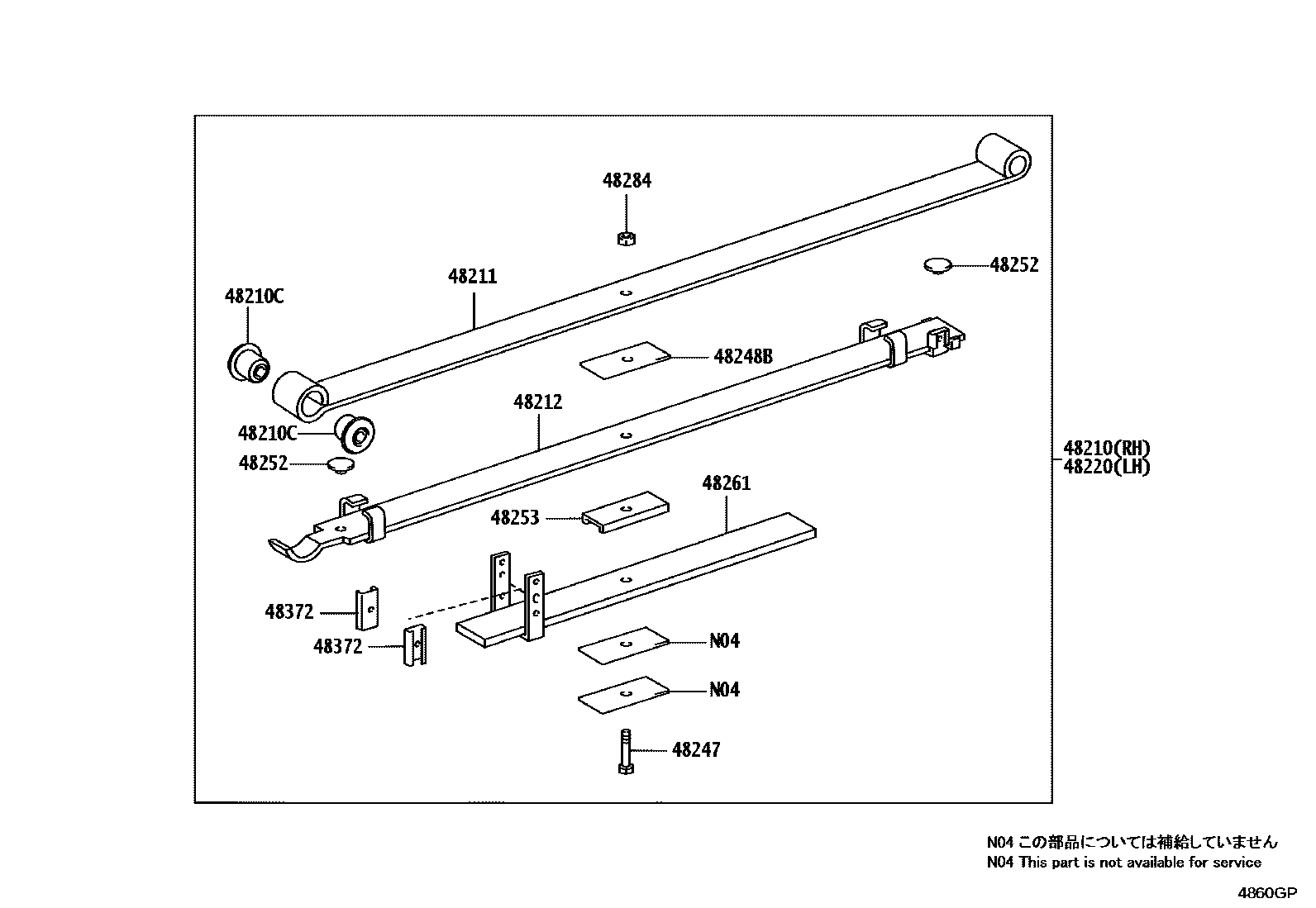

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483A | Right rear spring lifting lug assembly | 04483-KK030 |
| 04483B | Left rear spring lifting lug assembly | 04483-KK030 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-KK010 |
| 48046A | U-bolt (for rear spring) | 90117-T0006 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-KK010 |
| 48210 | Right rear spring assembly | 48210-0KB50 · 48210-0KC20 · 48210-0KC60 · 48210-0KC80 · 48210-0KD60 · 48210-0KD70 · 48210-0KF90 |
| 48210A | Upper bushing (for rear spring lug) | 90385-T0020 |
| 48210C | Bushing (for rear leaf spring) | 90389-T0005 · 90389-T0031 |
| 48210G | Lower bushing (for rear spring lug) | 90385-T0017 |
| 48211 | No. 1 rear leaf spring | 48201-0KB50 · 48201-0KC20 · 48201-0KC60 · 48201-0KC80 · 48201-0KD60 · 48201-0KD70 |
| 48212 | No. 2 rear leaf spring | 48203-0KC20 · 48203-0KC60 · 48203-0KD60 · 48212-0KB50 · 48212-0KC80 · 48212-0KD70 |
| 48213 | No. 3 rear leaf spring | 48204-0KB50 · 48213-0KC20 · 48213-0KC60 · 48213-0KC80 |
| 48214 | No. 4 rear leaf spring | 48205-0KC20 · 48205-0KC60 · 48205-0KC80 |
| 48220 | Left rear spring assembly | 48210-0KB50 · 48210-0KC20 · 48210-0KC60 · 48210-0KC80 · 48210-0KD60 · 48210-0KD70 · 48210-0KF90 |
| 48247 | rear spring center bolt | 48247-0K540 |
| 48248B | No. 3 rear spring spacer | 48248-0K020 |
| 48252 | rear spring muffler | 48252-0K010 · 48252-0KC60 · 48252-0KD60 |
| 48253 | No. 1 rear spring spacer | 48253-0K010 · 48253-0KK20 |
| 48254 | rear leaf spring spacer | 48254-0KF90 |
| 48261 | Rear auxiliary mechanism No. 1 leaf spring | 48207-0KC20 · 48207-0KC60 · 48207-0KC80 · 48207-0KD60 · 48207-0KD70 · 48261-0KB50 |
| 48262 | Rear auxiliary mechanism No. 2 leaf spring | 48026-0KB50 |
| 48284 | Rear spring center bolt nut | 48284-0K310 |
| 48306 | Rear spring buffer block sub-assembly | 48306-0K040 · 48306-0K050 |
| 48372 | Rear spring pad | 48372-0K030 |
| 48530 | Right rear shock absorber assembly | 48531-09C70 · 48531-09D10 · 48531-09D30 · 48531-8Z006 · 48531-8Z031 · 48531-8Z032 · 48531-8Z033 · 48531-8Z056 · 48531-8Z057 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-T3001 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-T3002 |
| 48530H | Rear shock absorber bushing | 90385-T0019 |
| 48540 | Left rear shock absorber assembly | 48541-09290 · 48541-09500 · 48541-09510 · 48541-09520 · 48541-09550 · 48541-09560 · 48541-09610 · 48541-09650 · 48541-09670 |
