Toyota HILUX Front Spring & Shock Absorber — Figure 4803

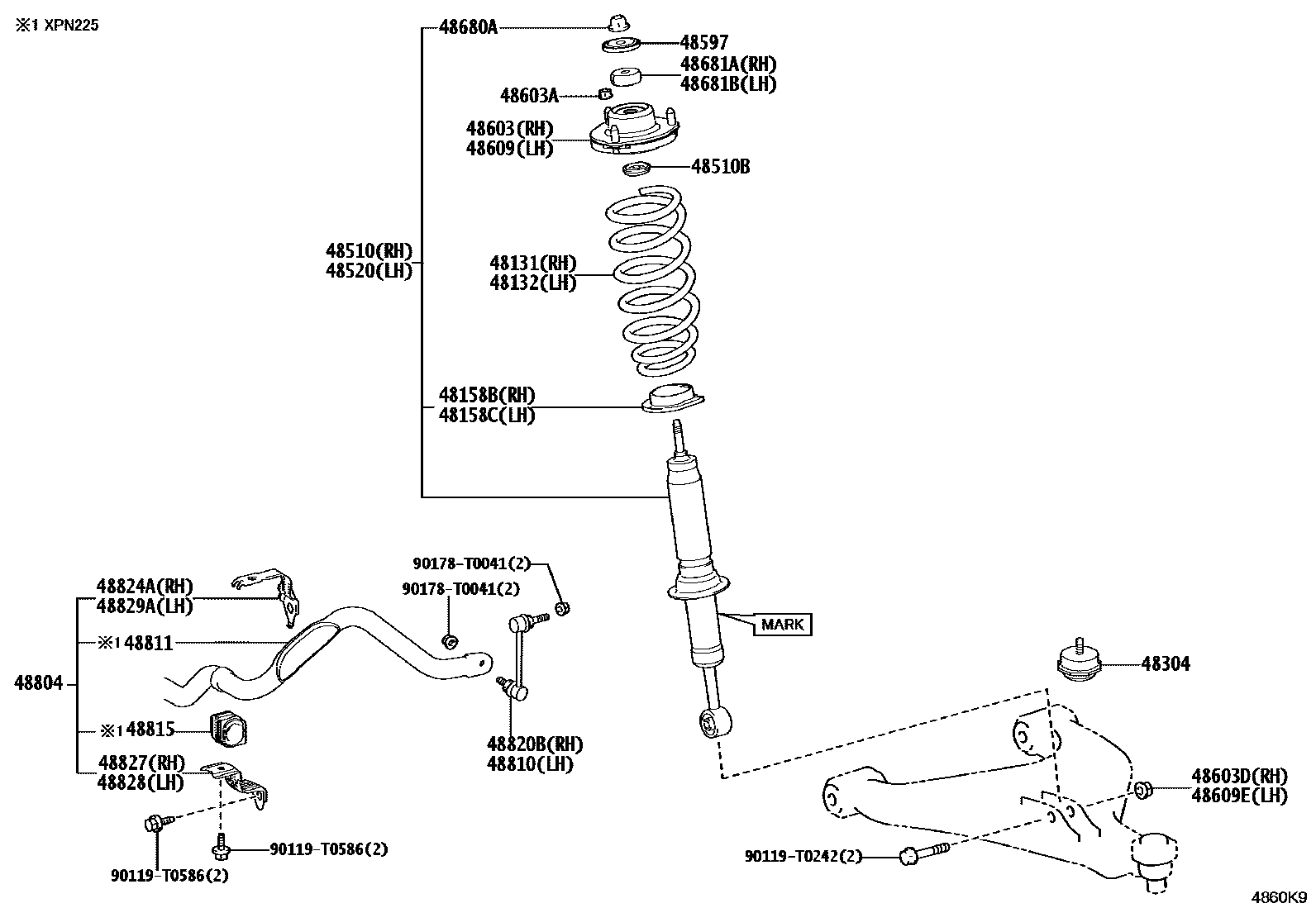

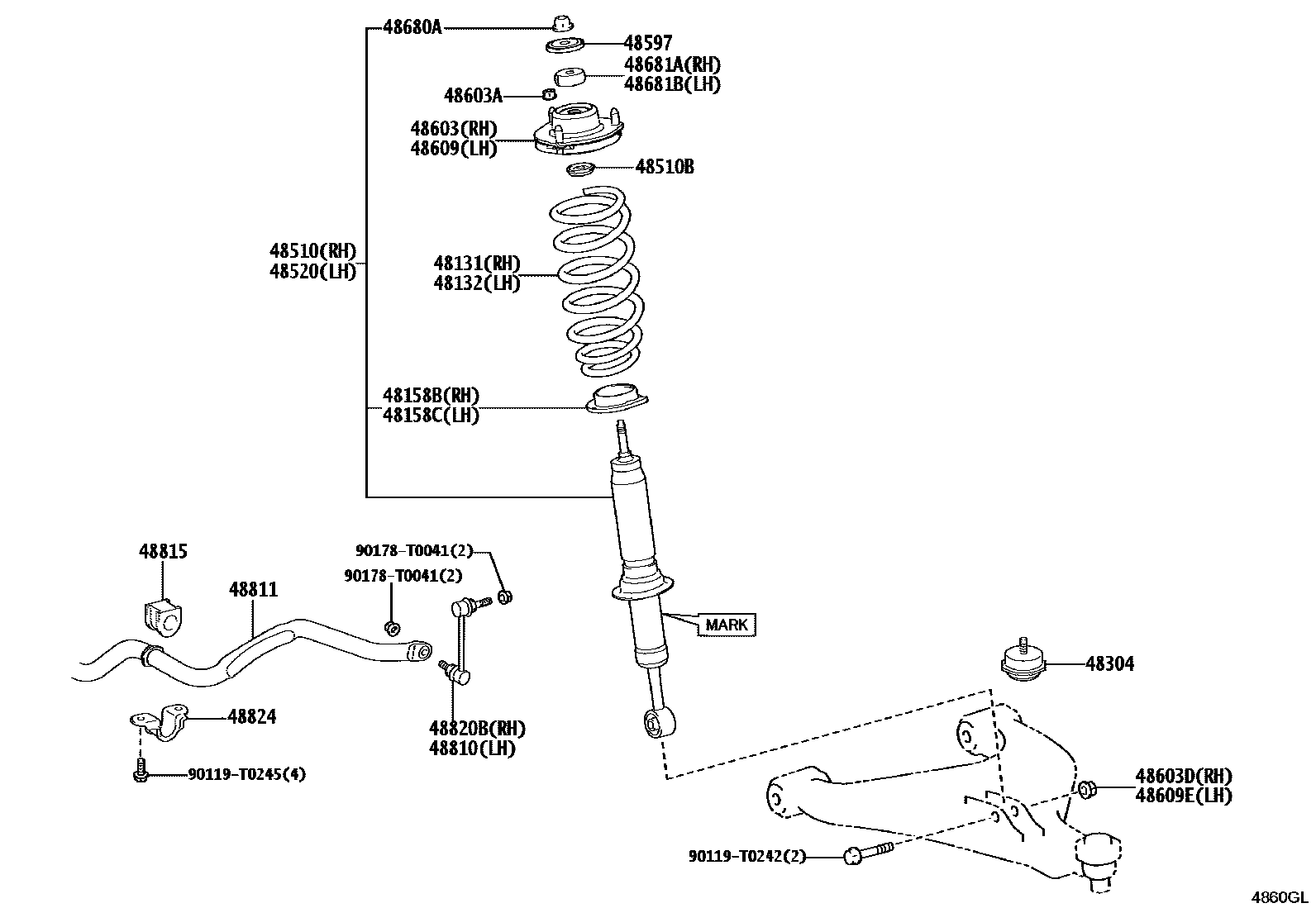

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0KW10 · 48131-0KW40 · 48131-0KW50 · 48131-0KW70 · 48131-0KW90 · 48131-0KX10 · 48131-0KX20 · 48131-0KX40 · 48131-0KX50 · 48131-0KX70 · 48131-0KZ10 · 48131-F0170 · 48131-F0610 |
| 48132 | Left front coil spring | 48131-0KW10 · 48131-0KW40 · 48131-0KW50 · 48131-0KW70 · 48131-0KW90 · 48131-0KX00 · 48131-0KX10 · 48131-0KX30 · 48131-0KX40 · 48131-0KX50 · 48131-0KX70 · 48131-0KZ20 · 48131-F0170 · 48131-F0180 · 48131-F0570 · 48131-F0610 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-0K010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-0K010 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-0K041 |
| 48510 | Right front shock absorber assembly | 48510-80D39 · 48510-8Z701 · 48510-8Z702 · 48510-8Z711 · 48510-8Z720 · 48510-8Z725 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-T2003 |
| 48520 | Left front shock absorber assembly | 48510-80D39 · 48510-8Z701 · 48510-8Z702 · 48510-8Z711 · 48510-8Z720 · 48510-8Z725 |
| 48597 | Shock absorber buffer pad | 48597-KK010 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0K170 · 48609-0K190 |
| 48603A | Nut (for front suspension mount) | 90178-T0050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0048 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0K170 · 48609-0K190 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0048 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-T0015 |
| 48681A | Right front suspension mount pad | 48681-0K010 |
| 48681B | Left front suspension mount pad | 48681-0K010 |
| 48804 | SOUS-ENS BARRE, STABILISATEUR AVANT | 48804-0K010 |
| 48810 | Left front stabilizer bar link assembly | 48810-0K011 |
| 48811 | front stabilizer bar | 48811-0K171 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0K090 |
| 48820B | Right front stabilizer bar link assembly | 48820-0K031 |
| 48824 | front stabilizer bar bracket | 48824-KK010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48809-KK010 |
| 48827 | Right front stabilizer bar bracket No. 2 | 48827-KK010 |
| 48828 | Left front stabilizer bar bracket No. 2 | 48828-KK010 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48807-KK010 |
