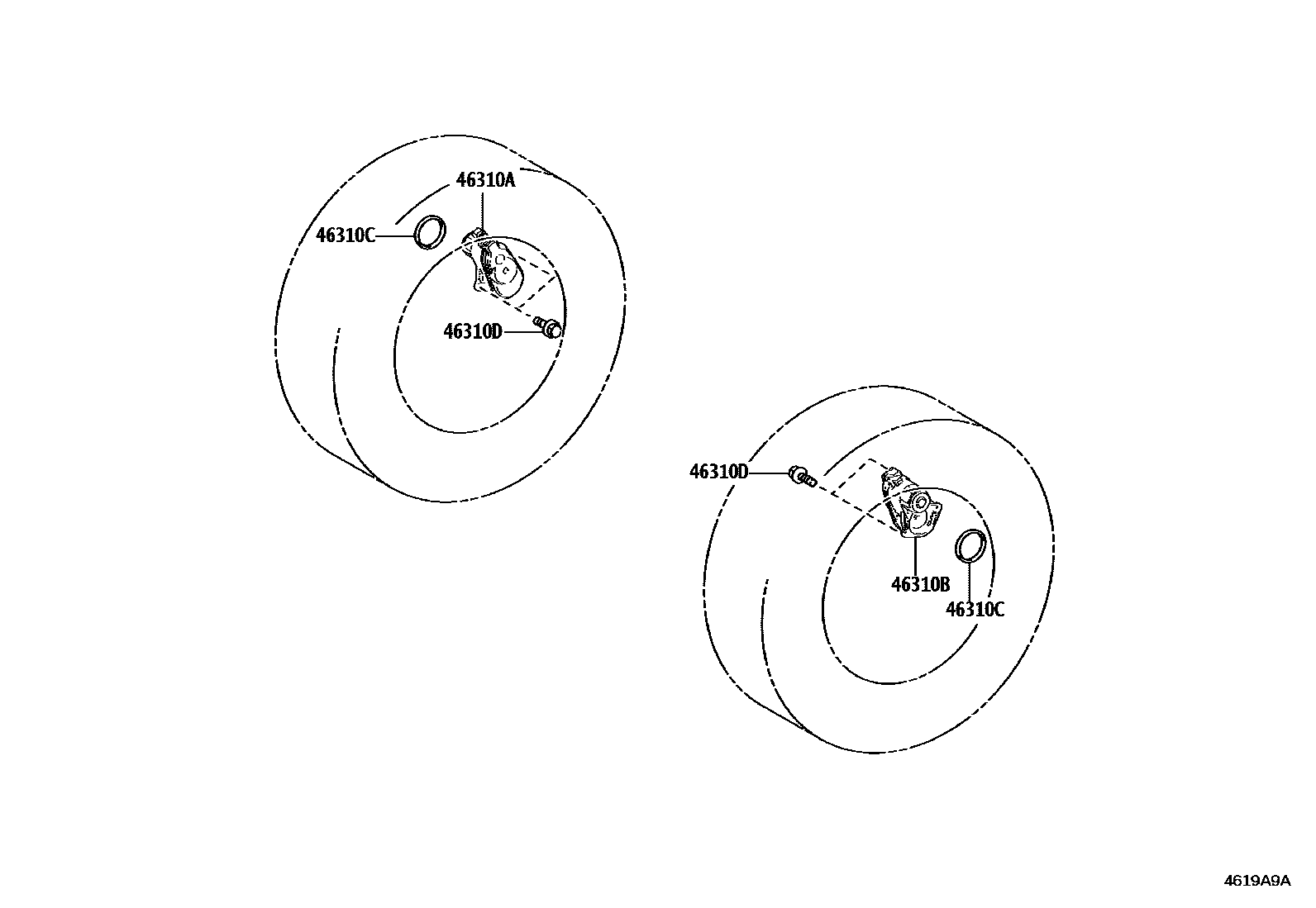

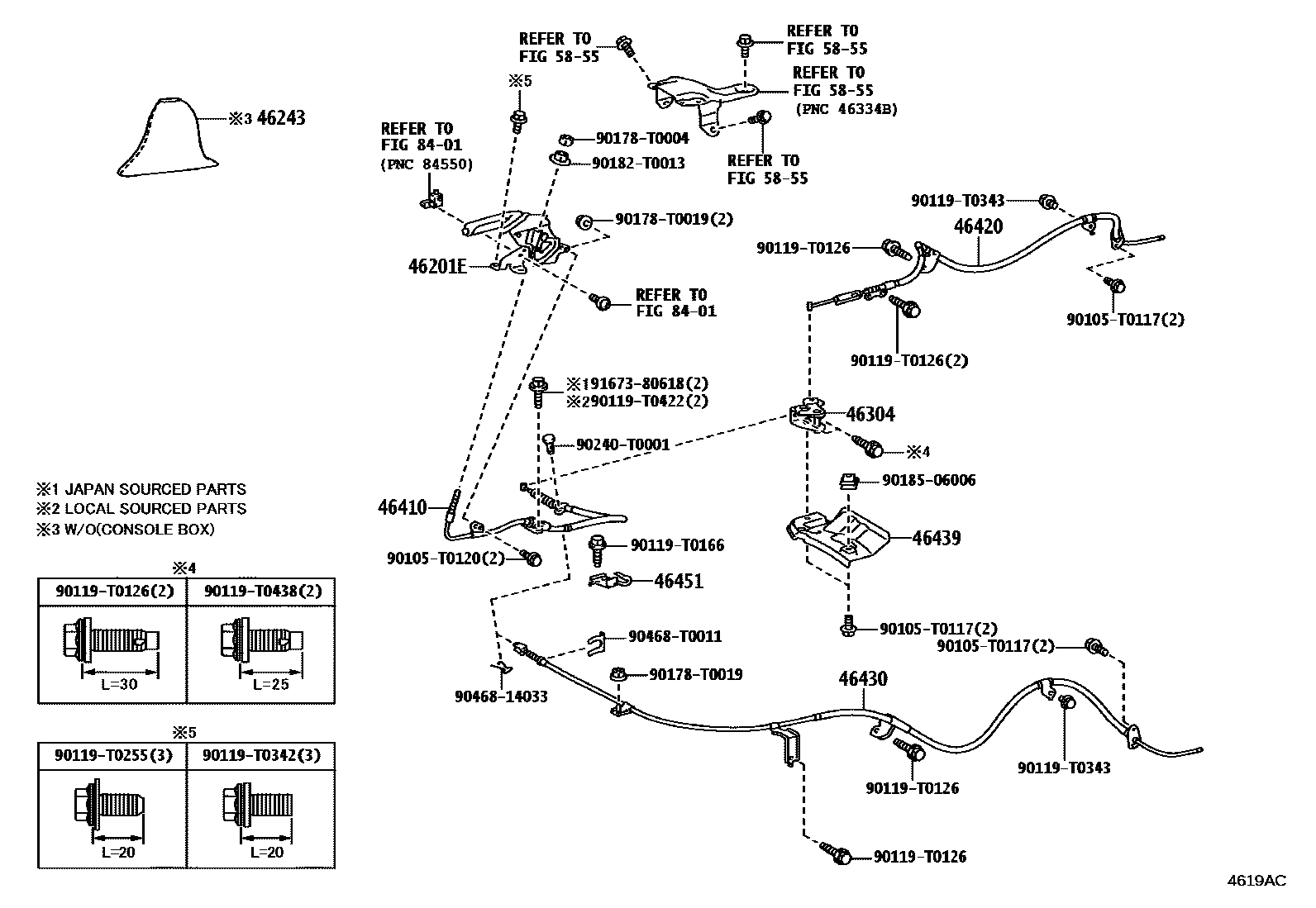

Toyota HILUX Parking Brake & Cable — Figure 4601
Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46304 | Parking brake balancer sub-assembly | 46304-0K050 |
| 46310A | Right parking brake actuator assembly | 46310-60050 |
| 46310B | Left parking brake actuator assembly | 46310-60050 |
| 46310C | Seal (for parking brake actuator) | 90015-AH005 |
| 46310D | Bolt (for parking brake actuator) | 90016-AA704 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0K120 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0K210 · 46420-0K290 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0K120 · 46430-0K210 |
| 46439 | Parking brake cable insulation pad | 46439-0K060 |
| 46451 | cable bracket | 46451-0K040 |
