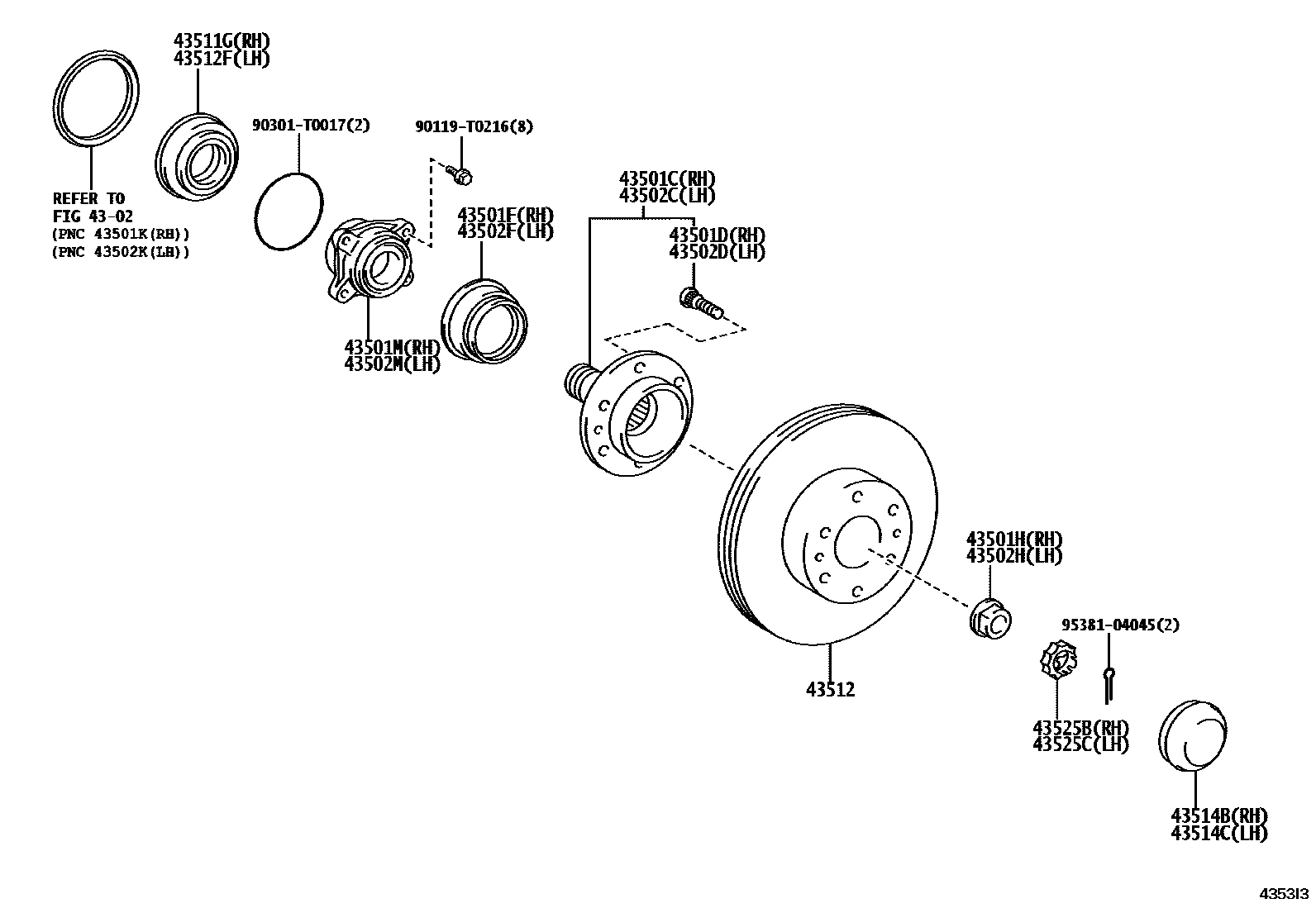

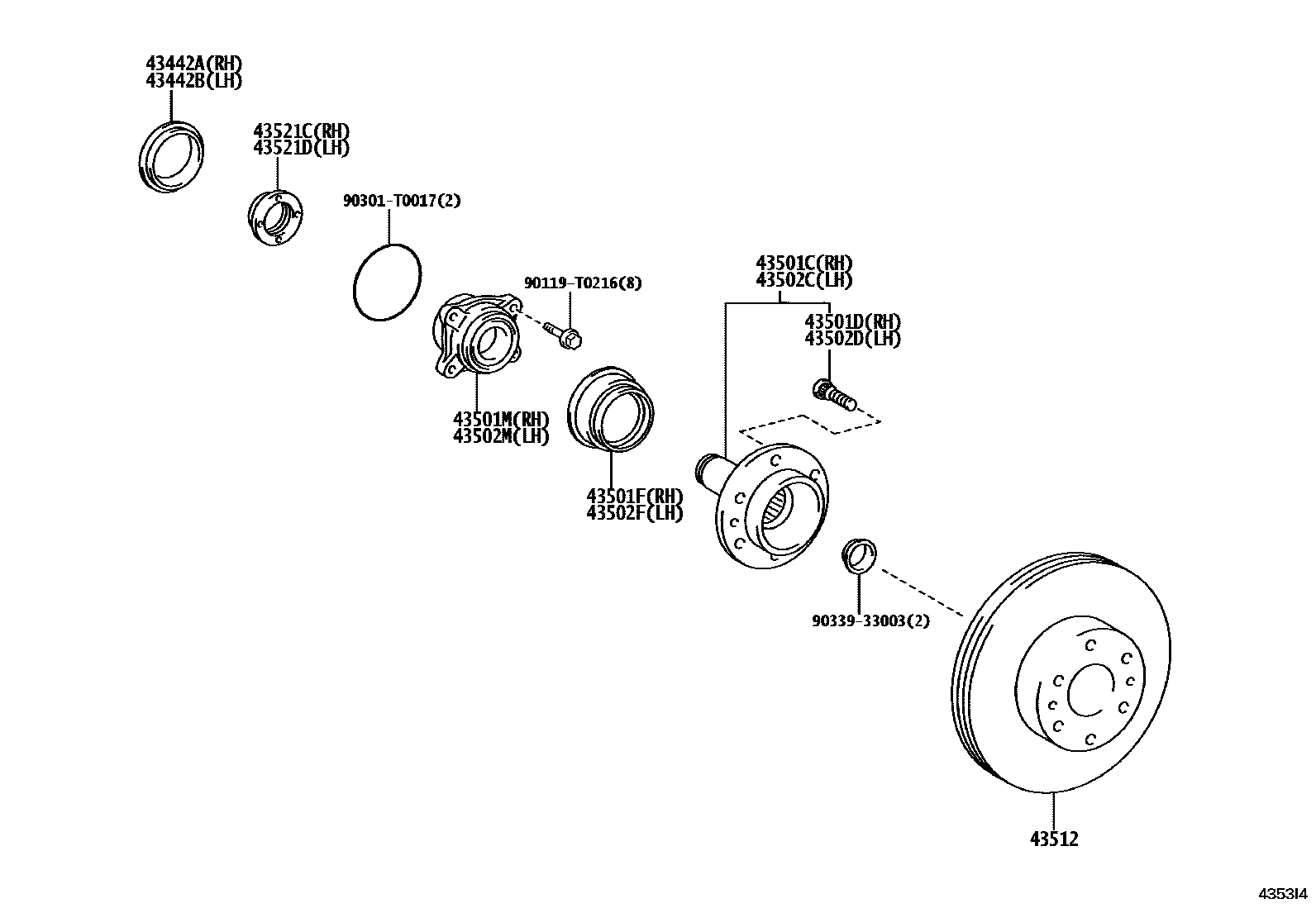

Toyota HILUX Front Axle Hub — Figure 4303
Toyota HILUX EPC diagram 4303, Front Axle Hub, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43442A | Right steering knuckle grease retaining ring inner cover | 43442-0K010 |
| 43442B | Left steering knuckle grease retaining ring inner cover | 43442-0K010 |
| 43501C | Right front axle hub sub-assembly | 43502-KK050 · 43502-KK060 |
| 43501D | Hub bolt (for right front axle) | 90942-02052 |
| 43501F | Oil seal (for right front axle hub) | 90312-T0001 |
| 43501H | Nut (for front axle right half shaft) | 90178-T0113 |
| 43501M | Inner bearing (for right front axle hub) | 90366-T0061 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-KK050 · 43502-KK060 |
| 43502D | Hub bolt (for left front axle) | 90942-02052 |
| 43502F | Oil seal (for left front axle hub) | 90312-T0001 |
| 43502H | Nut (for front axle left half shaft) | 90178-T0113 |
| 43502M | Inner bearing (for left front axle hub) | 90366-T0061 |
| 43511G | External oil seal (for right front axle hub) | 90316-T0002 |
| 43512 | front brake disc | 43512-0K210 · 43512-0K230 · 43512-0K270 · 43512-0K350 |
| 43512F | External oil seal (for left front axle hub) | 90316-T0002 |
| 43514B | Right front axle hub grease cap | 43514-KK010 |
| 43514C | Left front axle hub grease cap | 43514-KK010 |
| 43521C | Right front wheel adjustment nut | 43521-35010 |
| 43521D | Left front wheel adjustment nut | 43521-35010 |
| 43525B | Right front wheel adjustment lock cover | 43525-71010 |
| 43525C | Left front wheel adjustment lock cover | 43525-71010 |
