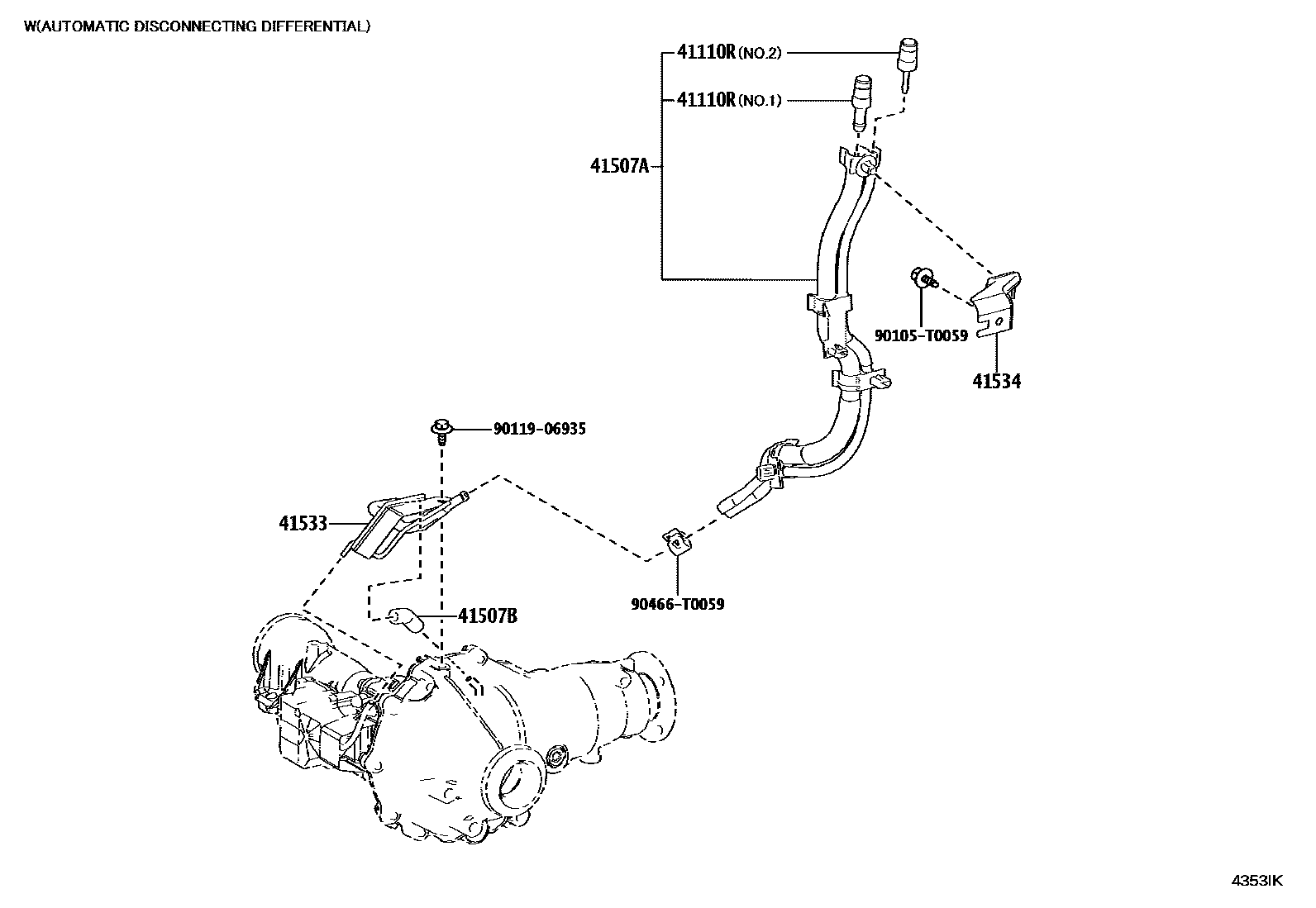

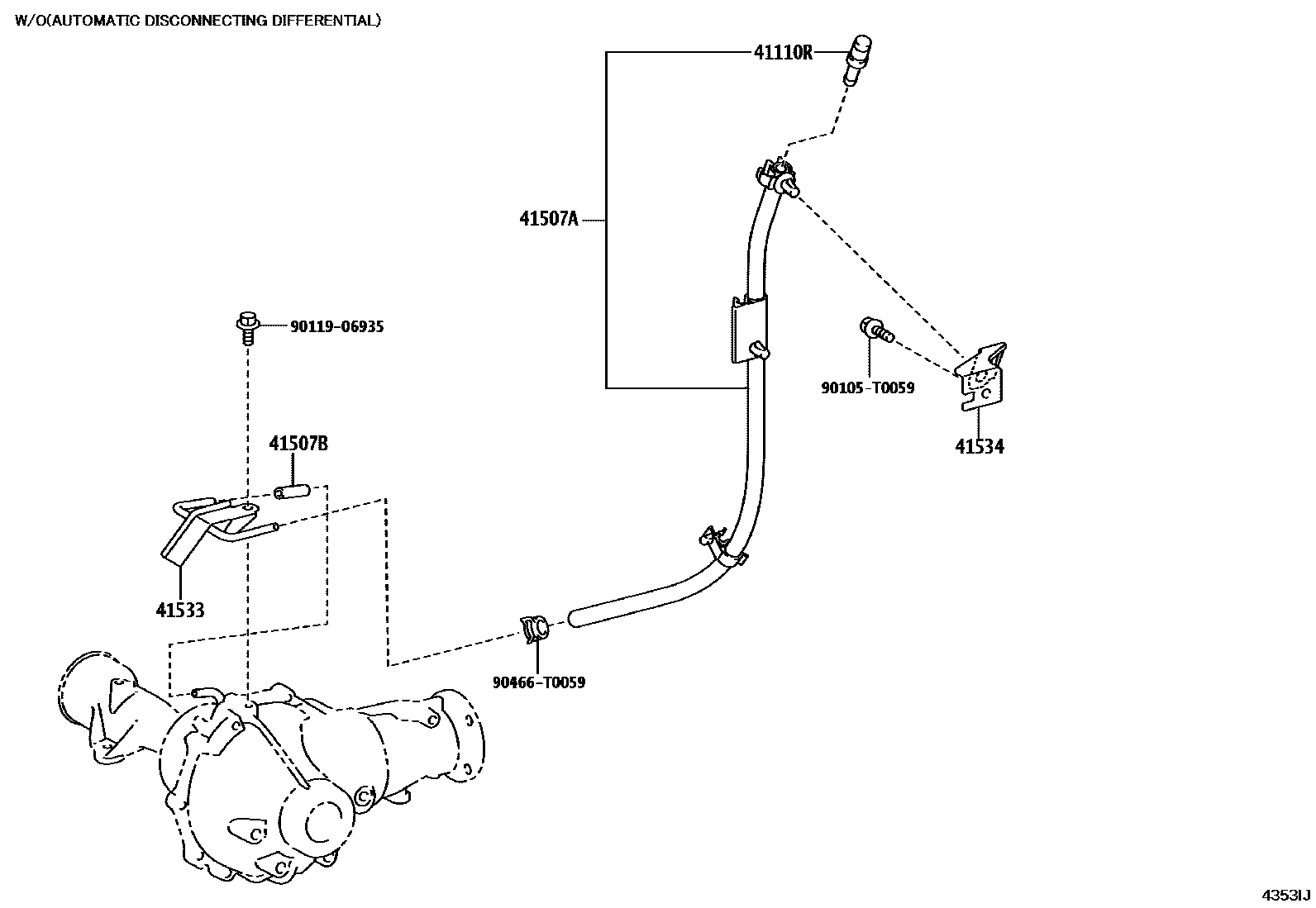

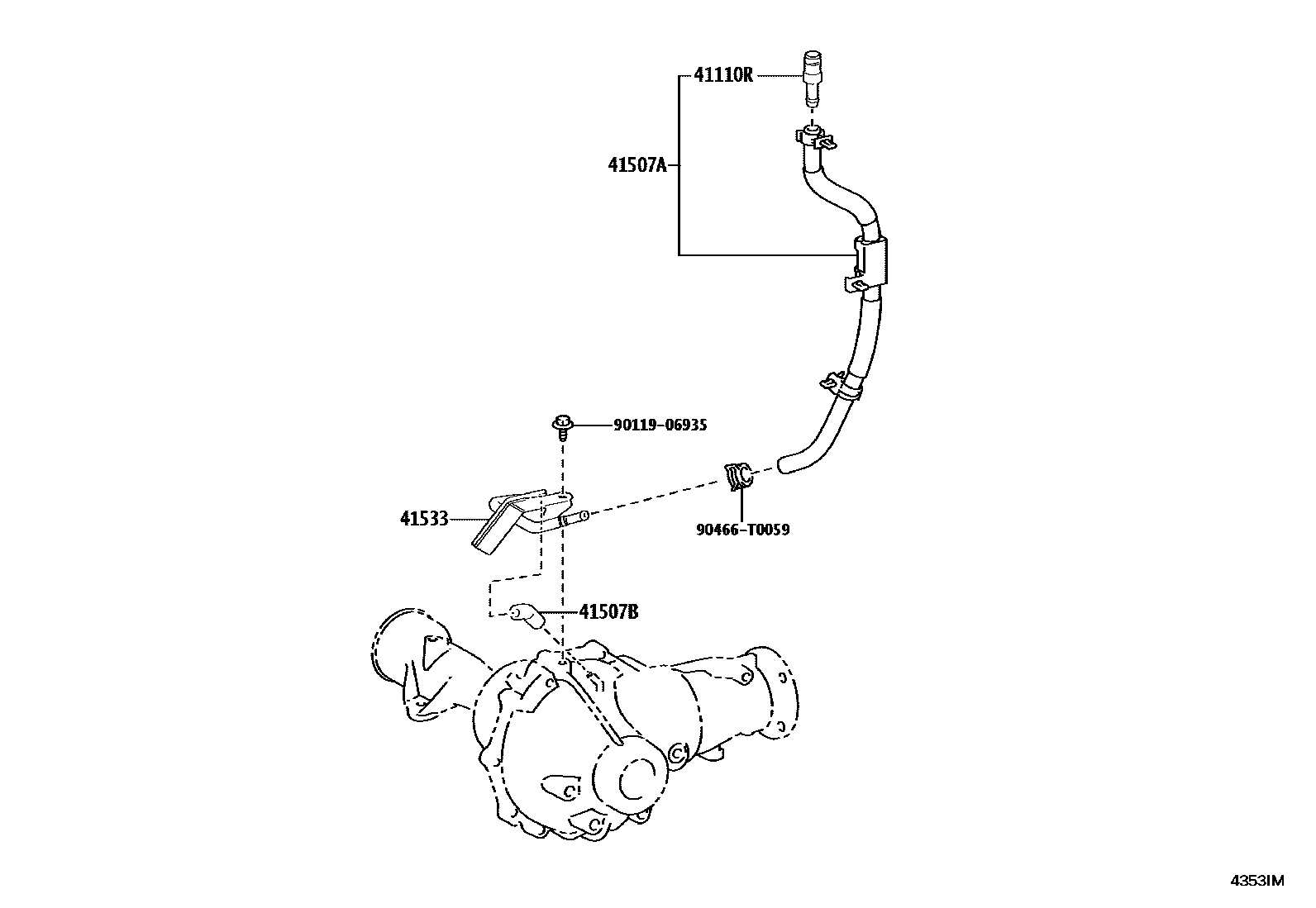

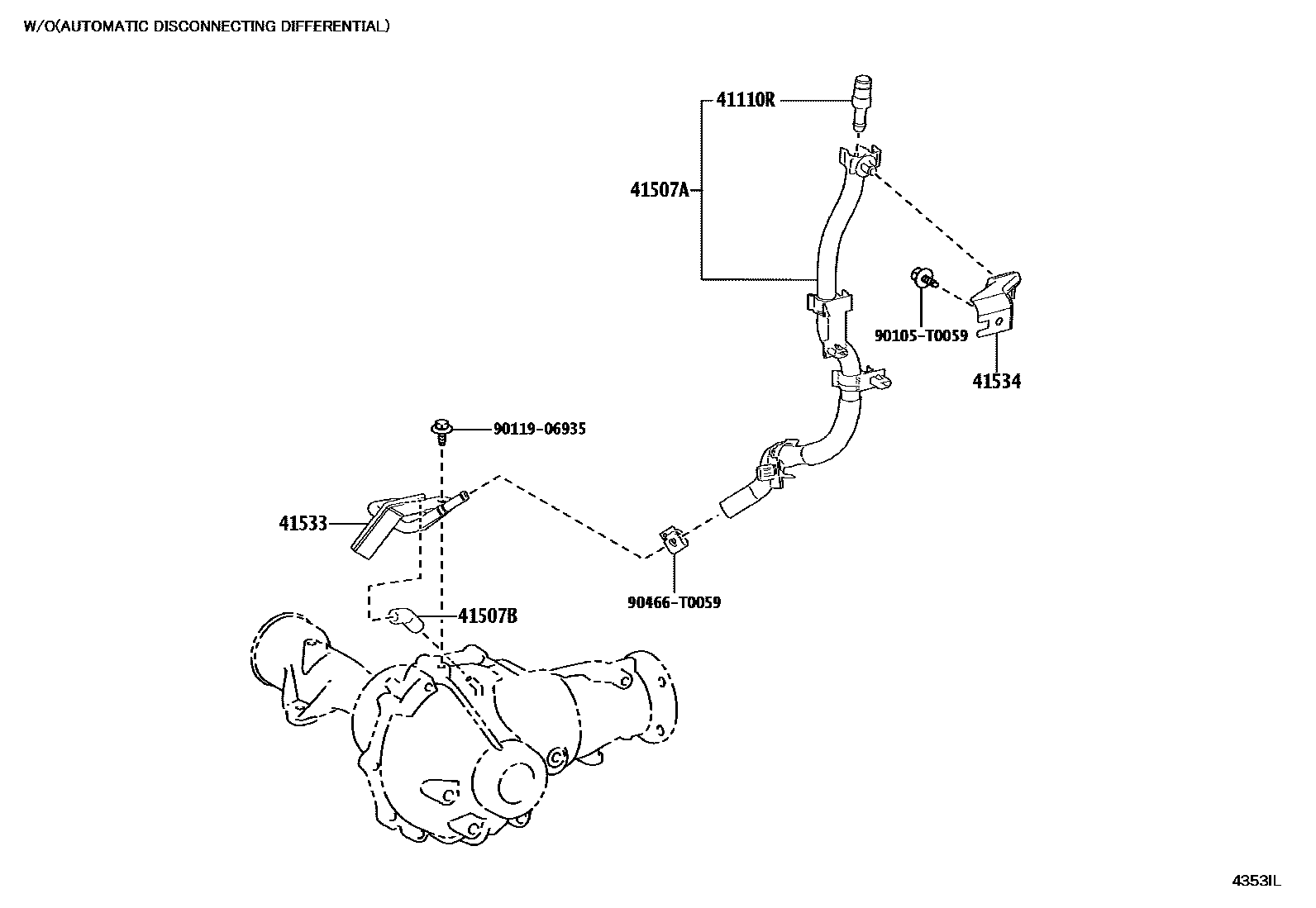

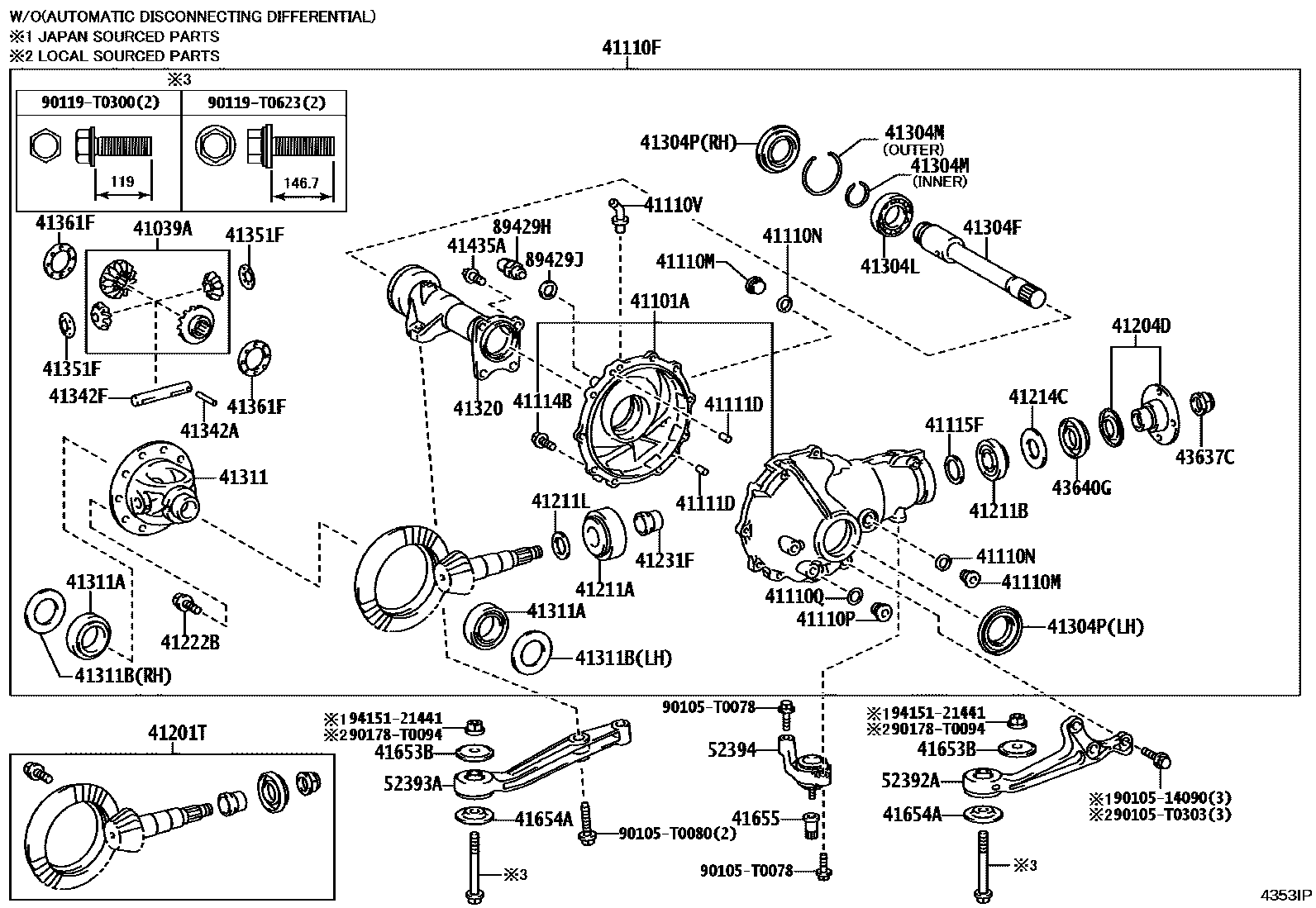

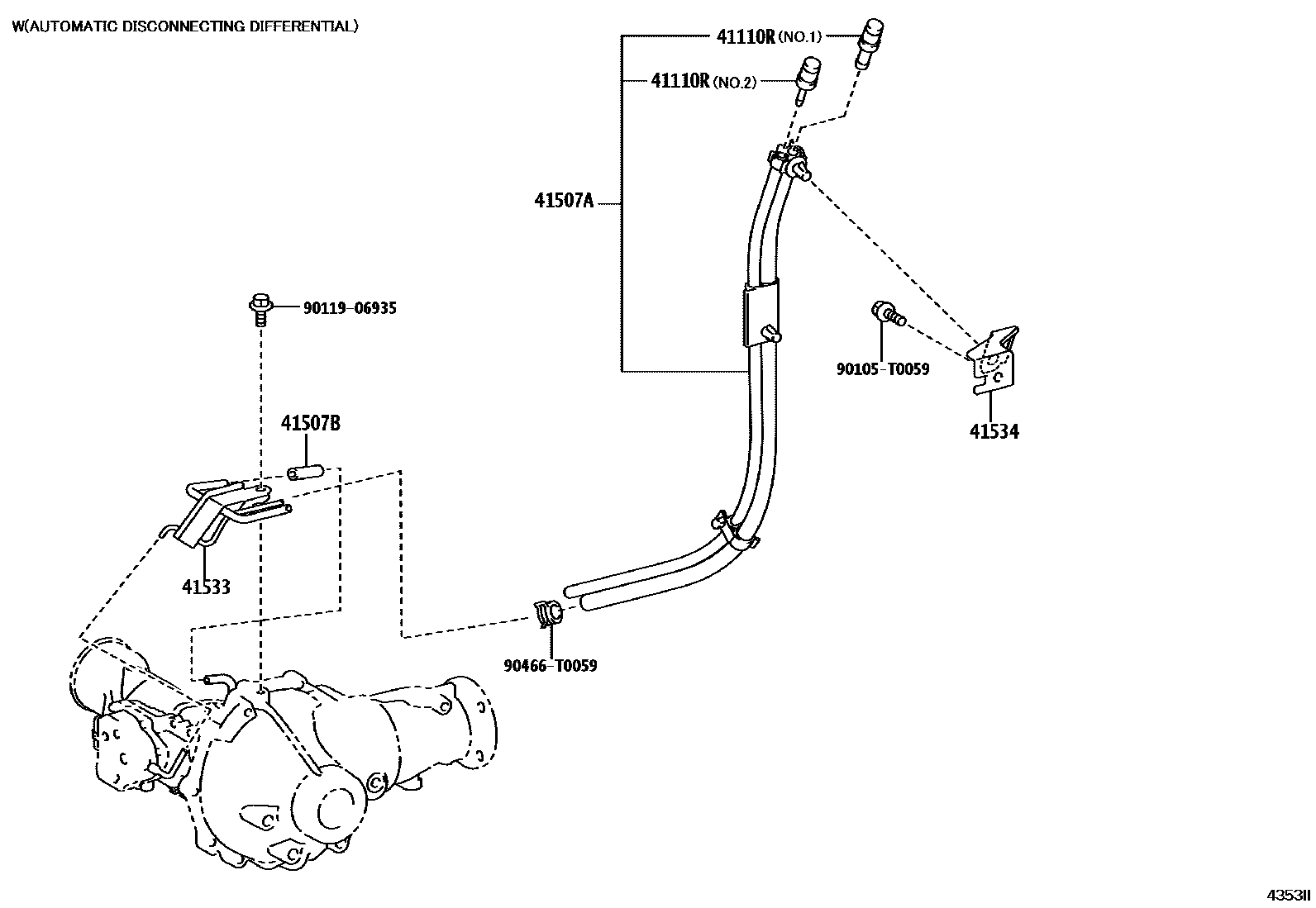

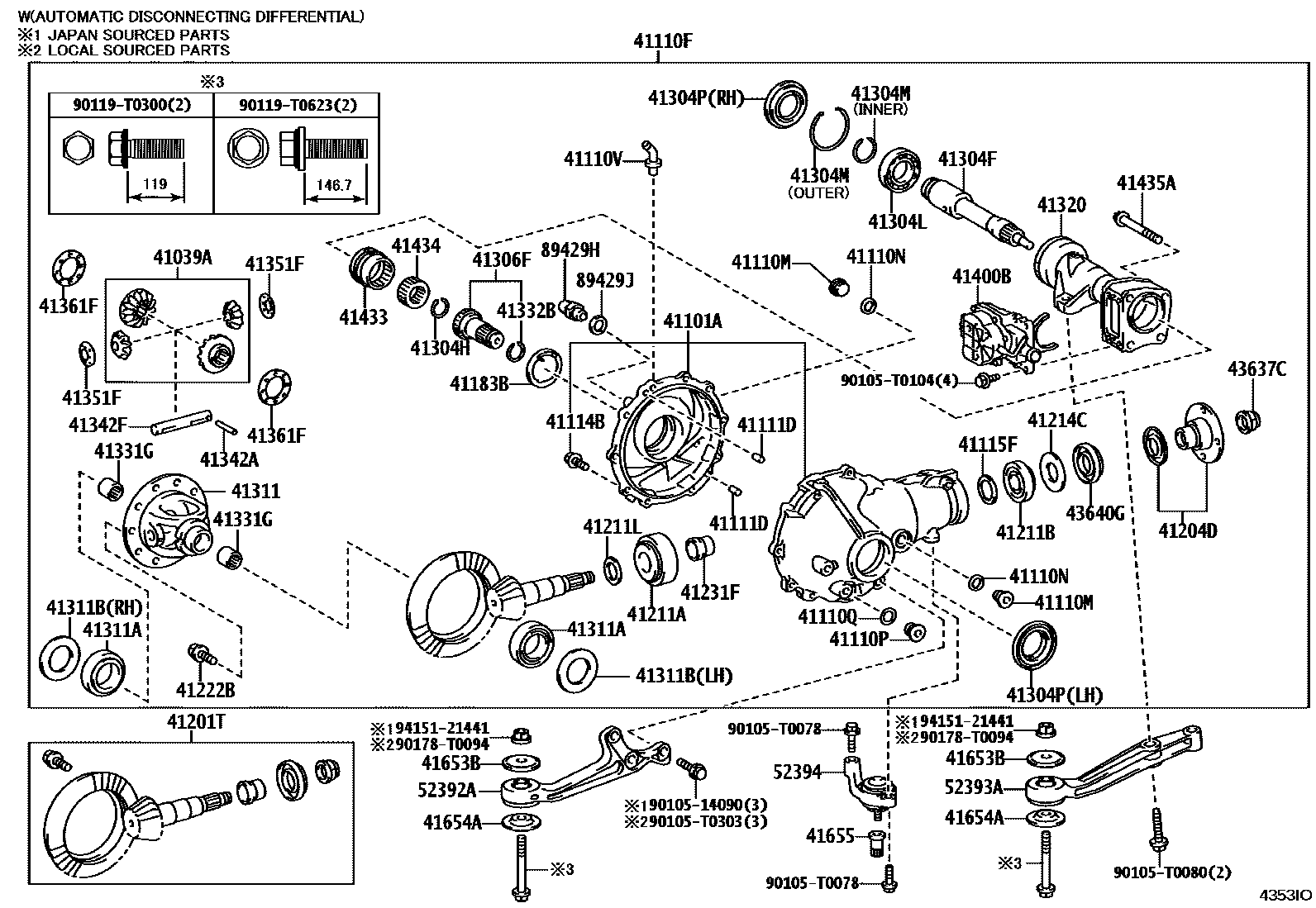

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 7 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039A | Differential gear assembly | 41039-71040 |
| 41101A | Front differential housing sub-assembly | 41101-0K060 |
| 41110F | Front differential case assembly | 41110-0KD00 · 41110-0KD10 · 41110-0KD40 · 41110-0KD50 · 41110-0KD60 |
| 41110M | Front differential oil filling plug | 90341-18032 · 90341-T0002 |
| 41110N | Front differential oil plug gasket | 12157-10010 |
| 41110P | Front differential drain plug | 90341-T0003 |
| 41110Q | Front differential drain plug gasket | 90430-24017 |
| 41110R | Breather plug (for front differential) | 90930-03159 · 90930-03219 |
| 41110V | Connector (for front differential) | 90404-08004 |
| 41111D | Direct sales (for front differential case) | 90250-T0004 |
| 41114B | Front differential bearing cap bolts | 90105-T0101 |
| 41115F | Front differential oil reservoir ring | 41115-0K010 |
| 41183B | Front differential side bearing retainer oil baffle | 41183-0K010 |
| 41201T | Front differential final drive gear assembly | 41201-09C60 · 41201-09C90 · 41201-09D00 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-0K120 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-T0016 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-T0013 |
| 41211L | Spacer (for differential drive pinion) | 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 · 90564-35109 · 90564-35110 · 90564-35111 · 90564-35112 · 90564-35113 · 90564-35114 · 90564-35115 · 90564-35116 · 90564-35117 · 90564-35118 · 90564-35119 · 90564-35120 · 90564-35121 · 90564-35123 · 90564-35124 · 90564-35125 · 90564-35126 · 90564-35127 · 90564-35128 · 90564-35129 · 90564-35130 · 90564-35131 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-26011 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-T0310 · 90901-05002 |
| 41231F | Front differential drive pinion bearing spacer | 41231-35040 |
| 41304F | Right differential side gear shaft sub-assembly | 41337-35050 · 41337-71010 |
| 41304H | Hole snap ring (for differential side gear shaft) | 90520-T0028 |
| 41304L | Bearing (for right front differential side gear shaft) | 90363-T0014 |
| 41304M | Right shaft snap ring (for differential side gear shaft) | 90520-T0027 · 90521-T0002 |
| 41304P | Oil seal (for differential side gear shaft) | 90311-T0107 · 90311-T0108 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-0K030 |
| 41311 | front differential case | 41311-0K040 · 41311-0K050 · 41311-0K060 · 41311-0K070 |
| 41311A | Bearings (for front differential housing) | 90366-T0031 |
| 41311B | Flat washer (for front differential case) | 90564-50124 · 90564-50126 · 90564-50128 · 90564-50130 · 90564-50132 · 90564-50134 · 90564-50136 · 90564-50138 · 90564-50140 · 90564-50142 · 90564-50154 · 90564-50156 · 90564-50158 · 90564-50160 · 90564-50162 · 90564-50164 · 90564-50166 · 90564-50168 · 90564-50170 · 90564-50172 · 90564-50184 · 90564-50185 · 90564-50186 · 90564-50187 · 90564-50188 · 90564-50189 · 90564-50190 · 90564-50191 · 90564-50192 · 90564-50193 · 90564-50194 · 90564-50195 · 90564-50196 · 90564-50197 · 90564-50198 · 90564-50199 · 90564-50200 · 90564-50201 · 90564-50202 · 90564-50203 · 90564-50204 · 90564-50205 · 90564-50206 · 90564-50207 · 90564-50208 · 90564-50209 · 90564-50210 · 90564-50211 · 90564-50212 · 90564-50213 · 90564-50214 · 90564-50215 · 90564-50216 · 90564-50217 · 90564-50218 · 90564-50219 · 90564-50220 · 90564-50221 · 90564-50222 · 90564-50223 |
| 41320 | Front differential tube assembly | 41320-0K030 · 41321-0K050 |
| 41331G | Needle roller bearings (for front differential side gears) | 90364-T0009 |
| 41332B | Hole snap ring (for differential side gear countershaft) | 90521-34003 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-T0006 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0K040 |
| 41351F | Front differential planetary gear thrust washer | 41351-0K010 · 41351-35030 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-0K020 · 41361-0K030 · 41361-0K040 · 41361-0K050 · 41361-0K060 · 41361-0K070 · 41361-0K080 · 41361-0K090 |
| 41400B | Differential motor actuator assembly | 41400-35034 |
| 41433 | Differential clutch sleeve | 41433-35010 |
| 41434 | Differential clutch hub | 41434-35030 |
| 41435A | Bolt (for securing differential clutch housing) | 90107-12003 · 90107-T0001 · 90107-T0002 |
| 41507A | No. 2 front differential lock actuator breather pipe | 41507-0K090 · 41507-0K100 · 41507-0K120 · 41507-0K180 · 41507-0K260 |
| 41507B | Front differential lock actuator breather pipe | 90445-T0014 |
| 41533 | front differential breather pipe | 41533-0K050 · 41533-0K080 · 41533-0K110 · 41533-0K120 |
| 41534 | Front differential breather bracket | 41534-0K090 |
| 41653B | Differential fixed part upper stop | 41653-0K010 |
| 41654A | Differential fixed part lower block | 41654-0K010 |
| 41655 | No. 1 front differential retainer nut | 41655-0K011 |
| 43637C | Castle nut (for front axle drive pinion) | 90177-22003 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-T0064 |
| 52392A | Front differential No. 1 bracket | 52380-0K010 · 52380-0K100 |
| 52393A | Front differential No. 2 bracket | 52380-0K020 · 52380-0K110 |
| 52394 | Front differential No. 3 bracket | 52380-0K030 · 52380-0K120 |
| 89429H | temperature sensor | 89429-53010 |
| 89429J | Gasket (for water temperature sensor) | 90430-14011 |
