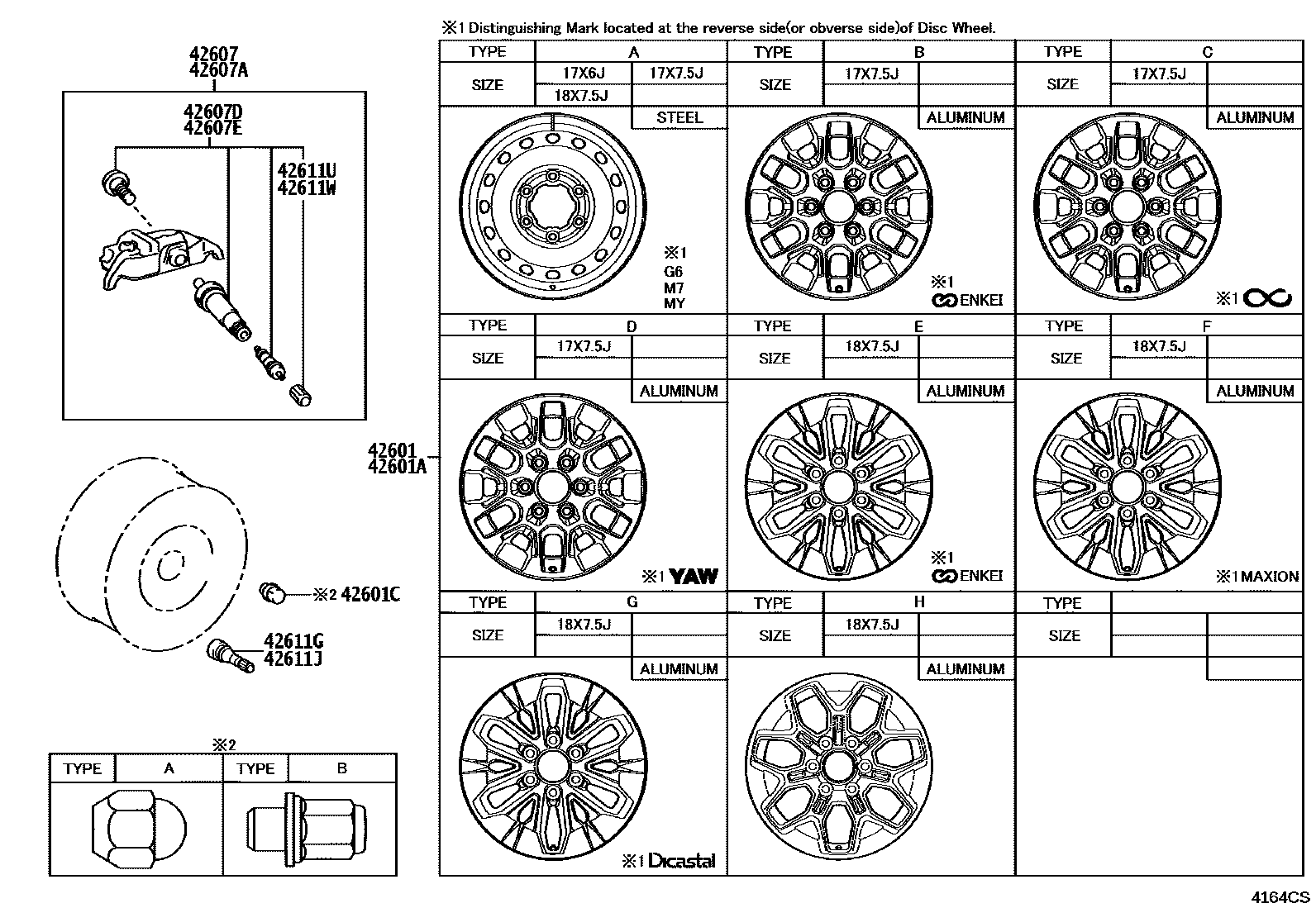

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-0KG60 · 42611-0KX90 · 42611-0KY00 · 42611-0KY10 · 42611-0KZ20 · 42611-0KZ30 · 42611-0KZ40 · 42611-YYF60 |
| 42601A | Spoke wheel (for spare tire) | 42611-0KG60 · 42611-0KJ70 · 42611-0KX90 · 42611-0KY00 · 42611-0KY10 · 42611-0KZ20 · 42611-0KZ30 · 42611-0KZ40 · 42611-YYF60 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 · 90942-T1005 |

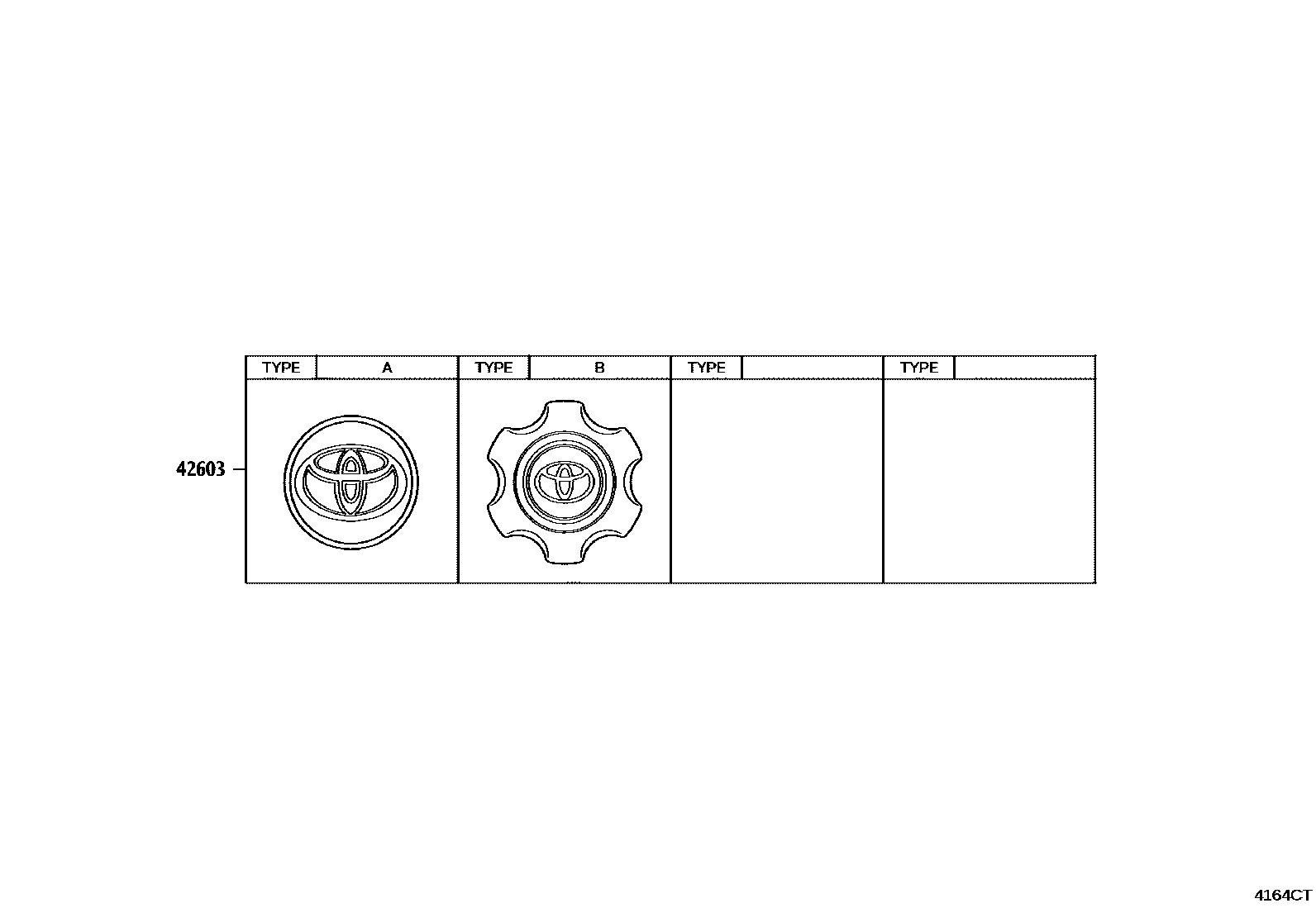

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K310 · 42603-60730 · 42604-0K010 · 4260B-0K100 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-42080 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-42080 |
| 42607D | tire pressure monitoring valve | 90942-05047 |
| 42607E | Tire pressure monitoring valve (for septa) | 90942-05047 |
| 42611G | Valve (for tubeless tires) | 90080-94031 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
