Toyota HILUX Extension shell (ATM) — Figure 3504

Toyota HILUX EPC diagram 3504, Extension shell (ATM), with 1 images and 4 PNC and OE references.

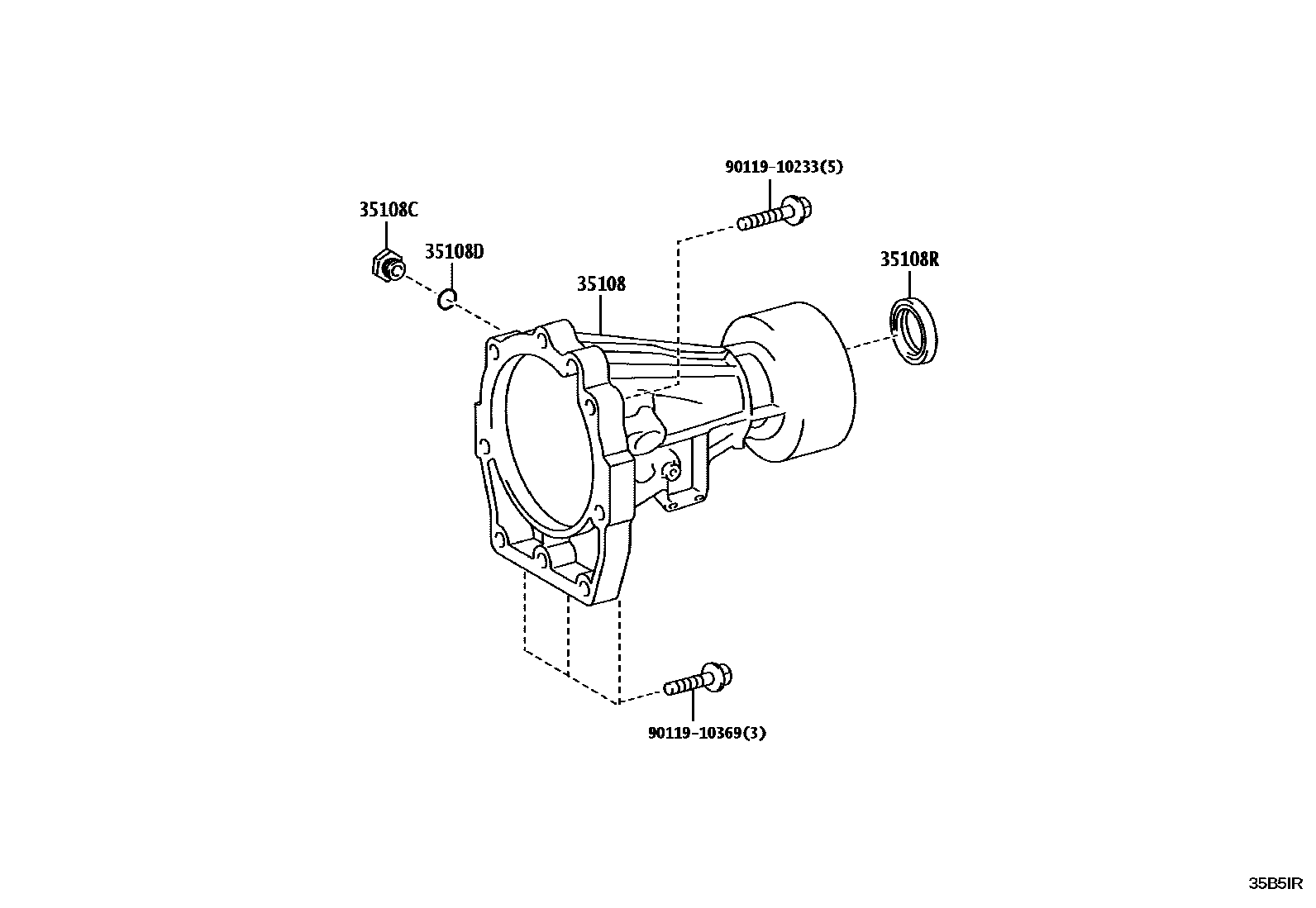

Toyota HILUX Extension shell (ATM) EPC diagram — 35B5IR
Extension shell (ATM) — 35B5IR (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
35108Extended shell sub-assembly (ATM)35108-0K040 · 35108-71040
35108CScrew plug (for automatic transmission extension housing)90341-18059
35108DO-ring (for automatic transmission extension housing)90301-15004 · 90301-T0068
35108ROil seal (for automatic transmission extension housing)90311-45037
