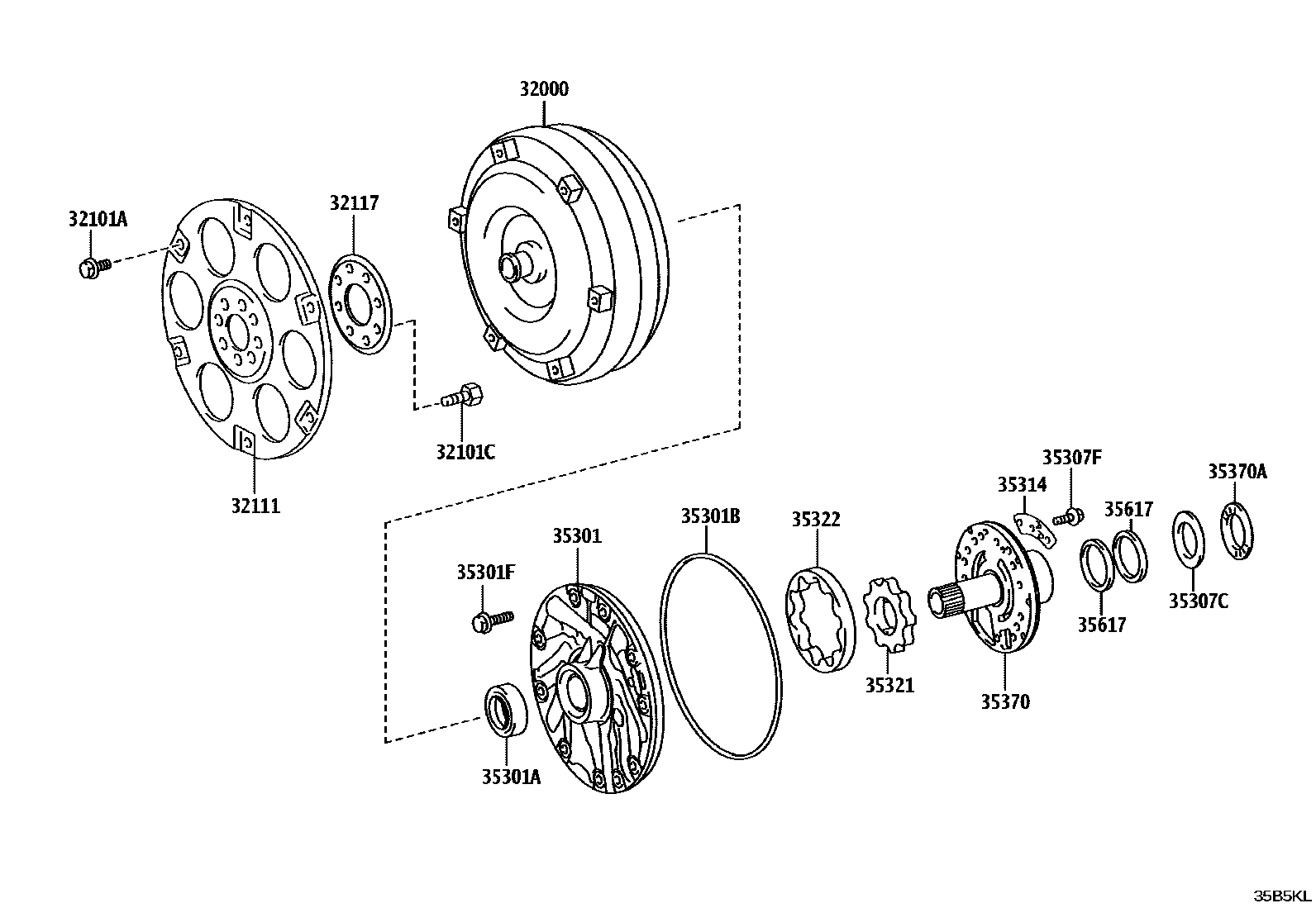

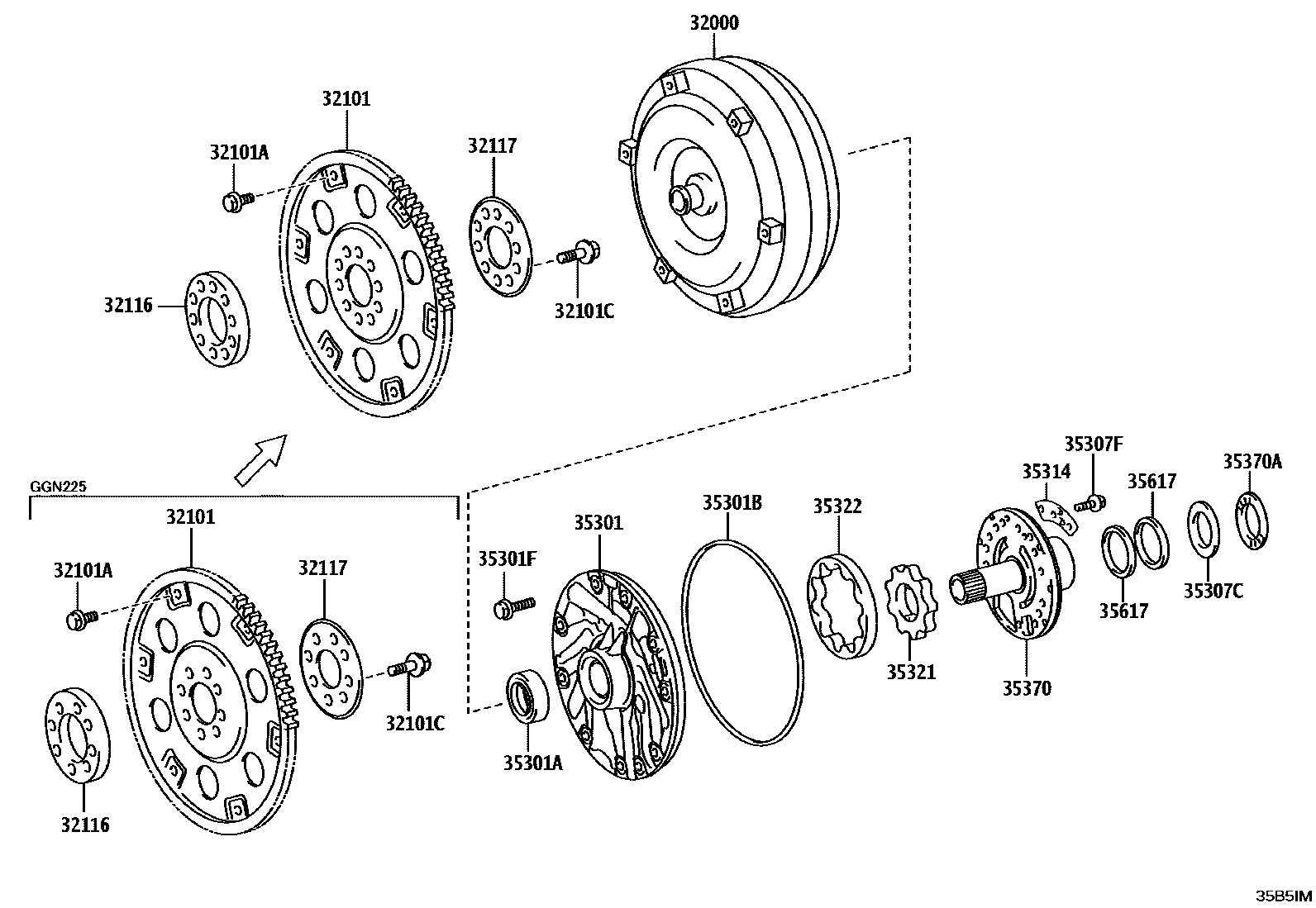

Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-0K030 · 32000-0K060 · 32000-71050 · 32000-71100 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-26010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90105-10413 · 90105-10546 · 90105-T0237 · 90119-09026 · 90119-09027 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10276 · 90105-13015 · 90105-T0203 |
| 32111 | Pump impeller drive plate | 32111-0K030 · 32111-71010 |
| 32116 | Front transmission plate spacer | 32116-26010 |
| 32117 | Rear transmission plate spacer | 32117-26010 · 32117-60050 · 32117-YU010 |
| 35301 | Front oil pump body sub-assembly | 35301-0K010 · 35301-71010 |
| 35301A | Oil seal (for front oil pump) | 90311-38101 |
| 35301B | O-ring (for front oil pump body) | 35697-60010 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08091 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-71070 |
| 35307F | Bolt (for stator shaft) | 90148-60079 · 90148-T0024 |
| 35314 | front oil pump piece | 35314-0K020 · 35314-71020 |
| 35321 | Front oil pump driving gear | 35321-0K010 · 35321-71010 |
| 35322 | Front oil pump driven gear | 35322-0K010 · 35322-71010 |
| 35370 | stator shaft assembly | 35370-0K010 · 35370-71010 |
| 35370A | Thrust needle roller bearing (for stator shaft) | 90374-71002 |
| 35617 | Clutch drum oil ring | 35617-50030 |
