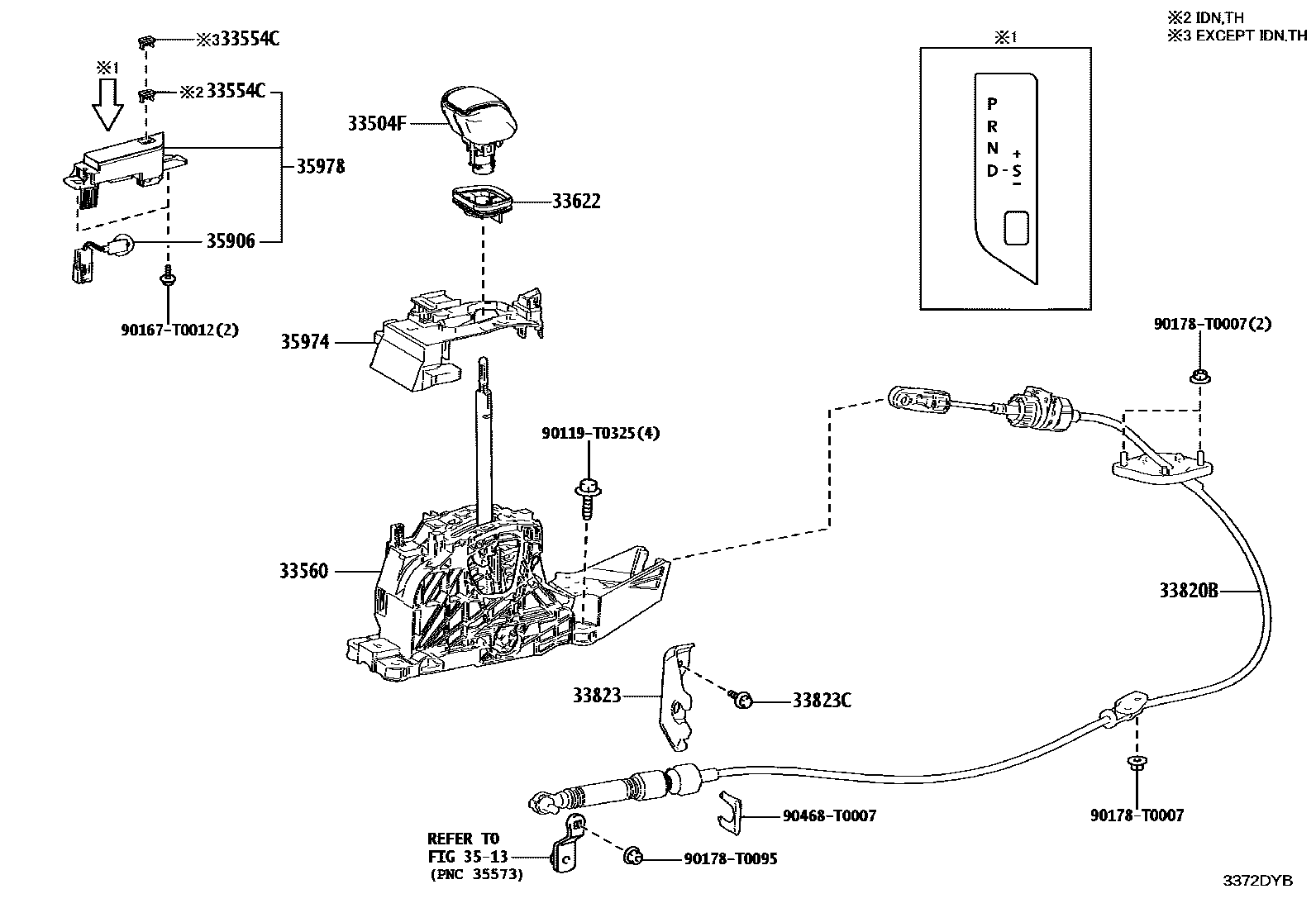

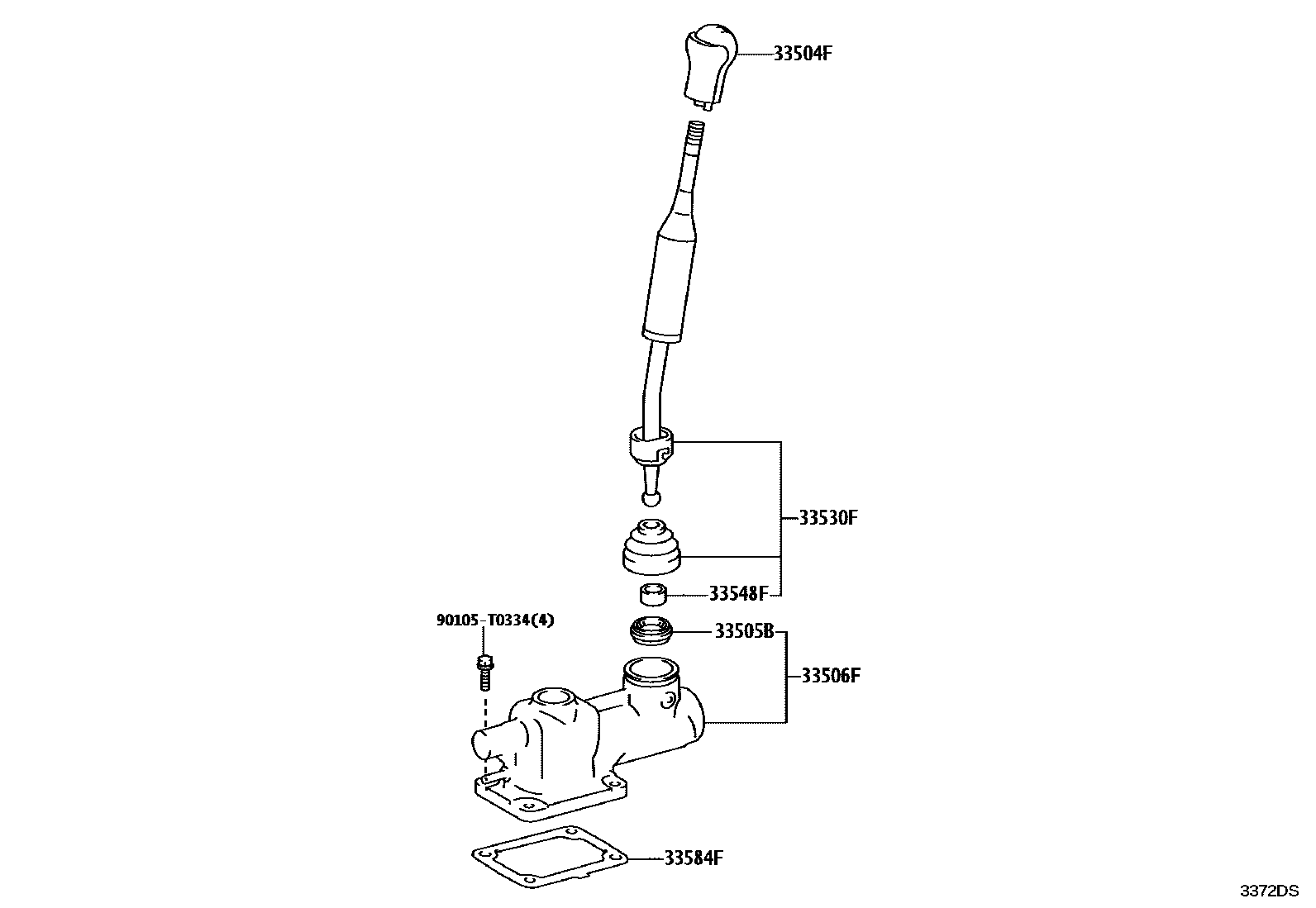

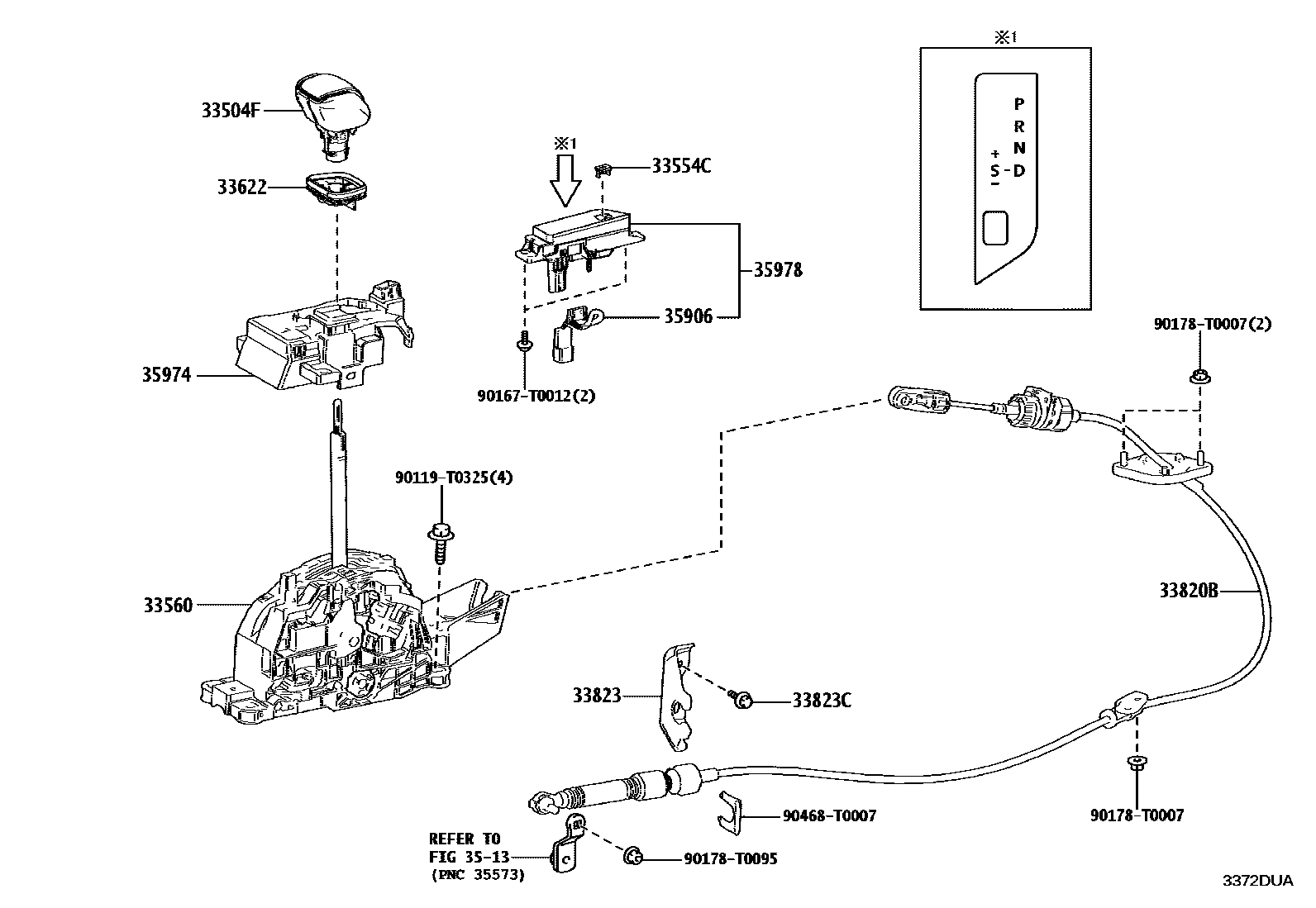

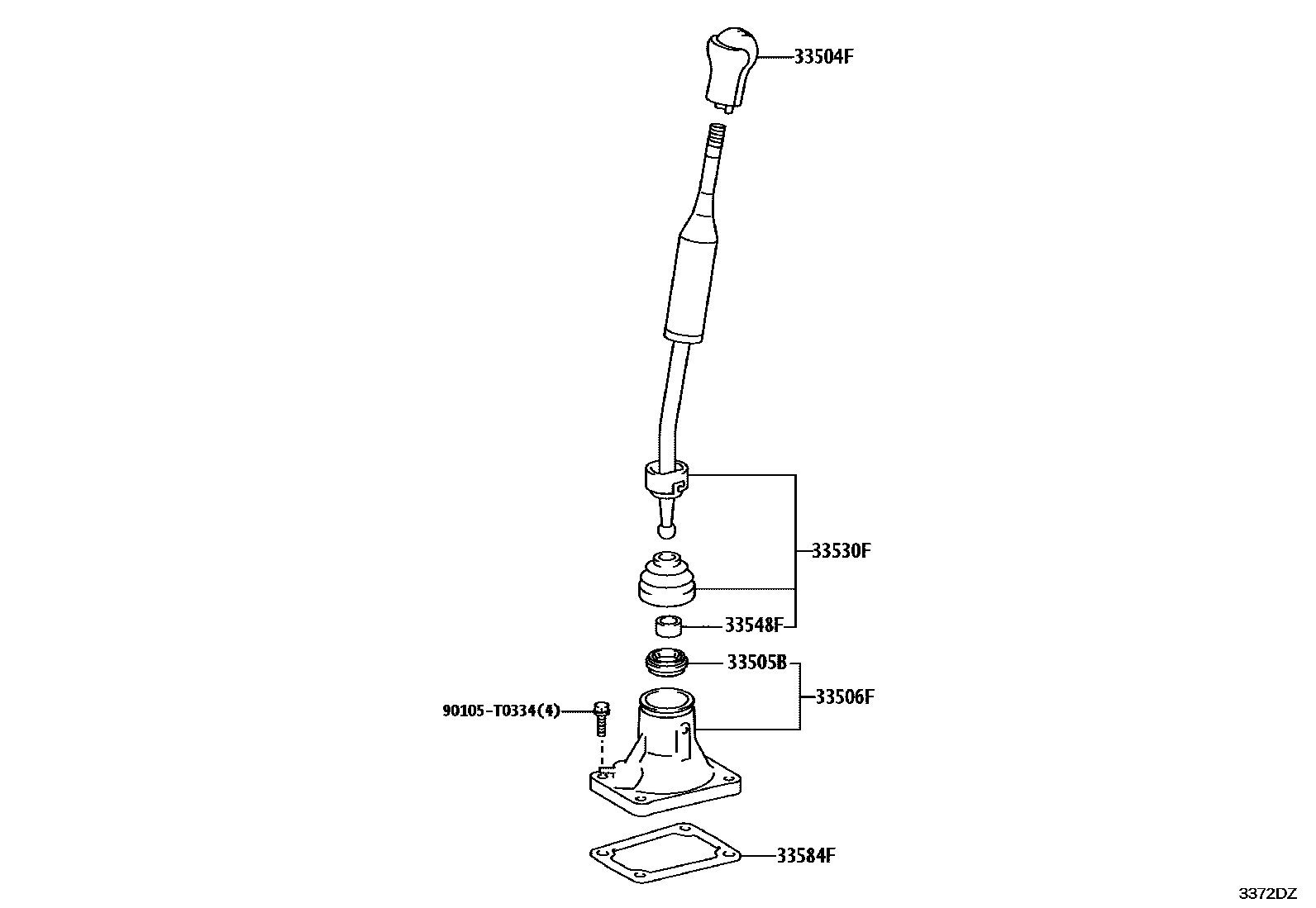

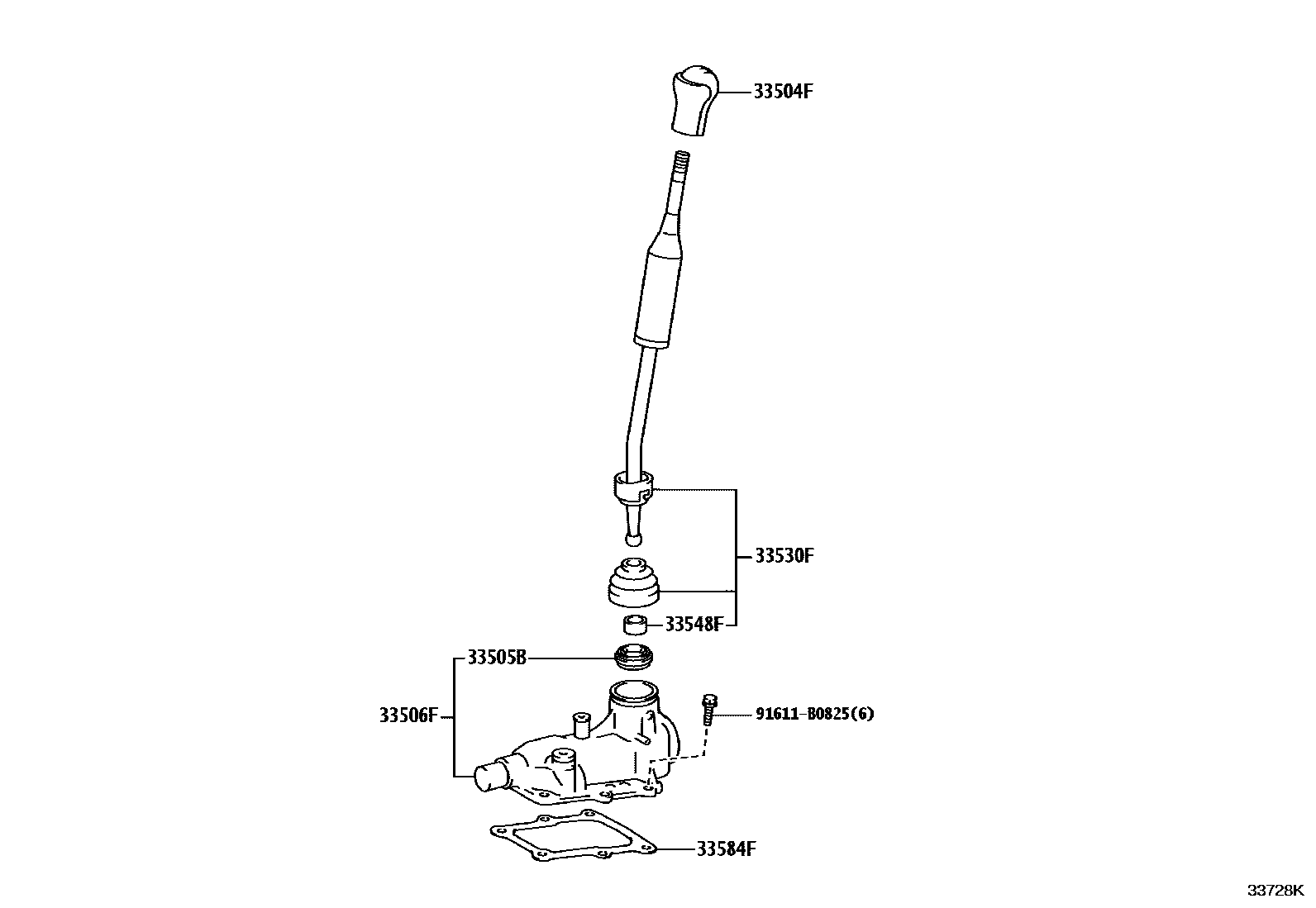

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33505B | Shift lever seat sub-assembly | 33505-0K010 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-0K070 · 33570-0K100 · 33570-0K111 · 33570-0K121 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0K621 · 33530-0K681 · 33530-0K691 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-04010 · 33548-22020 · 33548-60040 |
| 33554C | Shift lock release button cover | 33502-0K050 · 33554-0K090 |
| 33560 | Shift lock control unit assembly | 33560-0K180 · 33560-0K190 · 33560-0K200 · 33560-0K210 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-0K010 · 33584-0K020 · 33584-71010 |
| 33622 | No. 1 shift lever handle cover | 33622-0K050 |
| 33820B | Transmission control cable assembly | 33820-0K210 · 33820-0K270 · 33820-0K300 |
| 33823 | No. 1 transmission control cable bracket | 33823-KK010 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0102 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0G010 · 35906-0G020 |
| 35974 | Position indicator light lower shell | 35974-0K030 · 35974-0K040 |
| 35978 | Shift lever position indicator light | 35978-0K030 · 35978-0K040 · 35978-0K060 |
