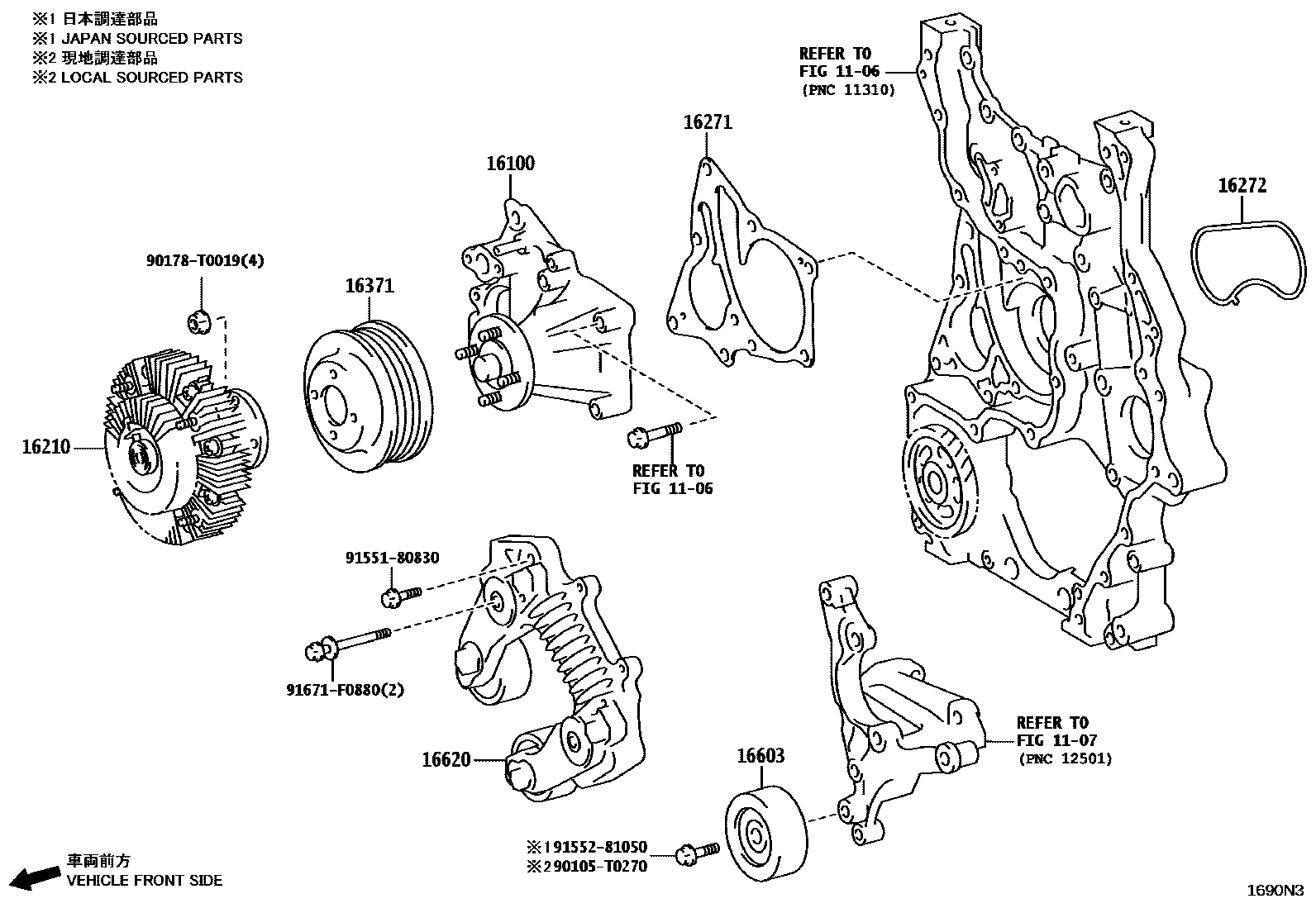

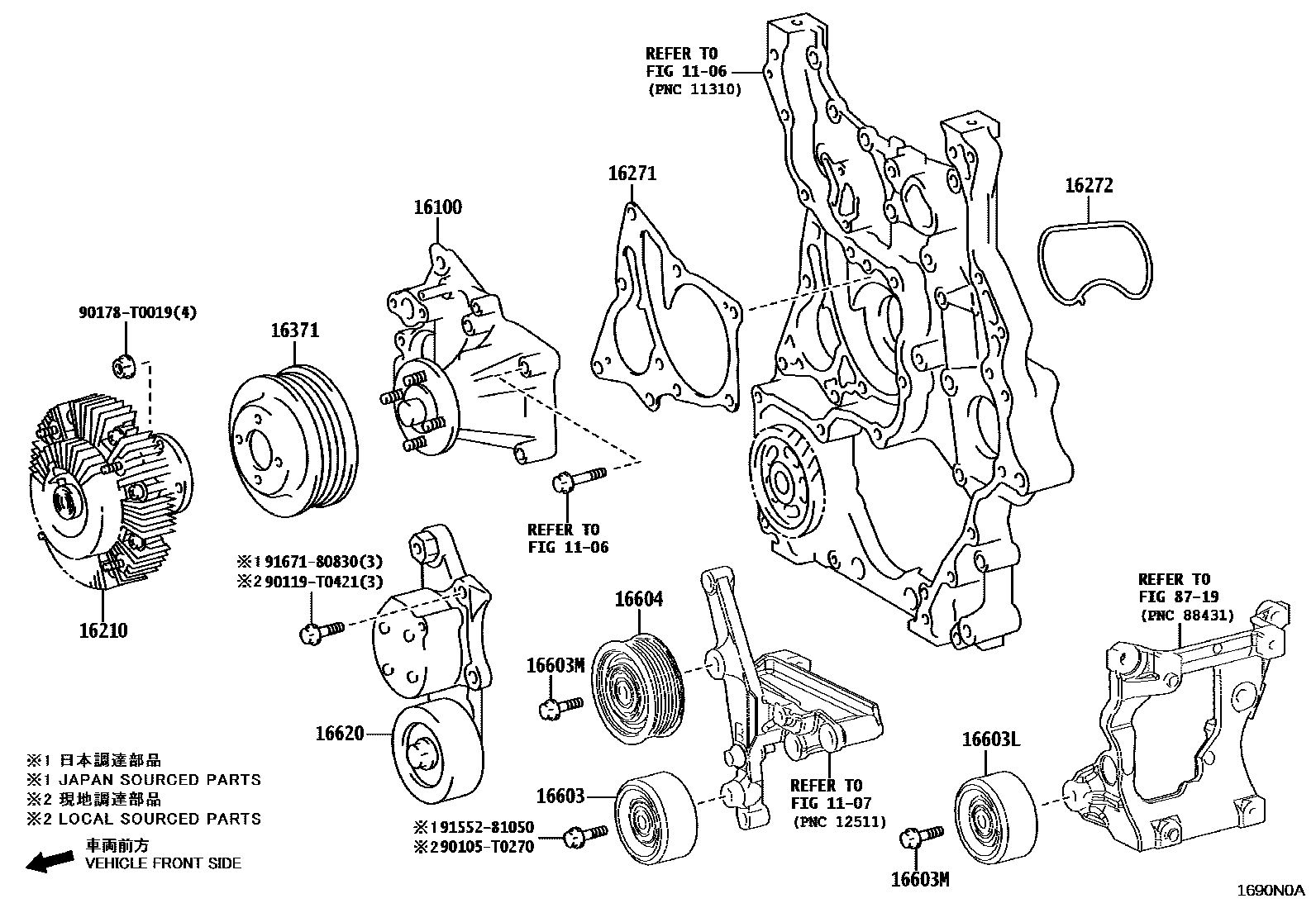

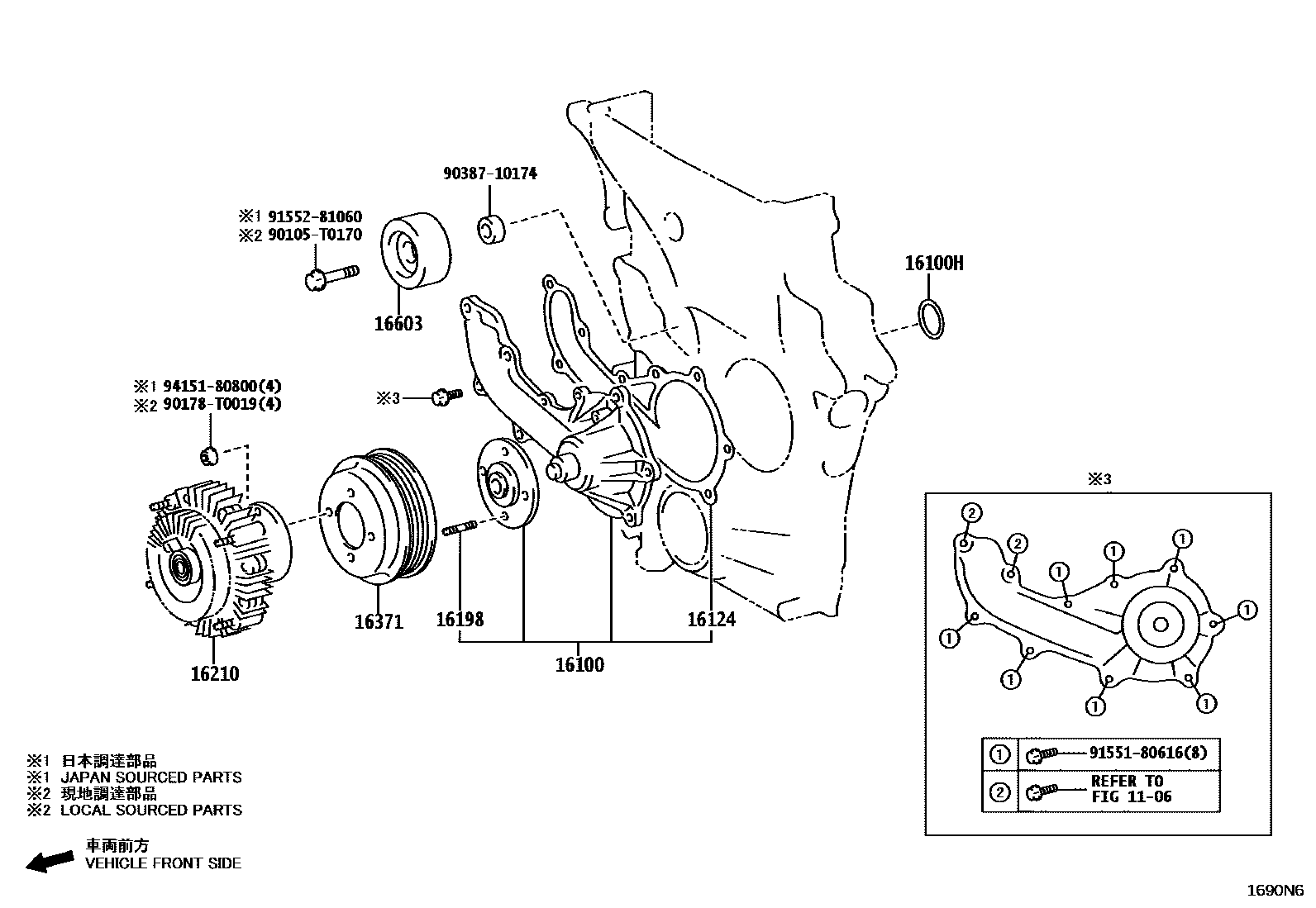

Toyota HILUX Water Pump — Figure 1601
Toyota HILUX EPC diagram 1601, Water Pump, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09460 · 16100-09711 |
| 16100H | O-ring (for water pump) | 90301-T0065 |
| 16124 | water pump cover gasket | 16124-0C010 |
| 16198 | Stud bolts (for water pump pulley seat) | 92122-60818 |
| 16210 | Hydraulic coupler assembly | 16210-0C010 · 16210-0E040 · 16210-0E050 · 16210-0E060 |
| 16271 | water pump gasket | 16271-0E010 |
| 16272 | No. 2 water pump gasket | 16272-0E010 |
| 16371 | fan pulley | 16371-0C010 · 16371-0C020 · 16371-0E010 |
| 16603 | No. 1 idler pulley sub-assembly | 16603-0C013 · 16603-0E010 · 16603-31050 |
| 16603L | No. 1 idler pulley sub-assembly | 16603-0E010 |
| 16603M | Bolt (for idler gear) | 90105-T0270 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-35010 |
| 16620 | Poly V-belt tensioner assembly | 16620-0E010 · 16620-0E020 · 16620-0E030 |
