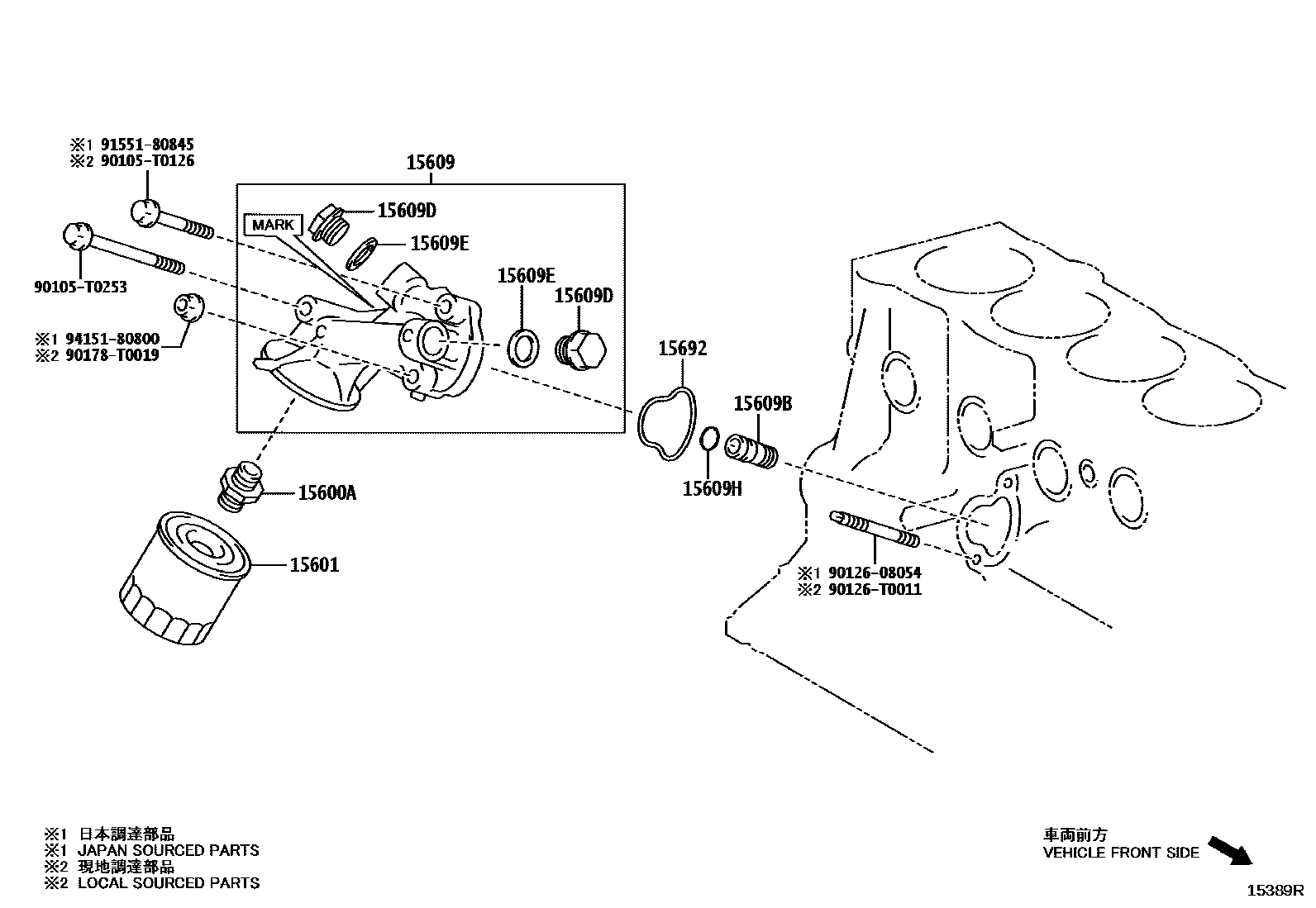

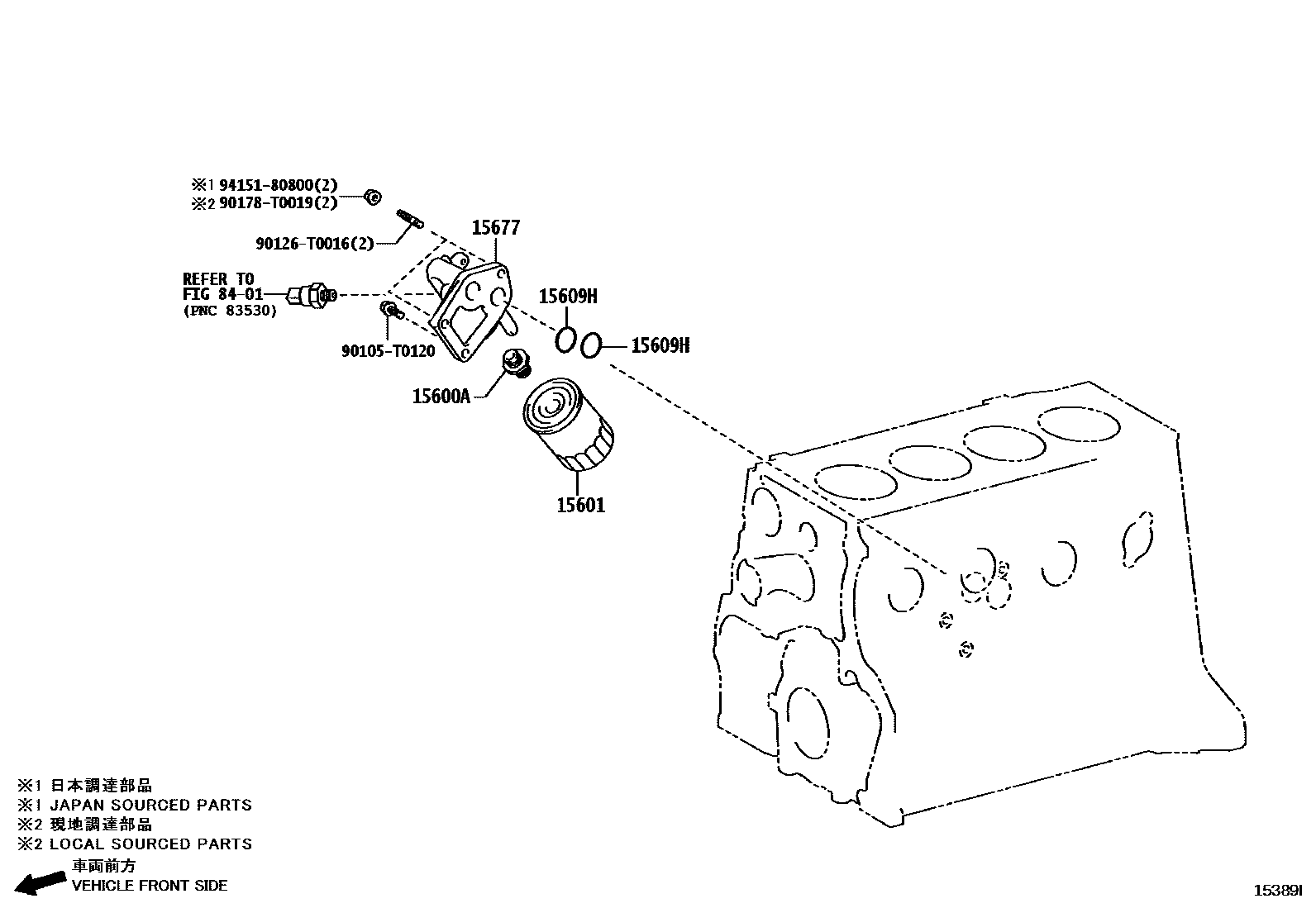

Toyota HILUX Oil Filter — Figure 1502
Toyota HILUX EPC diagram 1502, Oil Filter, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 90404-T0002 |
| 15601 | Oil filter sub-assembly | 90915-TB001 |
| 15609 | Oil filter bracket sub-assembly | 15609-0C020 · 15609-0C090 |
| 15609B | Connector (for oil filter bracket) | 90404-19017 · 90404-T0003 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-T0010 |
| 15609E | Headed straight thread plug liner | 90430-T0009 |
| 15609H | O-ring (for oil filter bracket) | 90301-17017 · 90301-T0028 · 90301-T0046 · 90301-T0084 |
| 15677 | Oil filter bracket | 15677-0E010 |
| 15692 | Oil filter holder gasket | 15692-0C010 · 15692-0C020 |
