Toyota HILUX Engine Oil Pump — Figure 1501

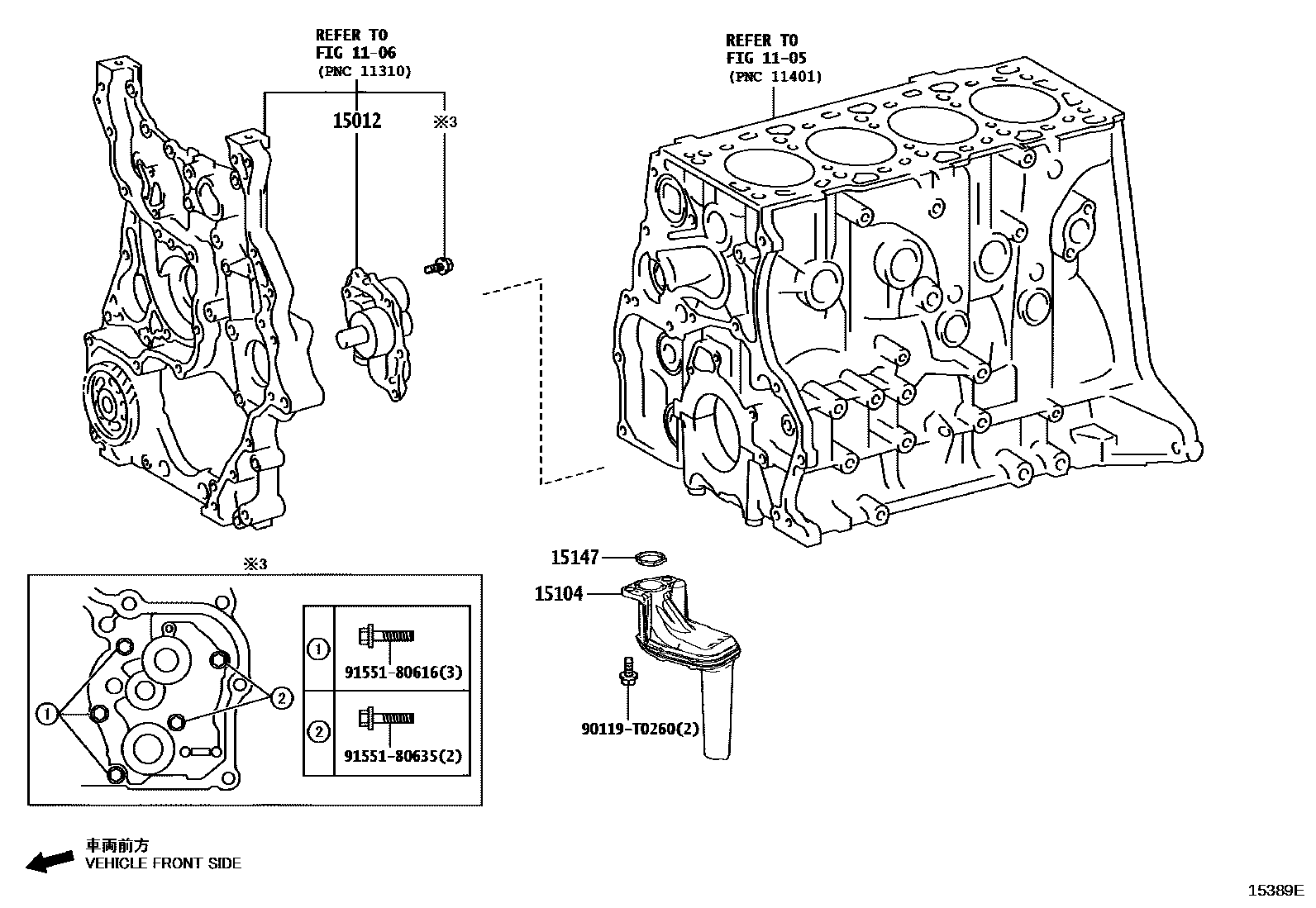

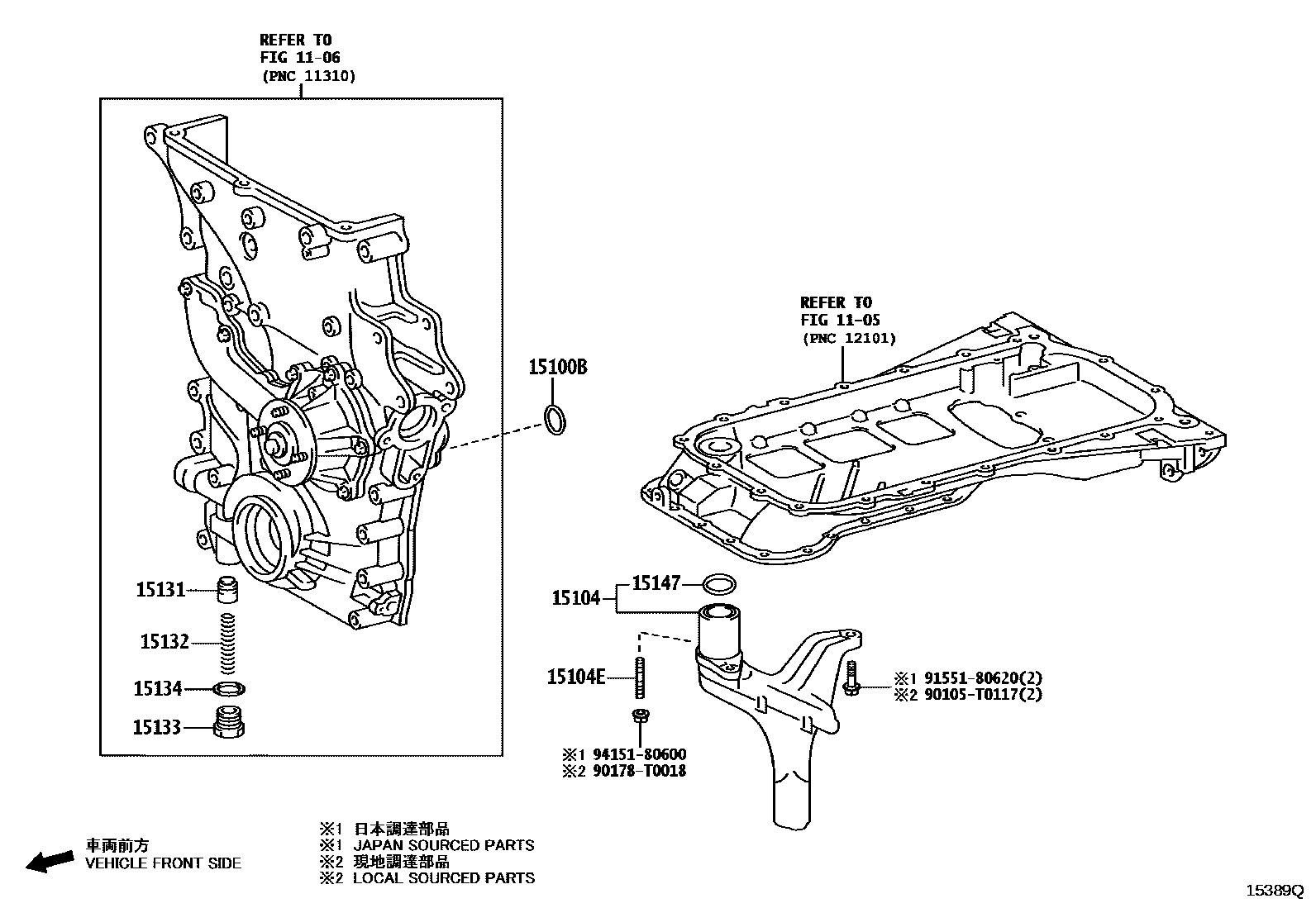

Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-0E010 |
| 15100B | O-ring (for oil pump) | 90301-T0020 · 90301-T0083 |
| 15104 | Oil filter sub-assembly | 15104-08030 · 15104-0C050 |
| 15104E | Stud bolts (for oil filter) | 90126-06029 · 90126-T0012 |
| 15131 | Oil pump pressure reducing valve | 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-0C010 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-0C010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15147 | Oil filter gasket | 15147-0C020 |
