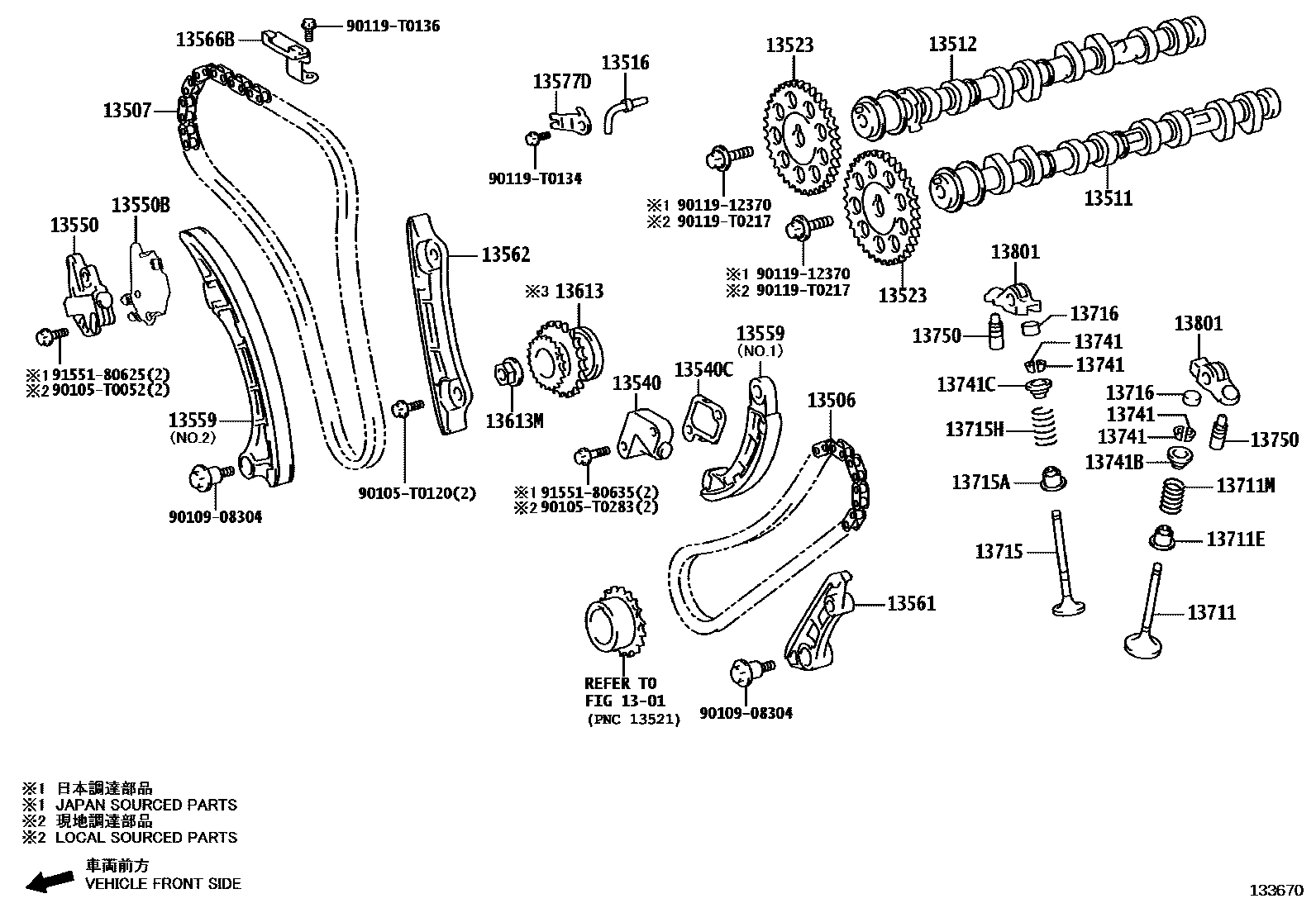

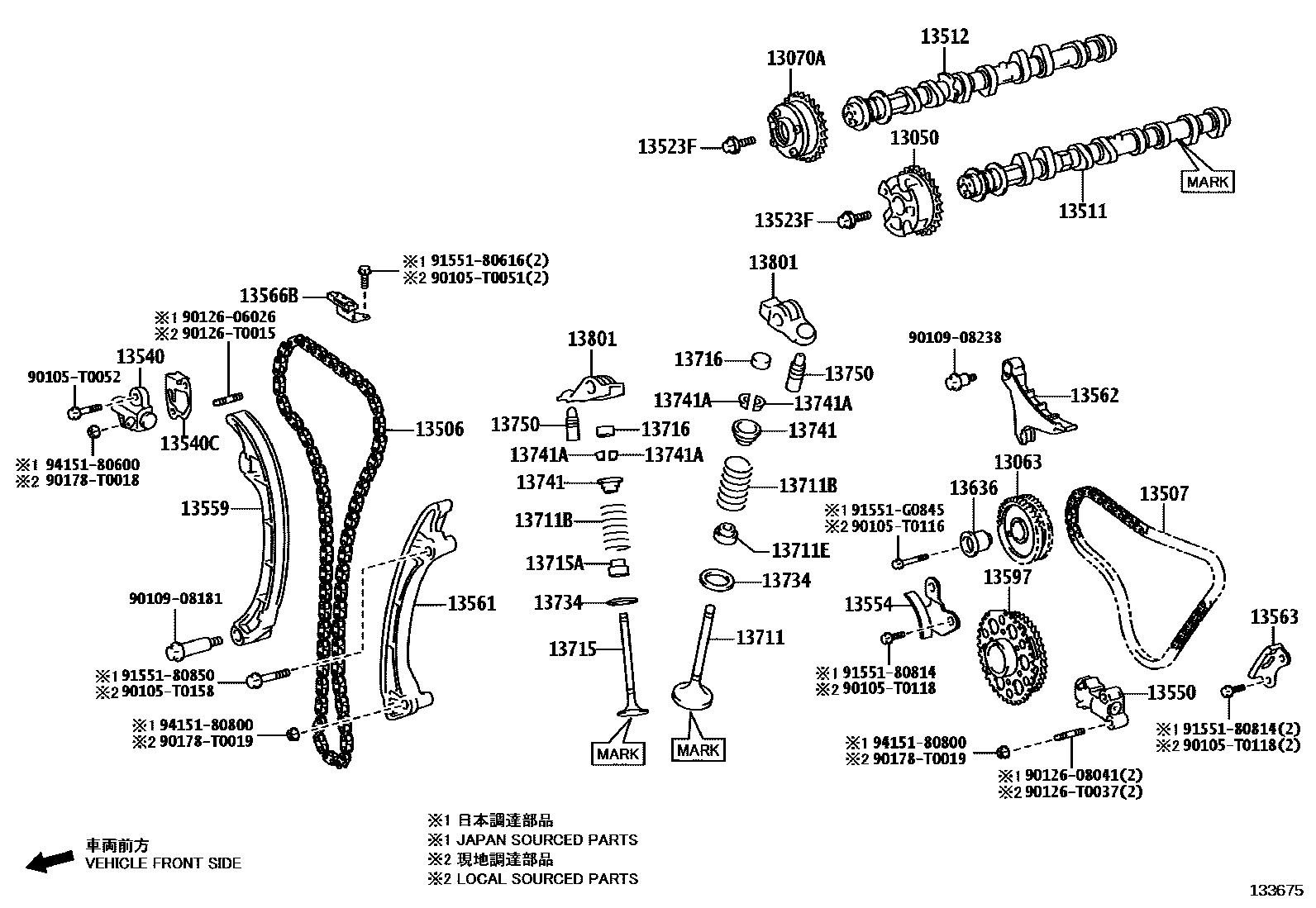

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0C010 · 13050-75040 |
| 13063 | Balance shaft driving gear sub-assembly | 13063-0C010 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0C010 · 13070-75010 |
| 13506 | Chain sub-assembly | 13506-0C040 · 13506-0E011 · 13506-75070 |
| 13507 | No. 2 chain sub-assembly | 13507-0C010 · 13507-0E011 · 13507-75030 |
| 13511 | camshaft | 13501-0C011 · 13501-0E010 · 13501-75071 |
| 13512 | Camshaft No. 2 | 13502-0C030 · 13502-0E010 · 13502-75080 |
| 13516 | oil nozzle | 13516-11010 |
| 13523 | Camshaft timing gear or sprocket | 13523-0E010 |
| 13523F | Bolt (for camshaft timing gear) | 90119-12370 · 90119-T0217 |
| 13540 | No. 1 chain tensioner assembly | 13540-0C021 · 13540-0E010 · 13540-75041 |
| 13540C | Pad (for chain tensioner) | 13552-0C020 · 13552-0C030 · 13552-0E010 · 13552-75030 |
| 13550 | No. 2 chain tensioner assembly | 13550-0C020 · 13550-0E010 · 13550-75010 |
| 13550B | Chain Tensioner Pad No. 2 | 13552-08010 · 13552-35010 |
| 13554 | No. 4 chain shock absorber | 13554-0C011 · 13554-75021 |
| 13559 | chain tensioner guide plate | 13559-0C040 · 13559-0E010 · 13559-0E020 · 13559-75060 |
| 13561 | No. 1 chain shock absorber | 13561-0C040 · 13561-0E011 · 13561-75060 |
| 13562 | No. 2 chain shock absorber | 13562-0C010 · 13562-0E010 · 13562-75010 |
| 13563 | No. 3 chain shock absorber | 13563-0C011 · 13563-75021 |
| 13566B | Timing chain guide plate | 13566-0C020 · 13566-0E010 · 13566-75020 |
| 13577D | Locking plate | 13577-0E010 |
| 13597 | No. 2 crankshaft timing sprocket | 13597-0C010 · 13597-75020 |
| 13613 | Fuel injection pump driving gear | 13616-0E011 |
| 13613M | Nut (for fuel injection pump drive gear) | 90179-T0009 |
| 13636 | Balance shaft driving gear shaft | 13636-0C010 · 13636-75010 |
| 13711 | intake valve | 13711-0C040 · 13711-0C051 · 13711-0E010 · 13711-75110 |
| 13711B | Compression spring (for inner side) | 90501-T0037 · 90501-T0038 |
| 13711E | Intake valve stem oil seal | 90080-31085 · 90913-T2006 |
| 13711M | Compression spring (for intake valve) | 90501-T0043 |
| 13715 | exhaust valve | 13715-0C040 · 13715-0C051 · 13715-0E010 · 13715-75140 |
| 13715A | Exhaust valve stem oil seal | 90080-31084 · 90913-T2006 |
| 13715H | Compression spring (for exhaust valve) | 90501-T0043 |
| 13716 | valve stem cover | 13716-0C010 · 13716-0C030 · 13716-0E010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0C010 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0C030 · 13741-0Y010 · 13741-36010 · 90913-03021 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13741B | Intake valve spring seat ring | 13741-0E010 · 13741-33020 |
| 13741C | Exhaust valve spring seat ring | 13741-0E010 · 13741-33020 |
| 13750 | Valve lash adjuster assembly | 13750-0C030 · 13750-0C040 · 13750-0E010 · 13750-21010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0C020 · 13801-0C030 · 13801-0E012 · 13801-36020 |
