Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 4 images and 15 PNC and OE references.

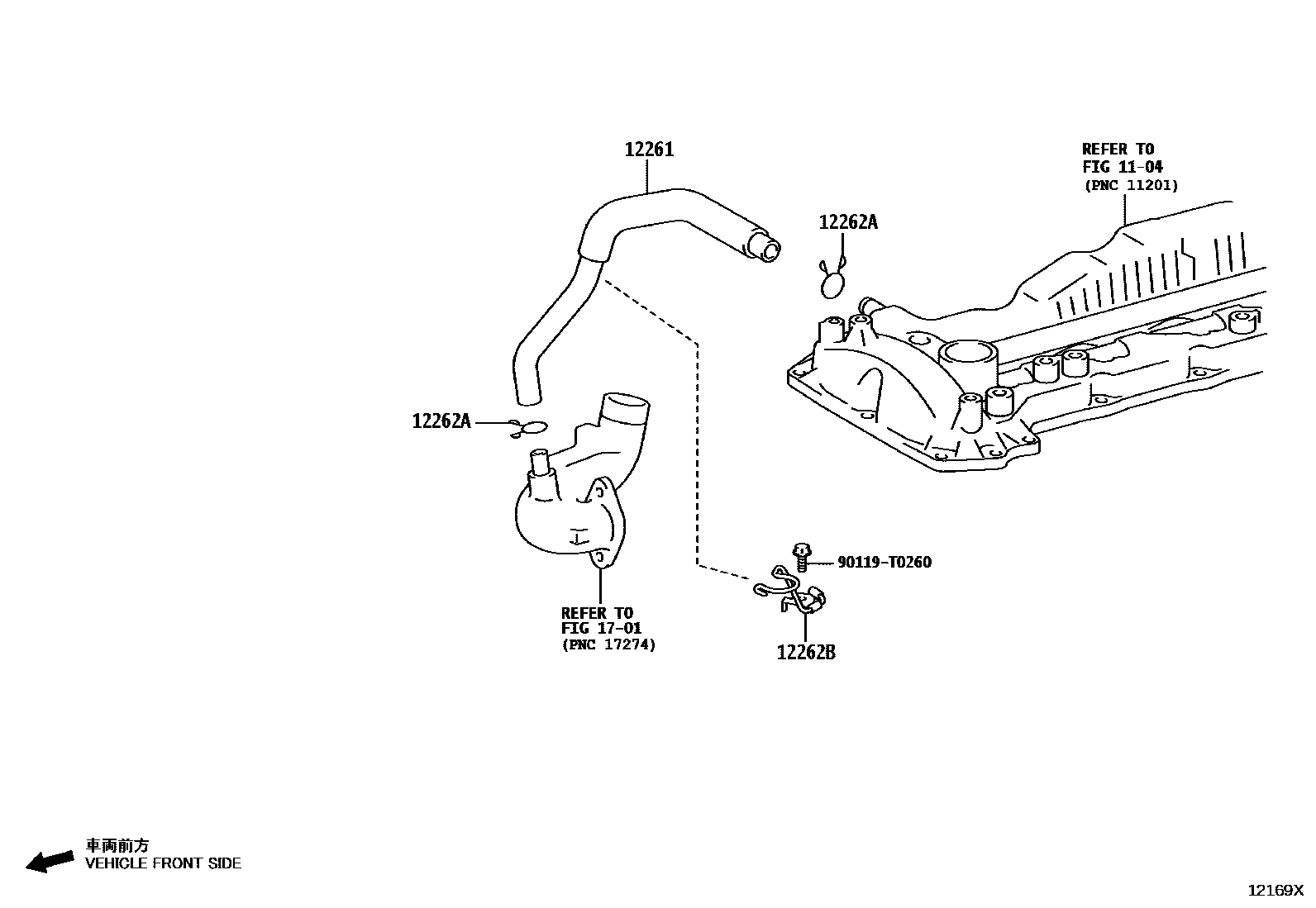

Toyota HILUX Ventilation Hose EPC diagram — 12169X
Ventilation Hose — 12169X (202508 – 999999)

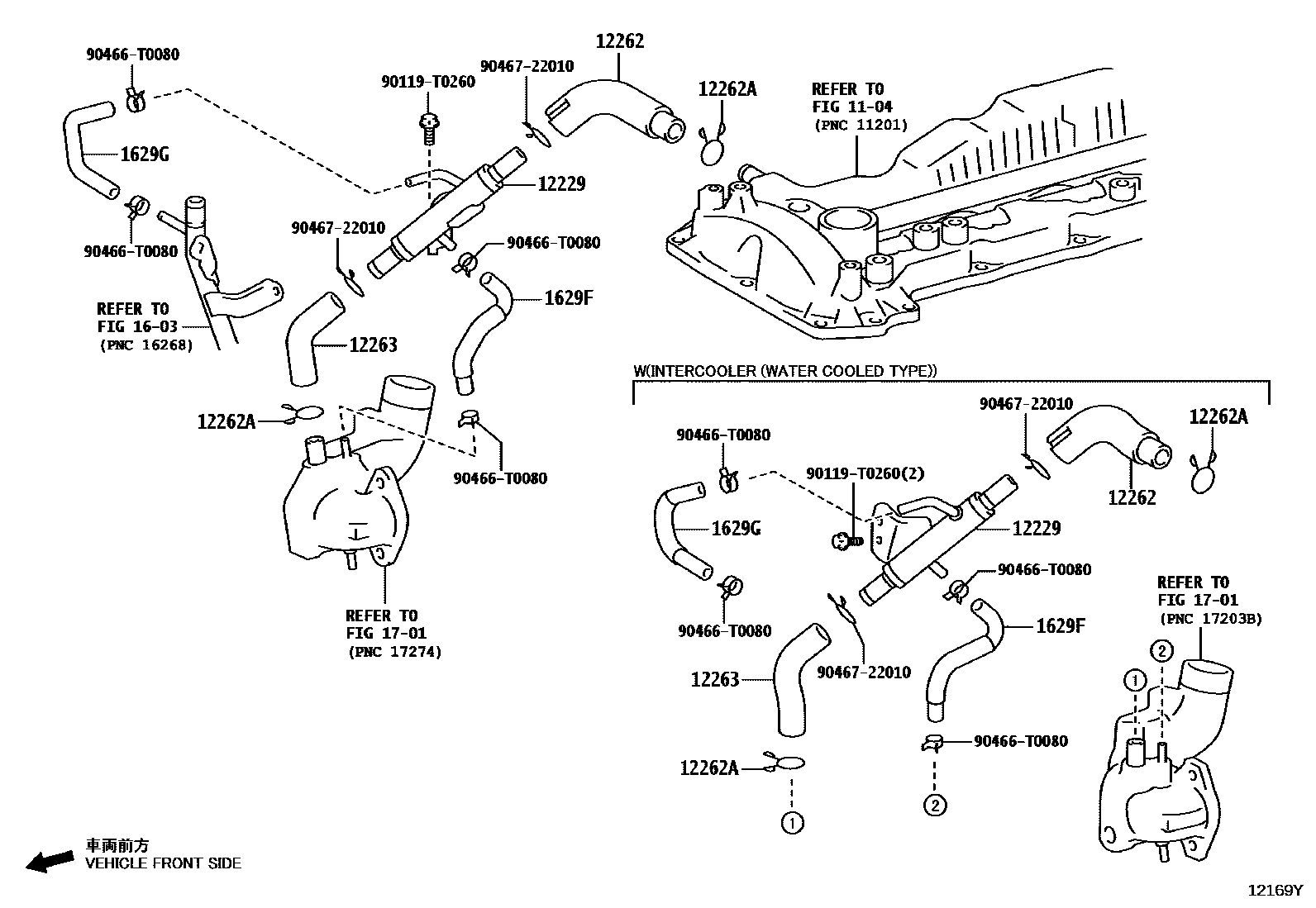

Toyota HILUX Ventilation Hose EPC diagram — 12169Y
Ventilation Hose — 12169Y (202510 – 999999)

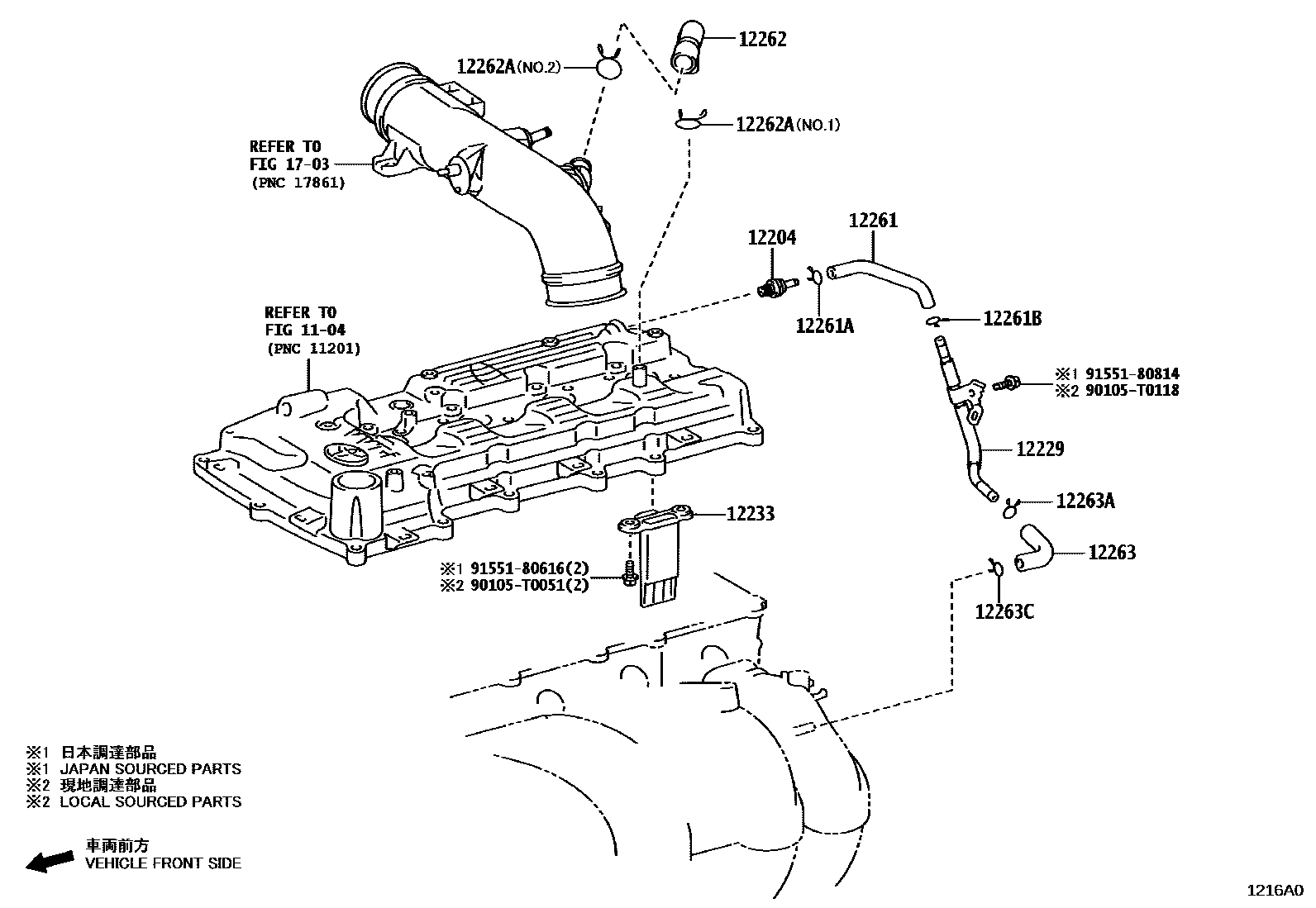

Toyota HILUX Ventilation Hose EPC diagram — 1216A0
Ventilation Hose — 1216A0 (202510 – 999999)

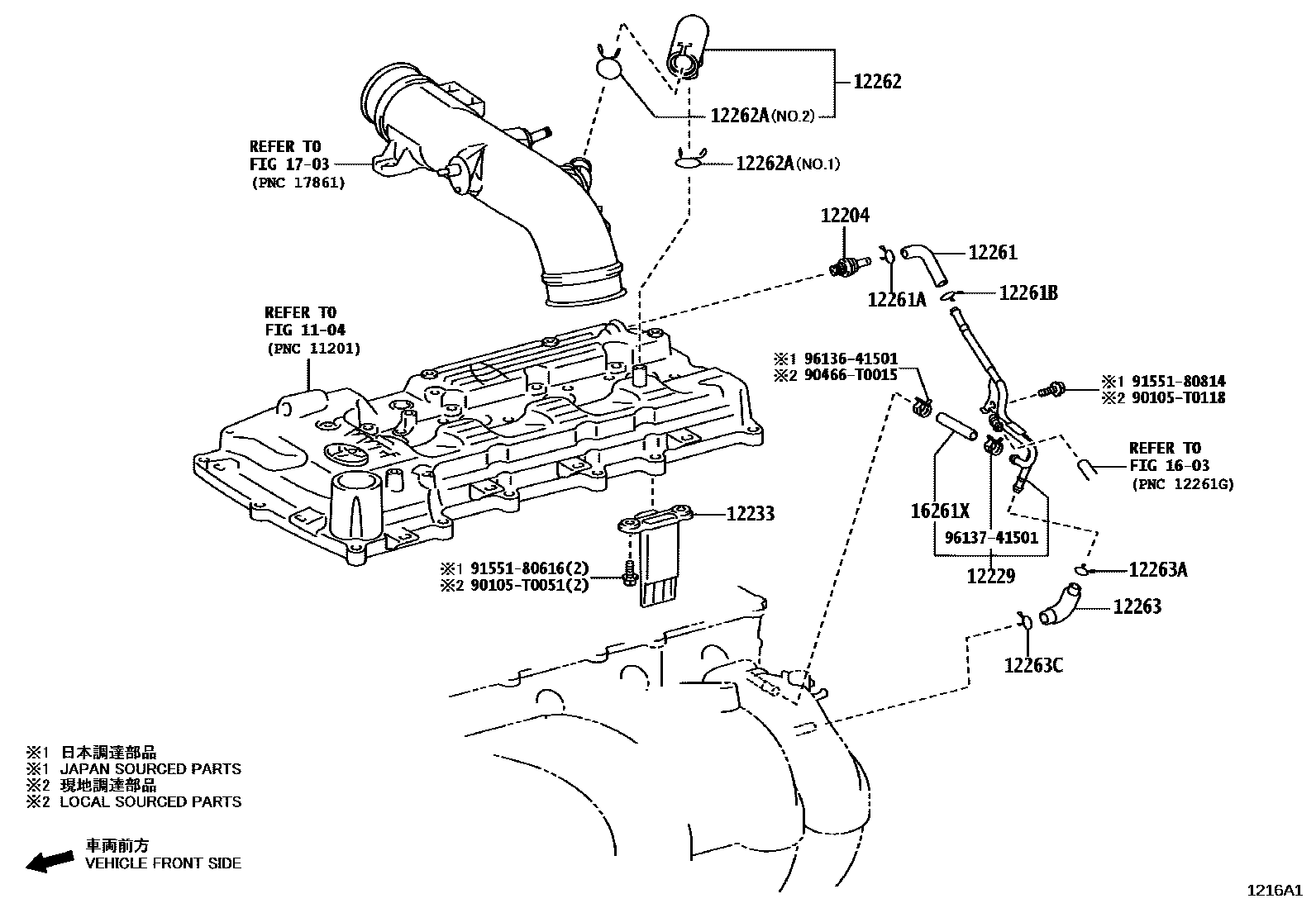

Toyota HILUX Ventilation Hose EPC diagram — 1216A1
Ventilation Hose — 1216A1 (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0C030
12229ventilation duct12229-0C020 · 12229-0E010 · 12229-0E020 · 12229-75070
12233Ventilation Connector No. 112233-0C010 · 12233-0C020 · 12233-75010
12261Ventilation Hose12261-0C040 · 12261-0E010 · 12261-75140
12261AClip or clip (for vent hose)90467-15021
12261BClip or clip (for vent hose)90466-T0026 · 90467-14001
12262Ventilation hose No. 212262-0C060 · 12262-0E010 · 12262-0E020 · 12262-75240
12262AClamp (for vent hose No. 2)90466-22005 · 90466-T0027 · 90466-T0075 · 90467-21004 · 90467-24038
12262BClamp (for ventilation hose)16581-11040
12263No. 3 ventilation hose12263-0C020 · 12263-0E010 · 12263-0E020 · 12263-75070
12263AClip (for ventilation hose)90466-T0026 · 90467-14001
12263CClip (for ventilation hose)90466-T0060 · 90466-T0061 · 90467-16035
16261Xwater hose16267-75070
1629FNo. 19 water bypass hose1629F-0E010 · 1629F-0E020
1629GNo. 20 water bypass hose1629G-0E010 · 1629G-0E020
