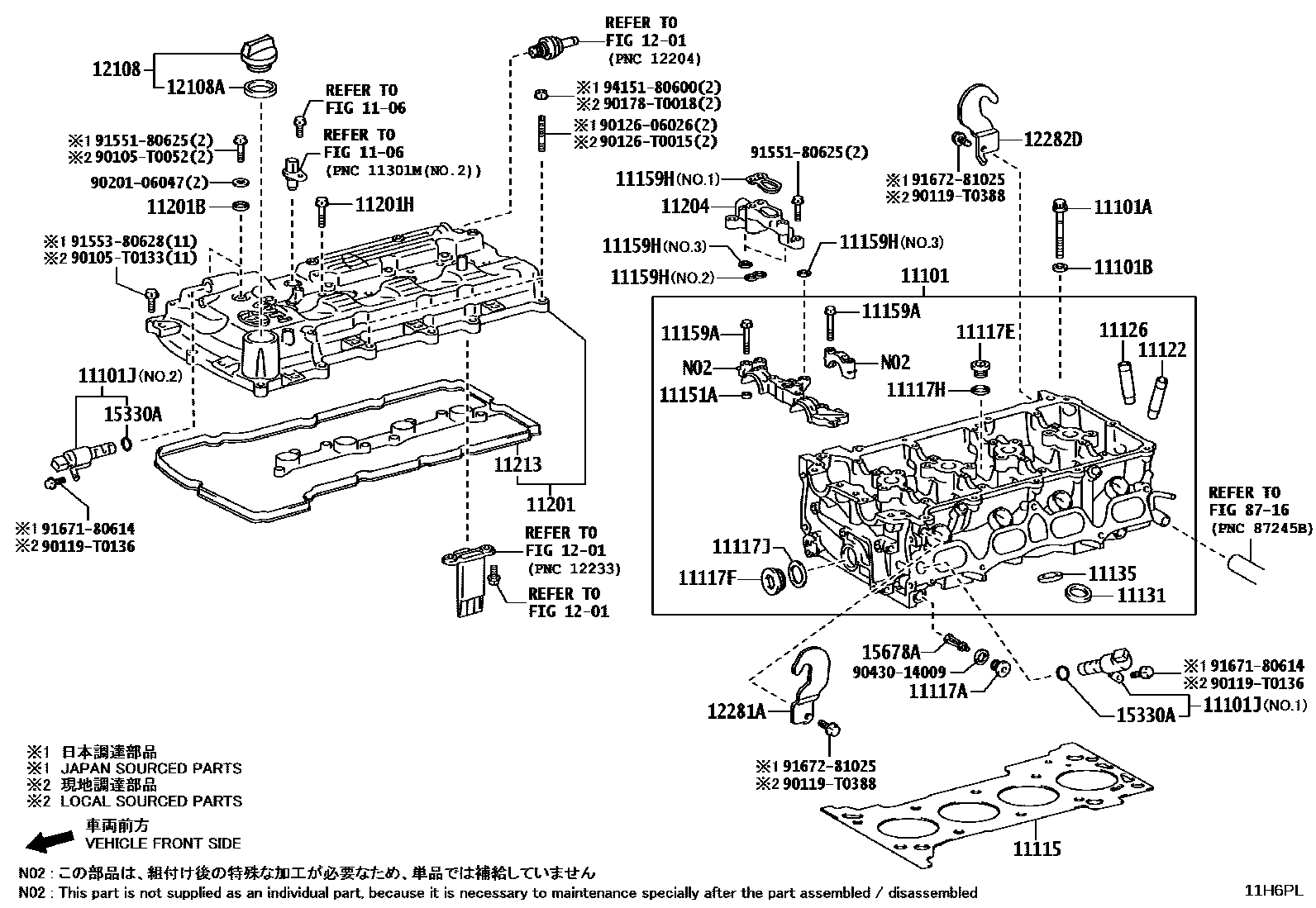

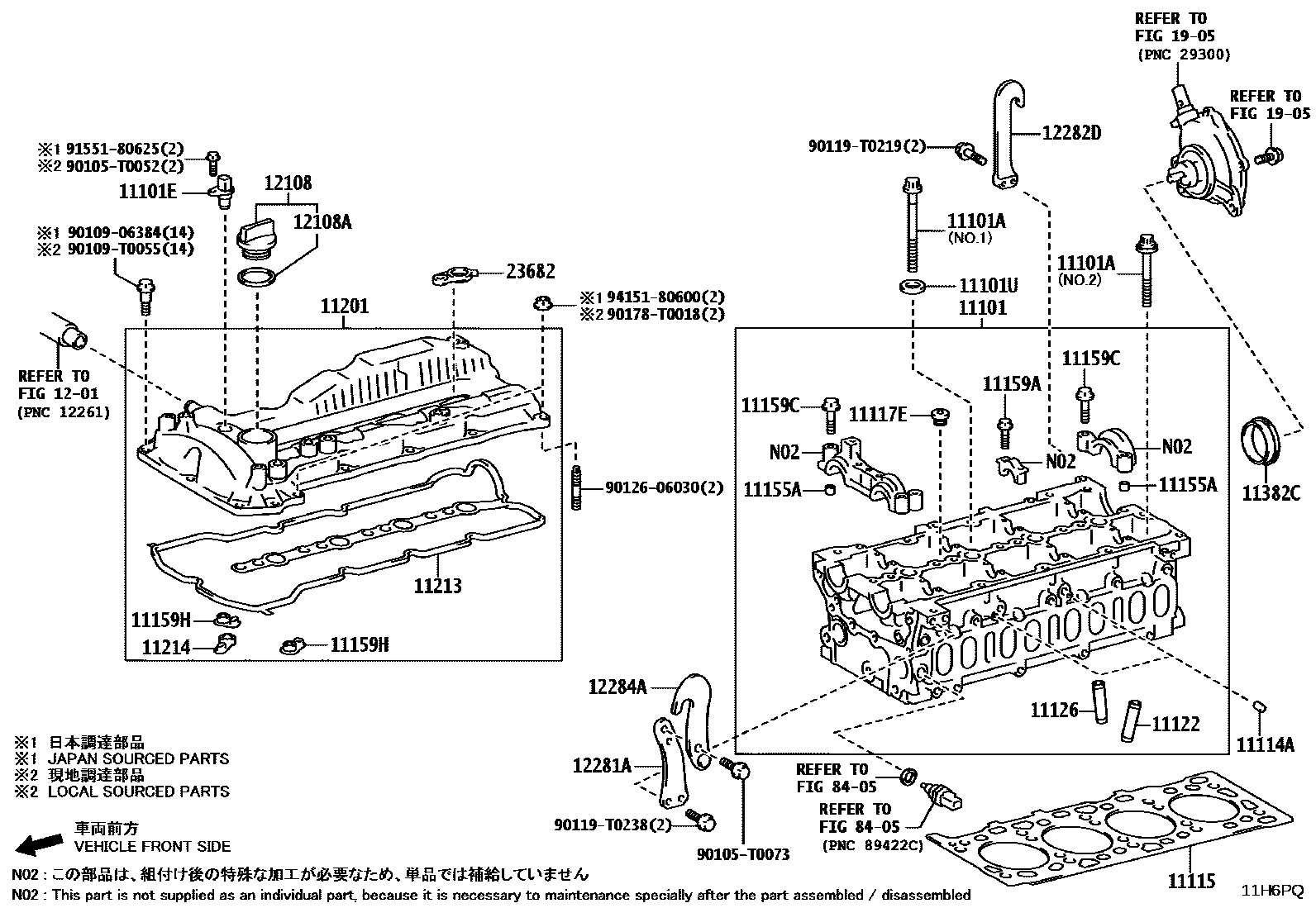

Toyota HILUX Cylinder Head — Figure 1104
Toyota HILUX EPC diagram 1104, Cylinder Head, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0C101 · 11101-0C111 · 11101-0E011 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02187 · 90910-T2010 · 90910-T2011 |
| 11101B | Flat Washer (for cylinder head assembly) | 90560-T0015 |
| 11101E | Cam position sensor | 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0C010 · 15330-0C020 |
| 11101U | SPACER (FOR CYLINDER HEAD SET BOLT) | 90560-T0026 |
| 11114A | direct selling | 90250-T0011 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0C040 · 11115-75090 |
| 11117A | No. 1 headed tapered thread plug | 90341-14013 · 90341-T0012 · 90341-T0019 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 · 90341-T0005 |
| 11117F | No. 2 headed straight thread plug | 90341-T0009 |
| 11117H | Gasket (for coolant hole) | 90430-T0010 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-32004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-30020 · 11122-75020 · 11123-30020 · 11123-75020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-30020 · 11122-75020 · 11123-30020 · 11123-75020 |
| 11131 | intake valve seat | 11131-0C030 · 11132-75130 |
| 11135 | Exhaust valve seat | 11135-0C020 · 11136-75100 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-T0004 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 · 90119-07013 · 90119-T0268 · 90119-T0551 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-T0130 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0C010 · 11159-0C020 · 11159-0E010 · 11159-75010 · 1115A-0C010 · 1115A-0C020 · 1115A-75010 · 1115B-0C010 · 1115B-0C020 · 1115B-75010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0C051 · 11201-0C061 · 11201-0E012 · 11201-75081 |
| 11201B | Gasket (for cylinder head cover) | 90210-12011 · 90210-T0001 · 90210-T0002 |
| 11201H | Bolts (for cylinder head cover) | 90105-06202 · 90105-T0110 · 91551-80650 |
| 11204 | Cylinder head cover connector sub-assembly | 11204-0C010 · 11204-0C020 · 11204-75010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0C020 · 11213-0C030 · 11213-0E010 · 11213-75050 |
| 11214 | No. 2 cylinder head cover gasket | 11214-0E010 |
| 11382C | Camshaft oil seal race | 11382-0E010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H020 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43027 · 90430-35001 |
| 12281A | Engine No. 1 hanger | 12281-0C010 · 12281-0C030 · 12281-0E010 |
| 12282D | ENGINE HANGER, NO.2 | 12281-0C010 · 12281-0C030 · 12282-0E010 |
| 12284A | ENGINE HANGER, NO.1 UPPER | 12284-0E010 |
| 12601B | No. 1 engine hood sub-assembly | 12601-08040 · 12601-0E030 |
| 12631A | hood bracket | 12631-0E010 |
| 12632 | No. 2 engine hood bracket | 12632-0E010 · 12632-0E020 · 12632-0E040 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14041 |
| 15678A | Oil control valve filter | 15678-0C010 · 15678-21010 |
| 23682 | Injector body gasket | 23682-0E010 |
