Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

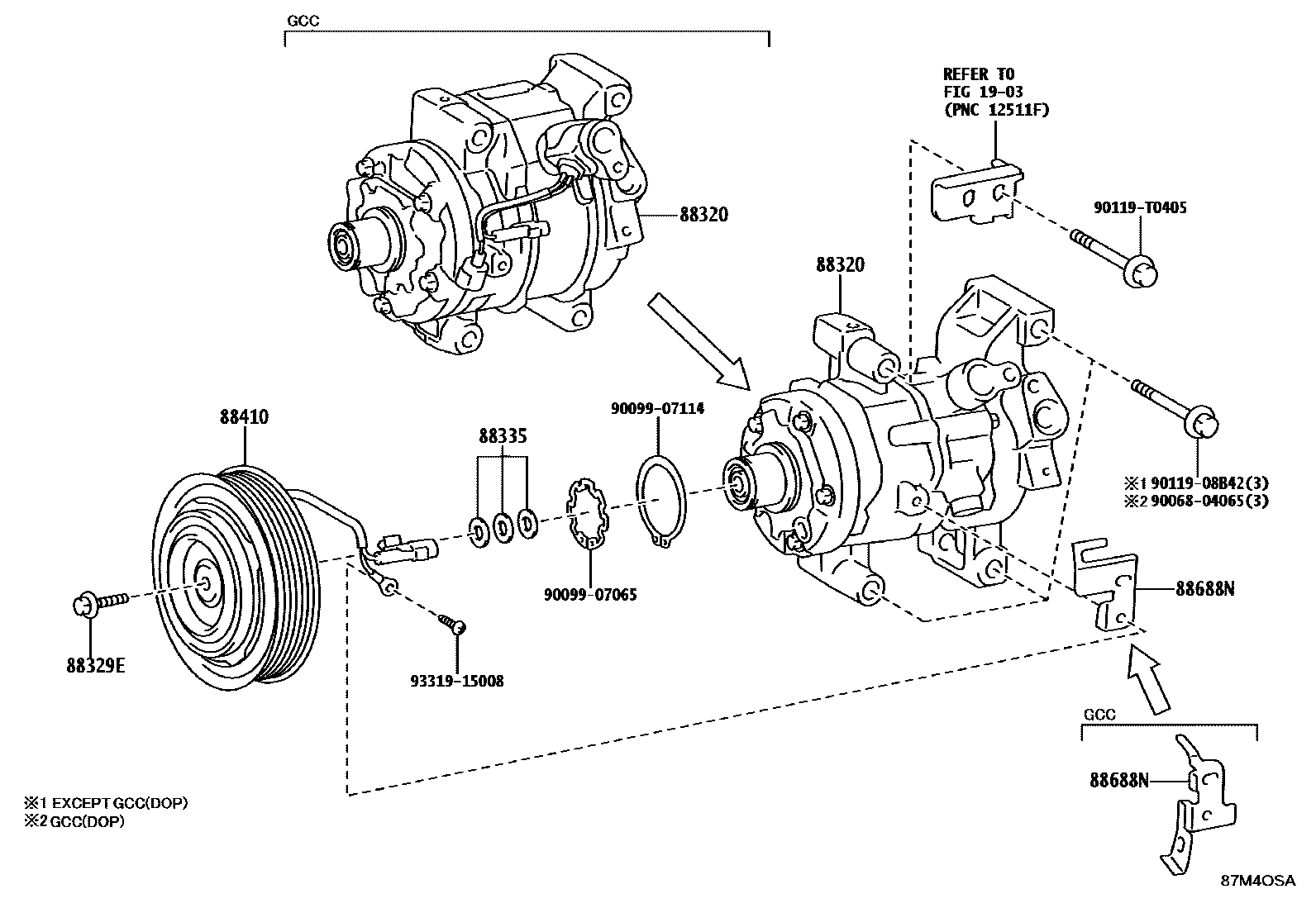

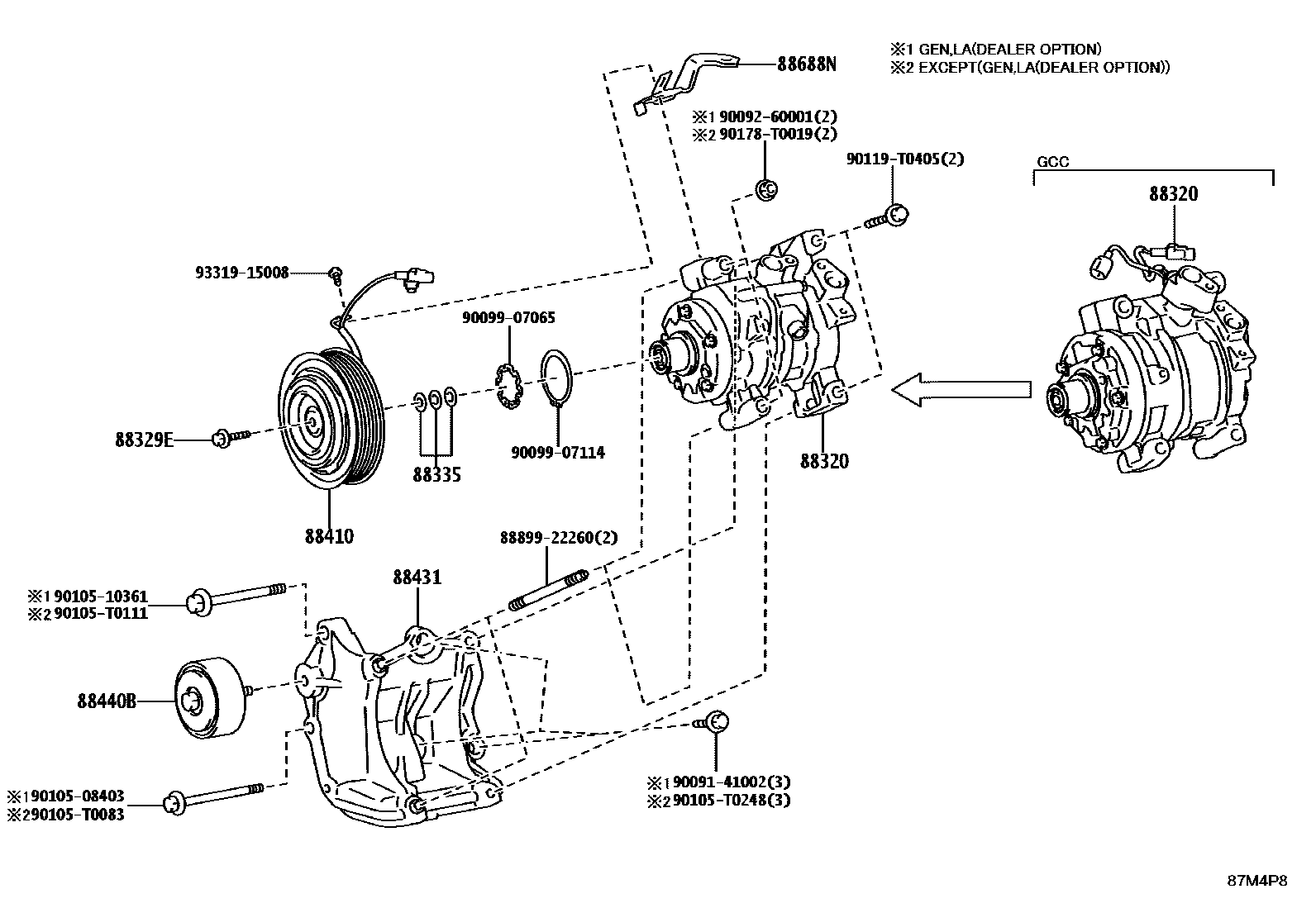

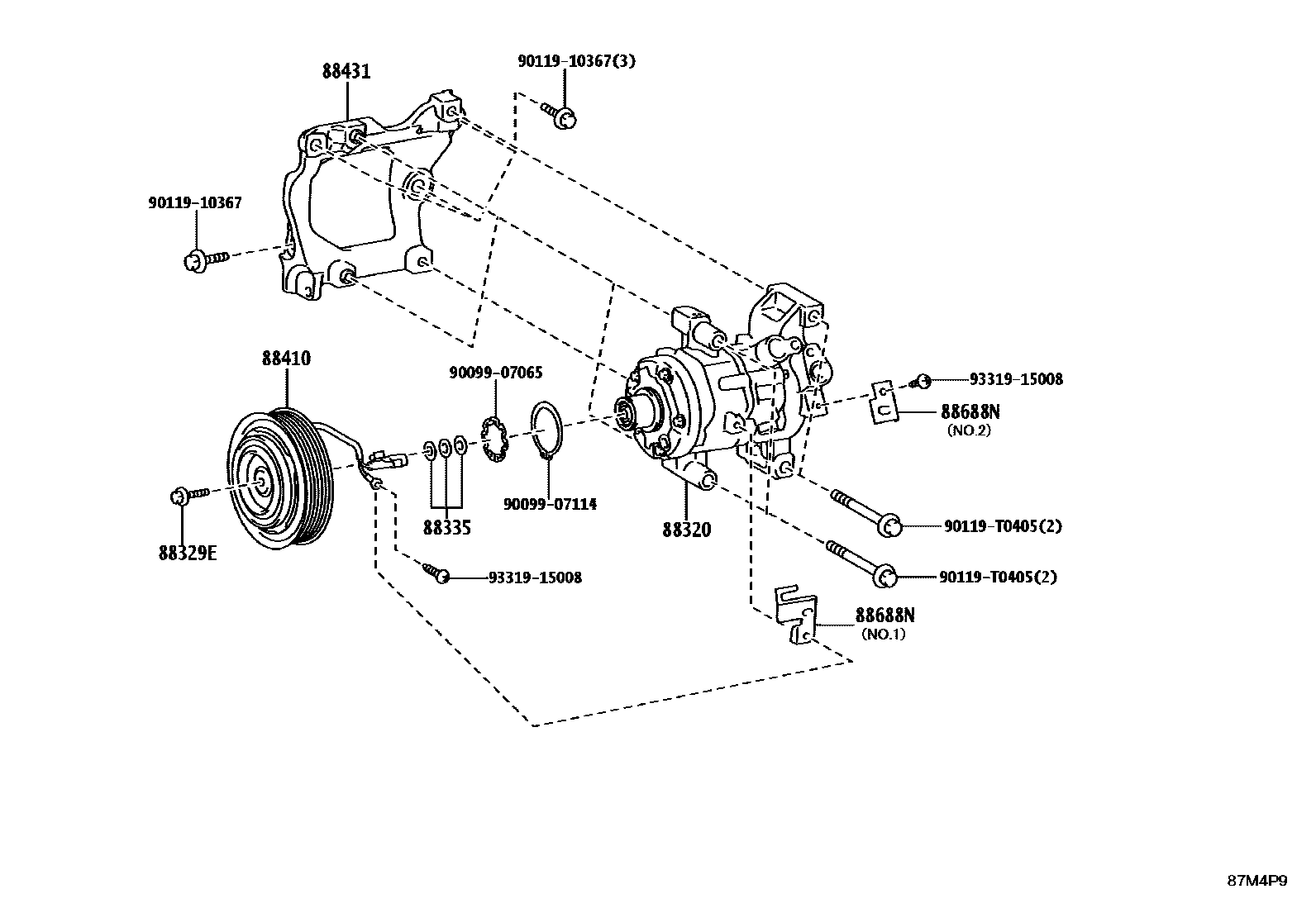

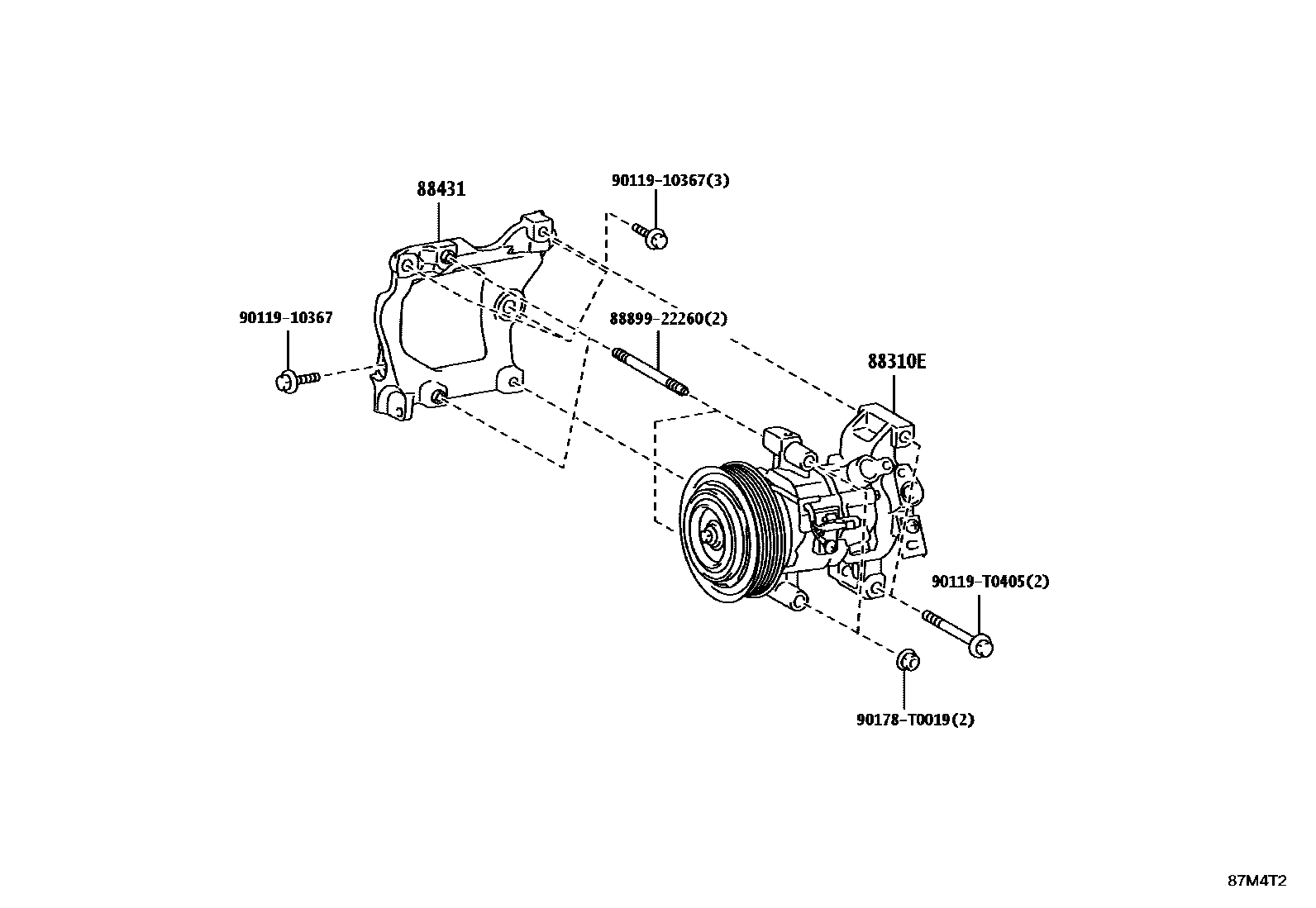

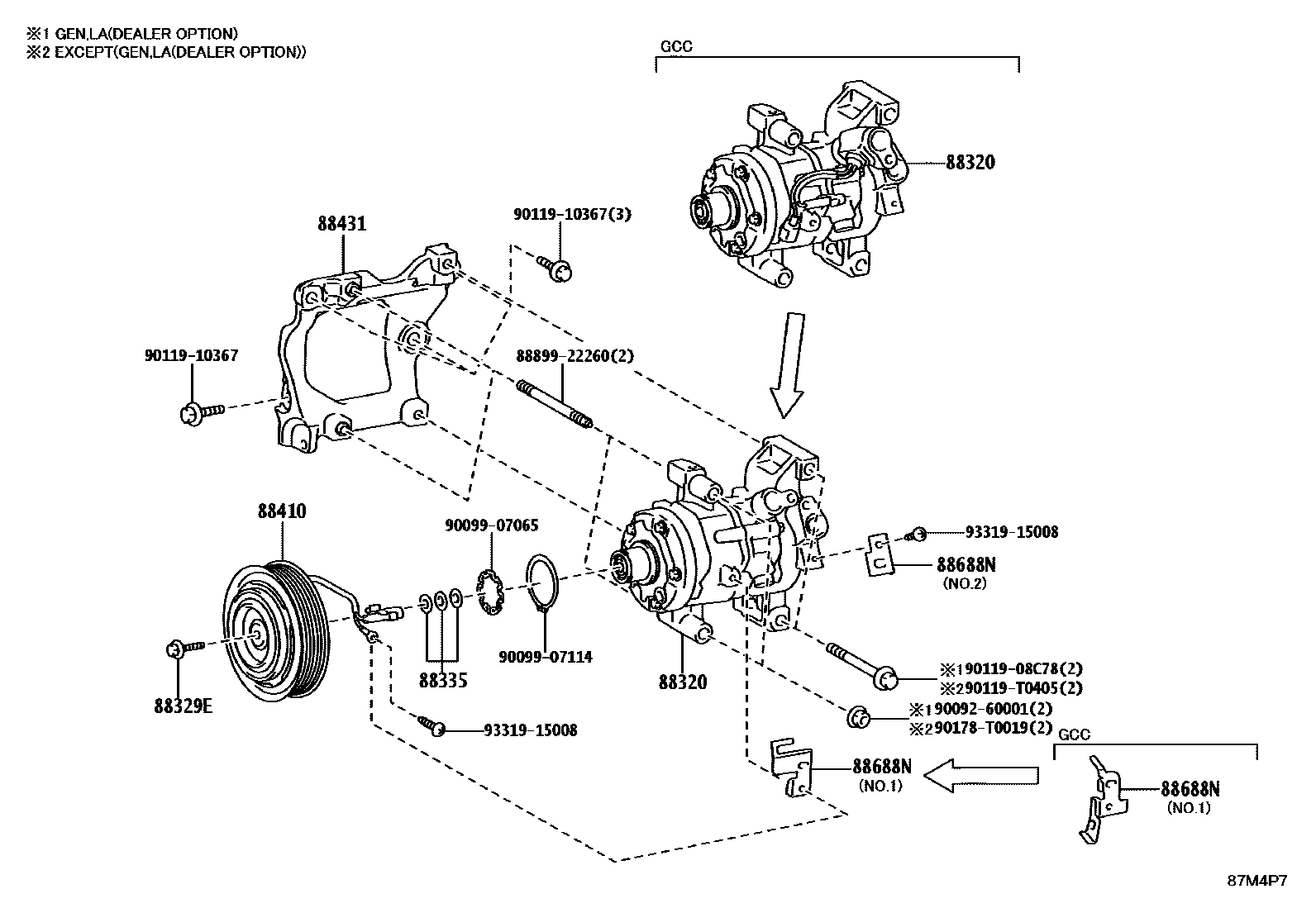

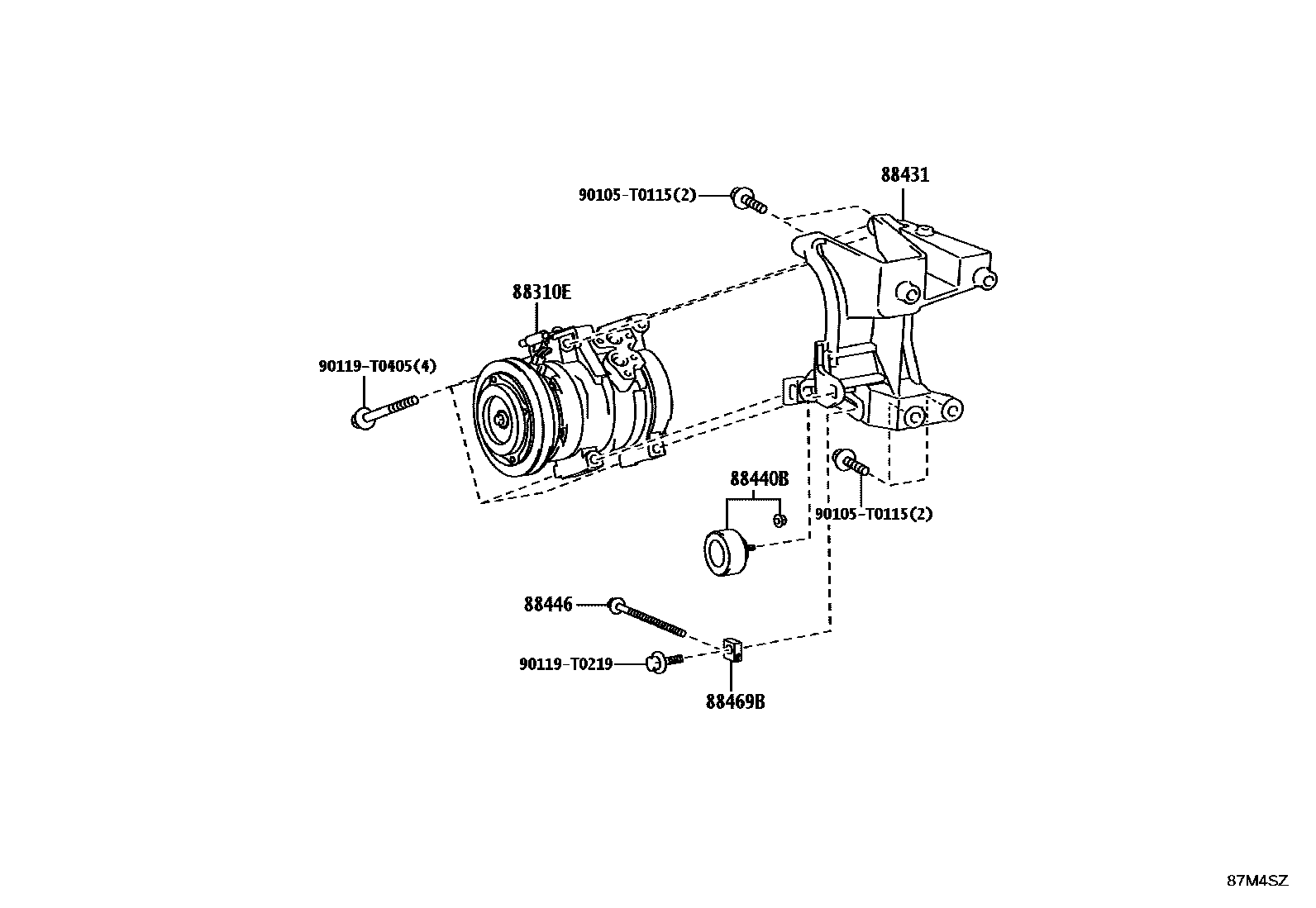

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 7 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310E | Compressor with electromagnetic clutch | 88310-0KA90 · 88310-0KB60 · 88310-0KC60 · 88310-0KD90 |
| 88320 | Cooler Compressor Assembly | 88320-0K520 · 88320-0K530 · 88320-0K550 · 88320-0K590 · 88320-0K760 |
| 88329E | No. 1 compressor bolt | 90099-04349 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-0K580 · 88410-0K600 · 88410-0K621 · 88410-0K631 · 88410-0K690 · 88410-0K760 · 88410-0K770 |
| 88431 | Compressor No. 1 mounting bracket | 88431-0K080 · 88431-0K130 · 88431-0K140 · 88431-0K150 · 88431-0K160 · 88431-0K180 · 88431-0K210 · 88431-0K220 · 88431-0K230 · 88431-0K290 |
| 88440B | Idler gear assembly | 88440-0K161 · 88440-0K261 · 88440-0K270 · 88440-0K381 |
| 88446 | Idler gear bolt | 88446-60020 |
| 88469B | collar | 88469-30280 |
| 88688N | cooler bracket | 88688-0K280 · 88849-0K010 · 88849-0K020 · 88849-0K030 |
