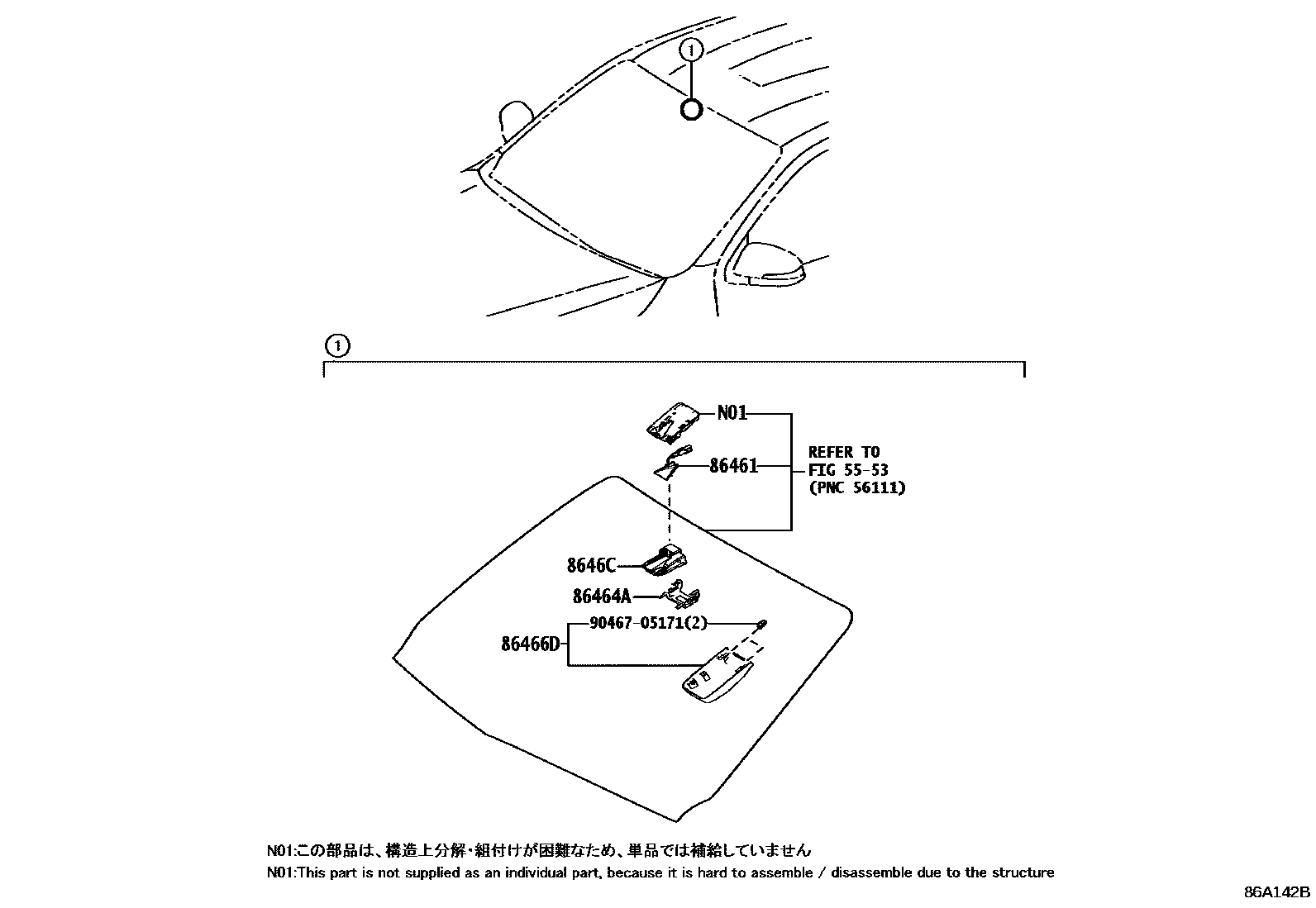

Toyota HILUX 预碰撞安全系统 — Figure 8617
Toyota HILUX EPC diagram 8617, 预碰撞安全系统, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86461 | front identification cover | 86401-71010 |
| 86464A | Front identification lock | 86464-26010 |
| 86466D | Front identification cover No. 1 | 86466-71030 |
| 8646C | front recognition camera | 8646C-71014 |
| 864D1 | CAMERA, ADAS | 864D1-YY020 |
| 864D2 | COUVERCLE, CABLE ADAS | 864D2-YY020 |
| 864D4 | SUPPORT, CAMERA ADAS | 864D4-YY020 |
