Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102

Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 26 PNC and OE references.

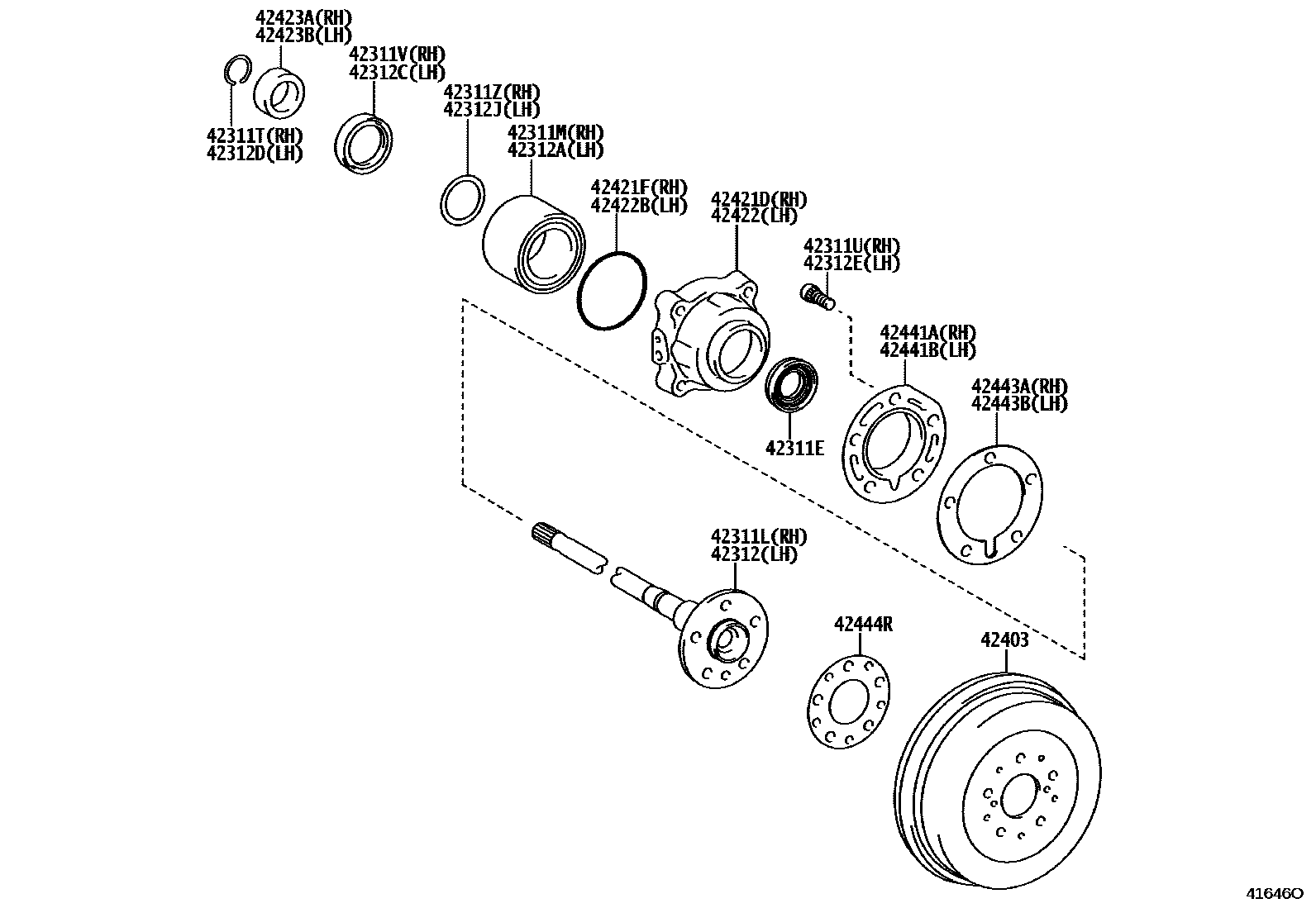

Toyota HILUX 后桥半轴和后桥轮毂 EPC diagram — 41646O
后桥半轴和后桥轮毂 — 41646O (202408 – 999999)

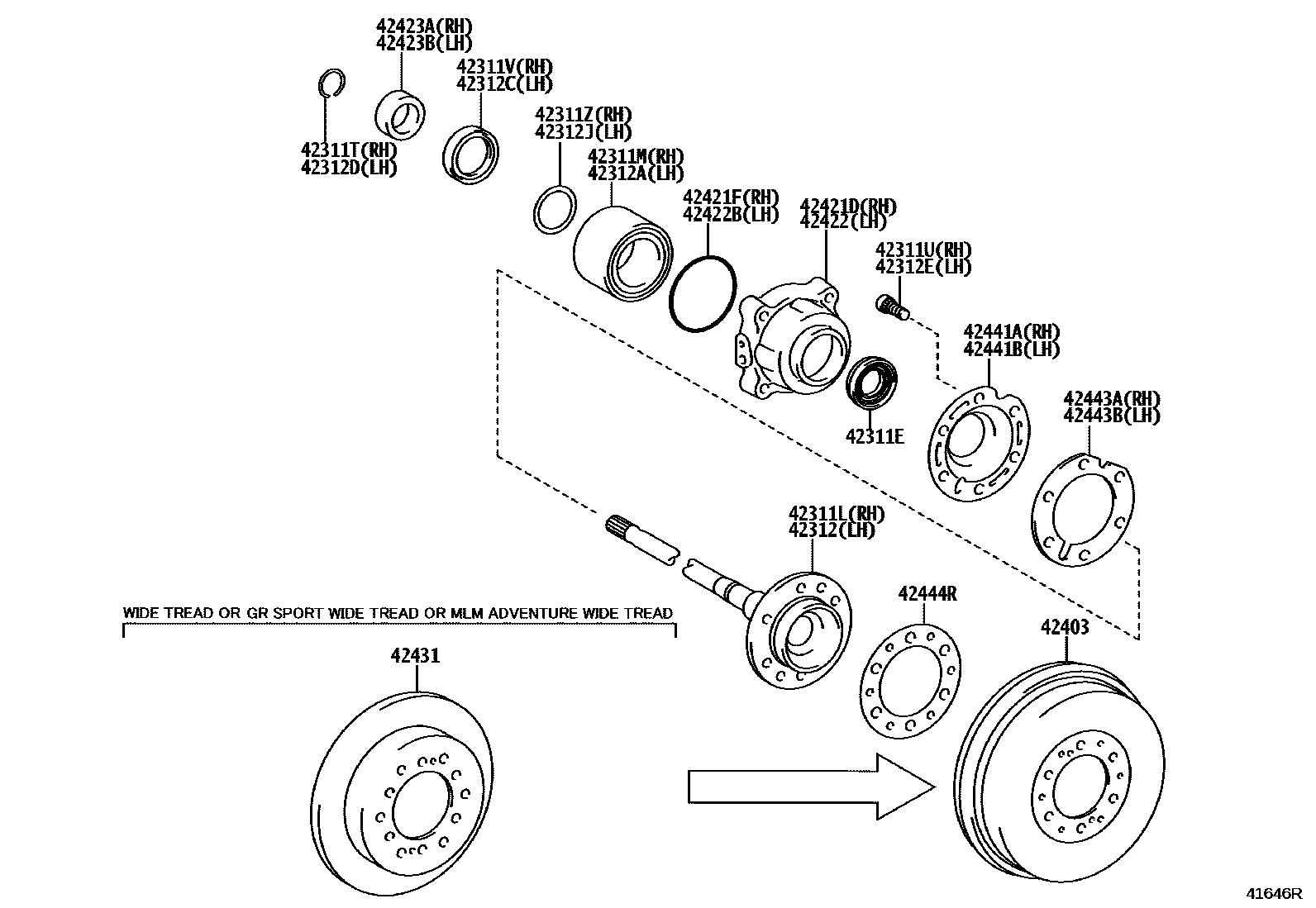

Toyota HILUX 后桥半轴和后桥轮毂 EPC diagram — 41646R
后桥半轴和后桥轮毂 — 41646R (202408 – 999999)

PNC and OE references

PNCPart nameOE numbers
42311EExternal oil seal (for rear axle half shaft)90313-T0002
42311LRear axle right half shaft42311-KK010 · 42311-KK020 · 42311-KK030 · 42311-KK040 · 42311-KK070
42311MBearing (for rear axle right half shaft)90366-F0001 · 90366-T0060
42311TSnap ring (for rear axle right half shaft)90520-T0033
42311UHub bolt (for rear axle right)90942-02052 · 90942-02081
42311VOil seal (for rear axle right half shaft)90310-T0008
42311ZWasher (for rear axle right half shaft)90208-T0001
42312Rear axle left half shaft42311-KK010 · 42311-KK020 · 42311-KK030 · 42311-KK040 · 42311-KK070
42312ABearing (for rear axle left half shaft)90366-F0001 · 90366-T0060
42312COil seal (for rear axle left half shaft)90310-T0008
42312DSnap ring (for rear axle left half shaft)90520-T0033
42312EHub bolt (for left rear axle)90942-02052 · 90942-02081
42312JWasher (for rear axle left half shaft)90208-T0001
42403Rear brake drum sub-assembly42431-0K090 · 42431-0K120 · 42431-0K180 · 42431-0K220
42421DRear axle right bearing shell42421-KK010 · 42421-KK030 · 42421-KK050
42421FO-ring (for rear axle right bearing housing)90301-T0043
42422Rear axle left bearing housing42421-KK010 · 42421-KK030 · 42422-KK050
42422BO-ring (for rear axle left bearing housing)90301-T0043
42423ARear axle right bearing inner retainer42423-KK010
42423BRear axle left bearing inner retainer42423-KK010
42431rear brake disc42431-0K230 · 42431-60311
42441ABrake drum right oil baffle42441-0K030 · 42441-KK010
42441BBrake drum left oil baffle42441-0K030 · 42441-KK010
42443ABrake drum right fender pad42443-30010 · 42443-60010
42443BBrake drum left oil deflector gasket42443-30010 · 42443-60010
42444RBrake drum gasket (for rear axle)42444-35050 · 42444-35070
